Supply Ability: | 1000 Piece/Pieces per Week; | Type: | PLC; |
Brand Name: | FATEK; | Packaging Detail: | new and original Fatek Package; |
Model Number: | FBs PLC; | Place of Origin: | Taiwan; |
Port: | Shanghai; | Payment Terms: | L/C,T/T,Western Union; |

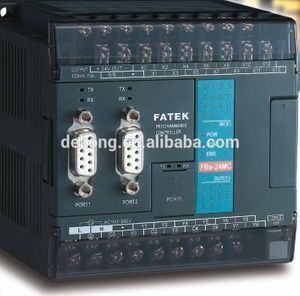

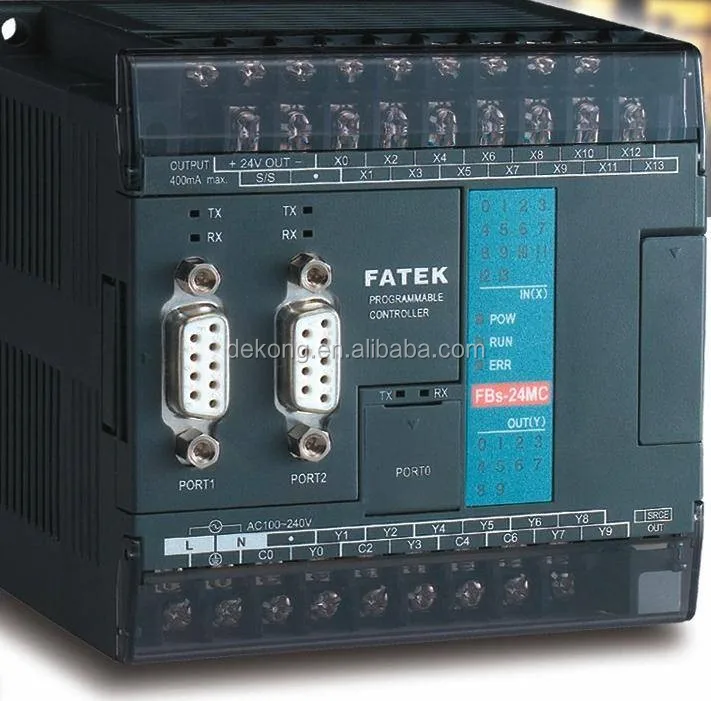

FATEK FBs PLC
The FBs-PLC’s design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBs-PLC represents high functionality and reliability with exceptional value compared to other PLC’s in its class.
Model | Specification |
1.MA Basic Main Units | |
FBs-10MAR2-AC | 6 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 points relay; 1 RS232; I/O is not expandable |
FBs-14MAR2-AC | 8 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 4 points mediumspeed total 5KHz); 6 points relay ; 1 RS232; I/O is not expandable |
FBs-20MAR2-AC | 12 points 24VDC digital input (2 points high speed 100KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 points relay; 1 RS232(expandable up to 3) |
FBs-24MAR2-AC | 14 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 points relay; 1 RS232(expandable up to 3) |
FBs-32MAR2-AC | 20 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 points relay ; 1 RS232(expandable up to 3) |
FBs-40MAR2-AC | 24 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 pointsmedium speed total 5KHz); 16 points relay; 1 RS232;(expandable up to 3) |
FBs-60MAR2-AC | 36 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 pointsmedium speed total 5KHz); 24 points relay; 1 RS232(expandable up to 3) |
FBs-10MAT2-AC | 6 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 transistor output (2 points high speed 100KHz, 2 points medium speed 20KHz); 1 RS232; I/O is not expandable |
FBs-14MAT2-AC | 8 points 24VDC digital input (2 points high speed 100KHz, 2 points medium speed 20KHz, 4 points mediumspeed total 5KHz); 6 transistor output (2 point high speed 100KHz, 4 points medium speed 20KHz); 1 RS232; I/O is not expandable |
FBs-20MAT2-AC | 12 points 24VDC digital input (2 points high speed 100KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 transistor output (2 points high speed 100KHz, 6 pointsmedium speed 20KHz); 1 RS232 (expandable up to 3) |
FBs-24MAT2-AC | 14 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232(expandable up to 3) |
FBs-32MAT2-AC | 20 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 transistor output (2 points high speed 100KHz, 6 pointsmedium speed 20KHz); 1 RS232;expandable up to 3) |
FBs-40MAT2-AC | 24 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 pointsmedium speed total 5KHz); 16 transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232(expandable up to 3) |
FBs-60MAT2-AC | 36 points 24VDC digital input (2 points high speed 100KHz, 6 points medium speed 20KHz, 8 pointsmedium speed total 5KHz); 24 transistor output (2 points high speed 100KHz, 6 points medium speed 20KHz); 1 RS232(expandable up to 3) |
2.MB Advanced Main Units | |
FBs-10MCR2-AC | 6 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 points relay ; 1 RS232 (expandable up to 5); built-in RTC; I/O is not expandable |
FBs-14MCR2-AC | 8 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 4 points medium speed total 5KHz); 6 points relay ; 1 RS232 (expandable up to 5); built-in RTC; I/O is not expandable |
FBs-20MCR2-AC | 12 points 24VDC digital input (4 points high speed 200KHz, 2 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 points relay; 1 RS232 (expandable up to 5); built-in RTC;detachable terminal block |
FBs-24MCR2-AC | 14 points 24VDC digital input (4 points high speed 200KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 points relay ; 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-32MCR2-AC | 20 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 points relay ; 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-40MCR2-AC | 24 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 16 points relay; 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-60MCR2-AC | 36 points 24VDC digital input (8 points high speed 200KHz, 8 points medium speed total 5KHz); 24 points relay ; 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-10MCT2-AC | 6 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 2 points medium speed total 5KHz); 4 transistor output (2 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 (expandable up to 5); built-in RTC; I/O is not expandable |
FBs-14MCT2-AC | 8 points 24VDC digital input (2 points high speed 200KHz, 2 points medium speed 20KHz, 4 points medium speed total 5KHz); 6 transistor output (2 points high speed 200KHz, 4 points medium speed 20KHz); 1 RS232 (expandable up to 5); built-in RTC; I/O is not expandable |
FBs-20MCT2-AC | 12 points 24VDC digital input (4 points high speed 200KHz, 2 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 transistor output (4 points high speed 200KHz, 4 points medium speed 20KHz); 1 RS232 (expandable up to 5); built-in RTC;detachable terminal block |
FBs-24MCT2-AC | 14 points 24VDC digital input (4 points high speed 200KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); 10 transistor output (4 points high speed 200KHz, 4 points medium sped 20KHz); 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-32MCT2-AC | 20 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 12 transistor output (6 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-40MCT2-AC | 24 points 24VDC digital input (6 points high speed 200KHz, 2 points medium speed 20KHz, 8 points medium speed total 5KHz); 16 transistor output (6 points high speed 200KHz, 2 points medium speed 20KHz); 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
FBs-60MCT2-AC | 36 points 24VDC digital input (8 points high speed 200KHz, 8 points medium speed total 5KHz); 24 transistor output (8 points high speed 200KHz); 1 RS232 (expandable up to 5); built-in RTC; detachable terminal block |
3. NC Positioning Main Units | |
FBs-20MNR2-AC | 2 sets (1 axis) 920KHz 5VDC digital differential input, 10 points 24VDC digital input (4 points high speed 200KHz, 6 points medium speed total 5KHz); 2 sets (1 axis) 920KHz 5VDC digital differential output, 6 points relay ; 1 RS232(expandable up to 5); built-in RTC; detachable terminal block |
FBs-32MNR2-AC | 4 sets (2 axes) 920KHz 5VDC digital differential input, 16 points 24VDC digital input (4 points high speed 200KHz, 8 points medium speed total 5KHz); 4 sets (2 axes) 920KHz 5VDC digital differential output, 8 points relay; 1 RS232(expandable up to 5); built-in RTC; detachable terminal block |
FBs-44MNR2-AC | 8 sets (4 axes) 920KHz 5VDC digital differential input, 20 points 24VDC digital input (8 points medium speed total 5KHz); 8 sets (4 axes)920KHz 5VDC digital differential output, 8 points relay; 1 RS232(expandable up to 5); built-in RTC;detachable terminal block |
FBs-20MNT2-AC | 2 sets (1 axis) 920KHz 5VDC digital differential input, 10 points 24VDC digital input (4 points high speed 200KHz, 6 points medium speed total 5KHz); 2 sets (1 axis) 920KHz 5VDC digital differential output, 6 transistor output (average high speed 200KHz); 1 RS232(expandable up to 5); built-in RTC; detachable terminal block |
FBs-32MNT2-AC | 4 sets (2 axes) 920KHz 5VDC digital differential input, 16 points 24VDC digital input (4 points high speed 200KHz, 8 points medium speed total 5KHz); 4 sets (2 axes) 920KHz 5VDC digital differential output, 8 transistor output (4 points high speed 200KHz); 1 RS232(expandable up to 5); built-in RTC; detachable terminal block |
FBs-44MNT2-AC | 8 sets (4 axes) 920KHz 5VDC digital differential input, 20 points 24VDC digital input (8 points medium speed total 5KHz); 8 sets (4 axes)920KHz 5VDC digital differential output, 8 low speed transistor output; 1 RS232(expandable up to 5); built-in RTC;detachable terminal block |
4.DIO Expansion Units | |
FBs-24XYR-AC | 14 points 24VDC digital input, 10 points relay output, built-in power supply |
FBs-40XYR-AC | 24 points 24VDC digital input, 16 points relay output, built-in power supply |
FBs-60XYR-AC | 36 points 24VDC digital input, 24 points relay output, built-in power supply |
FBs-24XYT-AC | 14 points 24VDC digital input, 10 pointstransistor output, built-in power supply |
FBs-40XYT-AC | 24 points 24VDC digital input, 16 pointstransistor output, built-in power supply |
FBs-60XYT-AC | 36 points 24VDC digital input, 24 pointstransistor output, built-in power supply |
5.DIO Expansion Modules | |
FBs-8XYR | 4 points 24VDC digital input, 4 points relay output |
FBs-8X | 8 points 24 VDC digital input |
FBs-8YR | 8 points relay output |
FBs-16XYR | 8 points 24VDC digital input, 8 points relay output |
FBs-16YR | 16 points relay output |
FBs-20X | 20 points 24VDC digital input |
FBs-24XYR | 14 points 24VDC digital input, 10 points relay output |
FBs-24X | 24 points high-density 24VDC digital input, 30 pins header with latch |
FBs-40XYR | 24 points 24VDC digital input, 16 points relay output |
FBs-60XYR | 36 points 24VDD digital input, 24 points relay output |
FBs-8XYT | 4 points 24VDC digital input, 4 pointstransistor output |
FBs-8YT | 8 pointstransistor output |
FBs-16XYT | 8 points 24VDC digital input, 8 pointstransistor output |
FBs-16YT | 16 pointstransistor output |
FBs-24YT | 24 points high-density transistor SINK(T) output (0.1A max.), 30 pins header with latch |
FBs-24XYT | 14 points 24VDC digital input, 10 pointstransistor output |
FBs-40XYT | 24 points 24VDC digital input, 16 pointstransistor output |
FBs-60XYT | 36 points 24VDD digital input, 24 pointstransistor output |
6.AIO Modules | |
FBs-2DA | 2 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
FBs-4DA | 4 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
FBs-4A2D | 4 channels, 14-bit analog input (same specification as 6AD)+2 channels, 14-bit analog output (same specification as 2DA) combo module |
FBs-6AD | 6 channels, 14-bit analog input module (-10~10V, 0~10V or -20~20mA, 0~20mA) |
FBs-2A4RTD | 2 channels, 14-bit analog input (same specifications as 6AD) + 4 channels RTD temperature input (same specifications as 6RTD)combo module |
FBs-2A4TC | 2 channels, 14-bit analog input (same specifications as 6AD)+ 4 channels thermocouple temperature input (same specifications as 6TC) combo module |
FBs-2TC | 2 channels, thermocouple temperature input module with 0.1°C resolution. |
FBs-6TC | 6 channels, thermocouple temperature input module with 0.1°C resolution. |
FBs-6RTD | 6 channels, RTD temperature input module with 0.1°C resolution. |
FBs-16TC | 16 channels, thermocouple temperature input module with 0.1°C resolution. |
FBs-16RTD | 16 channels, RTD temperature input module with 0.1°C resolution. |
FBs-4PT | 4 channels, 14-bit potential meter input module (Impedance range: 1~10K |
FBs-6NTC | 6 channels, NTC temperature input module with 0.1°C resolution. |
7.AIO Borad | |
FBs-B2DA | 2 channels, 12-bit analog output board (0~10V or 0~20mA) |
FBs-B2A1D | 2 channels, 12-bit analog input + 1 channel, 12-bit analog output combo analog board (0~10V or 0~20mA) |
FBs-B4AD | 4 channels, 12-bit analog input board (0~10V or 0~20mA) |
FBs-BDAP | Board type Data Access Panel |
FBs-BPEP | Board type Parameter Entry Panel |
FBs-PEP | Multi characters with graphics-based Parameter Entry Panel, built-in RFID Read |
8. Special Modules | |
FBs-7SG1 | 1 set 8 digits 7-segment/4 digits 16-segment LED display (or 64 points independent LED) output display module, 16 pins header connector |
FBs-7SG2 | 2 sets 8 digits 7-segment/4 digits 16-segment LED display (or 128 points independent LED) output display module, 16 pins header connector |
FBs-32DGI | 8 sets 4 digits (total 32 digits) thumbwheel switch (or 128 points independent switch) multiplex input module, 30 pins header connector |
9 Communication Modules | |
FBs-CM22 | 2 ports RS232 (Port3 +Port 4) communication module |
FBs-CM55 | 2 ports RS485 (Port3 +Port 4) communication module |
FBs-CM25 | 1 port RS232 (Port3) + 1 port RS485 (port 4) communication module |
FBs-CM25E | 1 port RS232 (Port3) + 1 port RS485 (port 4) + Ethernet network interface communication module |
FBs-CM55E | 1 port RS485 (Port3) + 1 port RS485 (port 4) + Ethernet network interface communication module |
FBs-CM5H | General purpose 4 ports RS485 HUB with photocouple isolation, RS485 can be connected as star connection |
FBs-CM25C | General purpose RS232 to RS485/RS422 communication interface converter with photocouple isolation |
FBs-CM5R | General purpose RS485 repeater with photocouple isolation |
10.Communication Boards | |
FBs-CB2 | 1 port RS232 (Port 2) communication board |
FBs-CB5 | 1 port RS485 (Port 2) communication board |
FBs-CB22 | 2 ports RS232 (Port 1+ Port 2) communication board |
FBs-CB25 | 1 port RS232 (Port 1) + 1 port RS485 (Port 2) communication boar |
FBs-CB55 | 2 ports RS485 (Port 1+ Port 2) communication board |
FBs-CBE | 1 port 10 Base T Ethernet communication board |
FBs-CBEH | 1 port 100 Base T Ethernet communication board |
FBs-30GM | FBs-30GM 3-Axis with linear and circular interpolation advanced motional control module, 3 sets of 200KHz high speed pulse input, 3 sets of 500KHz high speed pulse output, 14 points main unit, 16M Bytes program capacity, 20K Words retentive file register, built-in RS485 and Ethernet, 7.62mm detachable terminal block |
11.Simple HMI&RFID Card | |
FBs-DAP-B | 16 X 2 LCD character display, 20 keys keyboard, 24VDC power supply, RS485 comm. port, built-in RFID Read |
FBs-DAP-BR | 16 X 2 LCD character display, 20 keys keyboard, 24VDC power supply, RS485 comm. port,Write module with BR |
FBs-DAP-C | 16 X 2 LCD character display, 20 keys keyboard, 5VDC power supply, RS232 comm. port, built-in RFID Read |
FBs-DAP-CR | 16 X 2 LCD character display, 20 keys keyboard, 5VDC power supply, RS232 comm. port, Write module with CR |
CARD-H | Read / Write wireless card (for FBs-DAP-BR/CR and FBs-PEPR) |
12.Handheld Programming Panel | |
FP-08 | FBs- Series PLC handheld programmer |
13.LED Display | |
DBAN.8-4R | 0.8" 4-digit 16-segment LED display, n means R(Red) 16-segment LED characters display installed, can be 1~4 |
DBAN2.3-4R | 2.3" 4-digit 16-segment LED display, n means R(Red) 16-segment LED characters display installed, can be 1~4 |
14.Parts | |
FBs-TBOX | 46cm x 32 cm x 16cm suitcase, containing FBs-24MCT main unit. FBs-CM25E communication module (RS232 + RS485 + Ethernet network), 14 simulated input switches, 10 external relay output, Doctor terminal outlet I/O, peripherals such as stepping motor,encoder, 7-segment display, 10 of 10mm LED indicator, thumbwheel switch, and 16 key keyboard. |
FBs-PACK | FBs-PLC program memory pack with 20K Words program, 20K Words register, write protection switch |
FBs-PWMDA | 10-bit single channel pulse width modulation(PWM) 0~10V analog output (AO) module |
FBs-232P0-9F-150 | MD4M to DB9F communication cable (FBs main unit Port 0 RS232 connect to standard DB9M), length 150cm |
FBs-232P0-9M-400 | MD4M to DB9M communication cable (FBs main unit Port 0 RS232 connect to DB9F), length 400cm |
FBs-U2C-MD-180 | Communication converter cable with standard USB AM connector to RS232 MD4M connector (used in standard PC USB to FBs main unit Port 0 RS232), length 180cm |
15.FV Downlaod cable | |
HD30-22AWG-200 | High density modules(FBs-24X, FBs-24YT/J, FBs-32DGI) connector 30pin Socket, 22AWG I/O cable length200cm |
16. New model | |
FBs-VOM | Built-in 1MB memory (play continuously up to 2 minutes), extendable 4GB SD card(play continuously up to 8,000 minutes) voice module, 245 messages, output 2W |
FBs-1LC | 1 channel, load cell measurement module with 16-bit resolution (including sign bit) |
FBs-2LC | Dual-Channel, load cell measurement module with 16-bit resolution (including sign bit) |
FBs-1HLC | 1 channel, high precision weighing control module with 24-bit resolution |
FATEK FBs PLC
