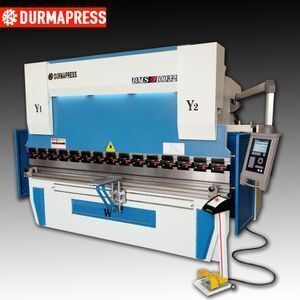

100 Ton hydraulic nc press break, steel plate brake press ,wc67ky hydraulic bending machine

1. Main Features:
Brand-new industry design combined with modern aesthetic concept, high-quality production technology with simple appearance.
Latest high-frequency responding hydraulic control technology, faster, more efficient and higher accuracy.
Heat treatment of the machine frame, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series Press Brakes.
Optimal ratio of parameters and top-level core configuration ensure stable performance, and easy operation.
MB8 standard 2axis backgauge system, as for complicated shape work piece, 4 or 5 axis backgauge system and corresponding dies are available for your option.
Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2 ) running on the same frequency, maintaining the parallel state of the worktable.
According to process state of sheet metal, CNC system can automatically control the table deflection compensation value resulting in uniform length and angle of all workpieces.

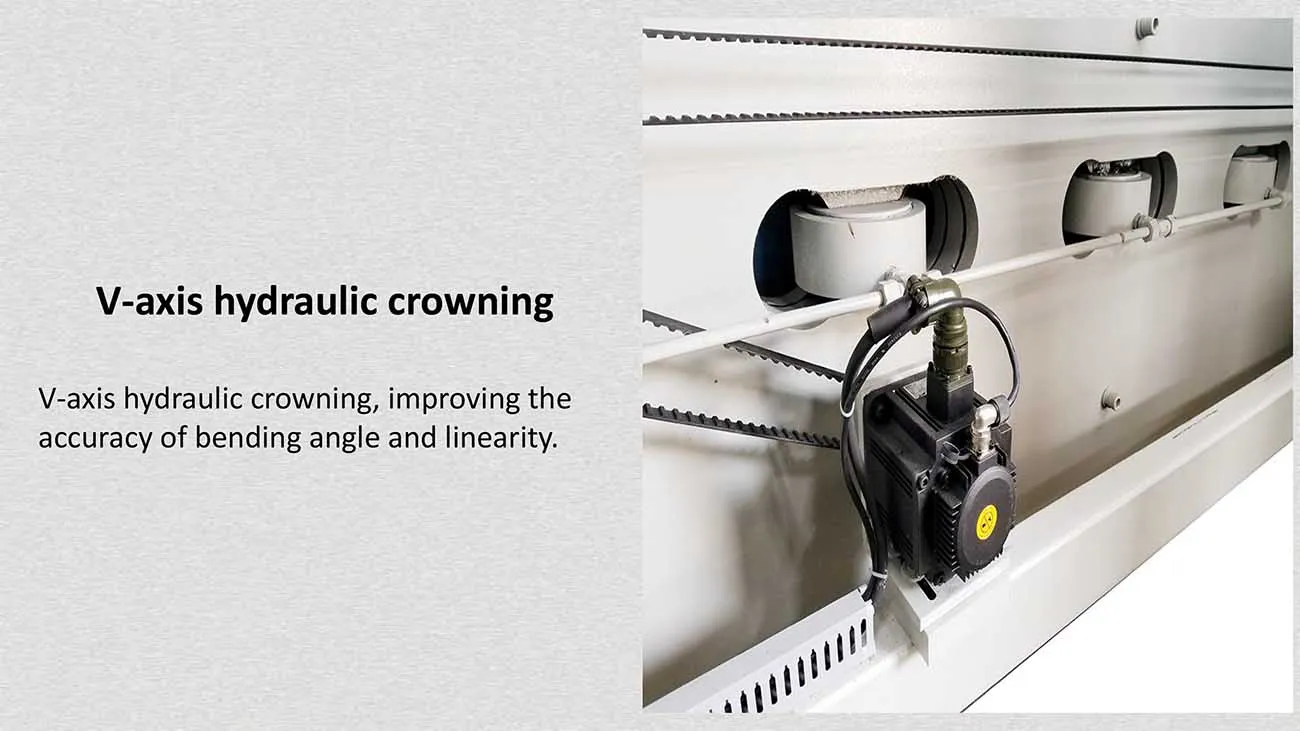

The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders in the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.

2 Main Configurations:
CNC system adopts Holland DELEM DA52S
Grating ruler controls depth of Y1 and Y2 axis(y1/y2-axis 0.01mm)

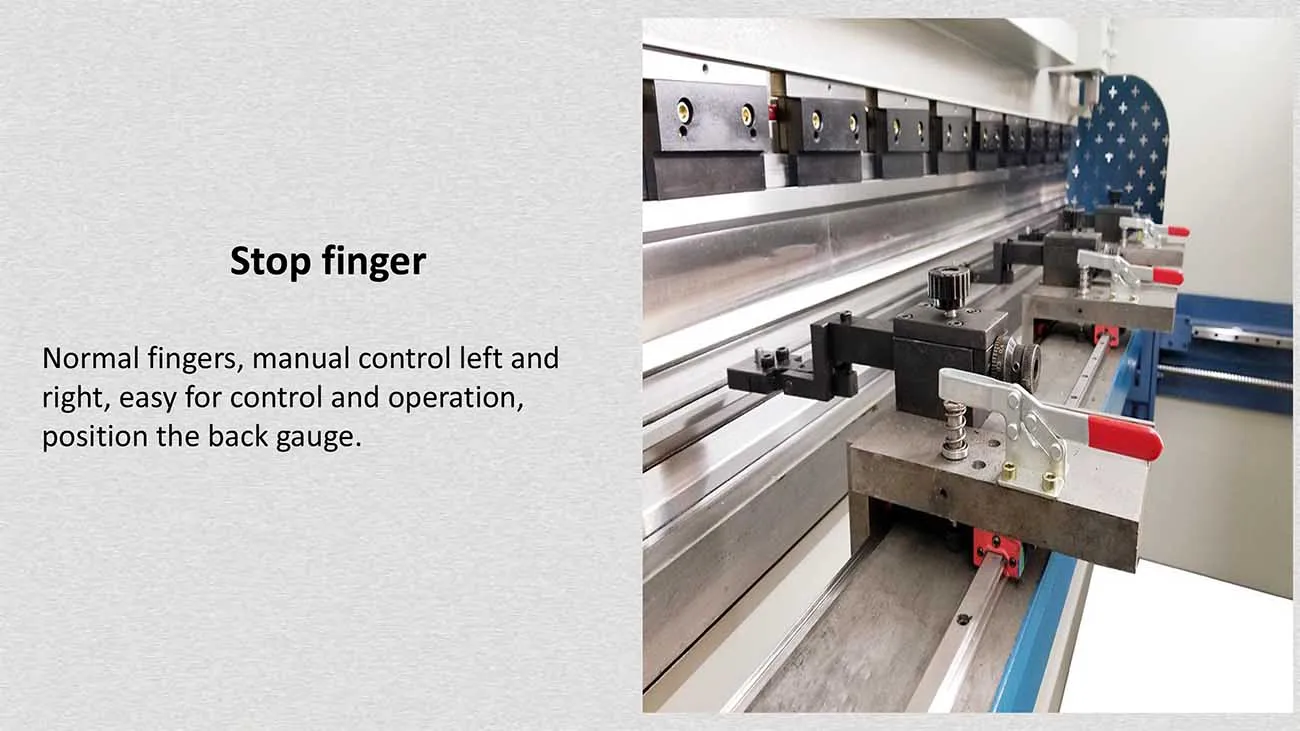

Servo motor servo drives control X axis(X, R-axis 0.01mm), stop finger can be easily moved along the cylindrical guide.

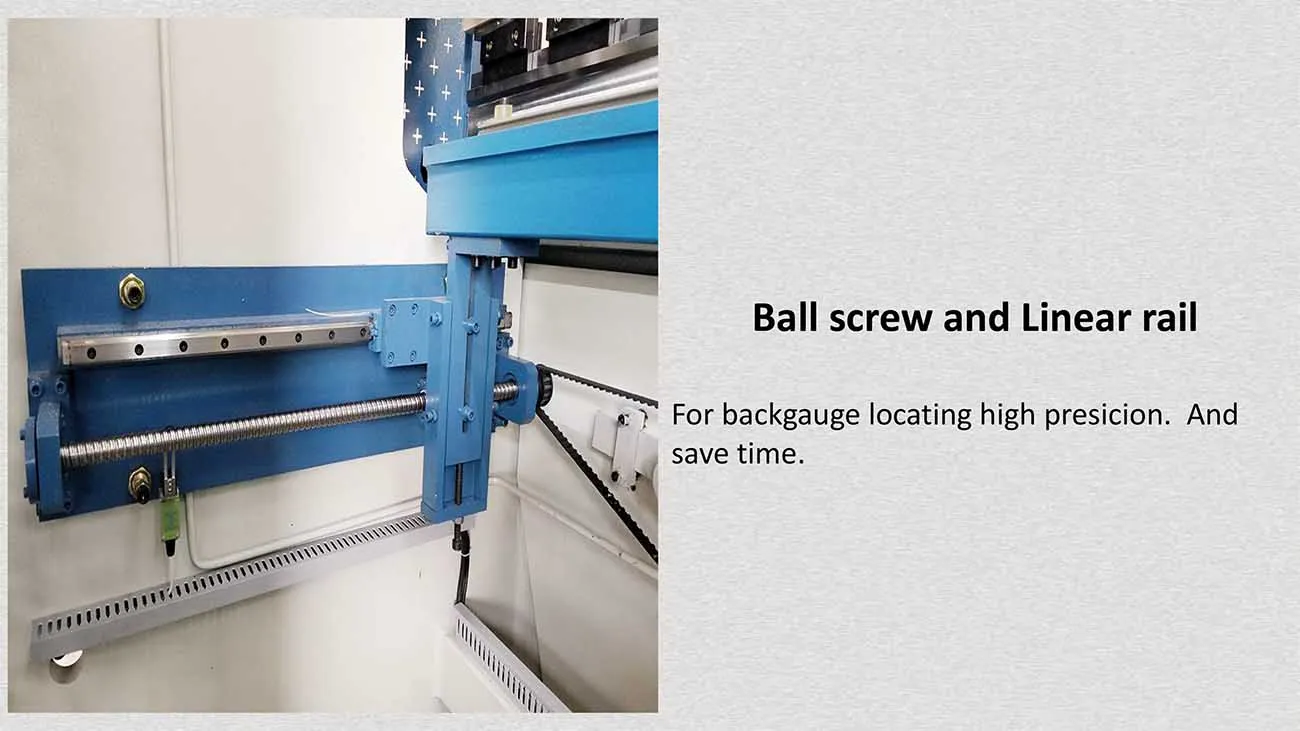

Keep the accuracy between HIWIN ball screw and linear guide rail within 0.01mm

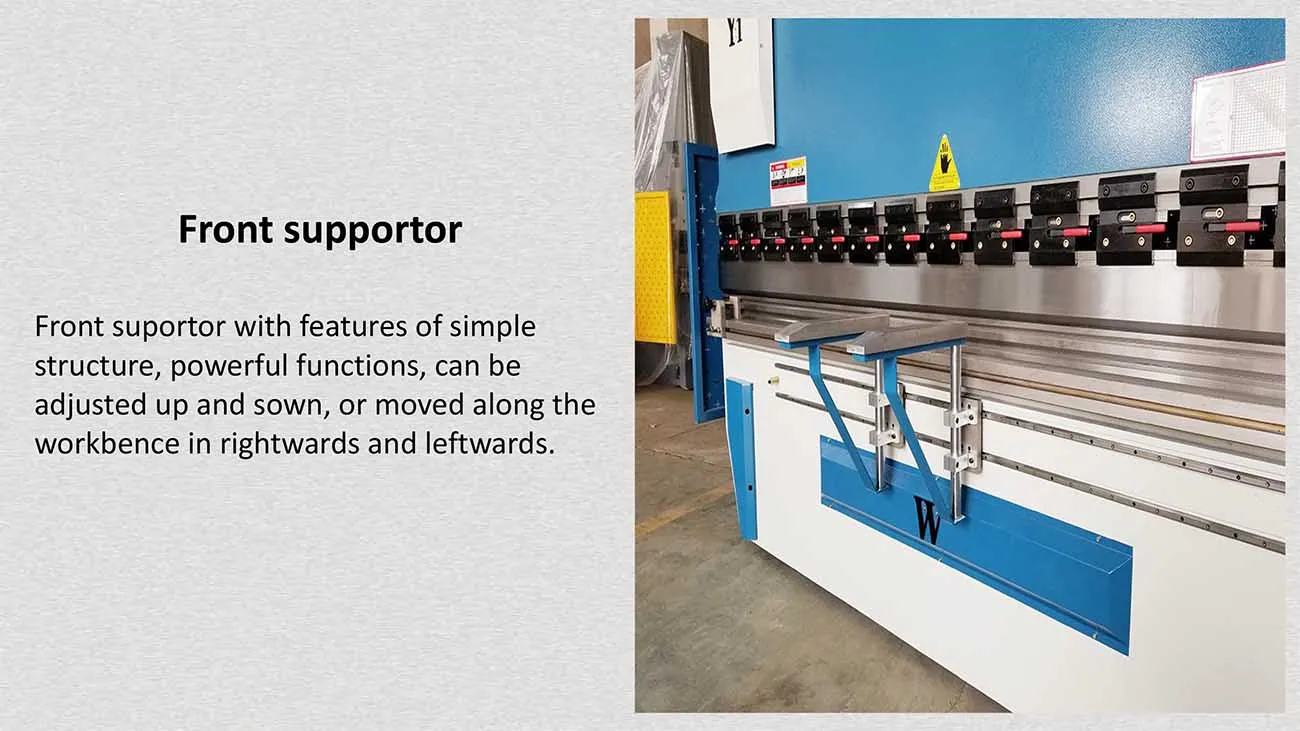

Front supporter can be adjusted along the linear guide rail in the worktable direction
Germany Rexroth fully closed-loop electro-hydraulic servo synchronously controls the system
Germany EMB oil tube connectors

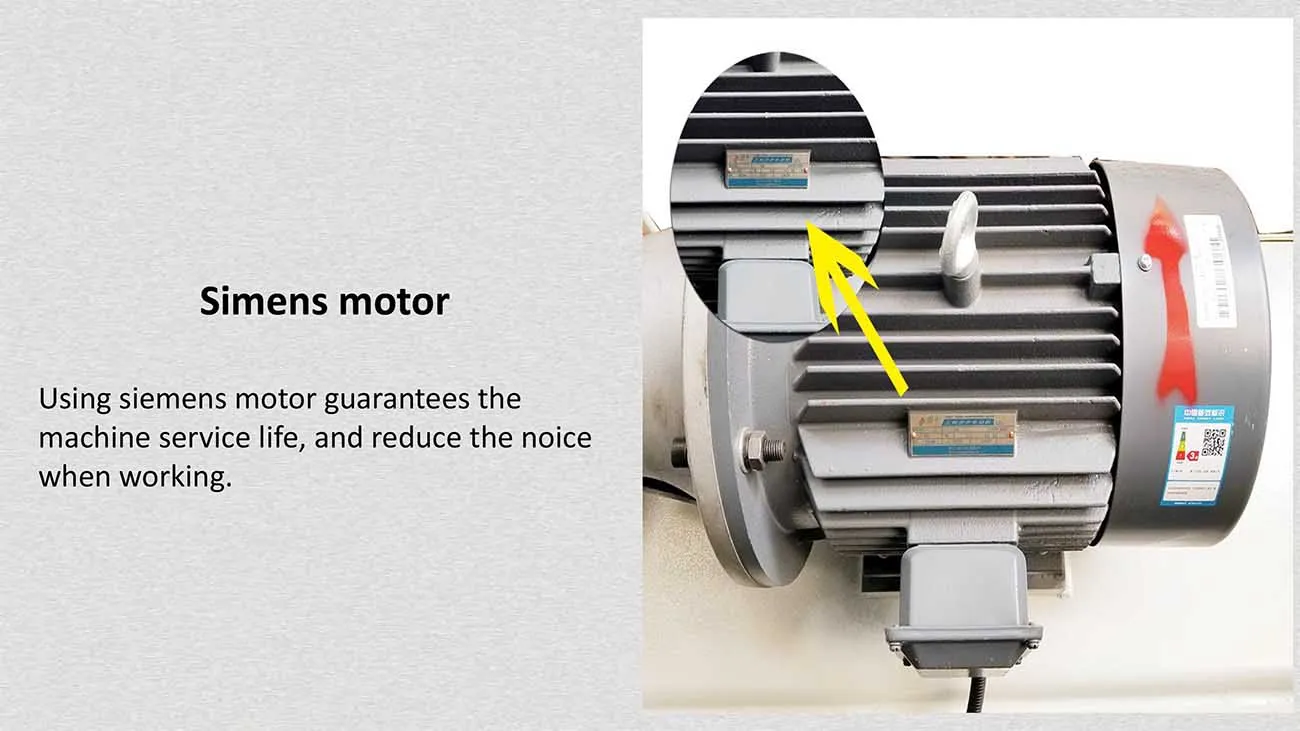

Germany Siemens main motor

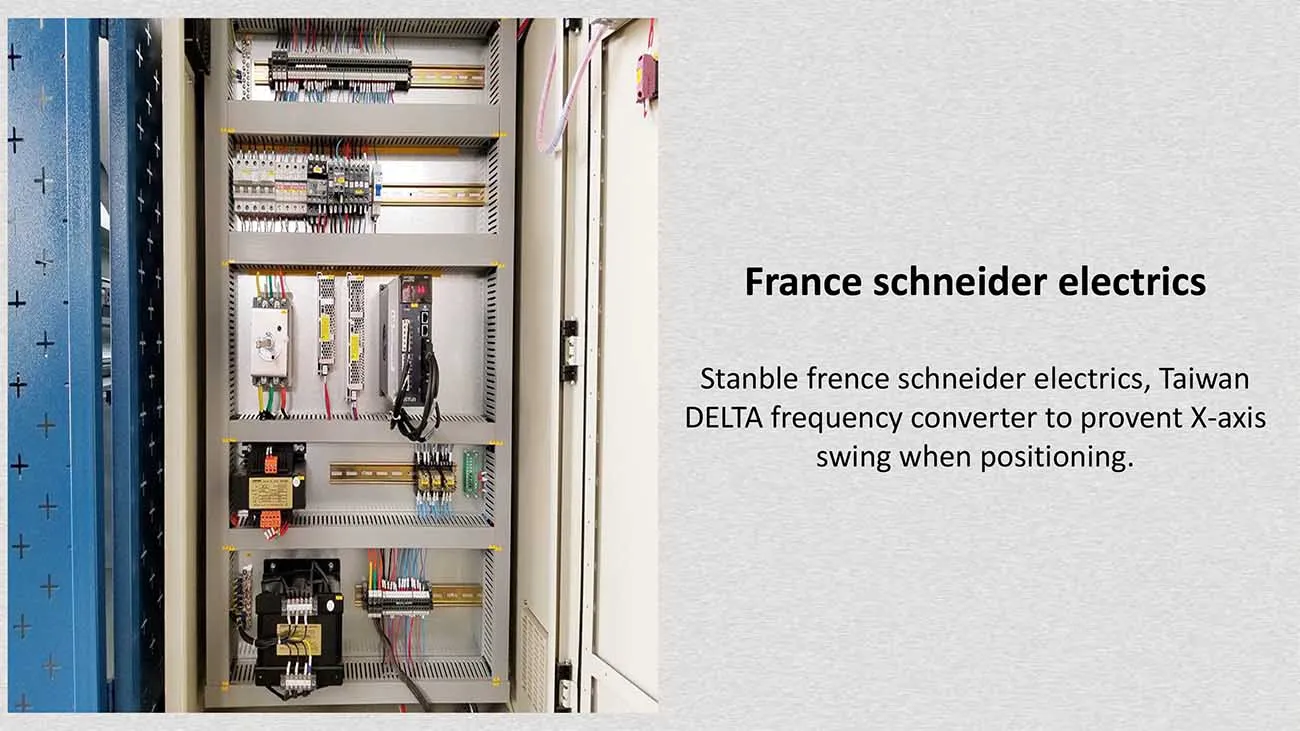

France Schneider Electrics
Hydraulic and electrical overload protection

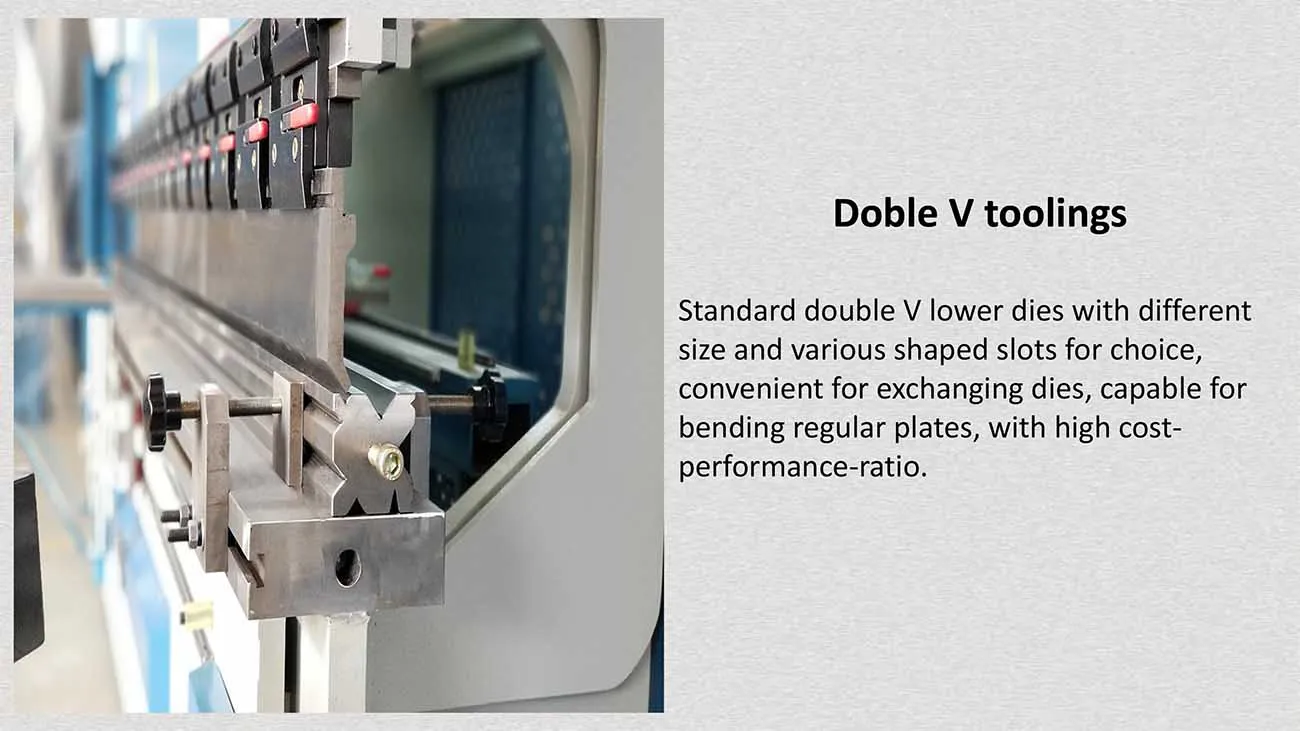

Upper are mechanical fast pinching dies. Lower are double-V easy changeable dies

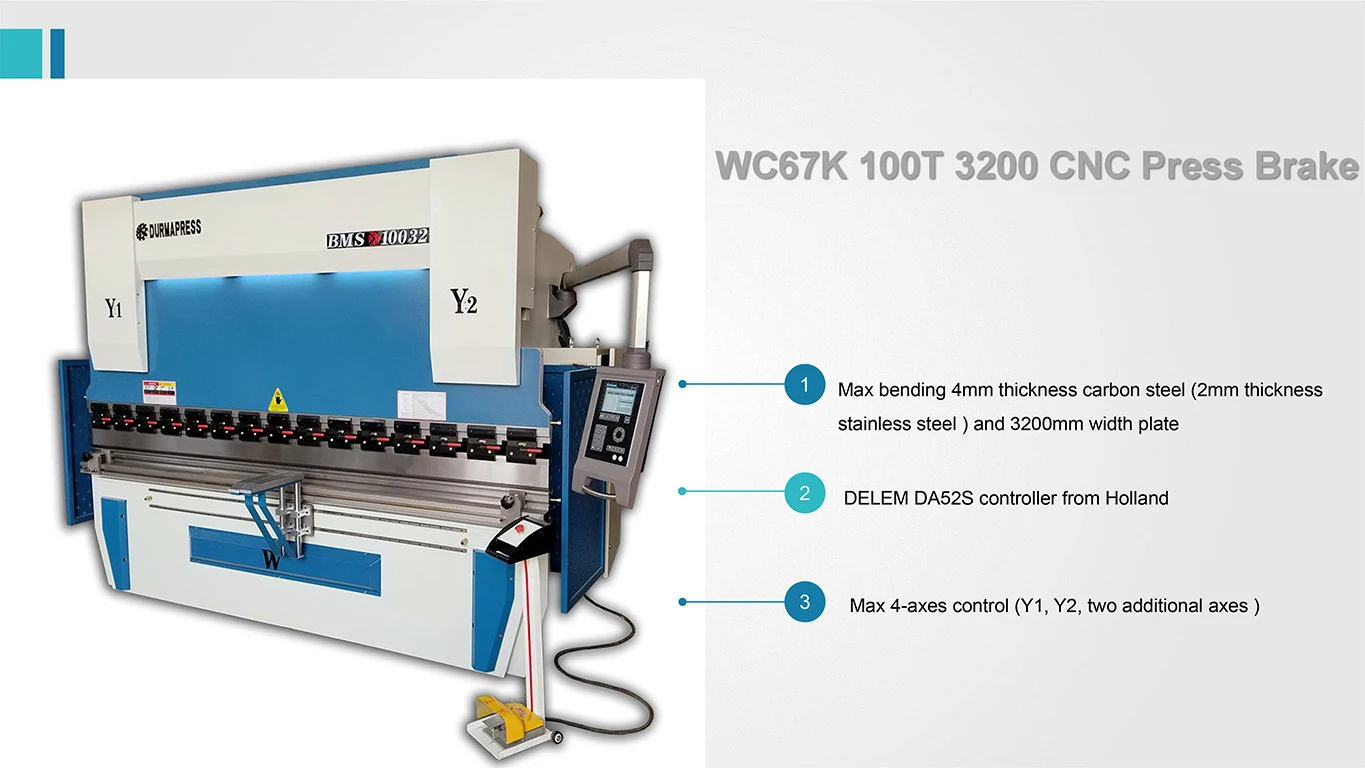

3. Holland Delem DA52S Controller:
8″ broadband color display
Max 4-axes control (Y1, Y2, two additional axes )
266MHZ processor, memory capacity of 64M
Die library, 30 upper dies, 30 lower dies
USB memory interface, RS232 interface
Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown
One-page parameters for rapid editing, navigation shortcut keys
Automatically calculate deflection compensation value
Micro switch panel, data editing
Automatically calculate the bending pressure and die safety region
Online operation analysis tool, Diagnostic Dashboard, angle calibration database

1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
3.Taining Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warranty is 3 year. We offer flexible extended warranties if needed.

Q:How about your machine quality?
A:Anhui durmapress is a mature brand in CHINA,through years and years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Q:Whether the machine price can be more discount?
A:.Durmapress always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

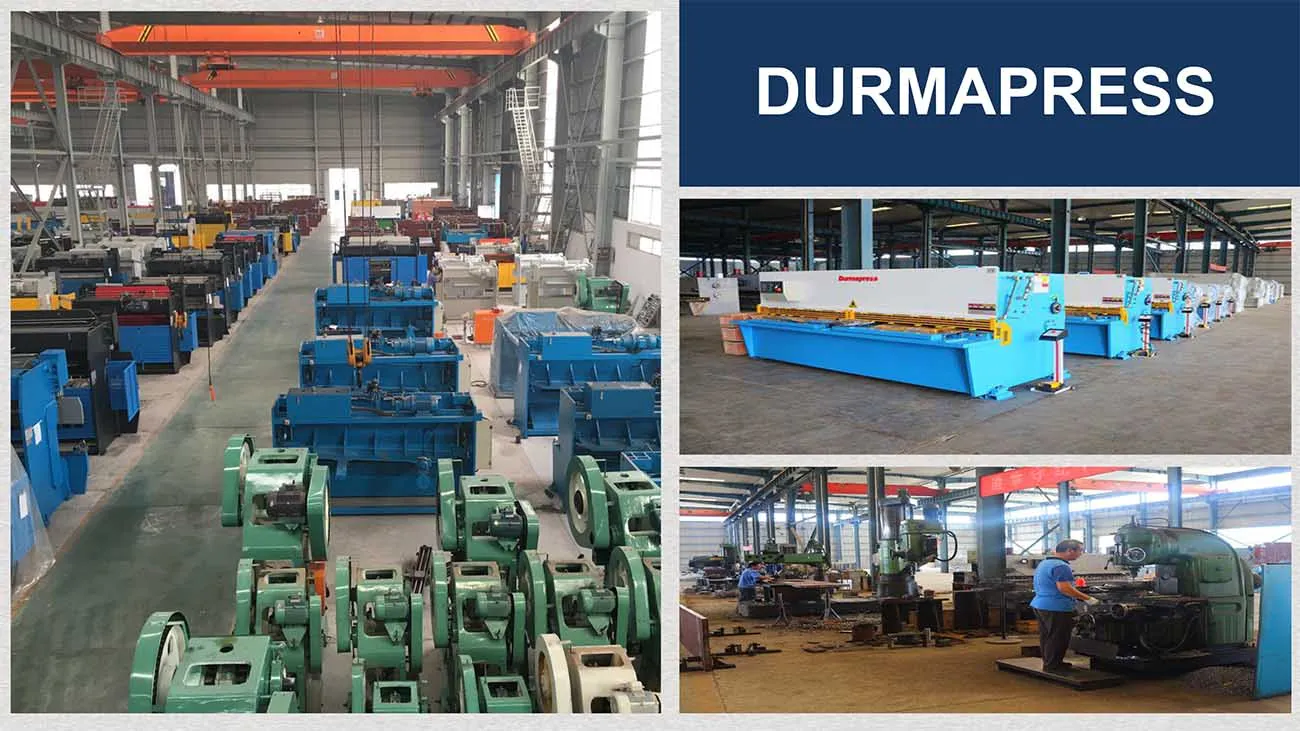

Q: Where is your factory?
A:We located in Ma'anShan CITY, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.welcome to visit our factory!
