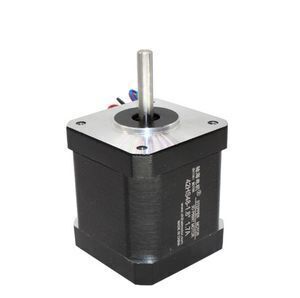

ChiHai Motor CH4240-1704A 2 phase 4 wire Stepper Motor 42mm 1.7A 2.2Ohm 3D printer motor and CNC XYZ

Product details
Single gross weight:0.25 KG;Single package size:18X10X12 cm;
Model Number:CH-ST42HS48;Keywords:3D PRINTER MOTOR;
Current / Phase:1.7 A/phase;Product Name:STEPPER MOTOR;
Brand Name:chihai;Certification:CE;
Selling Units:Single item;Place of Origin:Guangdong China;
Phase:2;Type:Hybrid;
Package Type:Unit Type: piece Package Weight: 0.6kg (1.32lb.) Package Size: 18cm x 10cm x 12cm (7.09in x 3.94in x 4.72in);

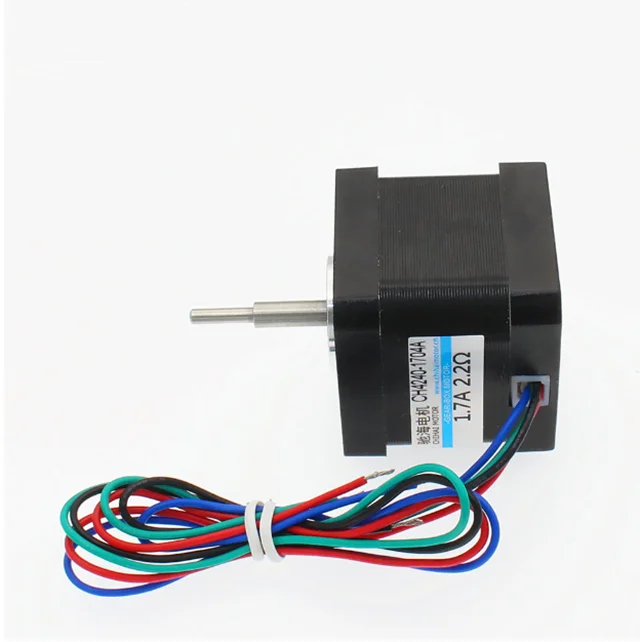

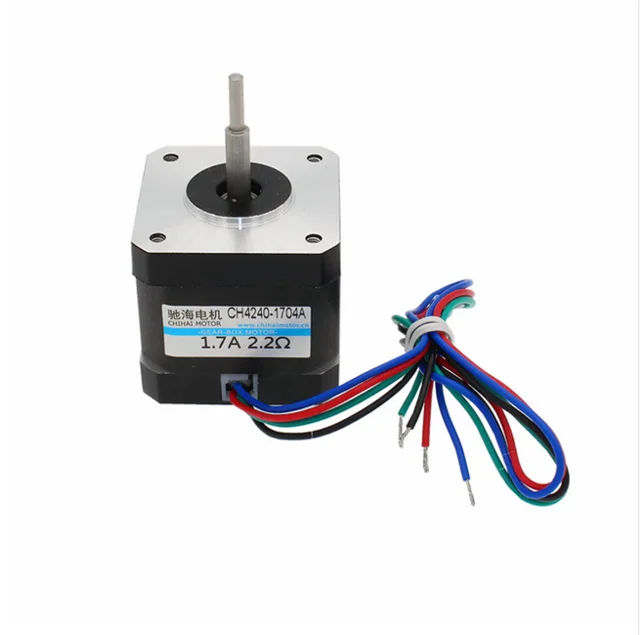

ChiHai Motor CH4240-1704A 2 phase 4 wire Stepper Motor 42mm 1.7A 2.2Ohm 3D printer motor and CNC XYZ

Product Description



  ChiHai Motor 1.8 Degree 42BY Stepper Motor 490mN.cm(5kg.cm) 1.7A 4-lead Nema17 Step Motor 42 x 48mm 3D Printer CNC Robot

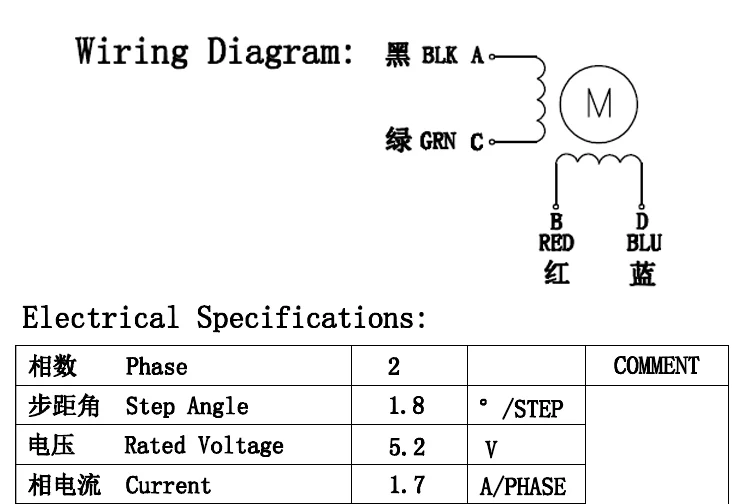

Electrical Specification

Manufacturer Part Number:

42HS48-1704A-001

Motor Type:

Bipolar Stepper

Step Angle:

1.8 deg

Holding Torque:

490mN.cm(5kg.cm)

Rated Current/phase:

1.7A

Voltage:

 5.2V

Phase Resistance:

 3.1ohms

Inductance:

 5.0mH ± 20%(1KHz)



Physical  Specification

Frame Size:

42 x 42mm

Body Length:

48mm

Shaft Diameter:

Φ5mm

Shaft Length:

24mm

D-cut Length:

23mm

Number of Leads:

Lead Length:

 300mm

Weight:

360g







If you are not sure whether it is what you need,you need our support

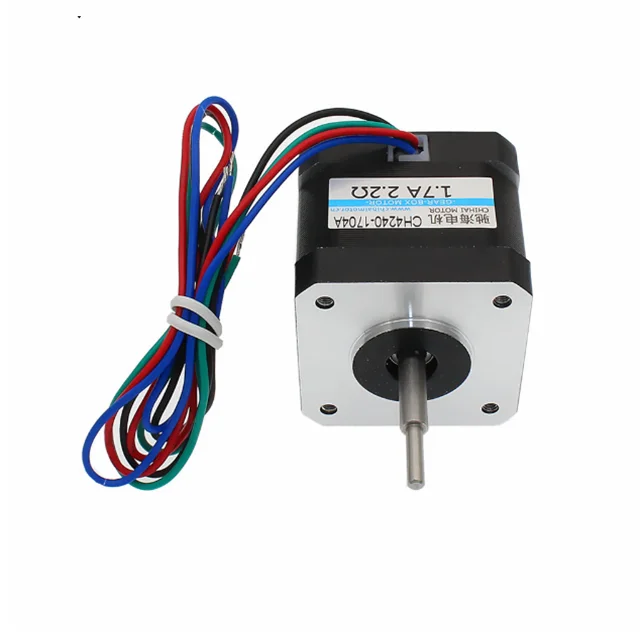

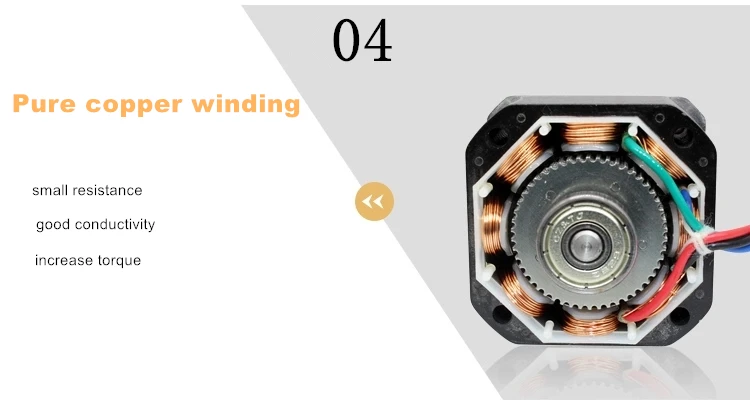

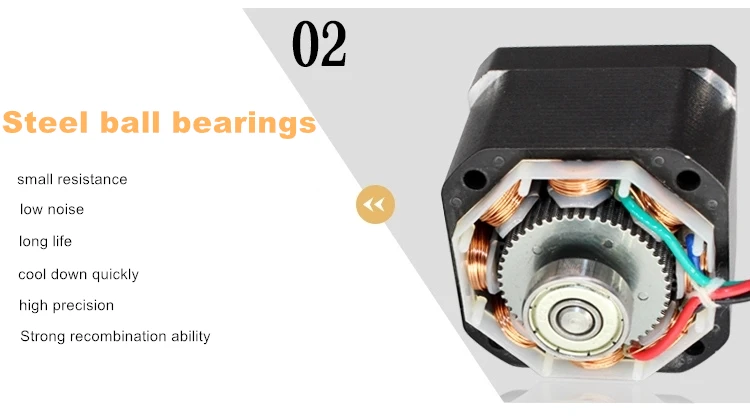

Detailed images

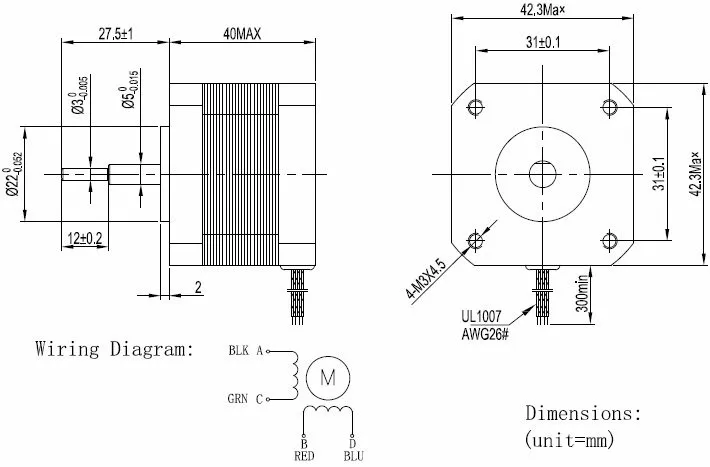

Gear Motor Dimension

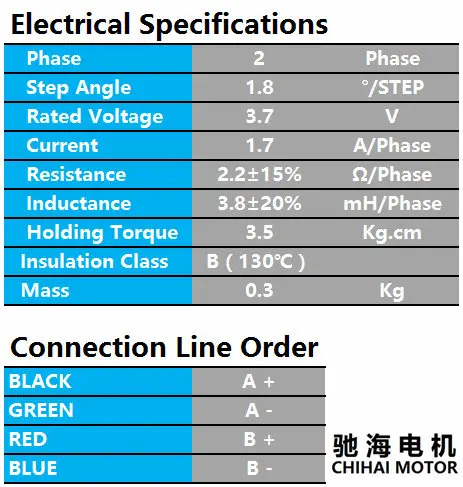

Technical data



ChiHai Motor 1.8 Degree 42BY Stepper Motor 490mN.cm(5kg.cm) 1.7A 4-lead Nema17 Step Motor 42 x 48mm 3D Printer CNC Robot





About us

      Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.

      At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)

     Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.

     Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!





package



FAQ

Q:1.What kind of motors you can provide?

A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 15-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5.Could you send me free samples?

Yes,also we can return your samples fee back when you place order.
