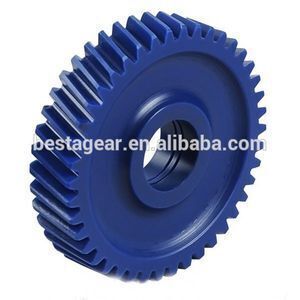

Guangdong gear factory custom plastic pinion helical gear

Supplier: Shenzhen Besta Precision Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Mark Liao
Price: $2.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Supply Ability:	20000 Piece/Pieces per Month;	Processing:	Gear Hobbing, Shaping, Shaving;
Surface treatment:	Galvanizing/Zinc plating, Chrome plating, Black oxide;	Delivery Detail:	Shipped in 10 days after payment;
Standard or Nonstandard:	Standard;	Direction:	Left Hand;
Model Number:	BG157;	Applicable Standard:	GB / ISO / DIN / JIS / AGMA;
Shape:	Cylindrical Gear;	Heat treatment:	Quenchining, Zinc plating, Chrome plated, Black oxide;
Port:	Shenzhen or Hongkong;	Packaging Detail:	Standard export packaging(Inner oil paper, outer wooden case);
Tooth Profile:	Helical gear, Herringbone gear;	Brand Name:	BESTAGEAR;
Material:	Steel;	Pressure Angle:	20 Degree;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Place of Origin:	Guangdong China;
Tooth Accuracy:	Up to DIN 5 after ground;	Material:	Iron, Iron, Steel, Brass, Copper, Aluminum;

Product Description

Helical gear is a popular type of gear having its teeth cut at an angle, thus allowing for more gradual and smoother meshing between gear wheels. The helical gears are a refinement over spur gears.

The teeth on helical gears are specially cut at an angle, so as to face the gear. As two teeth on the gear system engage, it starts a contact on one end of the tooth which gradually spreads with the gear rotation, until the time when both the tooth are fully engaged.

The gears are available in different sizes, shapes and designs to meet the customer specifications.

1. Professional Gear Manufacturer

2. Material: C45, Steel, Iron, Aluminum, Brass etc.

3. Processing: Hobbing, Shaping, Shaving

4. heat treatment: Quenching, Carburizing, Nitriding
5. Surface treatment: Black oxide, Zinc plated, Chrome plated
6. OEM and ODM service is available

7. Testing report can be provided

Product Name	Helical gear, Double helical gear
Material	C45, 40Cr, AL6061,20CrMnTi, H59, H62
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping
Size	Module 0.2-16, Max Dia 1200mm, Max Length 2000mm
Pressure Angle	20°，22.5°or As required
Standard	DIN GB ISO JIS BA ANSI
Teeth Accuracy	DIN Class 5, ISO/GB Class 5, AGMA Class 12, JIS Class 2
Heat treatment	Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding
Surface Treatment	Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating
Application	Wind turbine, Automobile, feeding machinery, metallurgy machinery, mining machinery, Agriculture machinery, Gearbox etc

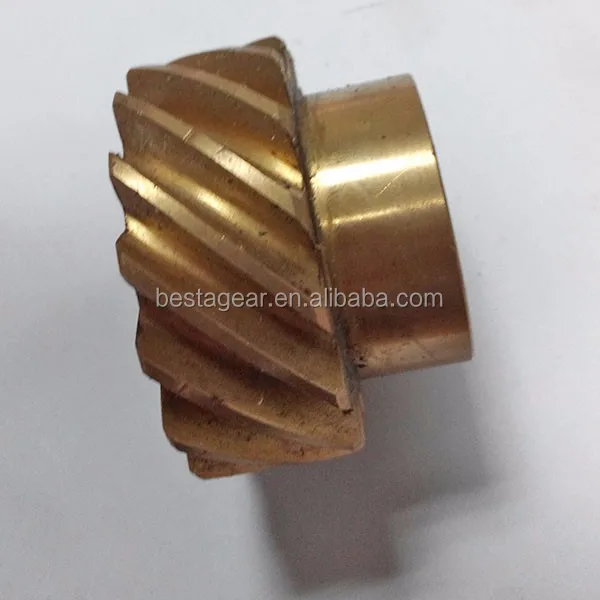

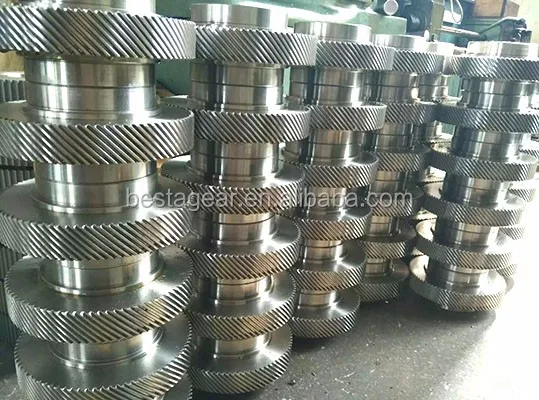

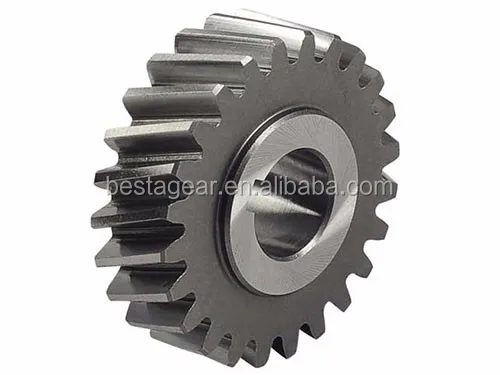

Products Show

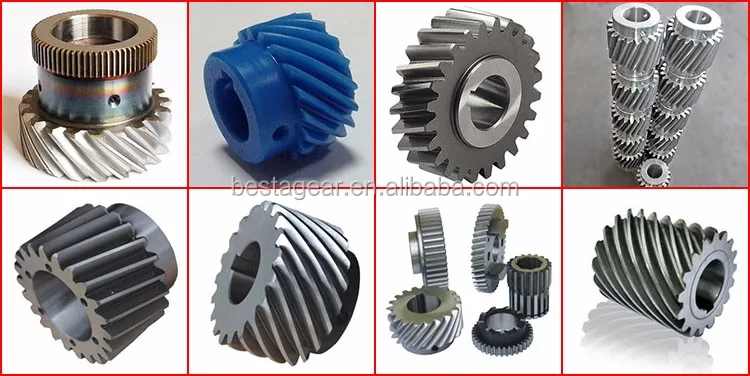

Main Featured parts

As a professional manufacturer in gear's field more than 10 years, we cover with various kinds of standard and custom parts. Apart from helical gear, There are also other parts are available as below:

Spur gear

Helical gear

Bevel gear

Worm and worm wheel

Rack gear

Plastic gear

Ground gear

Miter gear

Timing pulley

Sprocket

Spline shaft

CNC Parts

Working Range

Type	Outer Dia(mm)	Module
Spur gear	10 - 1600	0.5 - 25
Ground gear	10 - 800	0.5 - 8
Helical gear	10 - 1600	0.5 - 25
Straight bevel gear	10 - 800	1 - 15
Spiral bevel gear	10 - 800	1 - 15
Internal gear	10 - 1600	1 - 12
Worm shaft	10- 80	1 - 8
Worm wheel	10 - 800	1 - 8
Gear rack	10 -150 (Cross section) 2000 (Length)	1 - 20
Spline shaft	10 - 200 200 - 800(Length)	0.5 - 8

Our Company

Factory

Our Factory

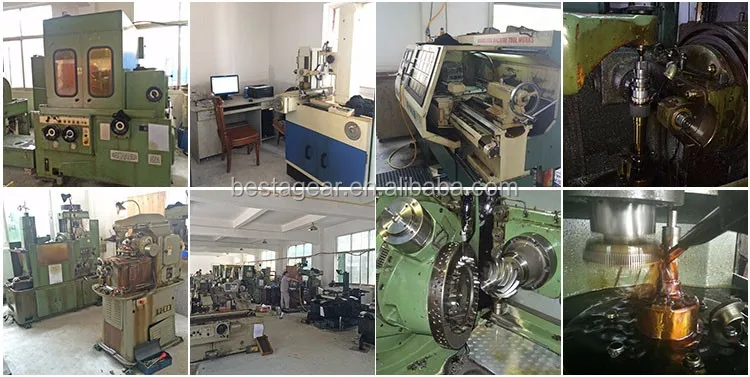

Workshop

Our Workshop

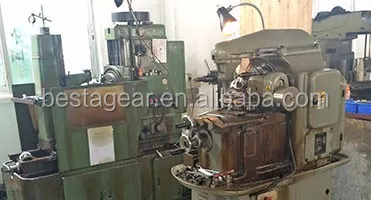

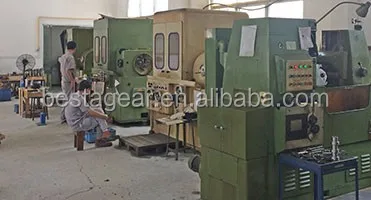

Gear hobbing machine

Our Equipment

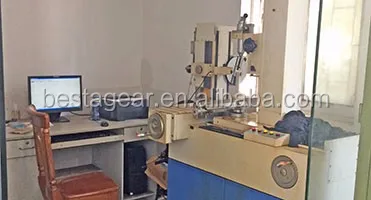

Teeth profile testing machine

Our QA department

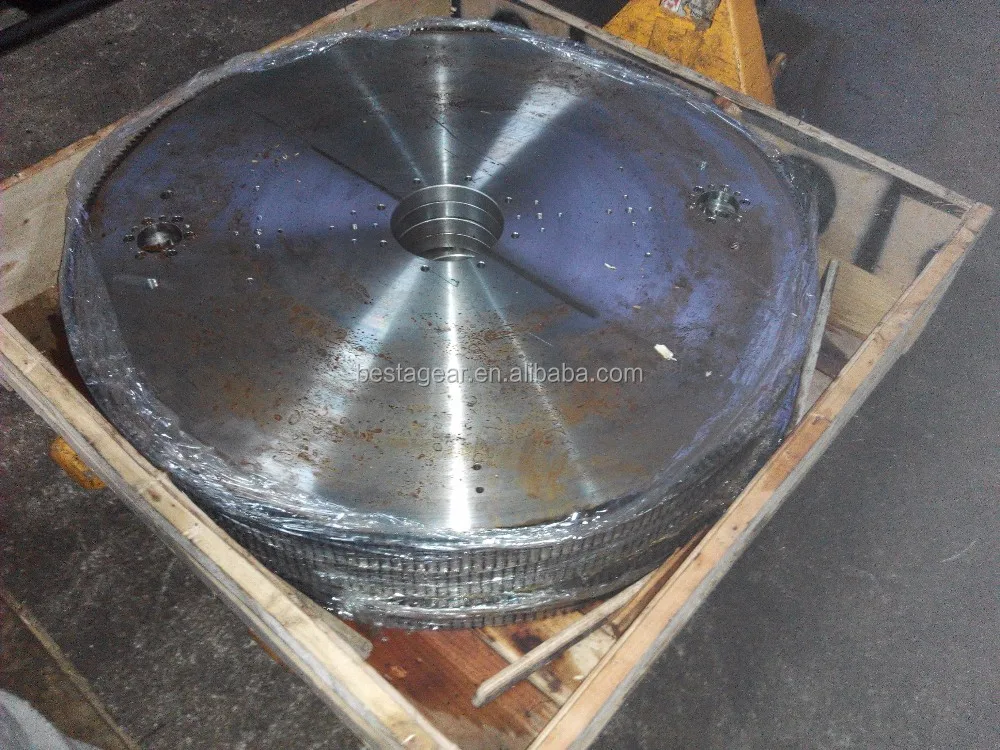

Packing & Delivery

Packing Details : Standard export packaging (Inner oil paper, outer wooden case)

Delivery Details : Within 5 days for stock parts, 10- 15 days for nonstandard parts

1. Special logistics packaging

2. Suitable carton size

3. Shock bubble film

Customer Photo

Favorable Comment

Our quality gears have been exported to more than 20 countries, in many field with our excellent product performance, we favored high praise from our domestic and foreign customers

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What information should be given, if I want to buy Gear parts?

A: Gear's module, Pressure Angle, Teeth number, better provide drawing or sample

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
