Horizontal Flow Type Cotton Buds Wrapping Machine

Supplier: Foshan Zhien Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Gill Zhou
Price: $3800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Material:	Paper,Plastic;	Port:	Guangzhou,Foshan;
Bag type:	pillow bag or with hole punching;	PLC:	Panasonic;

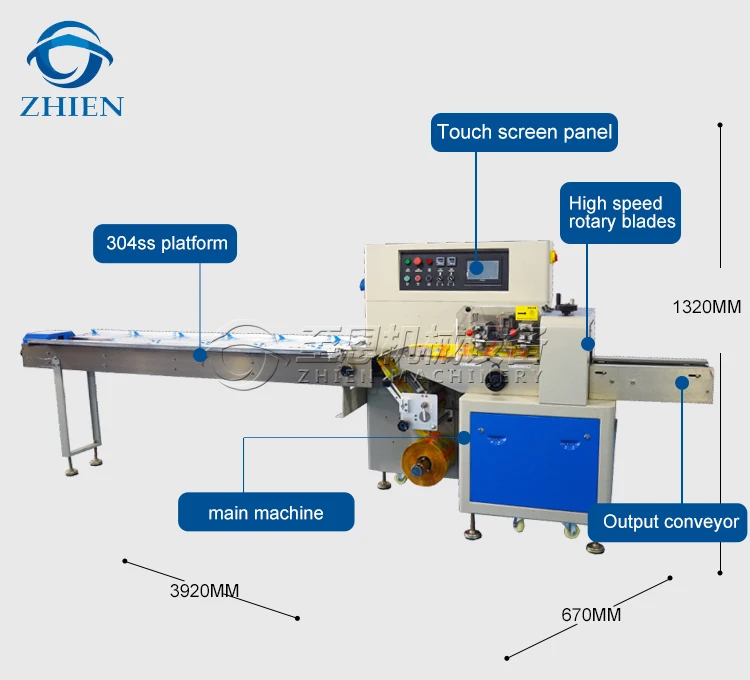

Dimension(LWH):	39206701320MM;	Supply Ability:	150 Set/Sets per Month Cotton Buds Wrapping Machine;
Automatic Grade:	Automatic;	After-sales Service Provided:	Online support,Video technical support;
Frequency converter:	Panasonic;	Warranty:	2 Years;
Driven Type:	Electric;	Voltage:	220V 50HZ;
Brand Name:	ZHIEN;	Main Function:	filling, packing, sealing and wrapping;
Weight:	550KG;	Packaging Detail:	Export wooden case.;
Touch screen:	Weinview;	Machine material:	stainless steel or carbon steel;
Condition:	New;	Certification:	CE;
Keyword:	Cotton Buds Wrapping Machine;	Application:	Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles;

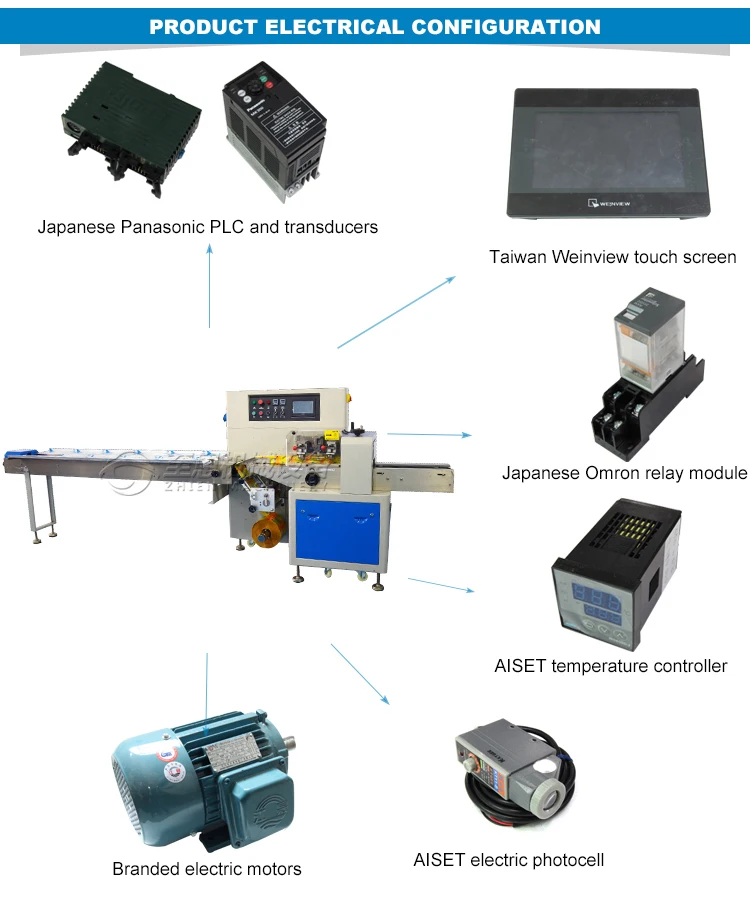

Electrical elements:	Schneider or Omron;	Film material:	OPP, CPP, BOPP, PET, ect;
Packaging Type:	Bags,Film,Foil,Pouch,Sachet;	Place of Origin:	Guangdong China (Mainland);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Type:	Wrapping Machine;

Horizontal Flow Type Cotton Buds Wrapping Machine

Pillow-RP

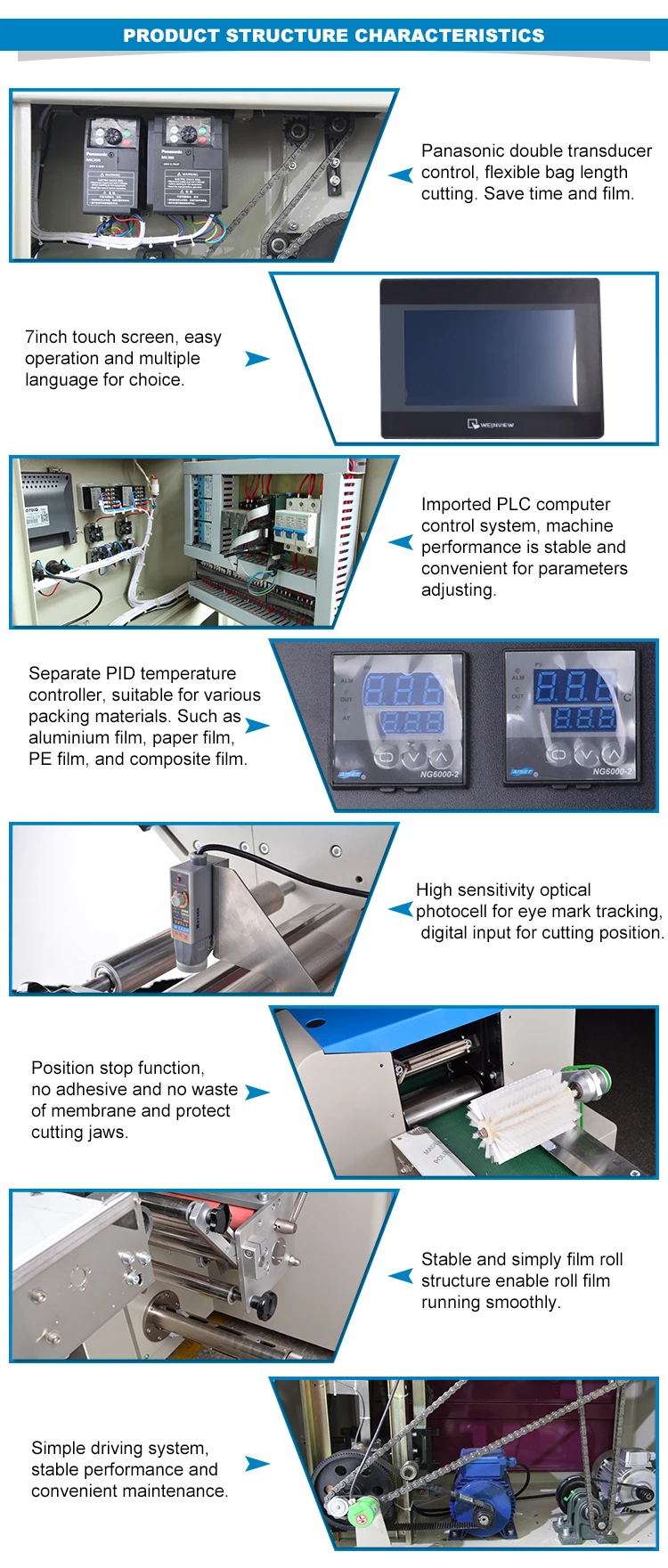

Main Features

1. Panasonic double transducer control, flexible bag length cutting. Save time and film.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable, convenient for parameters adjusting.

4. Self diagnosis failure function, machine error can be clearly displayed.

5. Separate PID temperature controller, suitable for various packing materials

6. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.

7. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.

8. Simple driving system, stable performance and convenient maintenance.

9. According to product, the input conveyor can use pusher, belt or film for transportation.

Technical Datas
Model	ZE-250X	ZE-350X	ZE-450X	ZE-650X
Film width	Max.250mm	Max.350mm	Max.450mm	Max.650mm
Bag length	65-190mm or 120- 280mm	65-190mm or 120-280mm	130-450mm	130-450mm
Bag width	30-110mm	30-110mm	50-180mm	110-300mm
Product height	Max.50mm	Max.60mm	Max.70mm	Max.100mm
Packing speed	40-230 bags/min	40-200 bags/min	30-180 bags/min	30-180 bags/min
Power supply	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz

Contact Us For More Details!

Main product

Custom-made machine:
Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost.

Installation:
1.We provide videos and instruction manual to show the process of installation.
2.We provide training for installation for free in our factory.
3.We can send technician to buyer's factory to install the machine and provide training service.

After Sales Service:
1. The machine will have one year warranty .

During the warranty year if any of the parts broken not by man-made.We will free charge to replace the new one to you.The warranty will begin after the machine send out.
2. Free lifetime technique support.
3.After the warranty period, the spares for replacement are offered based on certain charge.

FAQ

Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
