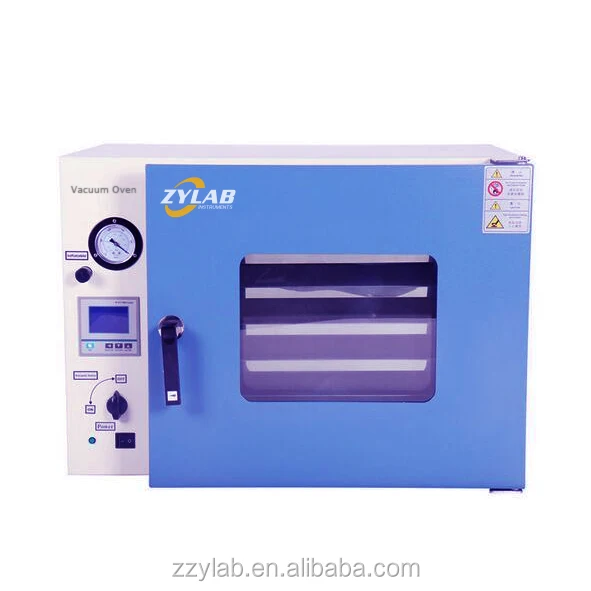

High Quality LCD Temperature Controller 53L Vacuum Oven with 5 Shelves

Supplier: Zhengzhou ZYlab Instruments Co., Ltd.
Region: Henan, China
Contact: Ms Eva Fan
Price: $848.00 /set
Min. Order: 1 set

Click here to contact

Product details

Shelf:	Come with 5 adjustable shelves;	Power:	1400W;
Single package size:	80X62X69 cm;	Brand Name:	ZYLAB;
Product Name:	53L Vacuum Oven;	Place of Origin:	Henan China;
Power supply:	220V, 50/60HZ;	Chamber material:	Easy-to-clean #304 stainless steel;
Package Type:	Standard wooden box with bubble bag and foam board inside for 53L Vacuum Oven;	Package Preview:	https://sc02.alicdn.com/kf/HTB13LVbboH1gK0jSZSyq6xtlpXa4.jpg_640x640.jpg;
Model Number:	DZF-6053;	Certification:	ISO 9001, CE;
Chamber dimension (working space):	415370345mm;	Classification:	Lab Drying Equipment;
Temperature Range:	RM+10~250Centigrade;	Single gross weight:	84 KG;
Selling Units:	Single item;	Vacuum level:	133pa;

High Quality LCD Temperature Controller 53L Vacuum Oven with 5 Shelves

Product Description

Application:

This Vacuum Oven is specially designed for drying material which is thermo-sensitive, decompounded and oxidative easily.

It also can be filed with inert gas and dry some ingredient complex materials quickly.

Has been widely used in scientific research,medication,electronics, chemical industry fields, etc

Main Features:

1.Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

2.3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.

3. Silicone door gasket and positive latch door maintain seal at all vacuum levels.

4. Polycarbonate safety shield protects door glass.

5. Microcomputer precision controller controls temperature with +/- 1°C accuracy and built-in over temperature protection.

6. With timing function.

7. Maximum Heating Rate: 4~6 ºC/min

8. Operating temperature range from room temperature to 250°C Max.(RT ~ 200°C for continuous;200°C ~ 250°C for <4hrs).

9. Easy-to-clean #304 stainless steel chamber interior.

10. 2-5 shelves were included for immediate use.

11. Vacuum and air lines constructed with corrosion-resistant cooper tubing for optimum chamber cleanliness and long term performance.

Technical Data

Main Specification of Vacuum Ovens:

Model Parameter	DZF-6020	DZF-6053	DZF-6090	DZF-6210		DZF-6250
Studio Size HWH(mm)	300300275	415370345	450450450	560590640		700600600
Capacity	25L(0.9cu ft)	53L(1.9cu ft)	90L	210L		250L
Chamber interior material	Easy-to-clean #304 stainless steel
Overall Dimension(mm)	585450455	700520525	760760650	870750840		1010760800
Standard Shelf	1pc	2pcs(can addition order)		3pcs
Temperature Range	RT+10~250℃	RT+10~250℃
Temperature Accuracy	±0.1℃
Vacuum Level	<133pa
Voltage	220V/50HZ(110V/60HZ optional)				380V 50HZ
Power	500W	1400W	2000W	2200W		4000W

Packaging & Shipping

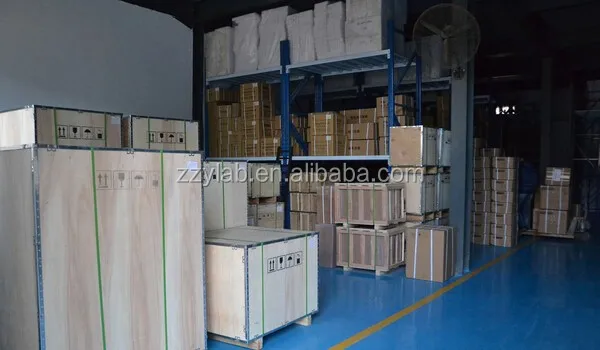

Packaging:

Standard wooden box with bubble bag and pearl cotton inside.

Shipping:

By sea: big dimension or large quantity or not urgent products, low price with a little long arrive time.

Usually within 11-45 days arrive.

By air: more than 100kgs or urgent products. Usually 7-10 days arrive, direct flight can arrive within 3-5 days.

By international express: such as FedEx/UPS/DHL/TNT/EMS or others. To door service is convenient and fast.

Usually 5-7 days arrive.

Also can arrange global shipment as clients’ requirement.

Our Services

l Professional team 24 hours online for any consulting support.

l Quick response with suitable solution and detailed quotation as clients’ requirement.

l Customized design is available.

Warranty:

Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will, at its sole options, replace any components that fail in normal use.

Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
