Brand Name: | OEM & GSR; | Place of Origin: | Zhejiang China; |
Payment Terms: | L/C,D/A,D/P,T/T; | Packaging Detail: | 1. Standard package: Plastic box 2. Outer package: Carton box 3. As per requirements; |
Sample: | Acceptable; | Number of Pieces: | 2pc; |
Port: | Shanghai port & Ningbo port; | Place of Origin: | Hangzhou; |
Size: | NO.1 and NO.3; | Customize: | Acceptable; |
Processing range: | Manual tapping; | Material: | ALLOY HSS4241 4341 M2 M35; |
Model Number: | ISO&DIN&BS&JIS&ANSI; | Model Number: | ISO&DIN&BS&JIS&ANSI; |
Type: | Tap; | Brand Name: | GSR&OEM; |
Export market: | Globle; | Supply Ability: | 100000 Set/Sets per Month; |
Type: | Tap & Die; |
GSR TAP WRENCH MADE OF DIE-CAST ZINC
These brand new GSR tap wrenches were completely redesigned. This ensures a higher resilience of the tool body. The hardened, adjustable clamping jaw can be adjusted via a guide groove milled into the chuck between the jaw and the handle. As a result, the jaw can be adjusted precisely and the tap clamped perfectly. The body is made of high-quality die-cast zinc and coated with an environmentally friendly powder coating, which is applied using a state-of-the-art closed-circulation coating system.

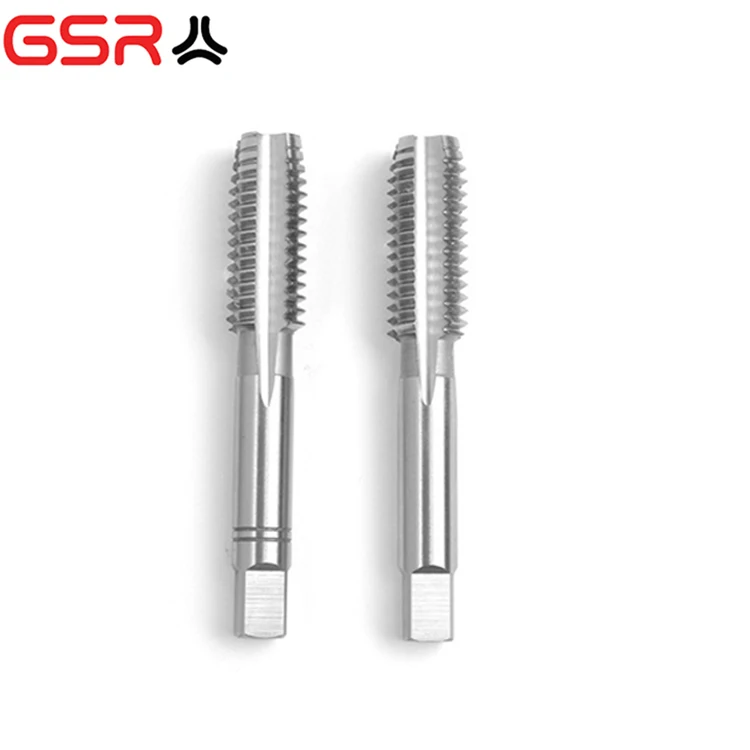

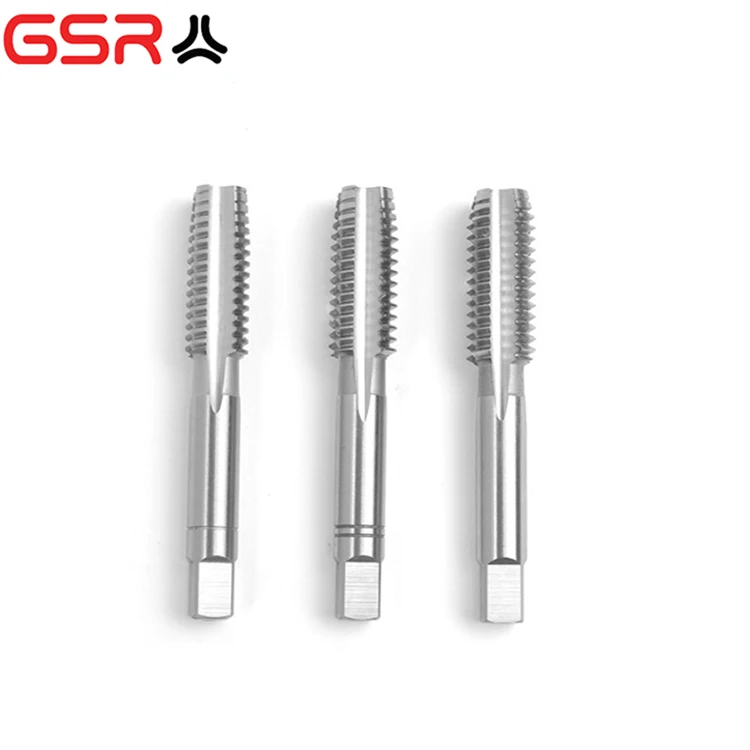

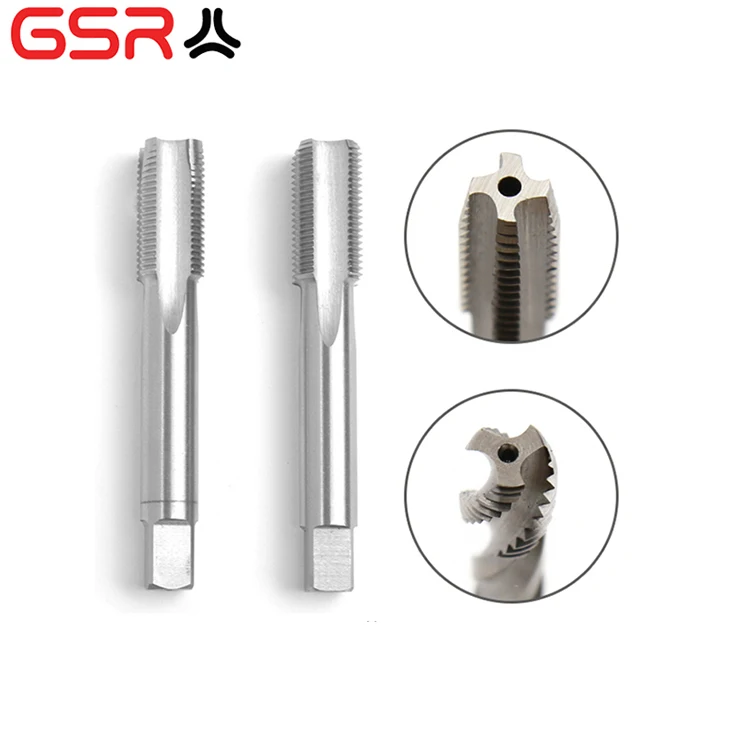

HAND TAPS | TECHNICAL INFORMATION | |||
Thread | BSW | Direction | Right | |
Material | HSS | Raw material | Steel |
M1 | 0,25 | 0,75 | 32 | 5,5 | 2,5 | 2,1 |
M1,2 | 0,25 | 0,95 | 32 | 5,5 | 2,5 | 2,1 |
M1,7 | 0,35 | 1,3 | 32 | 8 | 2,5 | 2,1 |
M2 | 0,4 | 1,6 | 36 | 8 | 2,8 | 2,1 |
M3 | 0,5 | 2,5 | 40 | 11 | 3,5 | 2,7 |
M4 | 0,7 | 3,3 | 45 | 13 | 4,5 | 3,4 |
M5 | 0,8 | 4,2 | 50 | 16 | 6 | 4,9 |
M6 | 1,0 | 5,0 | 56 | 19 | 6 | 4,9 |
M7 | 1,0 | 6,0 | 56 | 19 | 6 | 5,5 |
M9 | 1,25 | 7,8 | 63 | 22 | 7 | 6,2 |
M11 | 1,5 | 9,5 | 70 | 24 | 8 | 6,2 |
M14 | 2,0 | 12,0 | 80 | 30 | 11 | 9 |
M18 | 2,5 | 15,5 | 95 | 34 | 14 | 11 |
M20 | 2,5 | 17,5 | 95 | 34 | 16 | 12 |
M22 | 2,5 | 19,5 | 100 | 34 | 18 | 14,5 |
M24 | 3,0 | 21,0 | 100 | 38 | 18 | 14,5 |
M27 | 3,0 | 24,0 | 110 | 38 | 20 | 16 |
M30 | 3,5 | 26,5 | 125 | 45 | 22 | 18 |
