Best Metal Etching Machine Stainless Steel Flexible Cutting Dies Chemical Etching Machine

Product details
Cooling pipe:Titanium rod;Heater:Titanium heating rod;
Port:Any port in China;Condition:New;
Supply Ability:10000 Set/Sets per Month;Product name:Chemical Etching Machine;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Function:chemical spray etching;
Place of Origin:Guangdong China;Warranty:1 Year;
Condition:New;Type:Fully Automatic;
Packaging Detail:standard export wooden package;Payment Terms:T/T,Western Union,MoneyGram,Paypal;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining,Advertising Company;Key word:Metal Etching Machine;
Machine material:Germany pp plate;Brand Name:Xinghengli;
Usage:errosion for copper,iron,stainless steel plate etc);
Product Description

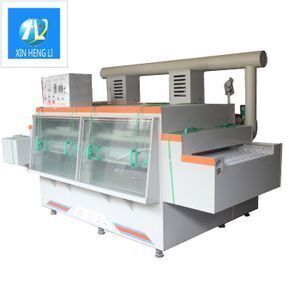

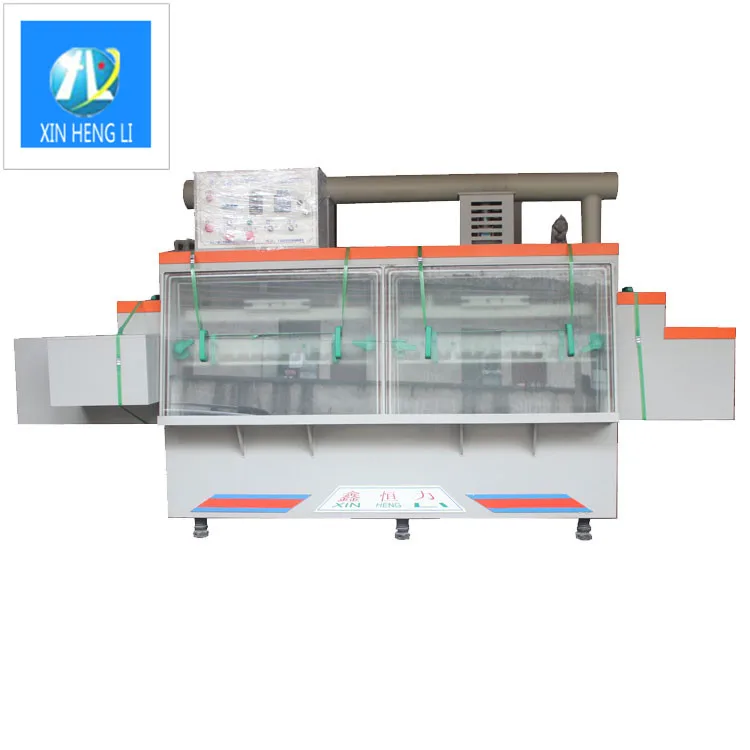

Best Metal Etching Machine Stainless Steel Flexible Cutting Dies Chemical Etching Machine



Usage:

The metal etching machine can etch and hollowed out all kinds of patterns on stainless steel, copper, iron, aluminum and other metal surfaces. It is widely used in stainless steel metal sheet, hardware accessories, high precision component, handicraft gift, stainless steel electrical lighting, advertising decoration, metal filter screen and other industries.

It is known as the advanced etching machine in the etching industry. Also widely recognized by our customers for its stable quality and competitive price.

Function:

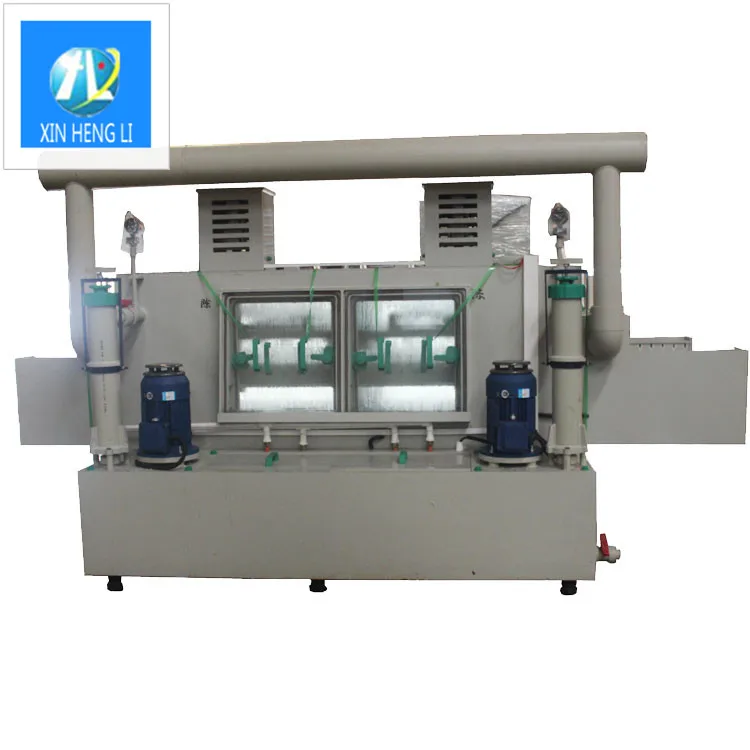

The etching machine equips with speed regulation system, automatic temperature control system, quick detached swing spray frame, full pressure filter system, double-layer tempered glass and a clean operating environment for maintenance. High-pressure swing spray can meet high requirements for the quality, efficiency and stability.



Process:    input--etching1--etching 2----output





Specification:



Model name

XHL-SM72000

 Conveying  mode

Bilateral driven

Dimensions (L*W*H)

3000*1860*1500mm

Conveying  height

800±25mm

 Etching area

700*2000mm

Nozzle number

nozzle type

240 pcs fan nozzle

Conveying speed

0.5~6m/min (adjust)

Power/voltage

10KW 380V/50HZ

Function

Chemical etching

Heater

Titanium

Acid liquid

Ferric Chloride ( FeCl3)

Cooling Pipe

Titanium

Warranty

1 year

Working Temp.

38~55℃

After-sales Service

Engineer available to  overseas

Process metal material available

Copper, iron,

stainless steel plate, etc

Machine material

Germany pp plate

Drive shaft material

The main drive shaft is ¢16 titanium shaft

Conveying roller

¢ 12 glass lead rod is the main inside shaft, outer nested ¢ 40 roller

Transmission structure

Adopt 90-degree spiral 8 diced gear for transmission, the main transmission gear is made of PP material to ensure stable wear resistance.

Built-in tilting cylinder

The pipe is detachable and can be cleaned regularly. The bottom of the cylinder is designed with a slight inclination of 10-degrees bottom drainage to ensure that the liquid is completely removed.

Pressure adjustment

Pressure gauge adjusts the spray pressure

The nozzle is 1.0~3.5kg/cm² (adjusted by ball valve), the nozzle flow rate is 2.4L/min (pressure is 2.5kg/cm²)

Filtration system

All liquids are filtered by a full pressure filter
