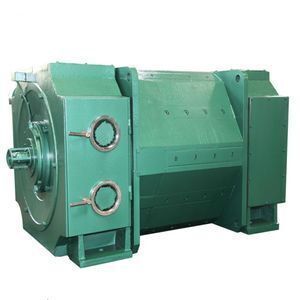

Protect Feature: | Drip-proof; | Usage: | Industrial; |
Brand Name: | Xianfeng; | Structure: | Asynchronous Motor; |
Stator Current: | 135.1/150.6/168.5/192.3A; | Efficiency: | IE 4; |
Frequency: | 50Hz; | Certification: | CCC,CE; |
Rated Speed: | 3000 rpm r/min; | Certification: | CCC CE; |
Max Torque/Rated Torque: | 1.8; | Protection class: | IP23; |
Rated frequency: | 50HZ; | Rated Voltage: | 6KV; |
Type: | Asynchronous Motor; | Packaging Detail: | plywood case; |
Model Number: | Y6301 Y6302 Y6303 Y6304-8; | AC Voltage: | 6KV; |
Cooling method: | ICO,IC1,IC2,IC3; | Phase: | Three-phase; |
Payment Terms: | L/C,D/P,T/T; | Supply Ability: | 100 Piece/Pieces per Week; |
Port: | shanghai; | Place of Origin: | Jiangsu China; |
Model | Rated power (kw) | Statoor current (A) | Rated Speed (r/min) | Efficiency (%) | Power factor (cos φ ) | Max torque /rated torque | Blocking torque /rated torque | Blocking current /rated current | Rotary inertia | Weight | ||
Jm Motor (kg.m²) | Allowable load (kg.m²) | Y | YKS | |||||||||
Y5601-8 | 800 | 96.8 | 743 | 94.7 | 0.84 | 1.8 | 0.7 | 6.0 | 87.0 | 1357 | 6130 | 7100 |
Y5602-8 | 900 | 108.8 | 94.8 | 92.0 | 1505 | 6325 | 7250 | |||||
Y5603-8 | 1000 | 120.7 | 94.9 | 102 | 1650 | 6473 | 7330 | |||||
Y6301-8 | 1120 | 135.1 | 744 | 95.0 | 0.84 | 137 | 1820 | 9620 | 10620 | |||
Y6302-8 | 1250 | 150.6 | 95.1 | 151 | 2001 | 10200 | 11200 | |||||
Y6303-8 | 1400 | 168.5 | 95.2 | 160 | 2204 | 10570 | 11570 | |||||
Y6304-8 | 1600 | 192.3 | 95.3 | 168 | 2468 | 10920 | 11920 | |||||
Y4004-10 | 185 | 25.9 | 593 | 91.7 | 0.75 | 0.8 | 5.5 | 11.0 | 529 | 2760 | 3210 | |
Y4005-10 | 200 | 27.9 | 91.9 | 12.0 | 551 | 2890 | 3340 | |||||
Y4501-10 | 220 | 29.9 | 92.1 | 0.77 | 19.0 | 729 | 3060 | 3860 | ||||
Y4502-10 | 250 | 33.4 | 92.3 | 0.78 | 20.0 | 820 | 3140 | 3940 | ||||
Y4503-10 | 280 | 37.3 | 92.5 | 22.0 | 910 | 3270 | 4070 | |||||
Y4504-10 | 315 | 41.4 | 92.6 | 0.79 | 24.0 | 1014 | 3330 | 4130 | ||||
Y4505-10 | 355 | 46.6 | 92.8 | 25.0 | 1131 | 3450 | 4250 | |||||
Y5001-10 | 400 | 51.6 | 93.3 | 0.80 | 36.0 | 1261 | 4000 | 4910 | ||||
Y5002-10 | 450 | 58.0 | 93.4 | 38.0 | 1404 | 4150 | 560 | |||||
Y5003-10 | 500 | 64.3 | 93.6 | 42.0 | 1544 | 4300 | 5210 | |||||
Y5004-10 | 560 | 71.9 | 93.7 | 45.0 | 1711 | 4450 | 5315 | |||||
Y5005-10 | 630 | 8.8 | 93.8 | 52.0 | 1902 | 4650 | 5500 | |||||
Y5601-10 | 710 | 88.6 | 94.0 | 0.82 | 0.7 | 6.0 | 79.0 | 2116 | 6160 | 7100 | ||
Y5602-10 | 800 | 99.7 | 94.2 | 88.0 | 2355 | 6360 | 7220 | |||||
Y5603-10 | 900 | 112.0 | 94.3 | 93.0 | 2615 | 6570 | 7510 | |||||
Y6301-10 | 1000 | 124.3 | 594 | 94.4 | 0.82 | 140 | 2870 | 9620 | 1620 | |||
Y6302-10 | 1120 | 138.9 | 94.6 | 152 | 3170 | 10200 | 11200 | |||||
Y6303-10 | 1250 | 154.7 | 94.8 | 167 | 3489 | 10570 | 11570 | |||||
Y6304-10 | 1400 | 173.1 | 94.9 | 175.0 | 3850 | 10930 | 11930 | |||||
Y4502-12 | 185 | 27.0 | 494 | 90.9 | 0.72 | 0.8 | 5.5 | 19.0 | 997 | 3170 | 3970 | |
Y4503-12 | 200 | 29.3 | 91.1 | 21.0 | 1078 | 3260 | 4060 | |||||
Y4504-12 | 220 | 31.7 | 91.4 | 0.73 | 24.0 | 1135 | 3340 | 4140 | ||||
Y4505-12 | 250 | 35.9 | 91.7 | 26.0 | 1277 | 3410 | 4210 | |||||
Y5001-12 | 280 | 39.3 | 92.7 | 0.74 | 40.0 | 1418 | 4000 | 4900 | ||||
Y5002-12 | 315 | 43.6 | 92.8 | 0.75 | 42.0 | 1580 | 4100 | 5000 | ||||
Y5003-12 | 355 | 49.0 | 93.0 | 43.0 | 1764 | 4250 | 5150 | |||||
Y5004-12 | 400 | 55.0 | 93.3 | 47.0 | 1967 | 4400 | 5300 | |||||
Y5005-12 | 450 | 61.8 | 93.4 | 50.0 | 2191 | 4550 | 5450 | |||||
Y5601-12 | 500 | 65.0 | 495 | 93.7 | 0.79 | 0.7 | 6.0 | 103.0 | 2411 | 6160 | 7060 | |
Y5602-12 | 560 | 72.7 | 93.8 | 114.0 | 2673 | 6360 | 7310 | |||||
Y5603-12 | 630 | 81.7 | 93.9 | 127.0 | 2974 | 6570 | 7430 | |||||
Y6301-12 | 710 | 92.0 | 94.0 | 191.0 | 3312 | 9600 | 10600 | |||||
Y6302-12 | 800 | 103.4 | 94.2 | 208.0 | 3688 | 10050 | 11050 | |||||
Y6303-12 | 900 | 116.2 | 94.3 | 227.0 | 4098 | 10450 | 12450 | |||||
Y6304-12 | 1000 | 129.0 | 94.4 | 239.0 | 4502 | 10820 | 12820 |
NOTICE ON ORDERING
1. Please refer to our catalogue before ordering.If the types,ratings you need are ont covered by our booklet,please contact us.Should you have particular needs,please offer us specific proposal in advance.A contract or pilot production agreement may be made when the requirments are fixed by common consent.
2. Please write clearly the type,output,volts,apeed,duty,type of construction,field voltage,No.Of shaft-end,location of terminal box,necessary accessories and spare parts etc.
3. If the humid-tropical type required,please mark”TH’behind the original type No.
