Model Number: | US; | Port: | Shanghai; |
OEM: | Accepted; | Surface: | Hot Dip Galvanized; |
Usage: | Lifting; | Type: | US Type; |
Product name: | US Rigging Anchor Shackle; | Color: | Silver; |
Shape: | Bow; | Feature: | with Screw Pin; |
Packaging Detail: | Standard Neutral Export Package; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash; |
Supply Ability: | 78000 Piece/Pieces per Month US Rigging Anchor Shackle; | Place of Origin: | Chongqing China; |
Keyword: | US Rigging Anchor Shackle; | Surface Treatment: | Galvanized; |
MOQ: | 10PCS; | Application: | Security; |
Material: | Alloy Steel; | Brand Name: | JCYC; |
Technology: | Forged Galvanized Shackle; |

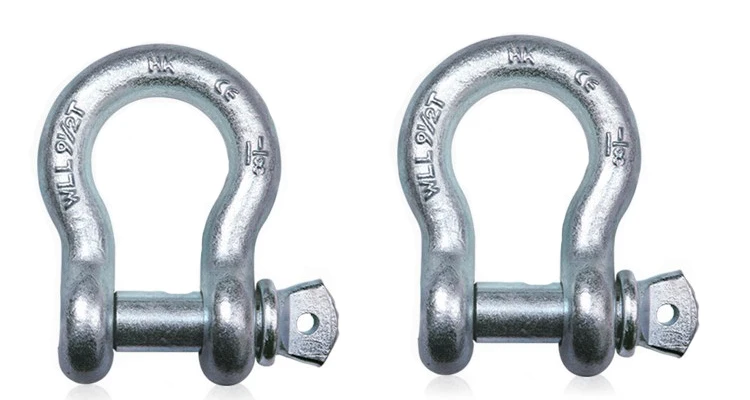

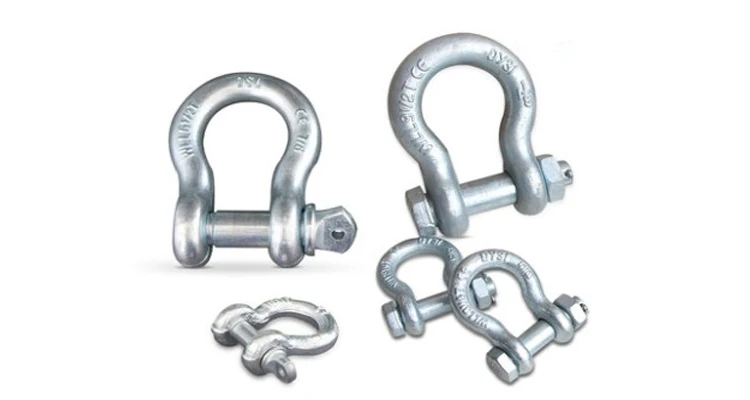

Rigging Anchor Shackle

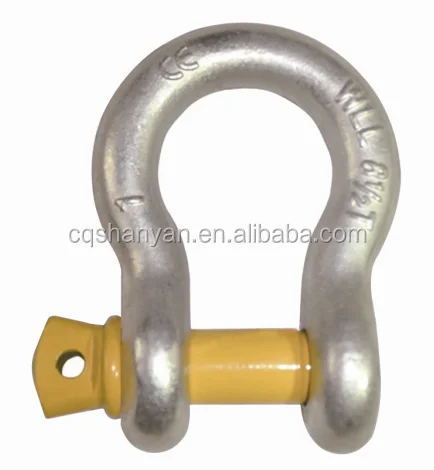

U.S. G209 Bolt Type Bow Shackle with Screw Pin.
Product Feature:
1. Dip Hot Galvanized or Electric Galvanized.
2. WLL: 0.33t to 55t.
3. Grade: M4,S6,T8.
4. The Test of Working Load Limit is 2 Times.
5. The Test of Breaking Load Limit is 4 Times.
6. 100% Magnaflux Crack Detection.
7. Sack,Carton or Packing as Your Requirements.
Parameter:
G209 BOW TYPE SHACKLE | |||||||||
Item | WLL(t) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight(kg) |
S1001-2 | 2 | 20 | 16 | 46 | 12 | 33 | 29 | 58 | 0.3 |
S1001-3.25 | 3.25 | 27 | 19 | 61 | 16 | 43 | 38 | 75 | 0.6 |
S1001-4.75 | 4.75 | 32 | 22 | 71.5 | 19 | 51 | 46 | 89 | 1 |
S1001-6.5 | 6.5 | 38 | 25 | 84 | 22 | 58 | 53 | 102 | 1.44 |
S1001-8.5 | 8.5 | 43 | 28 | 95 | 25.5 | 68 | 60.5 | 119 | 2.26 |
S1001-9.5 | 9.5 | 48 | 32 | 108 | 29 | 74 | 68.5 | 134 | 3.15 |
S1001-12 | 12 | 50 | 36 | 119 | 32 | 81 | 76 | 145 | 4.4 |
S1001-13.5 | 13.5 | 55 | 38 | 133 | 35 | 90 | 84 | 160 | 6.03 |
S1001-17 | 17 | 60.5 | 42 | 146 | 38 | 97 | 92 | 173 | 7.5 |
S1001-25 | 25 | 73 | 50 | 178 | 44.5 | 127 | 106.5 | 216 | 12.5 |
S1001-35 | 35 | 83 | 56 | 197 | 51 | 146 | 122 | 248 | 18.2 |
S1001-55 | 55 | 103 | 70 | 267 | 63 | 181 | 144.5 | 307 | 34.8 |
S1001-85 | 85 | 130 | 80 | 325 | 80 | 210 | 165 | 370 | 62.5 |
S1001-120 | 120 | 145 | 95.5 | 410 | 95 | 215 | 198 | 405 | 106 |
Warm Note:
International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road. OEM, ODM, sample, trial and mixed orders are all ok. Welcomes contact us to gain mutual benefits and make bright future together.
Chongqing Shanyan Crane Machinery CO.,LTD Service
All the machines will be full tested before shipment
Technical supports and suggestions before you order a machine according to your work place.
Professional opertion instruction of the machine.
12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
24-hour technical support by emails, calling or videos.
1. What about the payment term&price term?
As usual, we accept T/T, L/C as the payment term, and the price term, FOB&CIF&CFR etc are ok.
2. What's the delivery time?
Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends.
3. Are we a manufacturer&factory or trading Company?
Chongqing Shanyan Crane Machinery Co.,ltd is a manufacturer in Chongqing, China, we have specialized in crane&hoist over 20 years, our high quality products were welcomed in many countries.
