3" PNEUMATIC RIVET "C" SQUEEZER (GS-0131G)

Product details
Packaging Detail:PACKING: 1 PC/INNER BOX, 6 PCS/ 18.9 KGS/ 21.8 KGS/ 1.55 CUFT/CTN;MAX FORCE:6000 LBS (26.7 KN);
Payment Terms:L/C,T/T,Western Union;Place of Origin:Taiwan, China;
MAX TRAVEL:9/16" (14.27 MM);Port:taiwan;
MAX POWER:3/64" (1.3 MM);CAPACITY:ALUM: 3/16 (4.75 MM) , STEEL: 5/32 (3.96 MM);
Supply Ability:300 Piece/Pieces per Month;

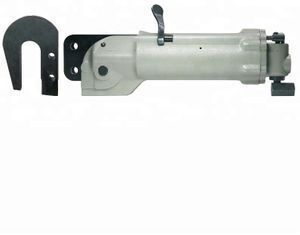

GS-0131G    3” PNEUMATIC RIVET “C” SQUEEZER

DESCRIPTION

* RIVET CAPACITY:

  1. ALUM: Ø3/16 (4.75 MM)

  2. STEEL: Ø5/32 (3.96 MM)

* STANDARD YOKE DIMENSIONS:

  1. REACH: 1.5” (38.1 MM)

  2. GAP: 11/16” (17.45 MM)

* MAX FORCE( AT 90 PSI (6.21 BAR) AIR PRESSURE): 6000 LBS (26.7 KN)

* SET HOLDER:

  1. MAX TRAVEL: 9/16” (14.27 MM)

  2. STROKE AT MAX POWER: 3/64” (1.3 MM)

* OVERALL LENGTH: 14” (355.6 MM)

* NET WEIGHT: 5-1/2 LBS (2.49 KGS)

* RAW MATERIAL:

  1. MAIN BODY: ALUMINUM CASTING

  2. YOKE: ALLOY STEEL SK-5

* PACKING: 1 PC/INNEX BOX, 6 PCS/ 18.9 KGS/ 21.8 KGS/ 1.55 CUFT/CTN
