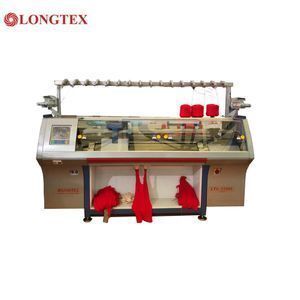

LT2-122SV/132SV Jacquard knitting sweater machine Computerized flat type

Product details
Single package size:262X84X186 cm;Brand Name:LONGTEX;
After-sales Service Provided:Video technical support,Online support,Free spare parts,Field maintenance and repair service;Single gross weight:998 KG;
Certificate:ISO9001;Knitting Style:Flat;
Power(W):1.0KW;Type:Jacquard;
Knitting Method:Single;Selling Units:Single item;
Computerized:Yes;Dimension(L*W*H):2900*1100*1800;
Package Preview:https://sc01.alicdn.com/kf/HTB1aQfmBvuSBuNkHFqDq6xfhVXag.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1izlmmQZmBKNjSZPiq6xFNVXaD.jpg_640x640.jpg;Product Type:Sweater;
Weight:1080kg;Warranty:2 Years;
Production Capacity:30PCS/24HOURS;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;RAM:Expanded supported;
Place of Origin:China;
Product Description

Product Application

This knitting machine is used to knit sweater, cardigans, pullovers, shoe upper or vamps, flyknit and so on

Main Features


1.High quaIity take-down roller system with special soft leathe r d rawing can Proyide closest drawing for high-efficiency knitting fabric production.because the drawing position is closertO the needle bed:

2.Ultra-thin steel yarn carriers,with thickness of 0.7 mm and simpie structure.can complete the avoiding when yarn carriers across only by their elasticity,and keep from the yarn carriers.collision in the Process of knitting:

3.Rapid rotary head system CQR:Through the optimized integration of electronic control moduIe and servo module.strengthening

the smooth rotation of the head.It can change the orientation quickly.And compared to traditional one it can improve the efficiency by 5-1 0%.so it becomes more efficient.stability and safety:

4.With sinqle motor,doubIe swing bed system,good synchronization and less power requirement can be achieyed:(OptionaI)

5.Innovative isolation transforme rst ructure high imProves the safe function and the anti-interference ability of machine effectivelv,and makes the machine running more stable .

qqq
Detailed Images

Main technology parameters:

01 Gauge: 5G,6G,7G,8G,9G,10G,12G,14G,1 5G,16G,3,5,7G Multi gauge;

02 2Knitting width:48inch(122cm),52inch(1 32cm),56inch(142cm);

03 Knitting speed:AdoptAC servicemotorto control,with 32 sectionof selection.Withamaximum speedofl.2m/s(Dependsonthe gauge,yarn and the pattern etc);

04 Knittin system:Single machine header and double system;

05 Knittingfunction:Basic stitchlikeplain stitch,ribfabric,links-and-links,interlock stitch,etc.Fancy stitchliketuck stitch,Jacquard,pointelle,cable.aran,plush stitch,racked stitch,Pile stitch,intarsia,eord weave,etc.Aswell as bright narrowing and drop stitch offully fashion,hat,gloves,etc;

06 Racking: Controlledbv servomotor rackingwithin 2inches andwithfine adiustingfunction;

07 Needle selection:FulIiacquard selection via 8levels of special solenoid actuators;

08 Stitch fineness:Withmarchingmotorto control,with 32 sectionsfor selection,adopt subdivisiontechn010gY adiust scope:0-650,tomore accurately control length of clothes piece;

09 Encode: Advanced encoder adopted;

10 Traasfer cam:Triangle colIlposite design,cantransferneedlesfromfronttoback andbacktofronttogether;

11 Sinker system: with marching motor to control,can adjust according to different fabrics suitlots ofdecreasing and widening Fabrics

12 Delectalarm system: lmproved detector avert unanticipated alarm when yarn feeder overlap;

13 Takedown roller:Programmedinstruction controlledby steppingmotor,32levels selection adiustable areais:0-100;

14 Yarn earrier: 2*8 yarn carriers on each side of4 guide rails shiftable on any needle position;

15 Protecting system:Themachinewill automaticallyalarmif breakingyarn,noodle,floatingyarn,rolling,countingover,cradlemovingnot being corrected,needle foot firing and program failure appear during operating process;

16 Various Gauge:Wide range ofgauge knit on a singlemachine,replacethe needle hook and small needle hookwithout changingthetriangle;

17 Controller: (1)Screen:adoptLCDtouch screen andfigureinterface.inputdevice:USB storagelG,agreat amountofdesignfiles canbe stored at the same time and they can be fetched out for use at any time as per production requirement;

(2)Monitoring menu:each kind ofoperating parameter can be shown and it can be adjust at any time when the machine is running.

making conveniences for operations as mach an possible;

(3)Free design system is visual and easy to understand and software upgrade free ofcharge;

(4)Multiple language version:there are Chinese,English etc,Turkey,Bangladesh.languages version,the other language version

set up shall according to customers requirement:

18 Data transmission:Through high speed ETHERNET,the knitting data can upload,download and share;

19 PowerConsumption:Single-phase 220V and 3-phase 380 v,adoptadvancedCMOStechnology,havingmemorizingfunctionatpower shock stop,

Consumption 1.0kw(The actual electricity consumption is far below the marked value.depends on the gauge and the working

condition)

Packing & Delivery
Packaging
Size
278 (L) * 98(W) * 155 (D)
Weight
1 T



Packaging Details
The normal package is wooden box(Size: L*W*H).  8sets in 40 foot container
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
