CC2541 BT Module 4.0 Ble iBeacon HM-10

Supplier: Shenzhen Heng Hong Tong Electronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Kelly Chen
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	Shenzhen;	Sensitivity:	≤-84dBm at 0.1% BER;
Packaging Detail:	Carton;	Operating Temperature:	-20℃~95℃;
USB Agreements:	USB V2.0(For HM-15);	Function:	HM-10 jnhuamao;
D/C:	18+;	Warranty:	90 Days;
Model Number:	HM-10 BT Module;	Type:	BT Module;
Supply Ability:	1000000 Piece/Pieces per Week;	Size:	27132.2mm;
Operating Frequence:	2.4GHZ ISM band;	Package:	Module;
Transmitting power:	-23dbm,-6dbm,0dbm,6dmb;	Supply Power:	3.3Vdc 50mA;
Place of Origin:	Guangdong China;	Name:	CC2541 BT Module 4.0 Ble iBeacon HM-10;
Payment Terms:	T/T,Western Union,Paypal;	Brand Name:	HHT;

Product Description

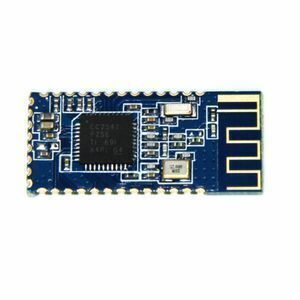

CC2541 BT Module 4.0 Ble iBeacon HM-10

Difference of HM-10/HM-11 and another manufacturer BT Module

The HM-10/HM-11 adds learning capabilities and you can try to learn communication between ble devices from different manufacturers. However, the following conditions need to be met:

1. Your BLE device is a slave and you need to use HM-10/11 as the host.
2. Need to know the UUID of the slave BT, don't use password when linking, the amount of data can't be too big

Note: You can use the LightBlue tool software to get the UUID information of your BLE device, or ask your BLE device provider for the UUID information of your BLE device.

Description

There is no byte limit for serial port transceiver.
Under ideal environment, 60 meter ultra long distance communication can be realized.

Operating frequency	2.4GHz ISM band
Modulation mode	GFSK(Gaussian Frequency Shift Keying )
Transmitting power	-23dbm,-6dbm,0dm,6dbm,Can be modified by AT command
Sensitivity	≤-84dBm at 0.1% BER
Safety characteristics	Authentication and encryption
System functions	Master-slave integration Central & Periperal
Service	OxFFEO
Characteristic	OxFFE1
Characteristic	Notify & Write (It can be modified with AT+RESP.)
Consumption	Under auto sleep mode,Standby current 50μA ~400μA ,Transmission current 8.5mA
Power supply	+3.3VDC 50mA

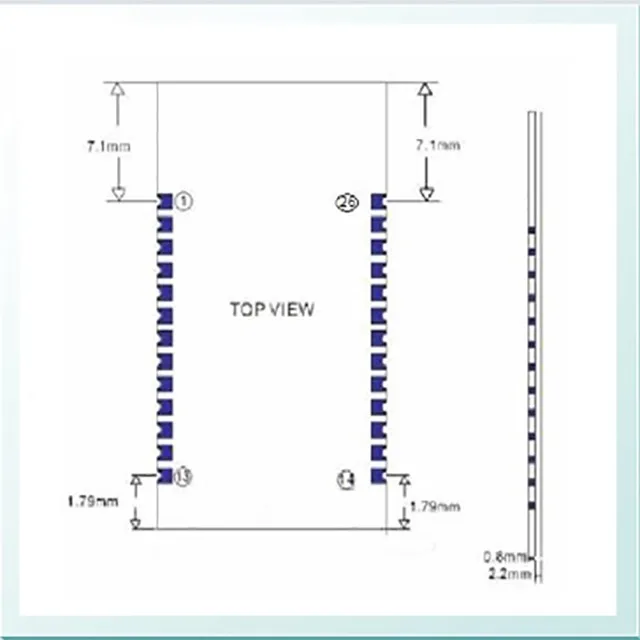

Size	27x13x2.2mm

Click for more information !

Product Picture

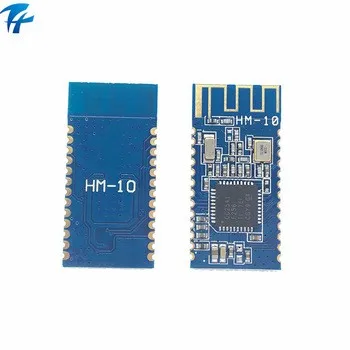

Original HM-10 HM-10C BLE 4.0 BT Module

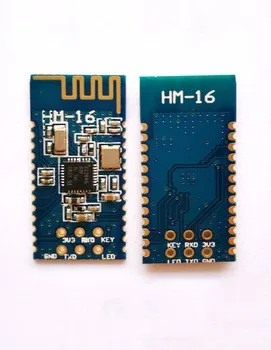

HM-16 BLE 4.2 BLE 5.0 CC2640r2f BT Module

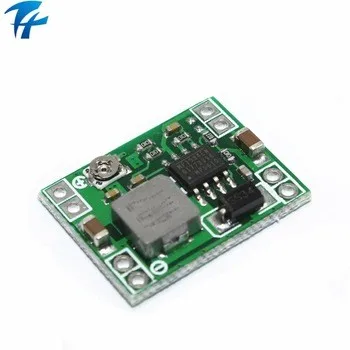

Adjustable Step Down Converter Module MP1584EN
