cryochamber cryosauna therapy Liquid Nitrogen Tank

Product details
Package Preview:https://sc02.alicdn.com/kf/HTB1zT_qyMTqK1RjSZPhq6xfOFXaK.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1ST07avvsK1Rjy0Fiq6zwtXXaH.jpg_640x640.jpg;Package Type:PP bag+nylon net+ Foam+wood pallet;
Brand Name:Hua Nan;Application Medium:LOX,LNG,LAr,LOX, LN2O;
Design:Vertical/Horizonta;Single package size:52X52X162 cm;
After-sales Service Provided:Free spare parts,Video technical support,Online support;working pressure:0.15Mpa;
Selling Units:Single item;Static evaporation rate(%/d):2.1%/d;
Appearance:silver colour Refined Polish;Place of Origin:Guang Dong,China;
Capacity:180L;Weight:115kgs;
Condition:New;Usage:Storing liquefied gas;
Dimension(L*W*H):Dia 508*1600mm;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining;
Warranty:3 Years;Material:SUS304;
Certification:ISO14001:2015;Model Number:DPL180L -0.15Mpa;
Certification:ISO14001:2015/GB24159-2009/KGS;Single gross weight:127 KG;
After-sales Service Provided:Engineers available to service machinery overseas;
Product Description

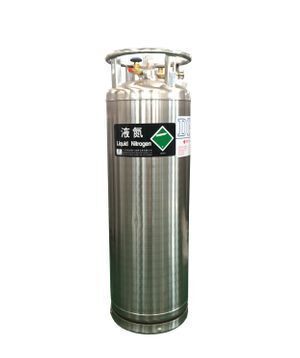

The DPL series containers are vacuum insulated, Stainless steel containers designed to store
And transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)


                                                                   Product Specification
Product Model
DPL-180
DPL-175
DPL-195
DPL-210
DPL-410
DPL-450
Diameter*Height(mm)
508*1560
508*1500
508*1620
508*1707
750*850*1770
750*850*1900
Working Pressure(MPa)
0.69
1.4
2.01
2.88
1.4
2.01
2.88
1.4
2.01
2.88
1.4
3.17
1.4
3.17
Pressure Relief Valve(MPa)
0.8
1.59
2.41
3.45
1.59
2.41
3.45
1.59
2.41
3.45
1.59
3.45
1.59
3.45
Inner Container Bursting Disc(MPa)
1.3
2.60
3.62
5.17
2.60
3.62
5.17
2.60
3.62
5.17
2.60
5.70
2.60
5.7
Maximum Liquid Capacity(L)
180
175
195
210
410
450
Usable Liquid Capacity(L)
171
166
185
197
389
427
Normal Evaporation Rate ((LN2))

≤2.1%
≤2.1%
≤2.1%
≤2.1%
≤1.8%
≤1.8%
Tare Weight(Kg)
113
110
117
123
282
289



The Filling Quality
Oxygen(kg)

176
172
191
205
443
487
Nitrogen(Kg)
124
121
135
145
315
346
Argon(Kg)
214
208
233
250
548
602
Natural Gas (Kg)
76
70.1
76
86.3
161
176
CO2(Kg)  High Pressure only
----
138
154
164
325
357
N2O(Kg)                             High Pressure only
----
191
213
227
448
492

Main Features

* Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas

* Adopted high multi-layer insulation method to ensure the low evaporation rate.

* Inner vaporizer provides a 10Nm3/h stable continuous gas.

* Solar installation use in the priority of gas-pressure and gas space.

* Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)

* Unique design of damping ring meets the needs of frequent transportation.

* Suitable for electronics, research, chemical industry, welding, and LNG supply industries.

Certifications
Detailed Images

S30408 Refined Polish.

Each of our cylinder must strictly go through degreasing and refined polish. .

Digitail level gauge.

we provide digital level gauge for option, which is show by precision percentage.

Anti-Shock Rubber Cushion.

The thicken rubber cushion can
greatly prevent the inner container
from any Sudden shock and buffer
the impact.

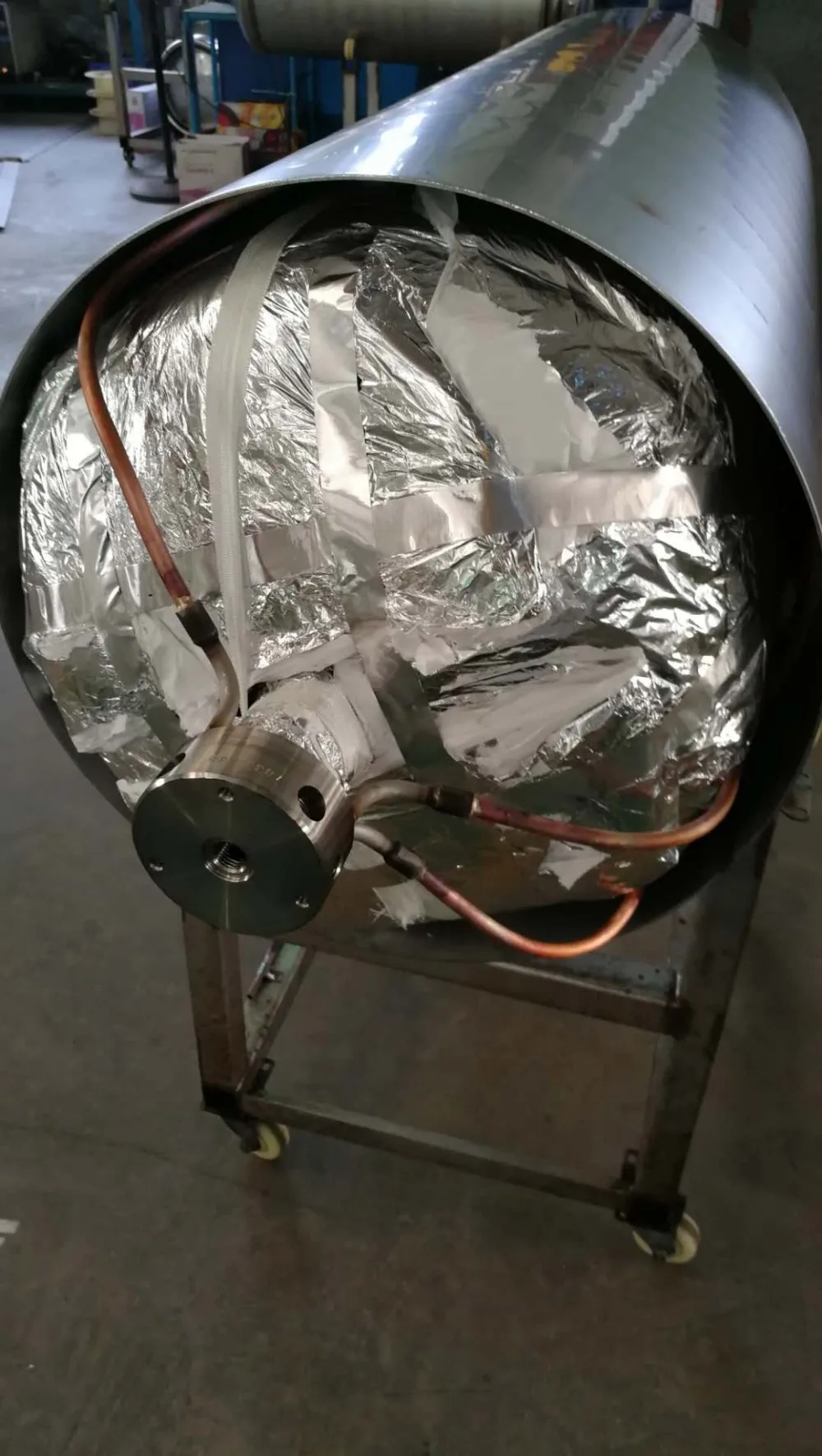

25 layers of Vacuum insulated quiit.

We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness.

Protective ring.

Each of our cylinder has two protective rings to protect the brass vaporizer coils and pressure built coils from any deformation.

Firm Foundation Structure.

Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation.
