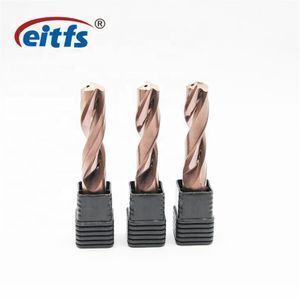

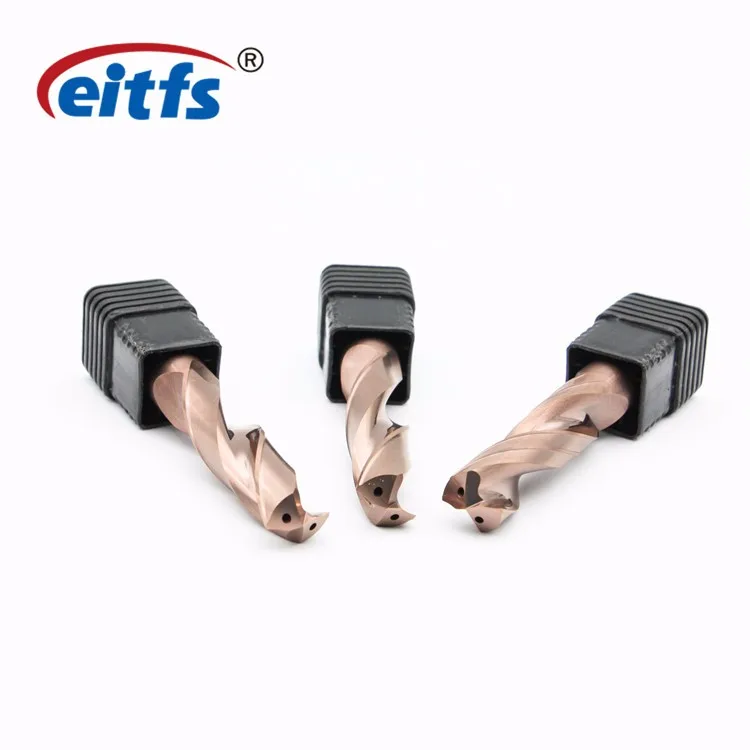

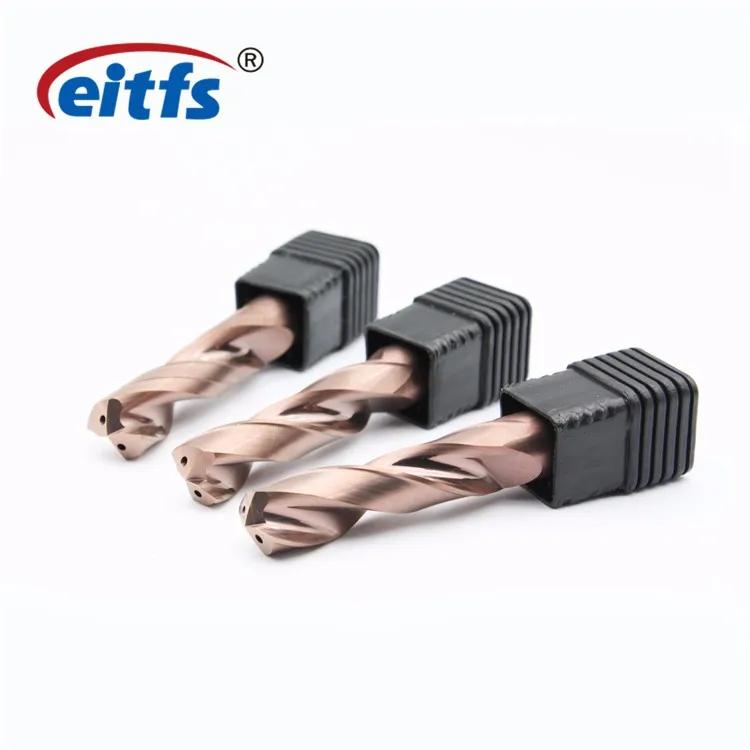

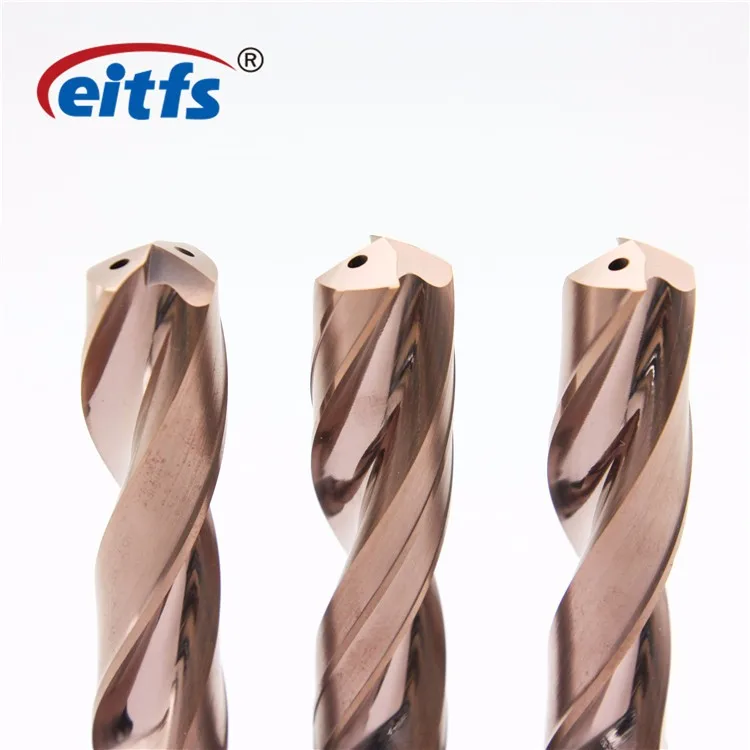

ISO Certificated Tungsten Solid Carbide Twist Drill Bit For Metal

Product details
Package Type:each piece in plastic box,then put them in carton with filler;Type:Twist Drill Bit;
Selling Units:Single item;Dia Size:0.3~40mm;
Overall length:38~330mm;Type:Twist Drill Bit;
Flute:2/3;Place of Origin:Jiangsu China;
Single gross weight:0.5 KG;Use:Metal Drilling;
Model Number:eitfs214;Processing Type:Twist drill bit;
Single package size:24X18X10 cm;Product Name:ISO certificated tungsten carbide drill bits for metal;
Suitable for:Coper.Cast Iron.Carbon Steel.Mould Steel;Tolerance:0.005mm;
Brand Name:eitfs;Material:Tungsten carbide;
Package Preview:https://sc01.alicdn.com/kf/HLB1iorZPlLoK1RjSZFu760n0XXaH.png_640x640.png,https://sc02.alicdn.com/kf/HLB1Y7QaPcfpK1RjSZFO7616nFXag.png_640x640.png;Controlling Mode:CNC System;
Detailed Image
Product Parameters
Material
Tungsten Carbide,solid carbide,cemented carbide
HRC
45/55/65
Type
carbide drill bits
CCoating
AiTIN, TiAIN, TiCN, ALTiN, TiN etc
Helix Angle
AiTIN, TiAIN, TiCN, ALTiN, TiN etc
Tolerance
0.005mm
Super Raw Material
HRC 45
HRC 55
HRC 60
HRC 65
YG10X
YL10.2&WF25
Germany K44&K40
Sandvik H10F
Grain size 0.7 μm,Co10%,Flexural strength 3320N/mm²
Grain size 0.6 μm,Co10%,Flexural strength 4000N/mm²
Grain size 0.5 μm,Co12%,Flexural strength 4300N/mm²
Grain size 0.5 μm,Co10%,Flexural strength 3320N/mm²
Super Coating
Coating
Hardness
HV
Thickness
μm
Friction
Coefficient
Oxidation
Temp
Color
AlTiN
3500
2.5-3
0.3
900
Black
TiAlN
2800
2.5-3
0.3
900
Violet
TiSiN
3600
3
0.45
1000
Bronze
AlTiSiN
4000
3
0.4
1200
Blue
TiN
2500
2-3
0.5
600
Gold

Please click here >>>> Contact us for more factory price,shipping and discounts.

Product Description
We Are Not Same
About Us

PROFESSIONAL FACTORY
Changzhou AiTeFaSi Tools Co.,Ltd. was founded in 2004, is a manufacturer Specializing in High-End carbide cutting and non-standard cutting tools, OEM&ODM accept. Passed ISO9008 quality system and TUV inspection.

Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.

Over 20 Highly-skilled and intermidiate technician , industry expert consultant with more than 50 years experience who helps us to professional enough

Skilled and experienced Salesman with oversea study experience , will work 7*24 hours, all the inquiry will be replied within one day ,in case of urgency, can get reply within 1-2 hours .

Packing & Delivery

Q1. What are your terms of packing?
A: Generally, we pack our goods in plastic box then in carton, good to protect the cutting tools.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

More questions, please feel free to send us inquiry below !!!
