Dual Fuel!!! 65dB!!! POWERGEN Water-cooled Enermol Type Stationary NG/LPG Super Silent Natural Gas Generator 30KW

Supplier: Fujian Best Industrial Co., Ltd.
Region: Fujian, China
Contact: Mr Jie Huang
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Speed:	3000/3600;	Payment Terms:	L/C,T/T,Western Union;
Model Number:	BNL30SE;	Fuel type:	Natrual Gas/ LPG;
Brand Name:	POWERGEN;	Color:	Customized;
Rated Voltage:	220/380V; 208/120V; 220/127V;	Place of Origin:	Fujian China (Mainland);
Packaging Detail:	Wooden Crate;	Output Type:	AC Three Phase;
Supply Ability:	3000 Set/Sets per Month;	Frequency:	50/60HZ;
Rated Power:	30KW;	Delivery Detail:	20 working days;
Port:	FuZhou/Shanghai/Ningbo;	Rated Current:	Depends on voltage;

Product Description

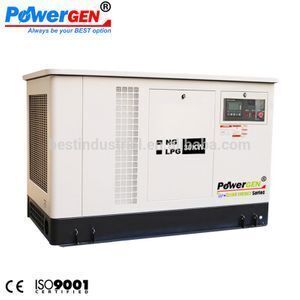

POWERGEN Best Selling model BNL30SE is a SUPER SILENT type 3-Phase DUAL FUEL (NG/LPG) Generator. It is driven by high quality Lifan water-cooled automobile grade gas engine LF481. With a rated output of 30KW/33KW 50/60Hz, it can provide automatic whole-house power for mid-sized homes, or essential circuit protection for small and medium businesses such as convenience stores and offices.

Specifications

SPECIFICATIONS OF GASOLINE GENERATOR
MODEL NO.:		BNL30SE
Frequency	Hz	50	60
Voltage	V	380/220; 208/127, 220, 120
Alternator type		Three phase, 2-pole, Self-excited, Brushless with AVR, Insulation class H, IP23
Rated Output	KW/KVA	30/37	33/40
Max. Output	KW/KVA	33/40	36/45
Power Factor		0.8
Engine Type		Water-cooled, 4-cylinder, 1587cc, Natural aspired
Engine Model		LF481
Bore x Stroke	mm	81 x 77
Compression Ratio		9.5:1
Ignition		ECM electronic
Cranking motor		Model: QDY1205; 12V 1.2KW
Charging alternator		14V 90Amp
Engine Speed	RPM	3000	3600
Fuel Consumption		NG: 10 m3/hour	LPG: 16 Liter/Hour
4- Protections		Yes
Starting Method		Electric Starter with Battery
Emergency Stop		Emergency Stop Button
Battery Capacity	V/AH	2pcs x 12/45
Battery cold cranking	CCA	525
Dimensions	LxWxH	1560 x 890x 970
N.W./ G.W	Kgs	520/550
Loading Quantity	PCS	20'GP: 12	40'GP: 28

Features

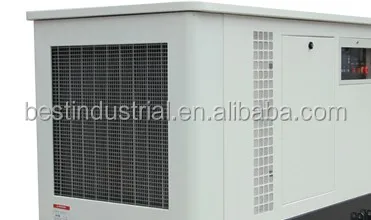

Canopy of Super Silent

- Sound/Noise Proof & Rain Proof
The noise level is much lower than any common gasoline generators. 65 dB @7meters.

- Efficient heat radiation

The canopy is designed of high efficienty on heat radiation to prevent auto shut-down due to overheat inside.

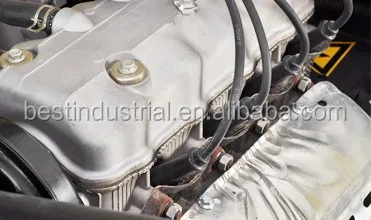

Water-cooled Gas Engine

Engine Model: LF481

Brand: LIFAN

Type: Water cooled, natural aspired

Starting system: Electric Starter with battery

Charging alternator: 12V 90Amp

Battery: 2x12V45AH

Full Copper Brushless Alternator

Model: PG-30

Brand: POWERGEN

Power: 30KW/37KVA

Power factor: 0.8

Type: Brushless, 2-pole, with AVR(+-1%), Self-excited, IP23

Speed governor: Electronic

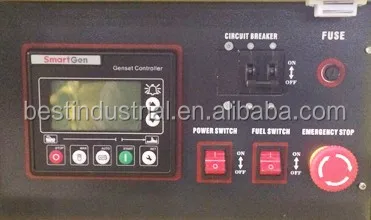

Control Panel

- Emergency stop button

- Smartgen HSC940 Digital LCD Controller: Voltage (V),

Frequency(Hz), Working Hours, Fuel level etc.

- Fuel Switch, Power Switch

- Main Circuit Breaker

- Socket Circuit Breaker

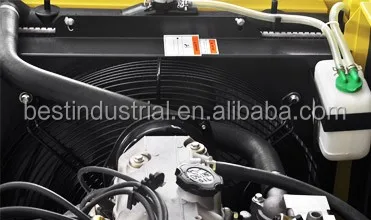

Industrial Grade Radiator

- The radiator is specially designed for the Water cooled Lifan engine LF481

- Largely cooling down the temperature of the running engine.

- Compact and easy for maintenance

Optional

ATS

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Tri-fuel: NG/LPG/Gasoline

The NG/LPG generator can be made with a gasoline fuel tank to run gasoline as well, to be a tri-fuel generator.

Wheels

The generator can be equipped with 4xwheel for easier transportation.

Packaging

Packaging
Size (mm)	1640 (L) * 970 (W) * 1100 (H)
Gross Weight (Kgs)	550
Packaging Details	1) Inner Packaging: Polybag 2) Outer Packaging: Fumigation free Wooden crate
