22KW AC Wall-box ev car charger with display ocpp

Product details
Phase:3-Phase;Input voltage:220/380 VAC;
Place of Origin:Guangdong China;Output voltage:220/380 VAC;
Certificate:CE ROHS;Output current:80A;
Port:Guangzhou;Packaging Detail:Wooden;
Model Number:CHR-22A;Connector:AC EVSE;
Supply Ability:100000 Piece/Pieces per Year;Output power:22kw;
Warranty:12 Months;Product name:22KW AC Wall-box ev car charger;
Usage:EV charging;Brand Name:Electway;
Payment Terms:L/C,T/T,Western Union;
Product Description

The features for home use AC charger:

This item should the first 22kW dual AC high power commercial pubilic EVSE charger  in the world. It could be load 1 car in one time by selecting option via the 4.3 inch touchable  display screen. There some advantage features as follows:
1. It can load single/three phase self-adaption. If for 3-phase on board charger, it will be output 22KW.
2. For any type2 or SAE J1772 port, it is 100% working. For example: Tesla, Nissan leaf,Renault Zoe,Hyundai Ioniq,Hyundai Kona, BMW i3, VW E-golf...
3. It could be wall mounted or pile stationary mounted. With Emergency stop button.
4. We provide RFID payment system for car owner to paying after charging finished.

Detail Specification

                AC input
Phase/lines: 3phase+Neutral +PE
Voltage&frequency:220/380Vac ± 15%  50Hz
Norminal input current&power : 32A,30KVA
Efficiency : >99.9%

               AC output
Voltage range : 220/380Vac± 15% 50Hz
Current range : Up to 32A
Nominal power : 22kw








         General Specifications
Communication with Server protocol : OCPP 1.6
Communication with EV : ± 12V  PWM
AC plugs : IEC62196-2 Type 2,SAE J1772 Type 1
Human machine interface
             - Display : 4.3 inch
             - Button : Emergency button
Place of installation : Wall mount or stationary
Protection temperature : -60 ~+45 °C
Operating temperature : 25℃
Protection degree : IP67
Payment system : RFID
Measures ( W x D x H) : 500 x300 x130mm
Weight : 18kg

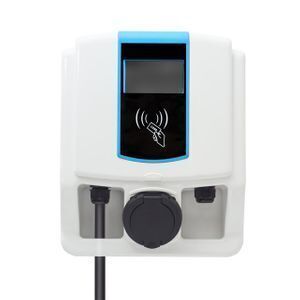

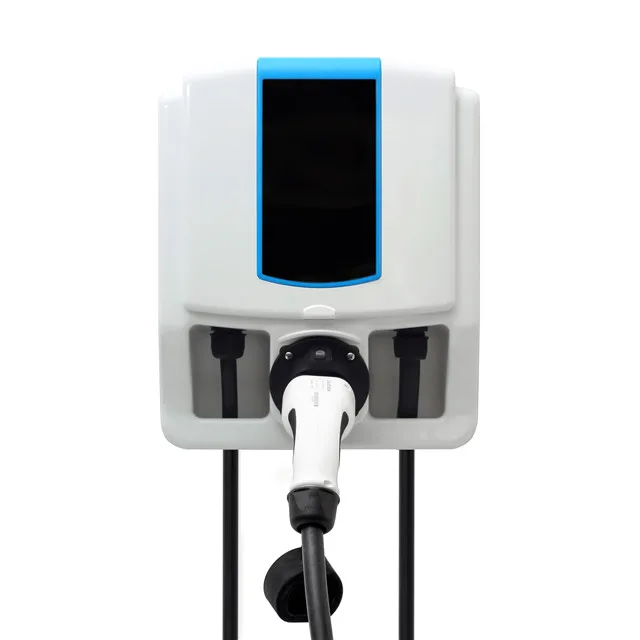

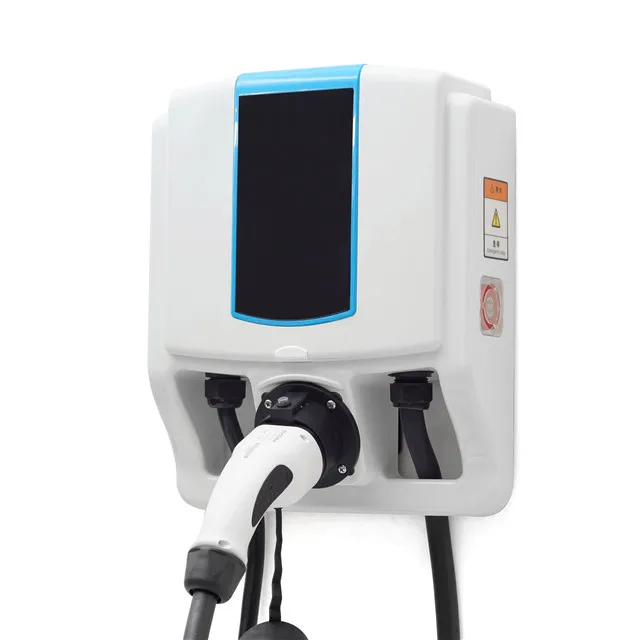

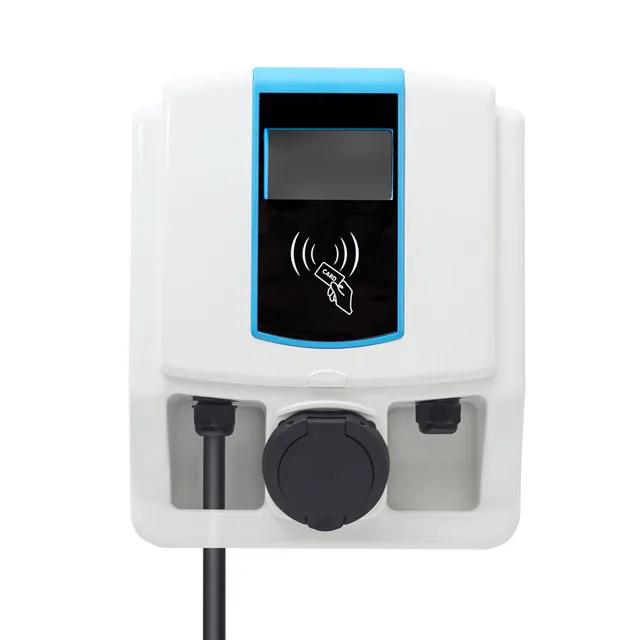

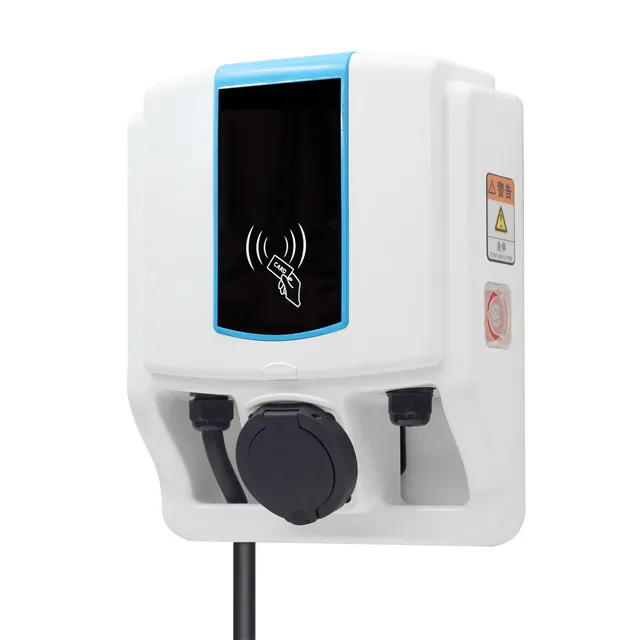

Detailed Images



Packaging & Shipping

1pcs per carton ,
Sending by Express TNT , Fedex ,  DHL or By air , By sea by Customized

Express Freight cost Prepaid or Collect are both ok !

Company Information

Guangzhou Electway Technology Co., Ltd was founded on March 20th,2012.It is located in Huangpu District, Guangzhou.Since its establishment, our company has been focusing on R&D, production, sales and other services of hardware&software products of power electronics in the field of new energy.
At present, Our company's main products are: a variety of domestic and international standard electric vehicle AC and DC charging station (stationary&wall-mounted), mobile off-board DC chrger,all Series of AC charging EVSE,charging connectors,off - grid electric vehicle discharge device V2H, changing power module and its peripheral products.

Our company invest great efforts on the development of technology and the accumulation of high-quality talents. We have a professional R&D team of more than 10 people.We pay highly attention to the accumulation and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents, andregistered the trademark "ELECTWAY". Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea, and have gained a high reputation in the industry.
