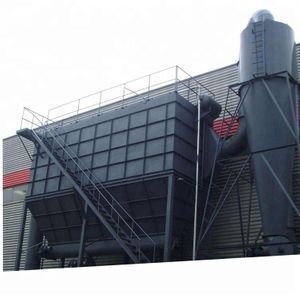

Pulse Baghouse Filter and Cyclone Dust Collector For Cement Mill

Supplier: Botou Ever Lucky Environmental Protection Machinery Co., Ltd.
Region: Hebei, China
Contact: Mr Jacky Guo
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Wrapped in plastic film and packed in wooden cases.;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	ISO;	Weight:	1~84ton;
Dimension(LWH):	Depends Air Volume;	Place of Origin:	Hebei China;
Name:	bag type dust collector;	Product name:	Baghouse Filter and Cyclone Dust Collector For Cement Mill;
Structure:	Advanced;	Minimum Particle Size:	0.5 Micron;
Supply Ability:	40 Set/Sets per Month Pulse Baghouse Filter and Cyclone Dust Collector For;	Usage:	Clean Dust Air;
Material:	Carbon Steel;	Applicable Industries:	Energy & Mining;
Port:	Tianjin port;	Certification:	ISO9001;
Brand Name:	JY;	Warranty:	1 Year;
Power:	Customize;	Application:	Dust Collect;
Payment Terms:	L/C,D/A,D/P,T/T;	Condition:	New;
Use:	Industrial Dust Collector System;	After-sales Service Provided:	Field installation, commissioning and training;

Pulse Baghouse Filter and Cyclone Dust Collector For Cement Mill

Product Description

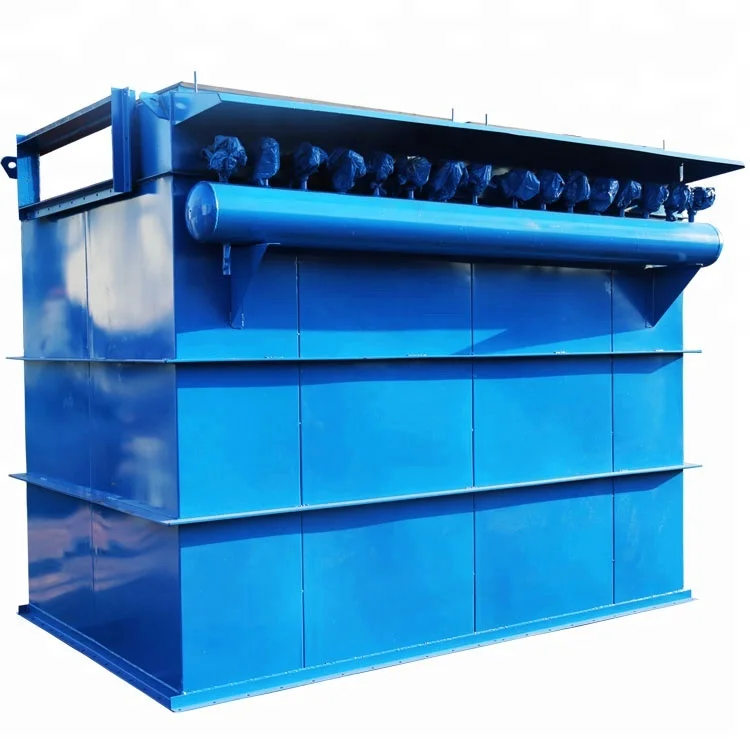

System composition
1	Upper box is includes cover plate and air outlet.
2	Middle box is includes perforated plate, filter frame, sock and venture.
3	Under box is includes ash hopper, air intake and access door Jetting system contains control valve, pulse electromagnetic value, injection pipe and air pocket.

Working Principle:
During the dust gas goes into middle box and under box, the dust can be attached to filter bag and outgoing gas after going through venture and upper box. With the increasing of dust, press loss for dust bag is increased, which will fed back to controller. Receiving and issuing commands, the controller will touch off every pulse valve to make gas erupts from each jetting hole, then pass a venture tube and spray into corresponding filter bag. The filter bag expands rapidly under instantaneous reaction of airflow, dust fallen off of the filter bag, so the filter bag can be recycled.

Structural Drawing:
