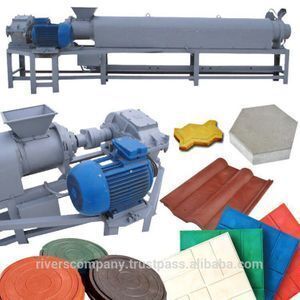

Polymer Sand Extruder for Making a Composite and Producing Roof and Pavement Tiles, Sewer Covers

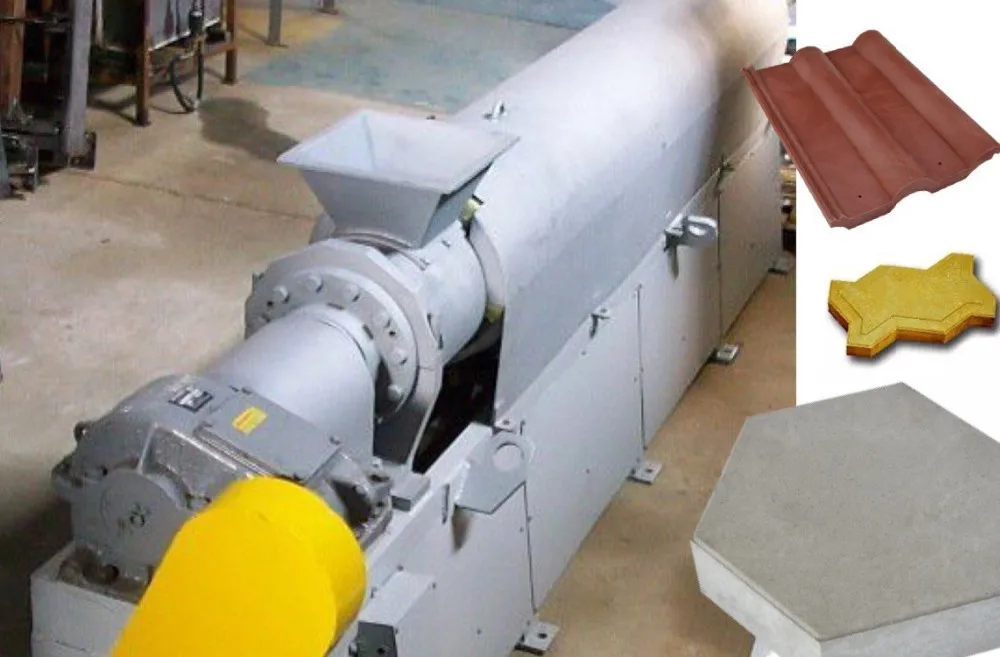

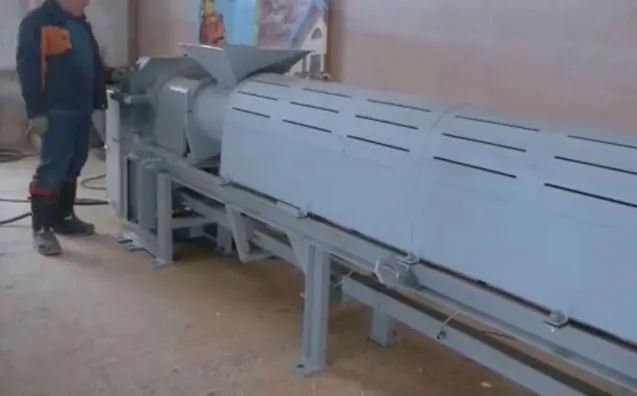

Polymer sand extruder machine

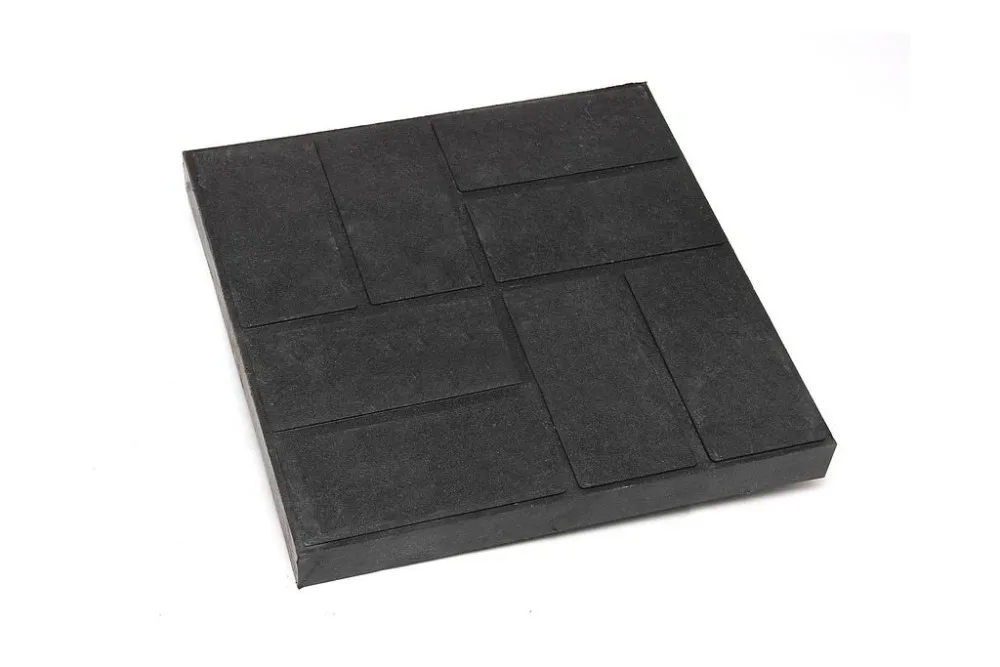

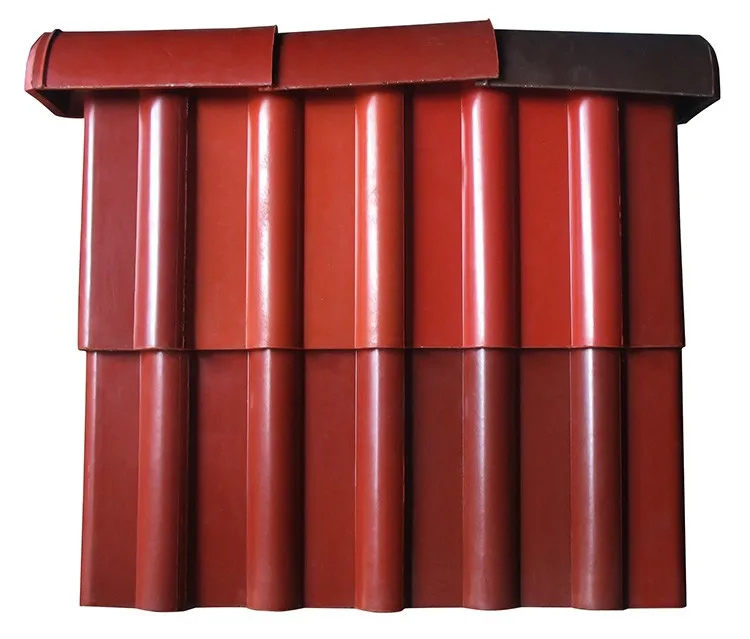

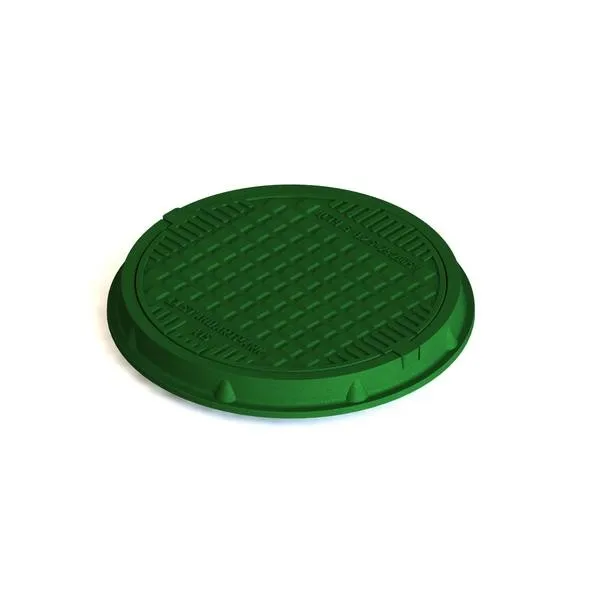

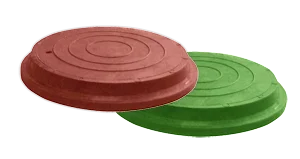

The use of polymer sand plastic processing equipment solves not just the polymer waste recycling problem but number of other problems (cleaning of urban landfills, environmental problems) and it is also arranging profitable production of building and finishing materials: paving and facing tiles, curbstone, various bas-reliefs and flowerpots , sewage manholes, roofing tiles, insulating sleeves for power cable, etc.

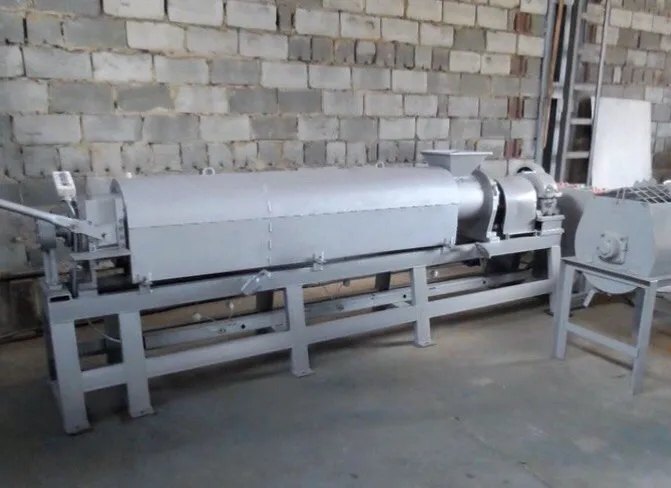

The machine for making the thermoplastic composite as result of mixing and heating the components of the polymer sand mix.

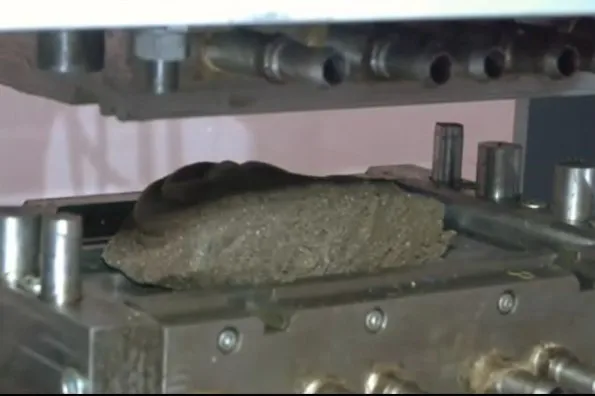

After you get the received preheated mass out of extruder it is placed in a mold on a molding press to produce polymer sand finished product.

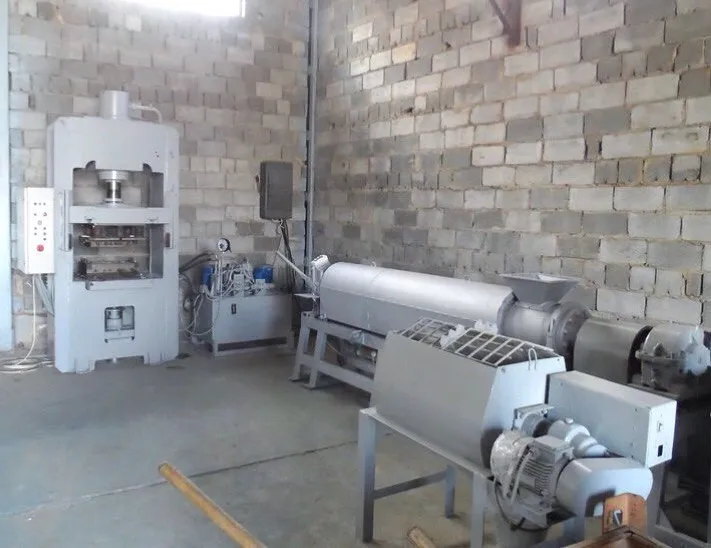

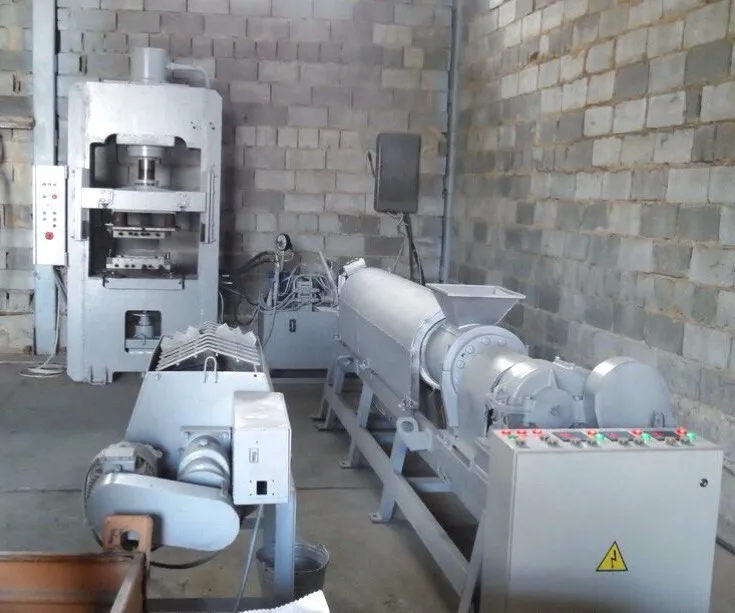

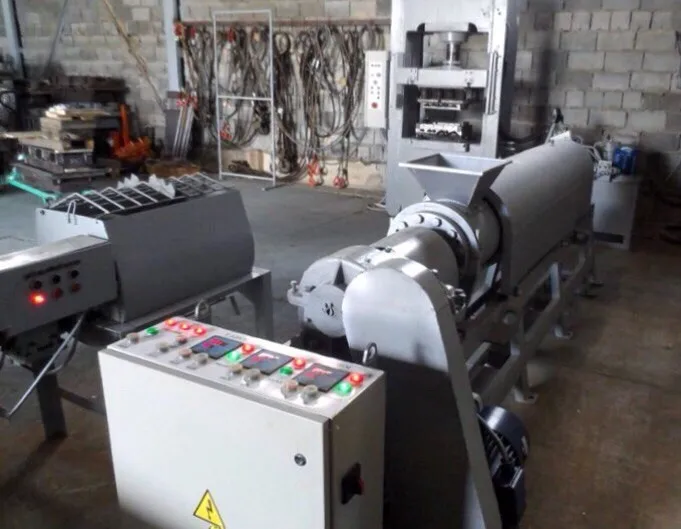

The machine is used in the polymer-sand complex.

The main advantages of our extruder are:
• heating control that is fully automatic - automatic monitoring of temperature lets us (you?) to avoid human factor errors and also helps to save the energy;
• induction heating takes place in four working areas to reduce heating inertia and avoid the risk of mix burning ( plus it also helps to save the energy);
• high capacity (the prepared composite is sufficient for the operation of two presses), this is due to the optimally selected length and diameter of the tube (mixing chamber) of the extruder, where the mixing and heating takes place;

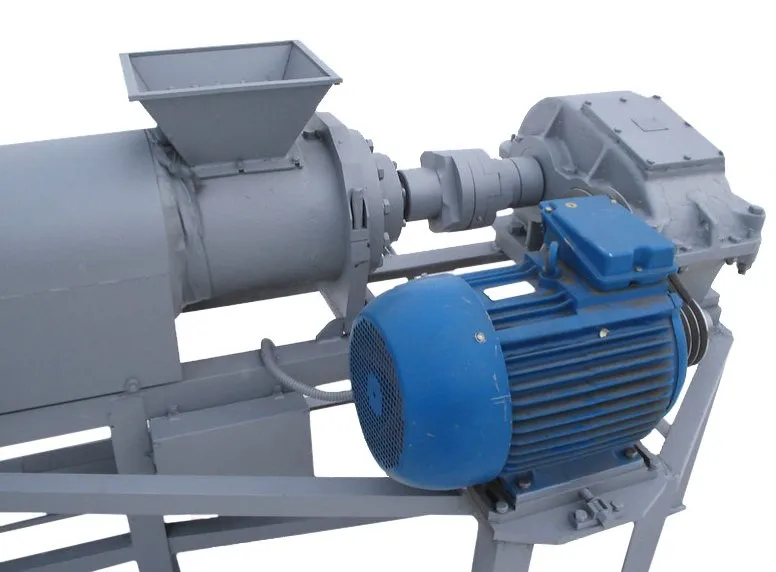

• powerful and very reliable drive and screw units;
• maintenance-free bearing units are put out;
• the ability of working in 3-shift mode without reducing the warranty;
• a full 1 year warranty.

How does it work?

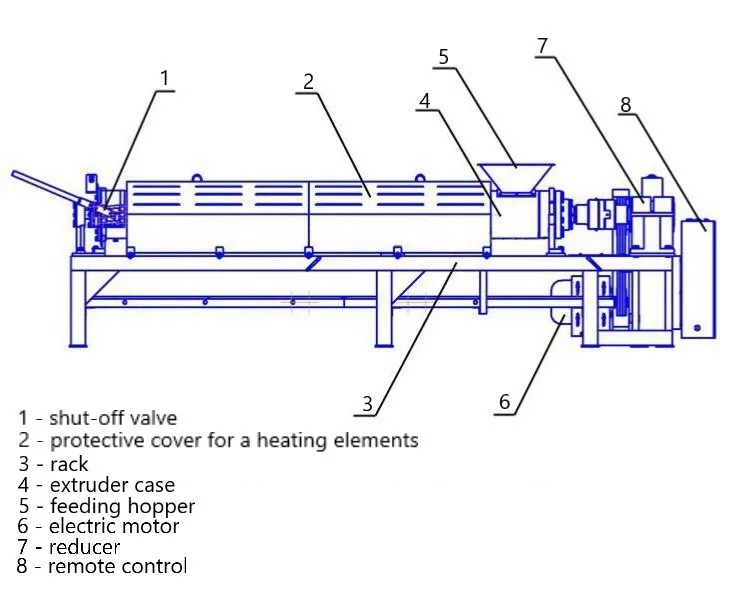

All of the components (polymer, sand, dye) are loaded into the extruder hopper. The shut-off device must be closed during the loading of the components. The components are going through the extruder body (rack) are mixing and heating until it gets a certain temperature (the temperature depends on the type of polymer used).

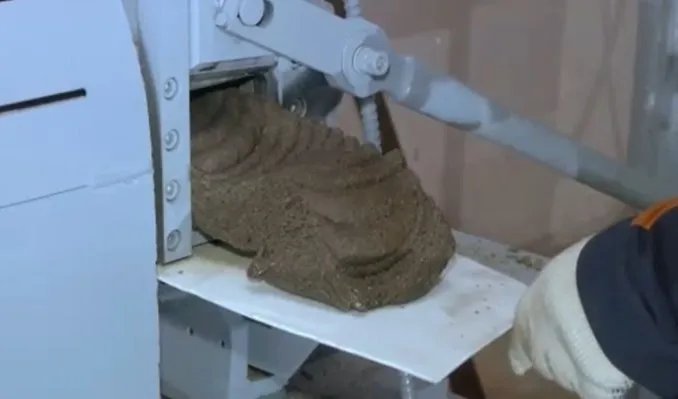

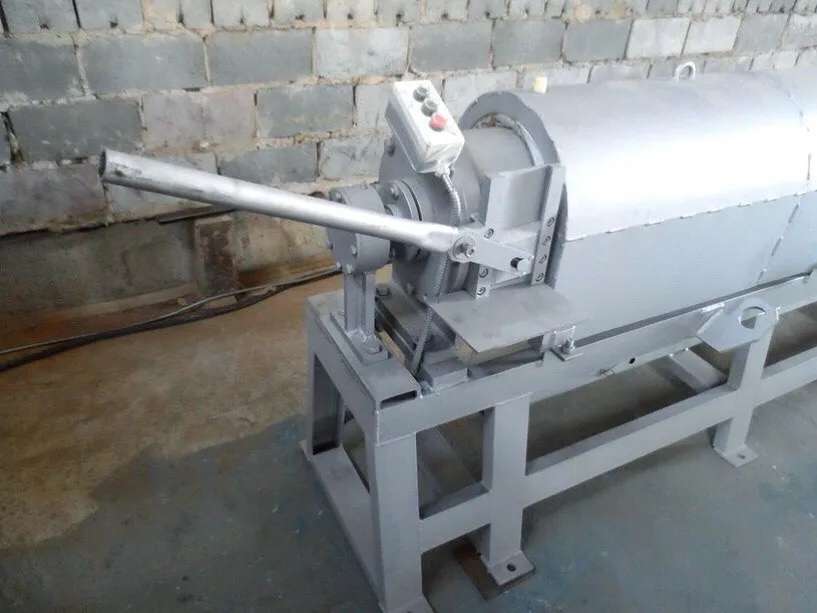

The temperature is maintained and controlled automatically by the controller. At the same time, the power consumption is small and induction coils operate alternately to maintaining a certain temperature).The mixed and heated mass exits out of the extruder in a certain portion that is regulated by the shut-off. Then the mass is transferred to the mold of the press for further forming.

We can produce you with an auxiliary polymer sand equipment: tables for goods lagging, belt conveyors, supplies, oil stations, roller conveyors, press of small tonnage;
According to your drawings or finished materials we are able to produce any molds for the production of shingles, facing tiles, hatches and other.
