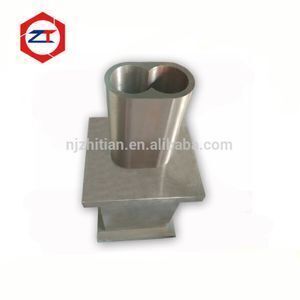

Nanjing Zhitian Plastic Machinery Parts Conical Twin Screw and Barrel
-
Supplier: Nanjing Zhitian Mechanical And Electrical Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Esther Li -
Price: $300.00 /piece -
Min. Order: 1 piece
Product details
| Screw Diameter: | 63mm; | Material: | 45#+W2(Cr26); |
| Dimension(L*W*H): | 240mm*210mm*170mm; | Port: | nanjing/shanghai for Nanjing Zhitian Plastic Machinery Parts Conical Twin Screw and Barrel; |
| Color: | metal; | Condition: | new; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Delivery Detail: | Shipped in 30 days after payment; |
| Payment Terms: | L/C,T/T; | Center Distance: | 52mm; |
| Supply Ability: | 500 Piece/Pieces per Month; | Name: | Nanjing Zhitian Plastic Machinery Parts Conical Twin Screw and Barrel; |
| Place of Origin: | Jiangsu China; | Screw Design: | Twin screw; |
| Brand Name: | ZHITIAN; | Application machine: | Twin Screw Extruder; |
| Packaging Detail: | standard packaging for Nanjing Zhitian Plastic Machinery Parts Conical Twin Screw and Barrel; | Model Number: | 65; |
Product Description

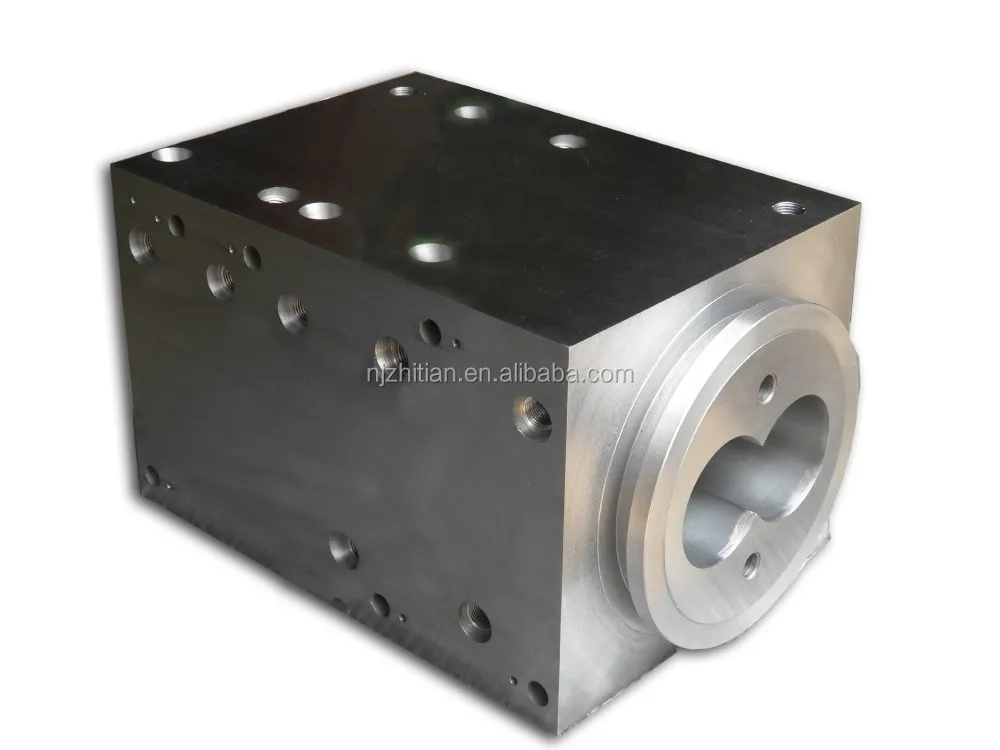

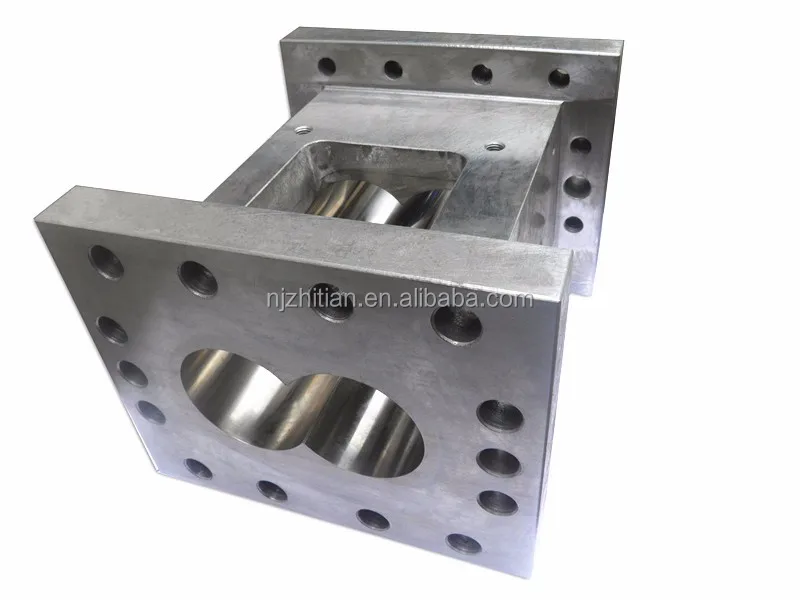

Standard Barrel
Batch production, inventory sufficient. |  |
+
 | Non-Standard Barrel
Professional technical team, according to the surveying and mapping to sample processing, draw the 3 d rendering, customized products for you. |
+
| No. | Model | L*W*H(mm) | Diameter Φ(mm) | Center Distance D(mm) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
