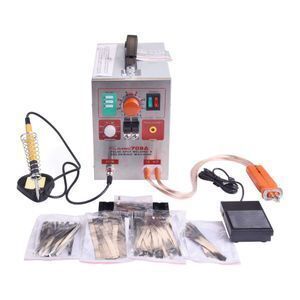

SUNKKO 709A 18650 Battery Spot Welder 2 in 1 LED Pulse Spot Welding Machine Kit with Soldering Iron

Product details
Certification:CE Certification;Max. Welding Thickness:0.3mm;
Single gross weight:7 KG;Feature:portable spot welding machine;
Product name:Spot Welding Machine;Weight:8kg;
Single package size:38X22X38 cm;Voltage:220V/110V;
Voltage:110v/220v;Condition:New;
Place of Origin:Guangdong China;Warranty:1 Year;
Rated Duty Cycle:60%;Applicable Industries:Building Material Shops,Machinery Repair Shops,Home Use,Construction works ,Energy & Mining;
After-sales Service Provided:Online support,Video technical support;Package Type:packing: carton box;
Dimensions:140*245*200mm;Condition:New;
After-sales Service Provided:No overseas service provided;Usage:spot welding;
Selling Units:Single item;Rated Capacity:25/35/50 KVA;
Brand Name:KNOKOO;Power(W):18KVA;
Product Description

Description:

  • The machine is a combination of battery spot welding and circuit board solder, which makes your work more convenient.

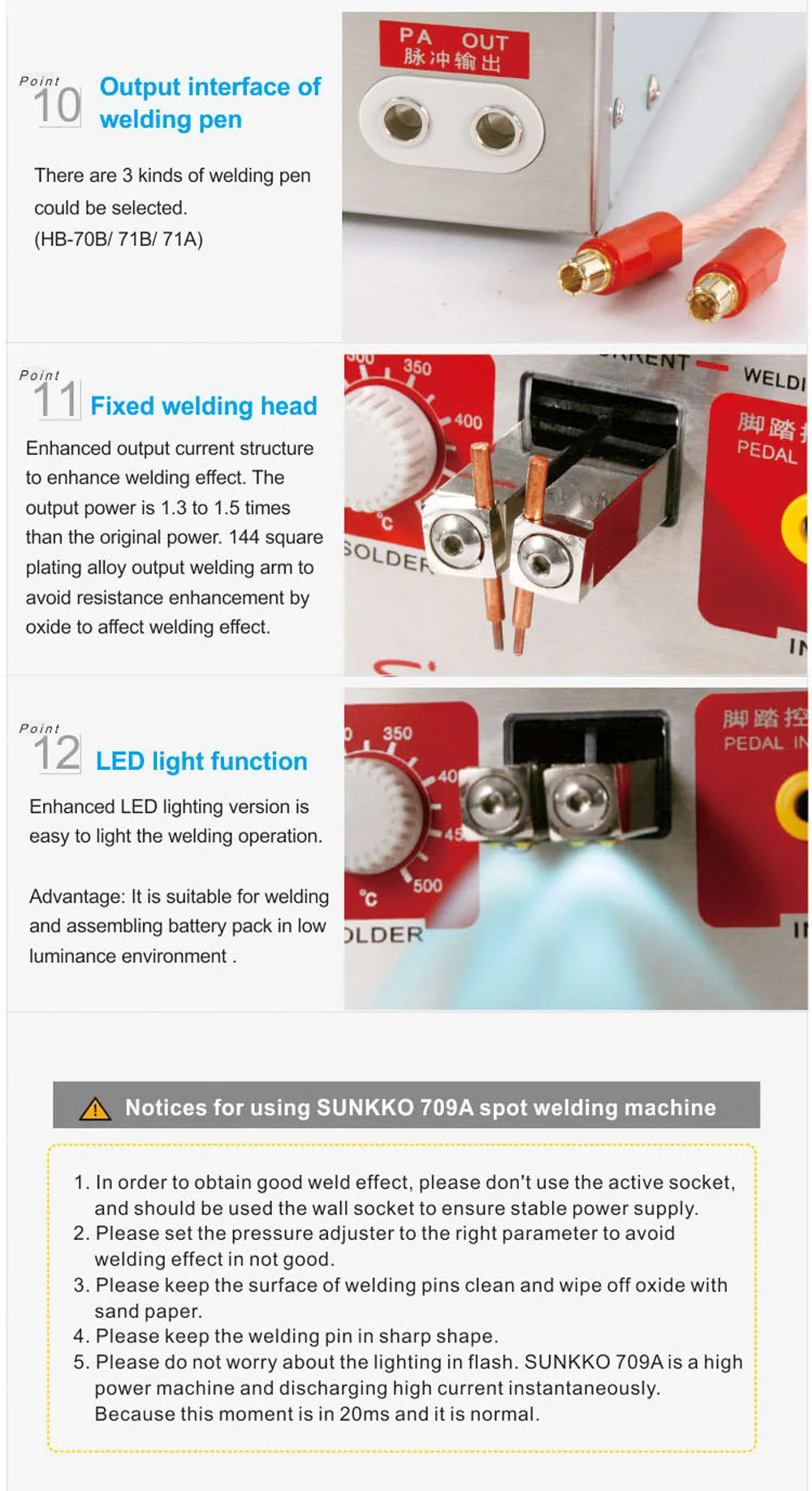

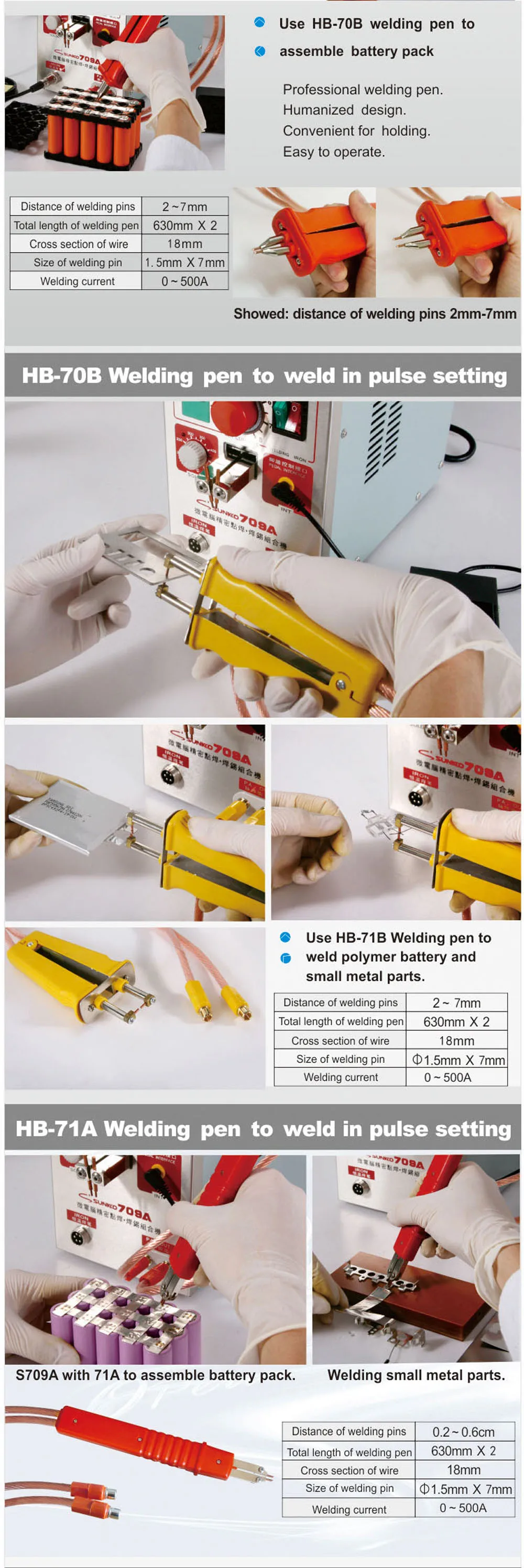

  • Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.

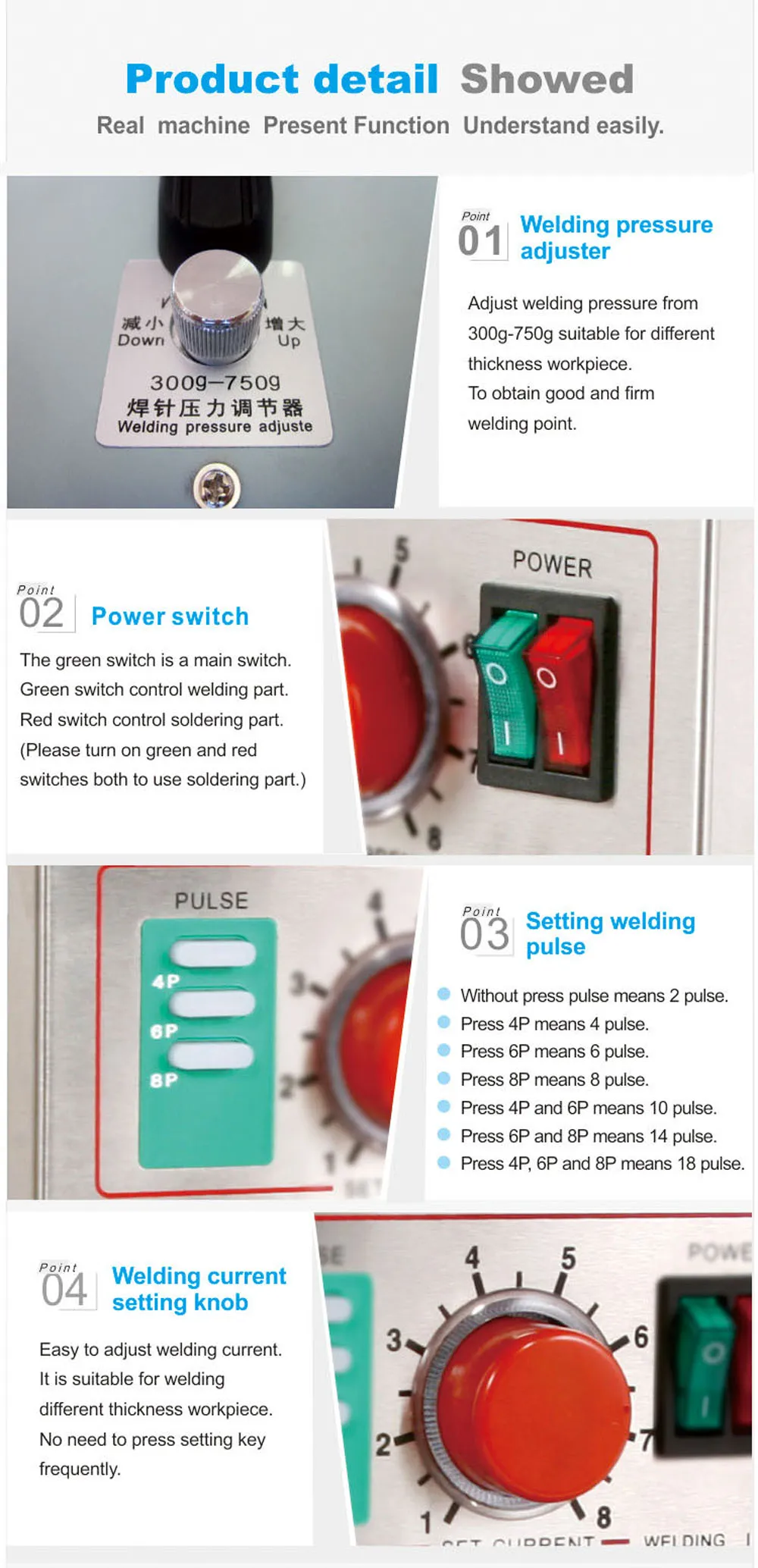

  • Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
  • Possess welding current rapid regulator, selecting the current will become quick and efficient.
  • The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.

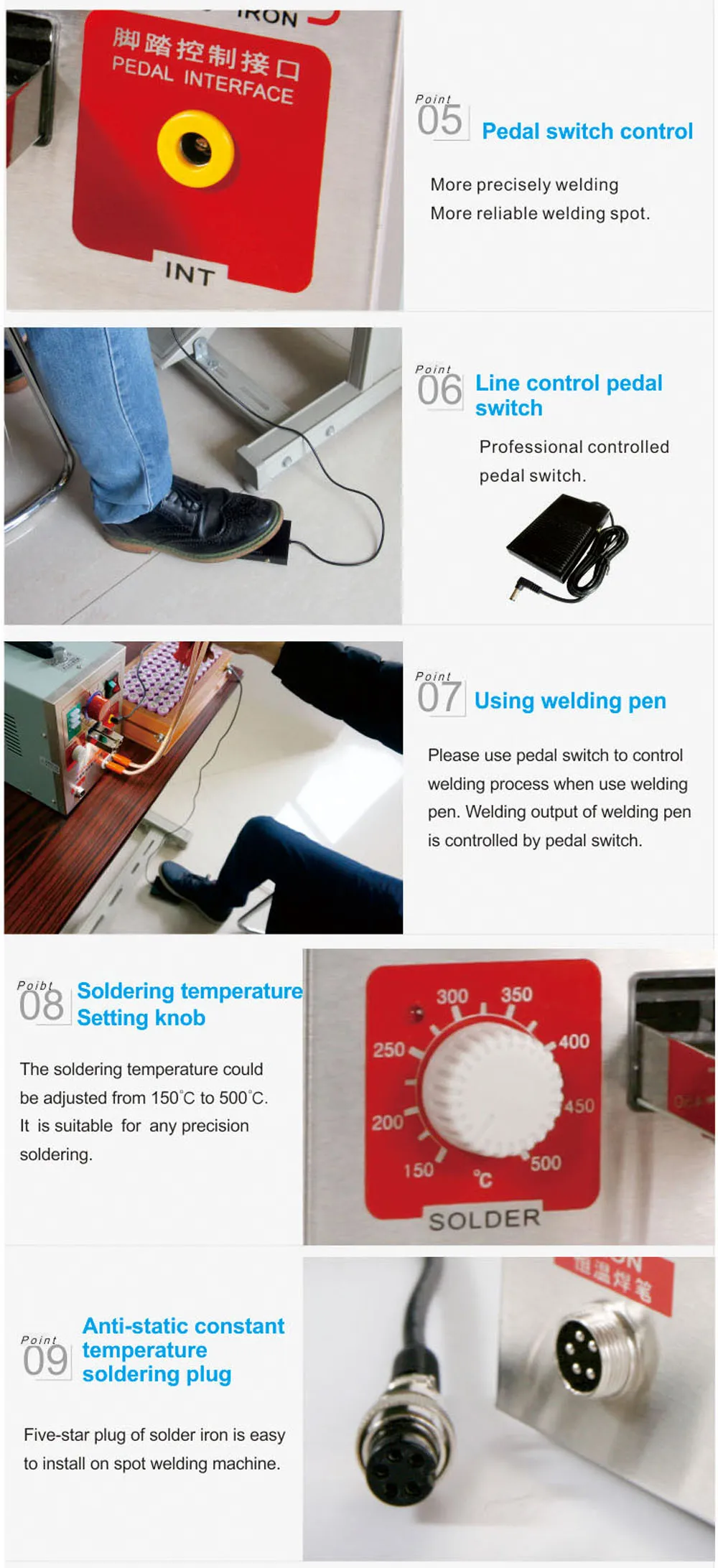

  • The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
  • The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.

Attention: For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.

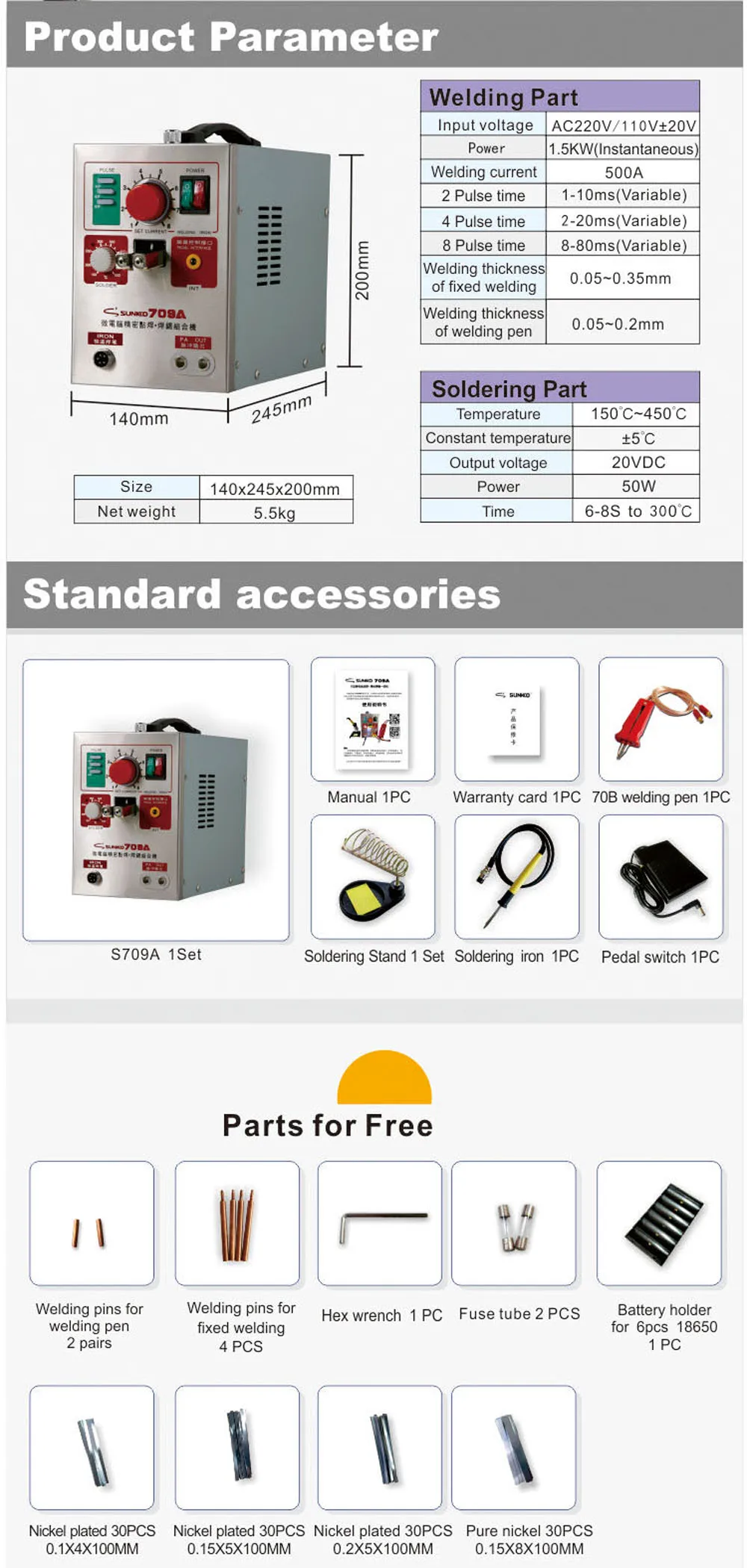

Specifications

Spot-welder part
Supply Voltage AC 220 V ± 20 V
Power1.9 KW (Instantaneous)
Current500 A
Electric leakage Switch Requirement60 A or more than 60 A
Time of Double Pulse
(Instantaneous Welding Time)
1 ~ 10 ms
(adjustable, by adjusting the welding current knob)
Time of Four Pulses
(Instantaneous Welding Time)
2 ~ 20 ms (adjustable)
Time of Eight Pulses
(Instantaneous Welding Time)
8 ~ 80 ms (adjustable)
Welding Pin Range5 - 6 mm
Welding Pressure300 - 500 g
Welding DistanceAdjustable
Suitable Welding Thickness0.03 - 0.3 mm for Fixed Copper Head
0.03 - 0.2 mm for Mobile Welding Pen

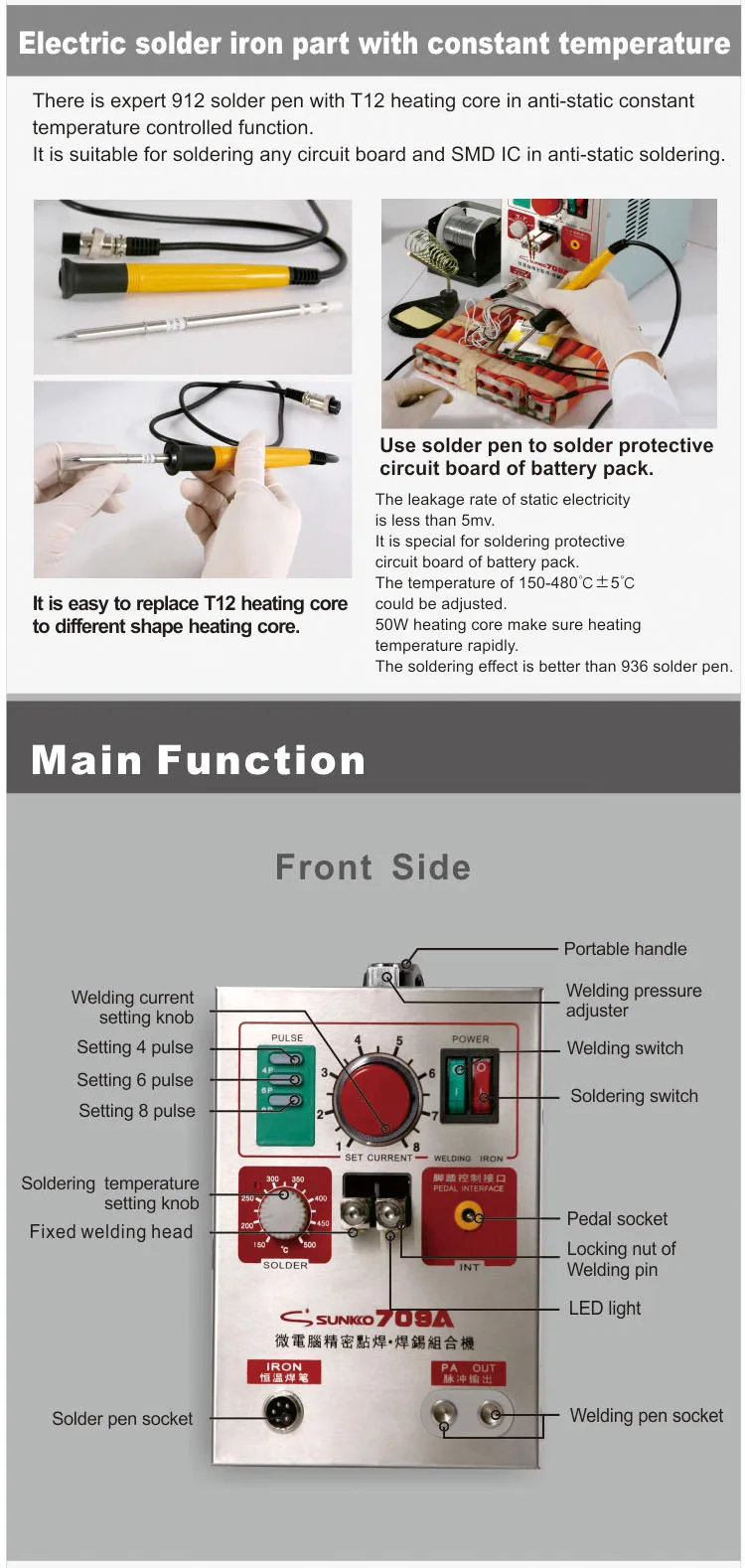

Soldering iron part
Temperature150°C ~ 450°C
Power50 W
Output Voltage20 V DC

This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.

The welding thickness 0.03 - 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 - 0.3 mm.

 Rated current of tripping device of the leakage protection switch should be up to 60A.

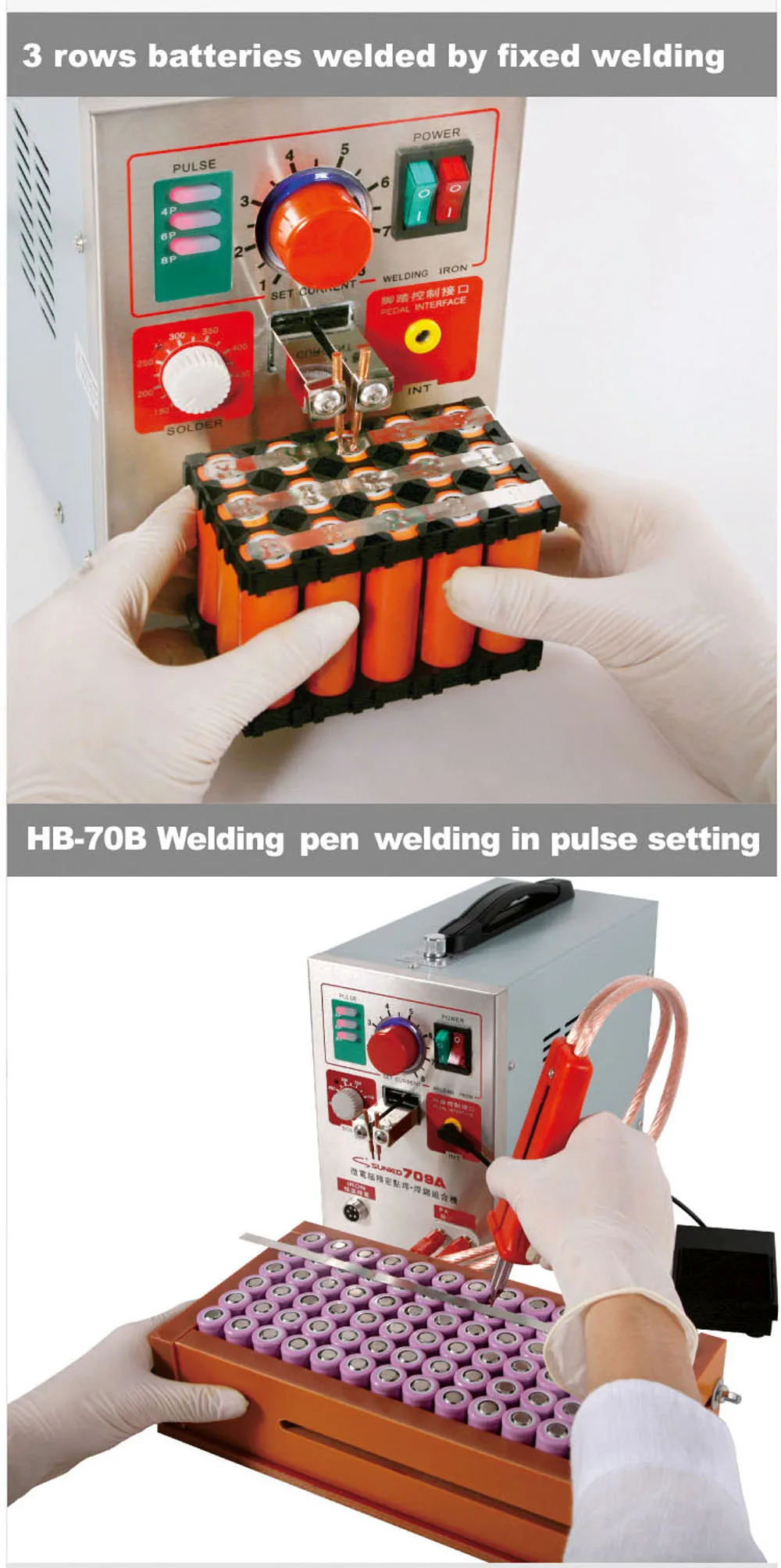

Product picture
