BBQ making ZBJ-III briquette machine /straw briquette machine best price
-
Supplier: Henan Vic Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr Andy Hu -
Price: $2400.00 /set -
Min. Order: 1 set
| Warranty: | 1 Year; | Brand Name: | VIC; |
| Applicable Industries: | Manufacturing Plant,Energy & Mining; | Payment Terms: | D/A,D/P,T/T,Western Union; |
| Weight: | 700kg; | English user manual: | Yes; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE; |
| Application: | compress sawdust, wood, rice hush in to briquette; | Delivery Time: | Within 10 days after the paid deposit; |
| is_customized: | Yes; | Condition: | New; |
| Port: | Qingdao; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Voltage: | 380V; | Production Capacity: | 150-180kg/h (50mm); 230-280kg/h (70mm); |
| Dimension(L*W*H): | 1670*670*1550mm; | Working video: | Yes, supplied; |
| Color: | As client required; | Supply Ability: | 10000 Set/Sets per Year; |
| Certification of Origin: | Yes; | Packaging Detail: | Package: Wood Box; |
| Place of Origin: | Henan China; |
ZBJ-II Brirquette Machine
Introduction:
Our briquette machine can make briquette from sawdust, wood , rice husk, coconut shell , straw and other wood materials. The finished briquette stick can be used as fuel for boiler, stove, BBQ and so on.
Working principle of briquette machine/straw briquette machine :
(1) It is used a large screw to grind, compress and extrude the biomass into briquettes
(2) The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature.
(3) In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc.
(4) During this process, non-binder needs to be used.
Main data for ZBJ-I:
| Model | ZBJ-III |
| Power (Kw) | 18.5 |
| Diameter of finished product(mm) | 70 |
| Output (Kg/h) | 230-280 |
| Electric Heater (Kw) | 3×2.2 |
| Machine Dimension Size(mm) | 1670×670×1550 |
| Weight (Kg) | 700 |
Related models:
| Model | ZBJ-I | ZBJ-II | ZBJ-III |
| Power (Kw) | 11 | 15 | 18.5 |
| Output Products Size Diameter(mm) | 50 | 50/70 | 70 |
| Output (Kg/h) | 150-180 | 150-180 (50mm) 230-280 (70mm) | 230-280 |
| Electric Heater (Kw) | 3×1.5 | 3×1.5 | 3×2.2 |

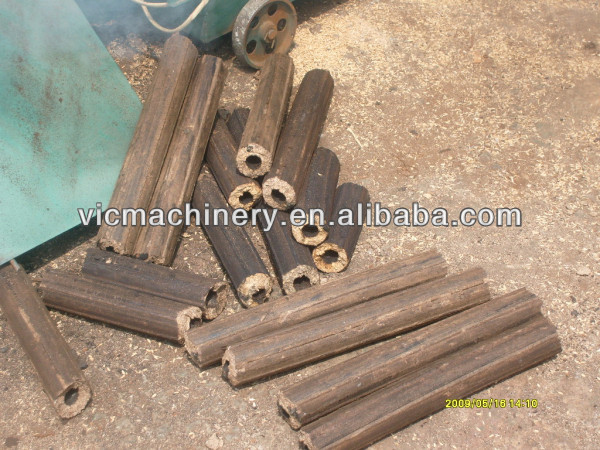

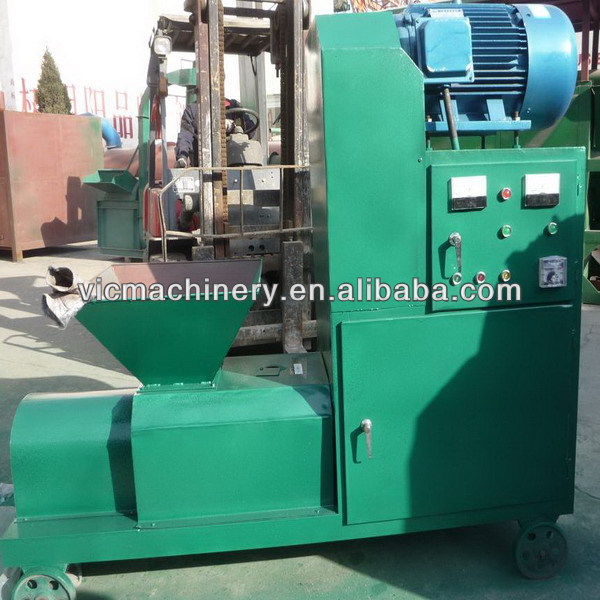

Pictures for ZBJ Series Briquette Machine
Packaging:
Package: In wooden Box
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
-
