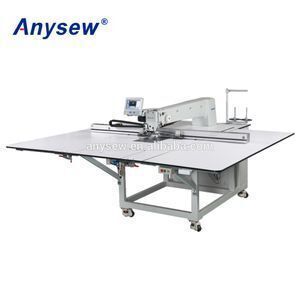

AS8300-13080 Fully Automatic Oil-Free Process Template Sewing Machine

Click here to contact

Product details

Brand Name:	ANYSEW;	Warranty:	1 Year;
Stitch Length:	0.5~12.7mm;	Power:	750W;
Type:	Industrial Sewing Machine;	Feed Mechanism:	Drop Feed;
Supply Ability:	5000 Set/Sets per Month;	After-sales Service Provided:	Online support,Free spare parts;
Overall Dimensions:	2210x2215x1350mm;	Place of Origin:	Zhejiang China (Mainland);
After-sales Service Provided:	No overseas service provided;	Condition:	New;
Payment Terms:	L/C,D/P,T/T,Western Union;	Certification:	CE/ISO9001;
Stitch Formation:	Lock Stitch;	Packaging Detail:	Wooden box;
Mechanical Configuration:	Flat-Bed;	Port:	Any sea port or air port in china;
Max. Sewing Thickness:	8mm;

Product Description

1) Widening synchronous belt up to 5cm;

2) Stepping motor mechanism;

3) Large machine base frame design;

4) Oil-free on needle and head components;

5) Micro oil on the rotary hook;

6) Front mounted thread cutting cam brings a convenient maintenance;

7) new template clamping device;
8) Foldable table is easy to install and move.

Model	AS8300-13080
Sewing range	X: 130cm Y: 80cm
Stitch type	301 lockstitch form
Max. speed	2800 rpm (when stitch length at 3mm and with regular thread)
Max. stitch length	0.5-12.7 mm
Lift of the pressor foot	By hand: 5.5 mm; by knee: 13 mm
Needle type	DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#)
Hook	Double capacity hook
Middle presser foot	Stroke of 4mm as standard
	Lowest position adjustable range: 0.5-8mm
	Minimum distance adjustment range: 20mm
Outside presser foot	Distance to the big needle plate: 20mm
Max. stitches in a pattern	80000 stitches
Storage of patterns	999
Storage of templates	999
Program input	USB
File format	DXF, AI, PLT, DST
Main motor power	750W
Total power	2100W
Voltage	220V 50HZ
Dimensions - folded	1587x1158x1250mm (LxWxH) - 2.3 CBM
Dimensions - unfolded	2210x2215x1250mm (LxWxH)
