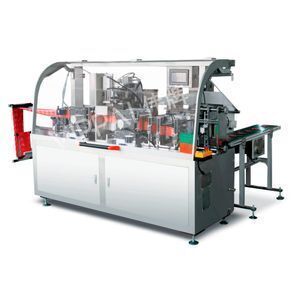

Automatic four side sealing Medical Application machinery automatic Single Wet Wipes Pouch Packing Machine

Product details
Capacity:80-120 Bags/min;Port:shanghai or ningbo;
Warranty:12 months;Type:4 side sealing machine;
Certification:CE;Place of Origin:Zhejiang China;
Dimension(L*W*H):3000*2800*1800MM;Suitable raw material:Spun Lace Non Woven;
Finished Products:wet tissue machine;Supply Ability:100 Set/Sets per Year;
After-sales Service Provided:Engineers available to service machinery overseas;Pcs/Pack:1 Pc;
Packing film:PE Complex;Sachet Type:four-side seal sachet;
Payment Terms:L/C,T/T;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Detail:Packaging Size 3060 (L) * 1080 (W) * 1800 (D) Weight 1.1 T Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;Wetting system:dosing pump;
Condition:New;Voltage:220v 50hz;
Weight:1200KG;Brand Name:VIROO;
Power(W):4.8kw;After Service:Long Term Spare Part;
Product Description



Machine video:

https://youtu.be/-aYXlPxwSBc

Product Description

    We make design of the machine according to the world advanced paper and non-woven packaging machinery technology, our wet wipes packing machine is suit for the manufacture of moist towelettes in any size and Packaging.

Item/model

Model:VPD250

Model:VPD350

For alcohol pad

For wet wipes



Packaging form

Horizontal Four-side sealing

Packing material

CPP,PE,BOPP CPP film,PE film,BOPP film

Wet Tissue Material

30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc

Folding way

Max 10 folding vertical, and 4 folding horizontal

Packing specification

Length

30mm-50mm

50mm-125mm

80mm-175mm(special design max 220mm)

Width

40mm -110mm

Max size

L50mm×W50mm

L120mm×W110mm

L170mm×W110mm

Packing speed

120-160bags/minute

60-120 bags/minute

60-100 bags/minute

Liquid added range

0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)]

Total power

2.8KW

Power supply type

Single phase two wire  220V  50/60Hz

Machine noise

≤64.9dB(A)

Air supply

0.6-1.0 Mpas

Air consumption

300-500L/min(w-1.0/10 air compression machine is needed)

Machine dimensions

L2800×W1080×H1800mm

L2800×W2800×H1800mm

L3000×W2800×H1800mm

Machine weight

1000Kg

1100Kg

1300Kgw

wet wipes Production flow chart



Main Features

1.  It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on
2. Double times sealing better to ensure the liquid adding volume and avoid leaking.
3. the language of operate system can be made in your local language as Spanish, French,Korean,Russian,Japanese, Arabic and so on.
4.The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.

Certifications



Detailed Images



Name:  nonwoven fold                                                         Name: cutting and inserting parts

Brand: wei pai                                                                        Function: cut the length of the tissue, fold and   Function:  Max 10 folding vertical, and 4 folding horizontal                   insert it into the pouch,then add liquid

Name:  forming and bottom sealing (mark sensor)         Name: Cutting parts

Brand: wei pai                                                                 Function: it's cut down the bags after the product

Function:  fold the film and forming it into bag,               finished , a single package ,twins package or

the sensor make it more exactly ,                                     anyother special edge can be changed through

no blank edge and fault forming                                       change

Our Services



Pre-Sales Service                                                       After-Sales Service

* Inquiry and consulting support.                                    * Training how to instal the machine, training how to

* Sample testing support.                                                  use the machine.

* View our Factory.                                                           * Engineers available to service machinery overseas



Packaging & Shipping

Packaging

Size

3060 (L) * 1080 (W) * 1800 (D)

Weight

1.1 /1.2T







Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Related Products



VPD400 facial mask making machine         VPD200Facial mask floding machine  VPD90facial mask filling packing machine



FAQ



1.what’s your product range?

four-side sealing wet tissue/wipes,alcohol swabs/pad,makeup cotton

2.What size of the packing specification you can make?

length*width=(40-125)*(40-110)mm

3.Are you a manufacturer?

Yes,We have been in making wet tissue packing machine over 14 years.

4.what about the payment term ?

Mostly 30%T/T  in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?

 --Quantity

 --What’s the detailed size (wet tissue packing specification,folding times)

 --What’s the wet tissue inner material

7.what’s your advantages ?

--14 years experience:We have been in making wet tissue packing machine for 14 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
