New Design Fire Truck Water Capacity For Wholesales

Supplier: Chengli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms Amie Nie
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Transmission Type:	Manual;	Condition:	New;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Fuel:	Diesel;
Cabin Color:	Red, white, blue, green,ect;	Emission Standard:	Euro 3;
Supply Ability:	500 Set/Sets per Month;	Certification:	CCC,ISO 9001, SGS;
Brand Name:	HOWO, Shacman, Donffeng;	After-sales Service Provided:	Engineers available to service machinery overseas;
Sprinkling Area (m):	> 16 m;	Drive wheel:	4x2,4x4,6x4,6x6,8x4;
Warranty:	2 Years;	Dimensions (L x W x H) (mm):	9800x2495x3130;
Volume:	5000L 6000L 8000L 10000L;	Storage:	12000-15000L;
Drive system:	Left hand drive or RHD;	Engine Capacity:	> 8L;
Drive Wheel:	6x4;	Port:	Any port in China;
Tank Volume:	15001 - 30000L;	Place of Origin:	Hubei China;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Gross Vehicle Weight:	25000;
Truck brand:	Foton, JAC, JMC, Dongfeng, HOWO, Beiben, IVECO;	Packaging Detail:	Bulk cargo ship or RORO Ship;

6x4 Sprinkler Water Tank Truck for 20tons capacity Water Bowser Truck for sale

1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..

3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)

Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, IVECO, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucks

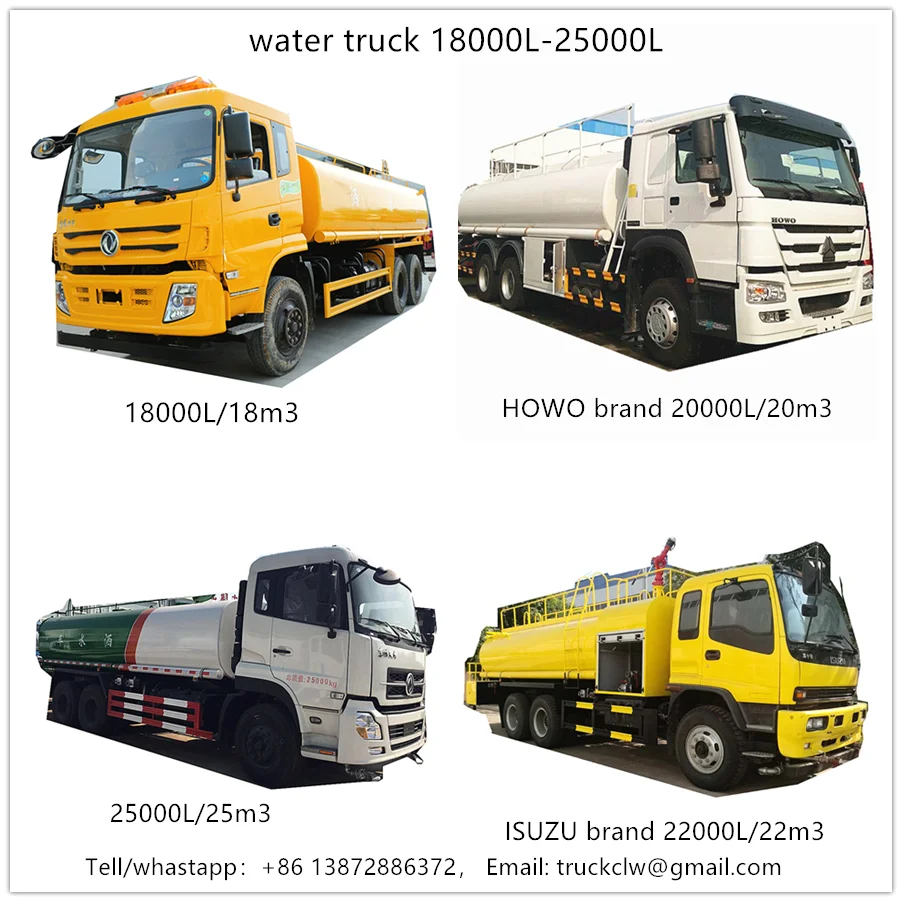

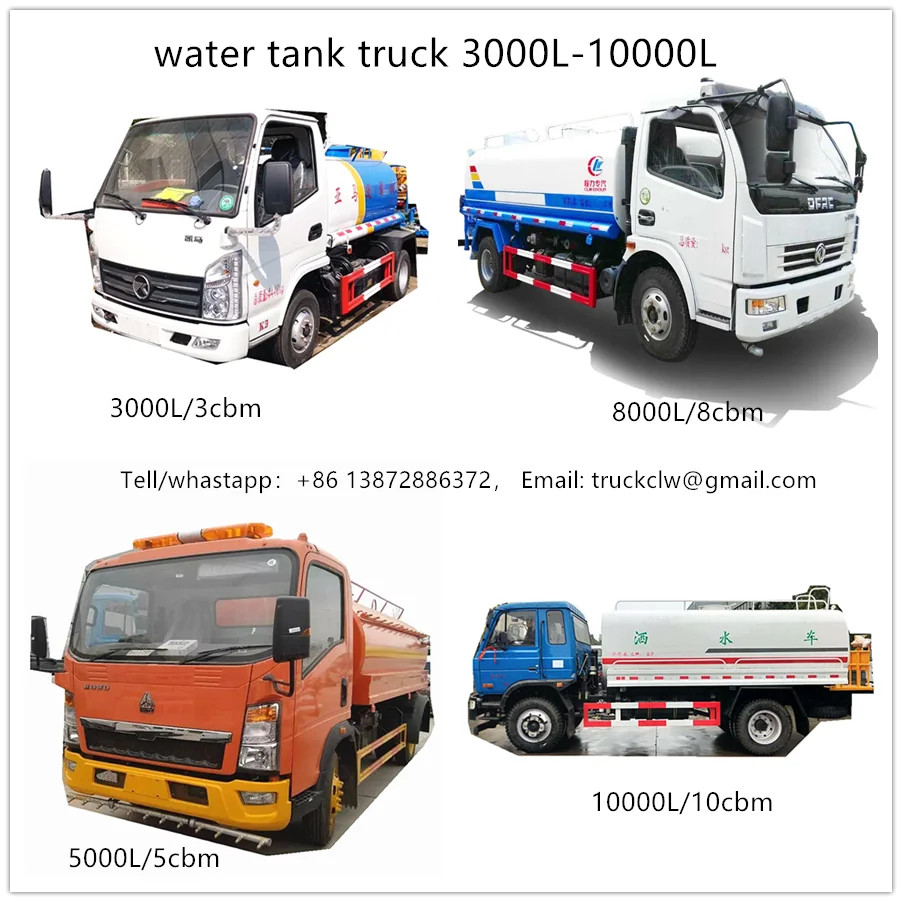

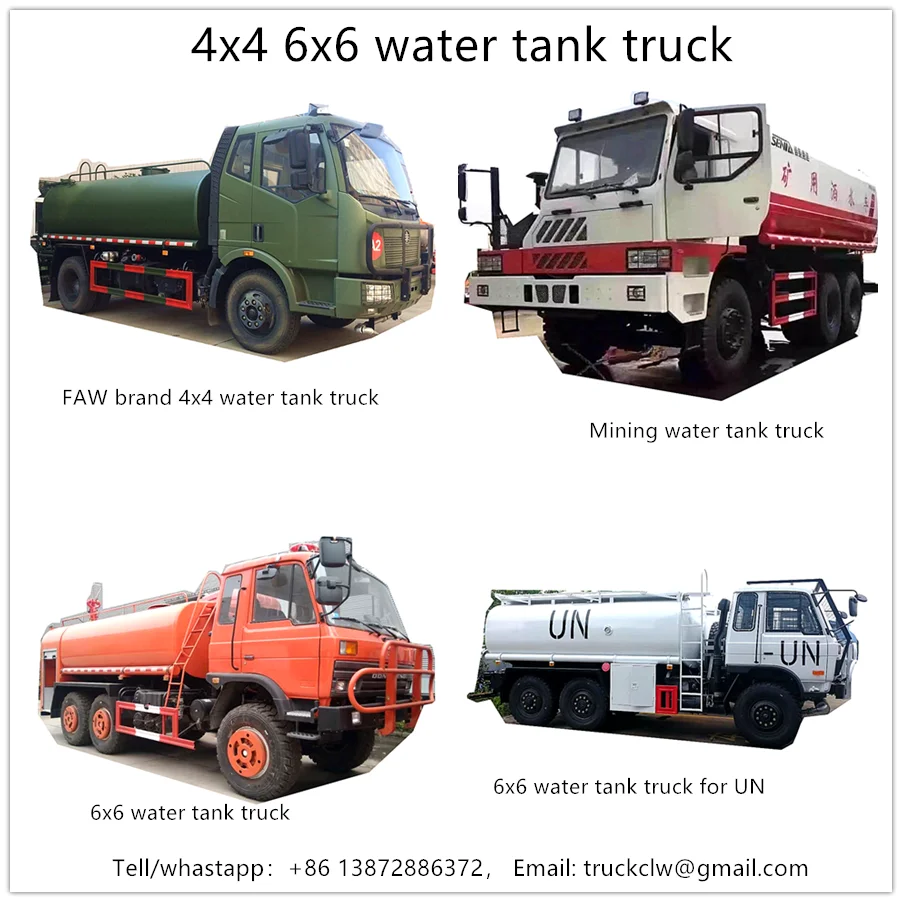

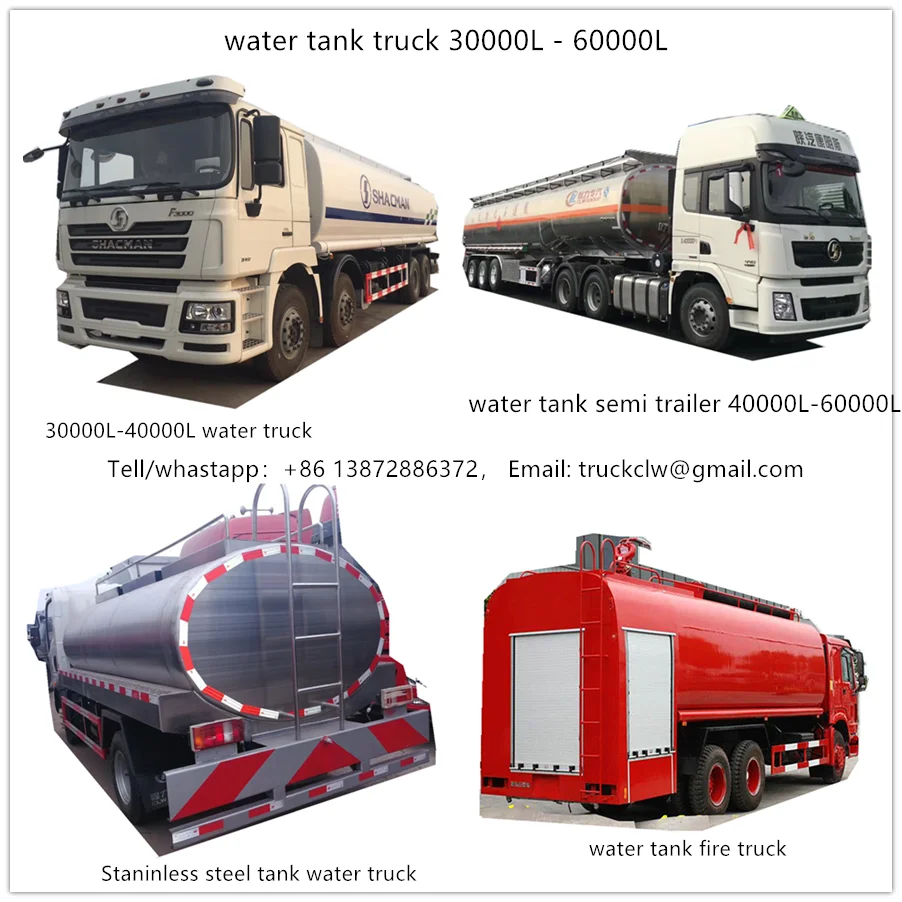

4. water tank truck pictures for refe,

Please contact with us if you need more information of the truck:

Product Description

water tank truck, water truck, sprinkler, road cleaning truck ;

Product Name	Water tank truck
Driving Type	Left hand drive ( RHD is optional)
Weights
GVW(kg)	6000, 15000, 25000, 31000
Rated payload weight(kg)	3000L-30000L 3CBM-30CBM 3 tons to 30 tons
Curb weight(kg)	9005
Dimensions
Wheelbase(mm)	4325+1350 3300, 3800, 4500, 5100mm is optional
Overall Dimension(mm)	9800×2495×3130
Box dimension	3-30 CBM 3000L -30000L
Max speed(km/h)	98
Engine
Engine model	WP10.290 (120hp, 190hp, 266hp, 340hp, 380hp, 420hpHP)
Engine type	4 stroke water-cooled,water-cooling.
No. of cylinders	straight-6 cylinders
Displacement(L)/Power(km)	6.494/162
Max. torque (kw)	800N.m
Drive Line
Transmission	7DS100,7 forwards,1 reverse gear,manual operation
Steering	With power steering
Brake system	Air brake
Cab
Air container	Have
Standard configuration	L cab,sound, and so on
Axle
Front axle	5 tons
Rear axle	AK153 tons
Tire specification
Tire specification	10.00R20 standard tire,10 tires+1 spare tire
Specification fuctionof water truck
Tanker shape	Ellipse water tanker
Tanker material	Q235,carbon steel
Introduction	1. Suction≥7m Sprinkler width≥14m Range≥28m
	2. with front spout, back spill and side spout function
	3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
	4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Sprinkling area(m)	»14m	Vertical suction range (m)	»7m
Watering pressure	250-450Mpa	Pump style	Self-priming centrifugal pump
Manhole	Man way access hole on top of tank;1 units DN500mm manhole
Front spray function	Front spray bar with fan sprayer on both sides, spray range: »28m
Man walk way	With skid resistance man walk way on top of tank
Horse reels	Two 75 ft hose reels at each side of the truck
Water pump	Water pump model: CLW80QZF-60/90N
	Water pump flow rate(L/m): 60m3/h
	Head of delivery(m): 90m
	Self-priming function(min/4m):1.5
	Efficiency(%):95%

water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.

water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.

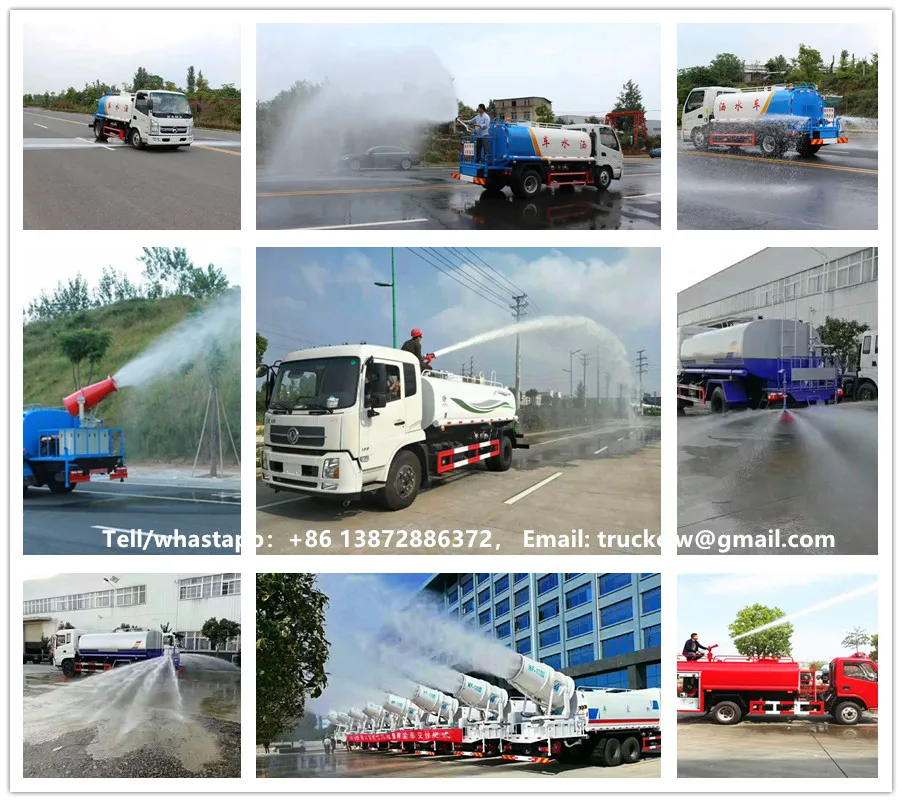

Sprinkling water pictures:

More Details:

1.basic component :antirust tank, connecting device, special self suction sprinkler pump, pipeline, spray outlet, work platform

2. tank body adopts high quality carbon steel plate produced in WISCO, using a large machine molding, junction of the tank

head and body using advanced arc welding process.

3.standard configuration: The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed

14 meters,the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump ,

with virescence sprinkler gun, the sprinkler gun can rotate 360 degrees, also can be adjusted into mist, range ≥ 15m, vertical suction process 7M.

4.functional use: widely used in sprinkler, spray, cooling, dust removal, flushing dust booties, spray pesticides,motor pump station,etc.

5.optional configuration: medicine wheel, drug pump, tank anti-corrosion rust-proof, multi-directional water joints, electromagneti

Related Products

Our leading varieties include more than 100 types of trucks and related products such as water tank truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others. Our cooperation partners including Sinotruk, FAW, Dongeng, FOTON, Schacman, Beiben, Hongyan and etc.

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

About our company:

Advantages and features:
1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.
2,The imported hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.
3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .
4,The sweeping device are hydraulic controlled and can avoid inter collision. Automaticlly.
5,the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition .And it is easy to debug and maintain..
6,the adjustable mist spray device can eliminate the second pollution as well as saving water.
7,streamline appearance ,low oil consumption,low noise.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.
