Small unit buck step down dc dc 24V to 12V converter 5A

Supplier: Dongguan Shatian Maohui Bentwood Processing Factory
Region: Guangdong, China
Contact: Mr. Daniel Chen
Price: $2.88 / >=20 units
Min. Order: 20 units

Click here to contact

Product details

Certificate:	CE;	Port:	Guangzhou, ShenZhen;
Payment Terms:	Western Union,MoneyGram;	Voltage regulation:	±1%;
Place of Origin:	Guangdong China;	Supply Ability:	100000 Unit/Units per Month;
Size:	442520.5MM;	Packaging Detail:	Caton box packing;
Waterproof:	YES;	Model Number:	OT-24-12-60W;
Output Current:	5A;	Efficiency:	Above 95%;
Warranty:	2 years;	output power:	60W;
Input voltage range:	15-40V;	Brand Name:	OCTANS;
Protection:	YES;

Product Description

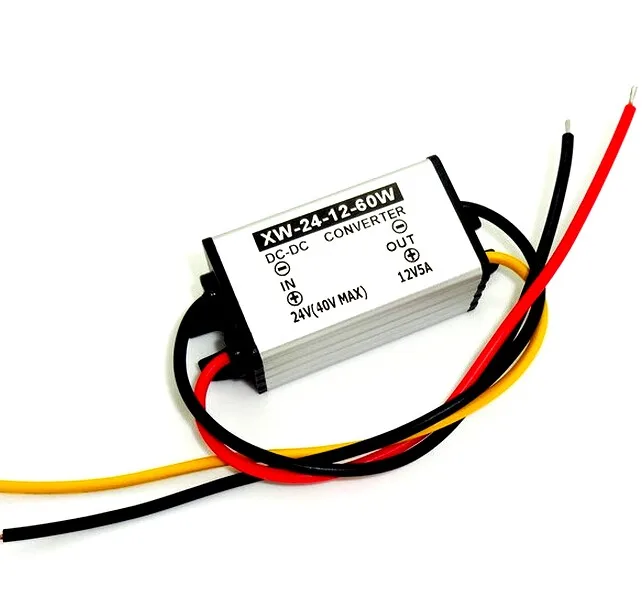

Small unit buck step down dc dc 24V to 12V converter 5A

Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 8-36V

4. 100% waterproof & anti-shock protection, Ultra compact size, light weight

5. Industry grade step-up converter, efficiency up to 95%

6. Waterproof level: IP68

7. According CE(EN61000) / RoHS design

8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

9. Protections: Over-current, Over-voltage and Over-temperature,

Auto-recovery when device is back to normal operating

10. Non-Isolated Module

● Waterproof level IP68

● 2 Year warranty

MODEL
INPUT	Rated voltage	V	24V
	VVoltage range	V	14-40V
	Efficiency	%	96 @ 24V input
OUTPUT	Voltage	V	12
	Max. Rated Current	A	5A
	Max.Rated Power	W	60W
	Voltage Regulation	%	±1
	Load regulation	%	2
	No load loss	ma	70 @ 24V input
	Ripple&noise	mvp-p	180 (full load
Environment	Working temperature	°c	-40 ~ +80
	Working humidity	RH	10% ~ 90%
	Storage temperature	°c	-40 ~ +100
Function	Short circuit protection		NO
	Over current protection		YES
	Waterproof		IP68
	Over temperature protection		YES
	Over voltage protection		YES
Mechanical	Weight	g	45

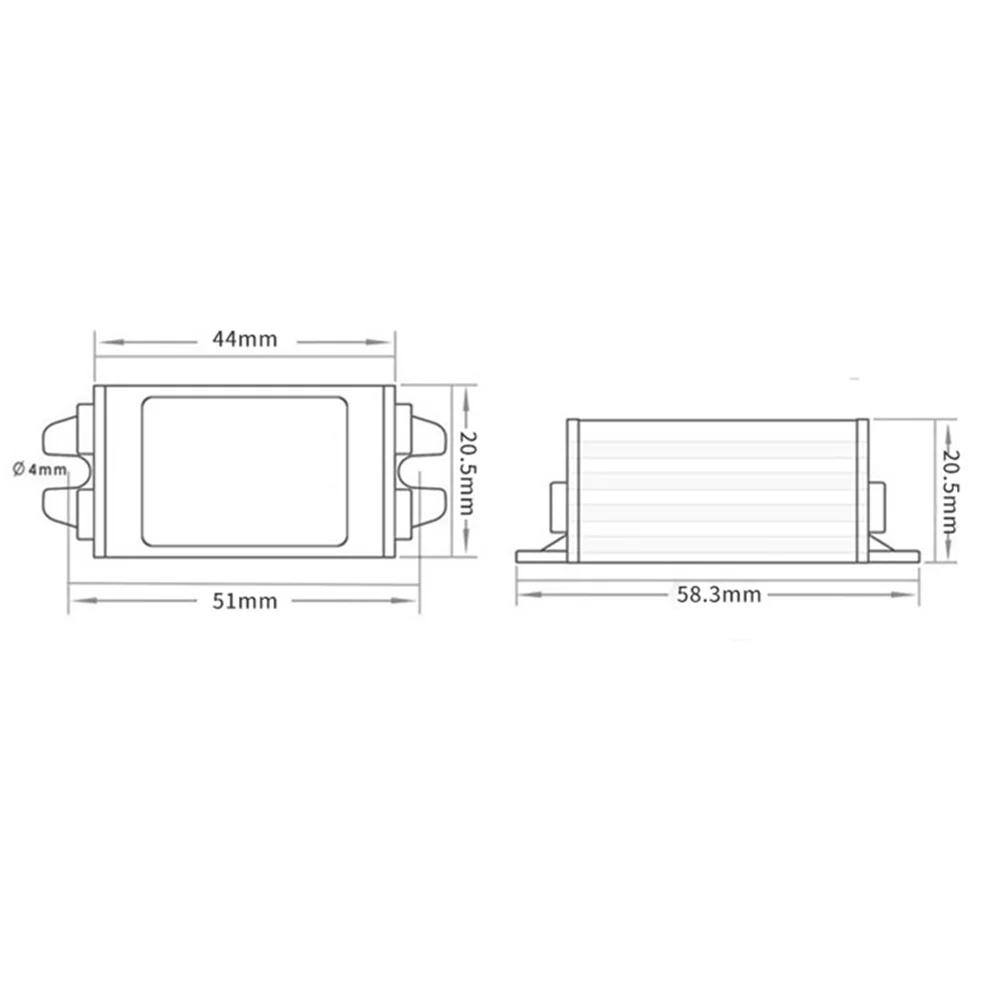

Mechanical	Size	mm	442520.5mm

Detailed Images

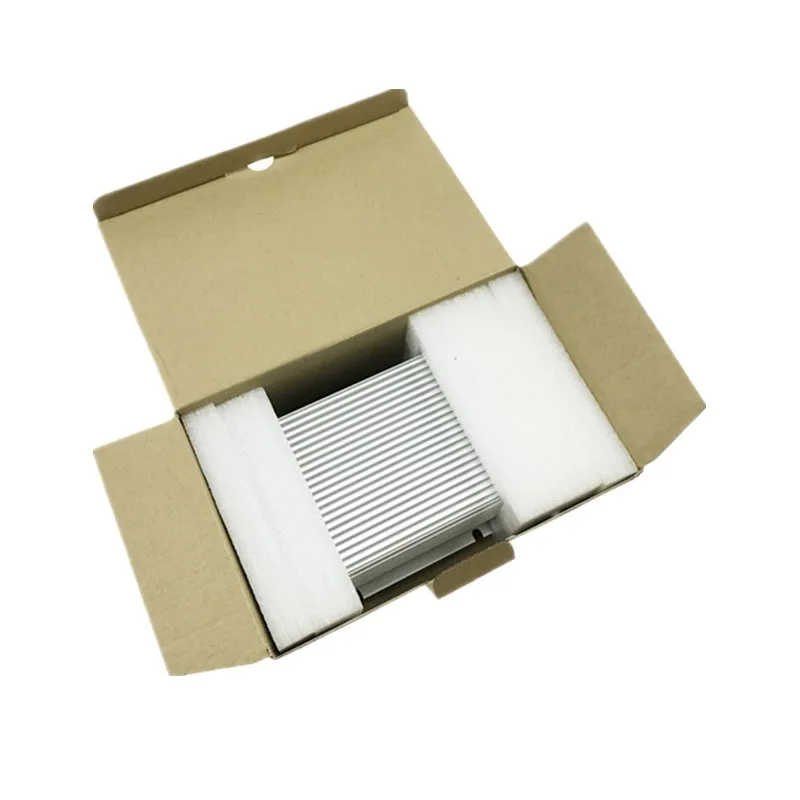

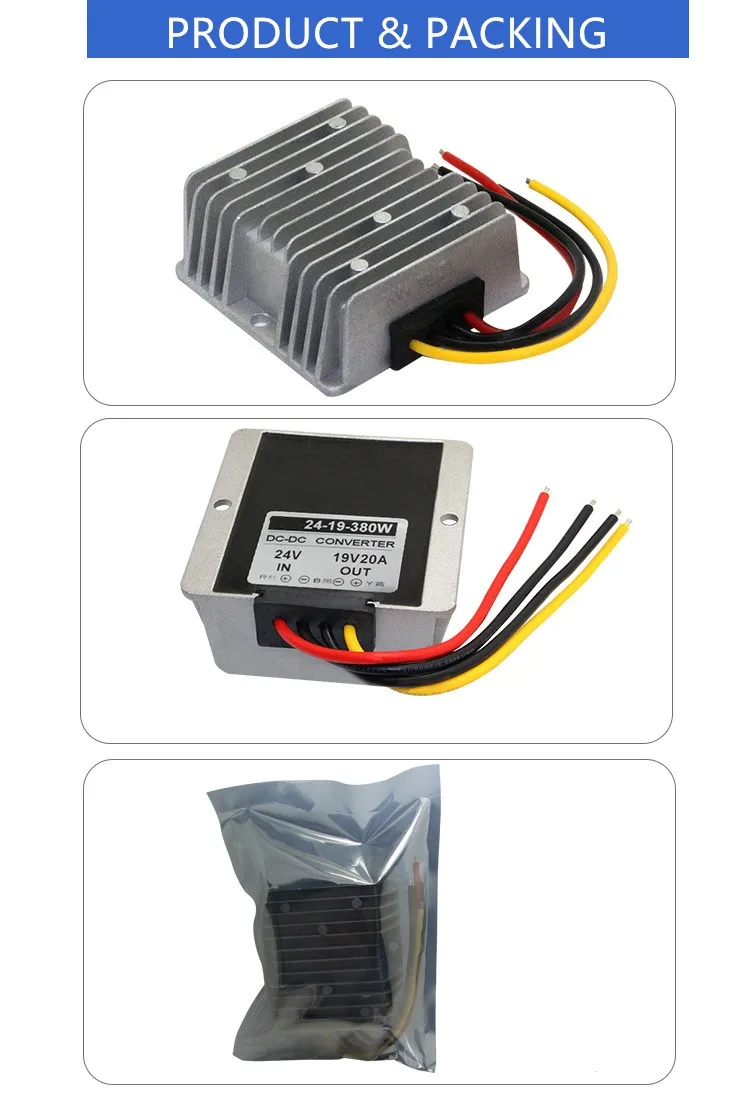

Packing & Delivery

Our Company

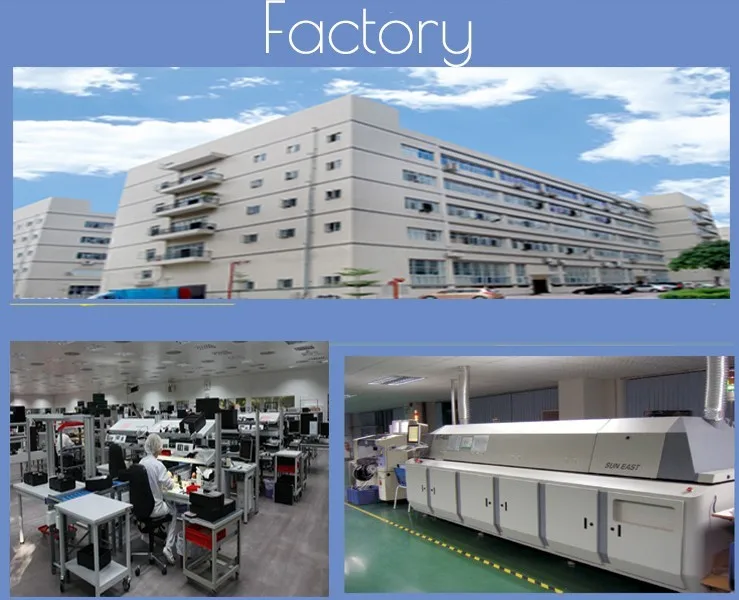

Octans Industrial CO., ltd was founded in 2009 and factory has over 1700 square meters.
We are the leading manufacuter of power inverter, DC/DC converter, solar charge controller, Jump starter and also car accessories with 10 years years experience.
Our products are exported to many countries and regions such as Eurasian, North and South America, Middle East and Africa.
