EPCM gold CIL processing plant mining equipment ball mill leaching tank

Product Application

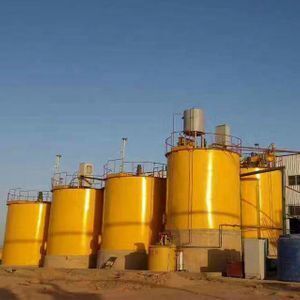

Double-impeller leaching tank is a equipment used for gold cyanidation leaching process and absorption, two transmission ways, one is the planet-cycloid reducer drive; the other is the plane envelope reducer drive.

This equipment working conditions: pulp concentration ≤ 45%, pulp concentration ≤ 1.4 t / m.

Double impeller leaching tank equipped with motor, cycloidal planetary gear speed reducer, bearing block and agitating shaft, is characterized by compact structure, little occupied space, and the agitating shaft equipped with a double impeller , from the top view the impeller rotating clockwise, each impeller composed of 4 blades, and the angle of the top blade and the below one is 45 degree. The compact air gets through the elbow pipe or the hollow shaft to the tank's bottom, the raising air plays the role of mixing , at the same time the big bubble shattered by the impeller changing into small bubbles, in the end the pulp and air reaches fully mixing and sodium cyanide solution contacts with the pulp completely, thereby gets the better gold leaching result. The design of this device keeps the impeller low-speed moving, reducing the possibility of wearing or smashing the active carbon, so as to achieve high leaching rate, high absorption rate and collects more gold.

Agitator impeller driven by the motor, and pulp flow to tank's bottom, in order to prevent bottom's wear, base plate lined at the bottom to extend the service life

Main Features

1.high gold recovery rate

2.adopt a planet-cycloid reducer or flat envelope Reducer drive, high-efficiency to 92%;

3. special structure compared with the same type equipment reducing the motor power, energy-saving rate 27.3%;

4. Little chance of accident happening, high overload capacity;

5. Light weight, low-cost, long service life;

6. low noise;

7.compact structure.

Machine Parts

Name: bearing

Brand: BAOFENG

Original: China

Main Features

Name:Impeller
Brand:Baofeng
Original: China

Machine Parts

Name:Reducer
Brand:Baofeng
Original:China

Main Features

Name:Bearing
Brand: Baofeng
Original: China
