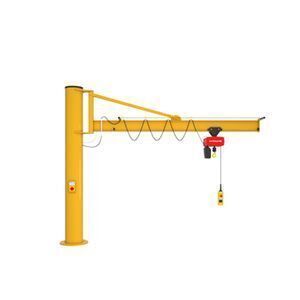

360 Degree Slewing articulating manual Jib Crane 1 Ton

Supplier: Henan Dowell Crane Co., Ltd.
Region: Henan, China
Contact: Mr June Chao
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	360 Degree Slewing articulating manual Jib Crane 1 Ton;	Feature:	Jib Crane;
Rotation angle:	360;	Single package size:	45X10X10 cm;
Rotation speed:	0.75r/min;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Application:	Warehouse;	Warranty:	24 Months;
Brand Name:	DOWELL;	Certification:	ISO CE;
Rated Lifting Moment:	50KN;	Working duty:	A3/A4;
Single gross weight:	68 KG;	Rated Loading Capacity:	1T;
Operating Environment:	-25 ~40 Degree;	Span:	2.5-8m;
After-sales Service Provided:	Engineers available to service machinery overseas;	Control method:	Electric Operated;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;	Max. Lifting Height:	3m;
Package Type:	Packing & Delivery terms: 1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery. 2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation. 3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.;	Max. lifting hight:	3m;
Place of Origin:	Henan China;	Painting color:	Any Color;
Condition:	New;	Selling Units:	Single item;
Rated load lifting capacity:	1~10ton;

Product Description

Product Application

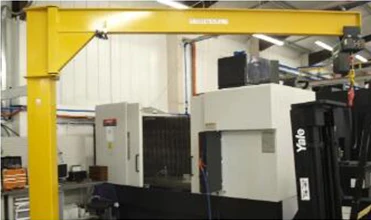

Jib crane is a type of crane where a horizontal member (jib or boom), supporting a moveable hoist, is fixed to a wall or to a floor-mounted pillar. Jib cranes are used in industrial premises, workshop and on military vehicles.
The jib may swing through an arc, to give additional lateral movement, or be fixed. Similar cranes, often known simply as hoists, were fitted on the top floor of warehouse buildings to enable goods to be lifted to all floors.

Item	Specifications
Capacity(T)	0.5-16
Valid radius(M)	4-5.5
Lifting height(M)	4.5/5
Hoisting speed(M/MIN)	0.8 / 8
Slewing speed(R/MIN)	0.5-20
Circulated speed(M/MIN)	20
Slewing angle(degree)	180°/270°/ 360°

Detailed Images

We can supply all these crane spare parts freely for two years

If you're interested please contact us now!

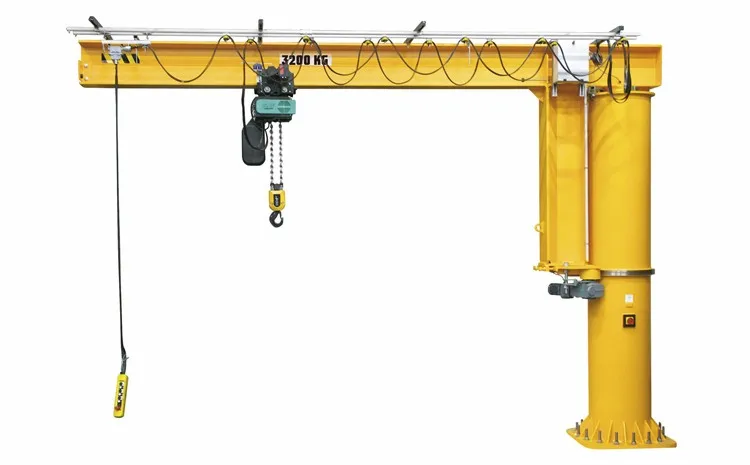

	Electric jib crane 1. Duty group: Class C (intermediate) 2. Lifting capacity: 0.5-16t 3. Valid radius: 4-5.5m 4. Slewing speed: 20 r/min 5. Hoisting speed: 8/0.8m/min 6.Circulate speed: 20 m/min more information contact us now>>

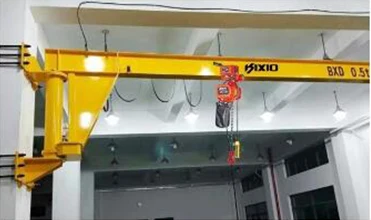

Wall-mounted jib crane 1. Duty group: Class C (intermediate) 2. Lifting capaciy: 0.25-16t 3. Lifting height: 2-10m 4. Valid radius: 4-5m 5. Lifting speed: 8/0.8m/min 6. Circulate speed: 20m/min more information contact us now>>

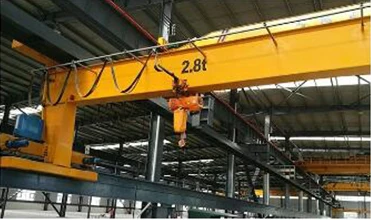

	Wall-travelling jib crane 1. Duty group: Class C (intermediate) 2. Lifting height: 6-30m 3.Max validity cantilever: 5-30m 4. Min validity cantilever:1.0-3.5m 5. Lifting capacity: 0.5-16t more information contact us now>>

Product process

Packaging & Shipping

Packing & Delivery terms:

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.

Certifications

Company Information

Company Strength

Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.
a). Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors.
b). Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.

FAQ

1.How can I get a precise crane offer?
A.To providing you a precise crane offer efficiently, please kindly provide details as flowing:

a).Lifting capacity,. material weight(unit as tonnage)
b).Lifting height; (unit as meter)
c).Crane span, the width of inquired crane(unit as meter)
d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided
e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution
2.Can I get your crane products with customized personalized service?
A.Yes, Dowellcrane promise customized personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.
3.What should I do if l'm not able to install the crane after buying?
A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
4.How long I can receive my crane products after my order placed?

A.Our production will be started once the payment confirmed. Below are timeline for whole procedure:
