Scope of application:

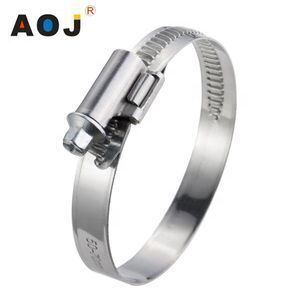

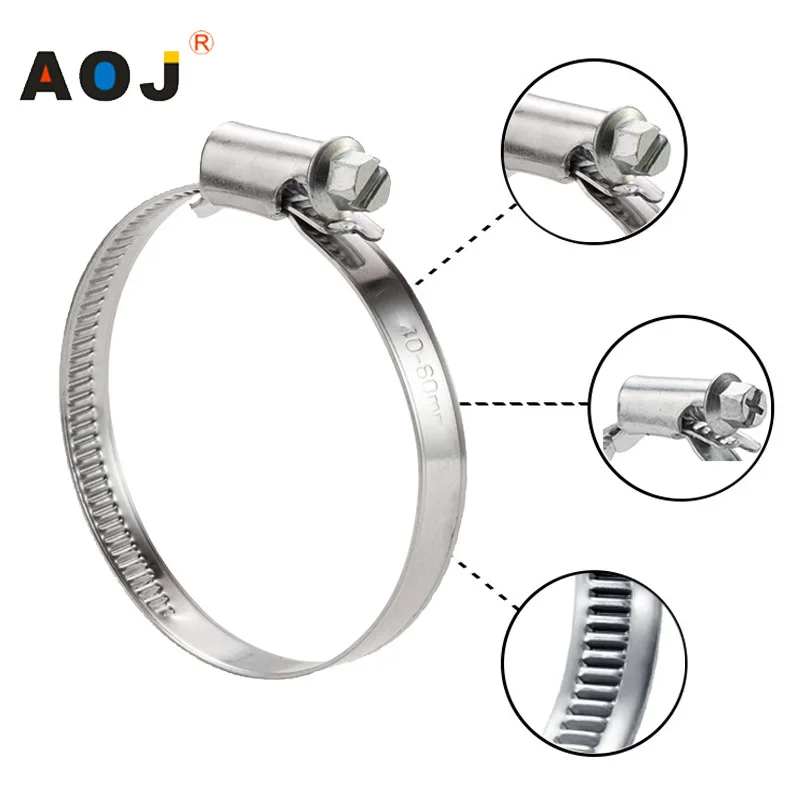

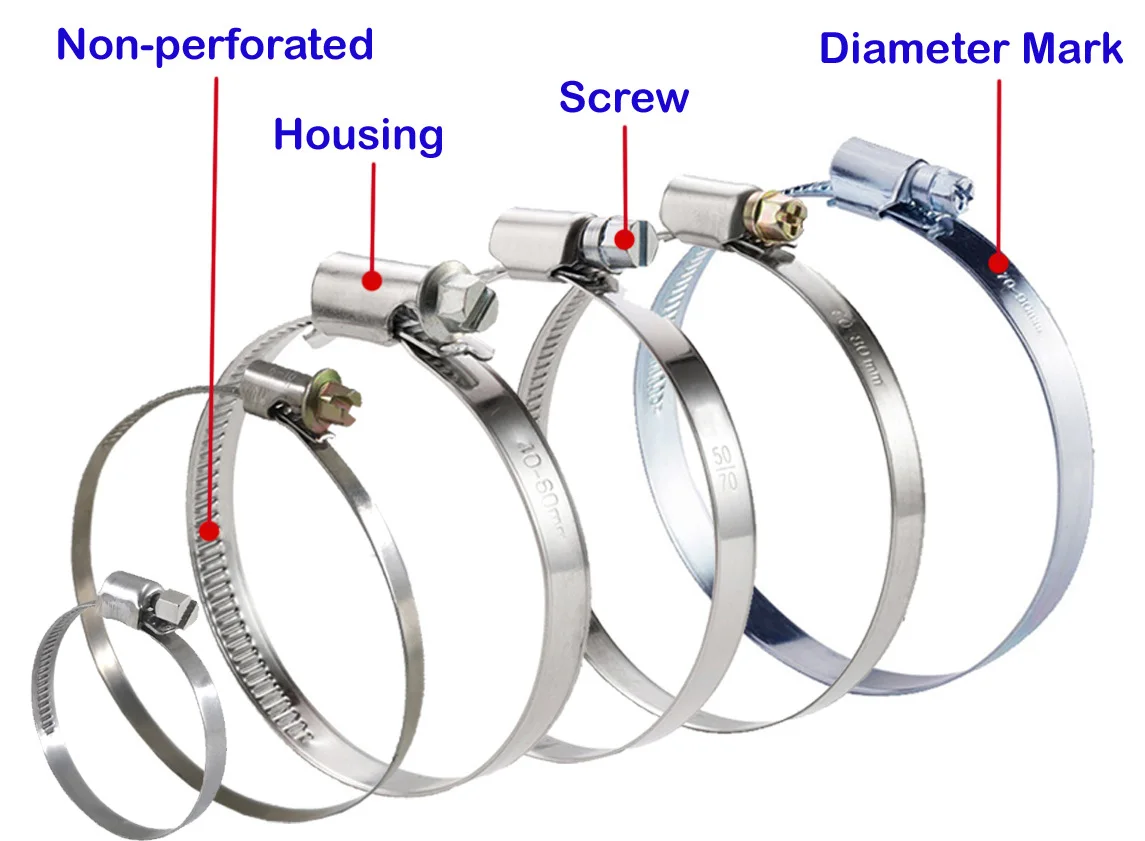

AOJ® German style hose clamp multi-range hose clamps are ideally suited to applications with high mechanical loads. Thanks to the continuous developments these products have undergone, they remain the benchmark within modern clamp construction. The key feature of a AOJ® German style hose clamp - Deviation No perforation product is its asymmetrical construction . Asymmetric housing provides high clamping force and superior torque strength. Even distribution of clamping pressure. Clamp aligns perfectly on the hose and ensures the optimal sealing of the connection.
Overview
1) Band Width: 5mm,9mm,12mm
2) Sizes: 1/2 to all
3) Band Thickness: 0.6-0.7mm
4) Materials: Galvanized Steel, 200/300 series Stainless steel
W1--all of the band, housing and screw is galvanized steel;
W2-- band and housing 200ss or 300ss stainless steel, screw galvanized steel;
W4--all of the band, housing and screw is 200ss or 300ss stainless steel;
W5--all of the band, housing and screw is 316ss stainless steel.
5) Professional manufacturer, Certified by ISO 9001:2008, Full refund in case of bad quality
6) Free samples, Payment by Paypal, On time delivery, 24*7 after sales service
7) Sample order acceptable, OEM order acceptable
Product Detail
More Size to charge

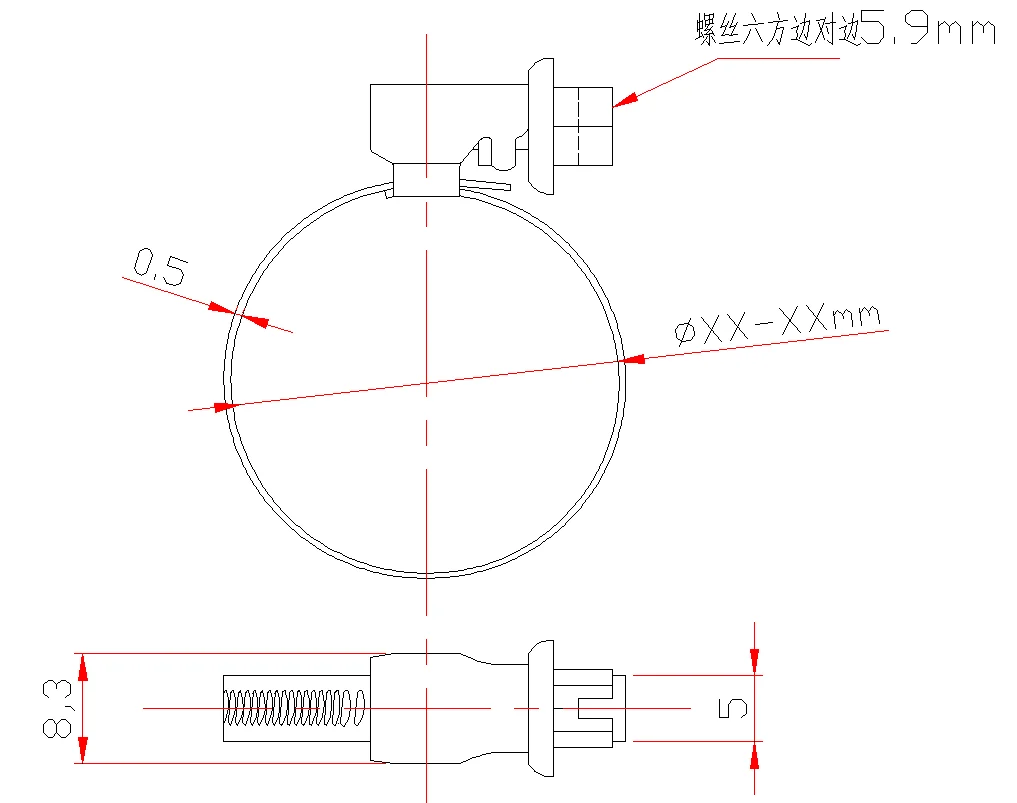

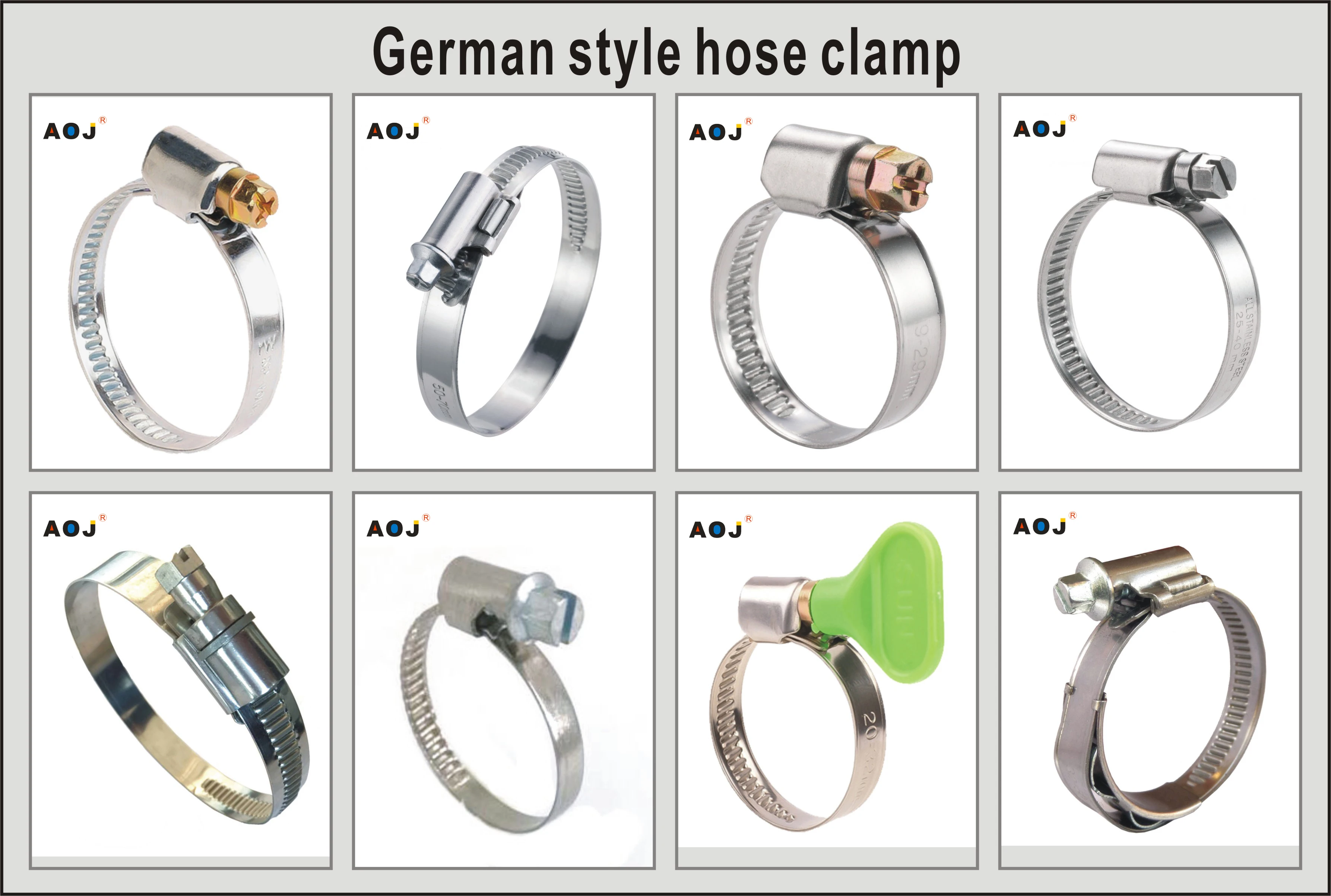

No. 1 5mm German Mini hose clamp

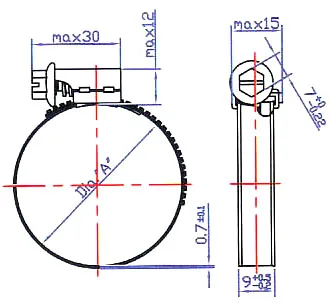

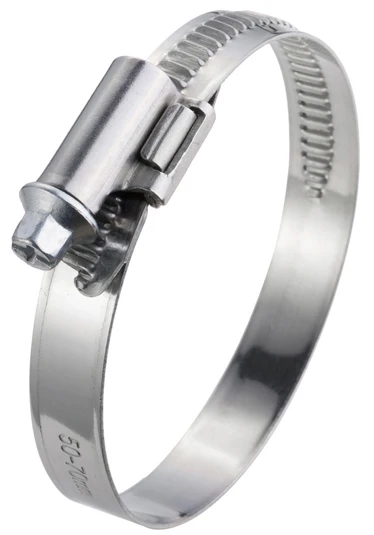

No. 2 9mm German style hose clamp

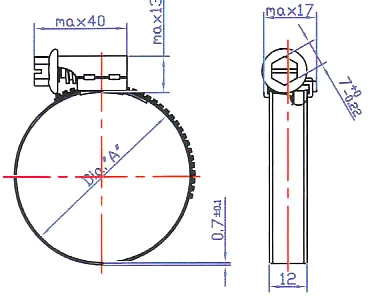

No. 3 12mm German style hose clamp
No. 4 20mm German style hose clamp
Size | Bandwidth | Material | pcs/bag | pcs/carton |
mm | mm | |||
8-12mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
10-16mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
13-19mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
12-20mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
16-25mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
16-27mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 2000 |
20-32mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 1000 |
25-40mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 1000 |
30-45mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 100 | 1000 |
32-50mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 1000 |
40-60mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 1000 |
50-70mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 1000 |
60-80mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
70-90mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
80-100mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
90-110mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
100-120mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
110-130mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
120-140mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
130-150mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 500 |
140-160mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 300 |
150-170mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 300 |
160-180mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 300 |
170-190mm | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 300 |
180-200 | 5mm,9mm,12mm,20mm | W1,W2,W4,W5 | 20 | 200 |
Note: | 1,Other sizes are available for us too. 2,All the information is just for your reference,can't be used as specification. 3,The standard packing material in bags and cartons. 4,The standard packing material in boxs and cartons. 5,Very beautiful plastic box, blister and other packaging. 6,Customized packaging according to customer requirements. |

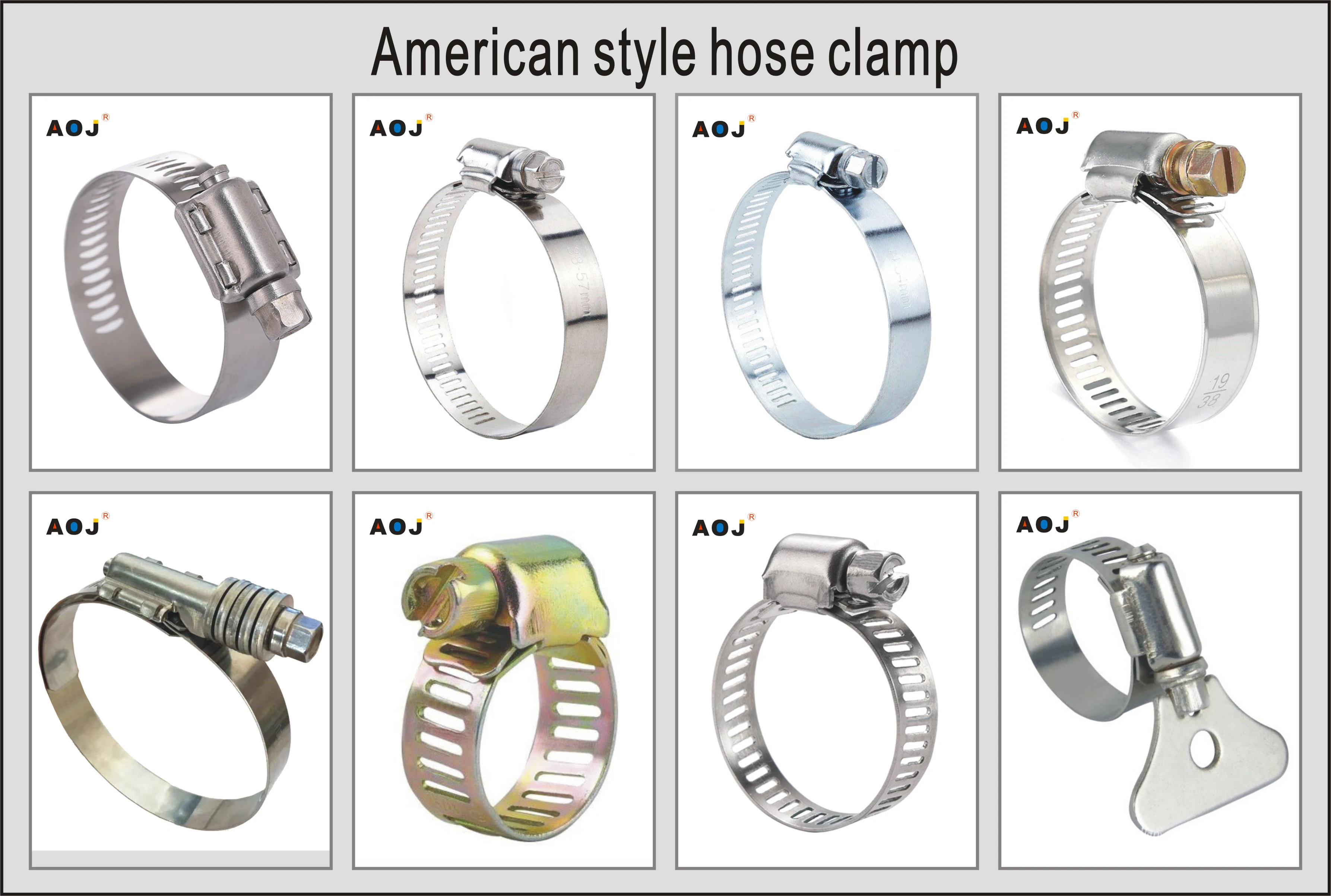

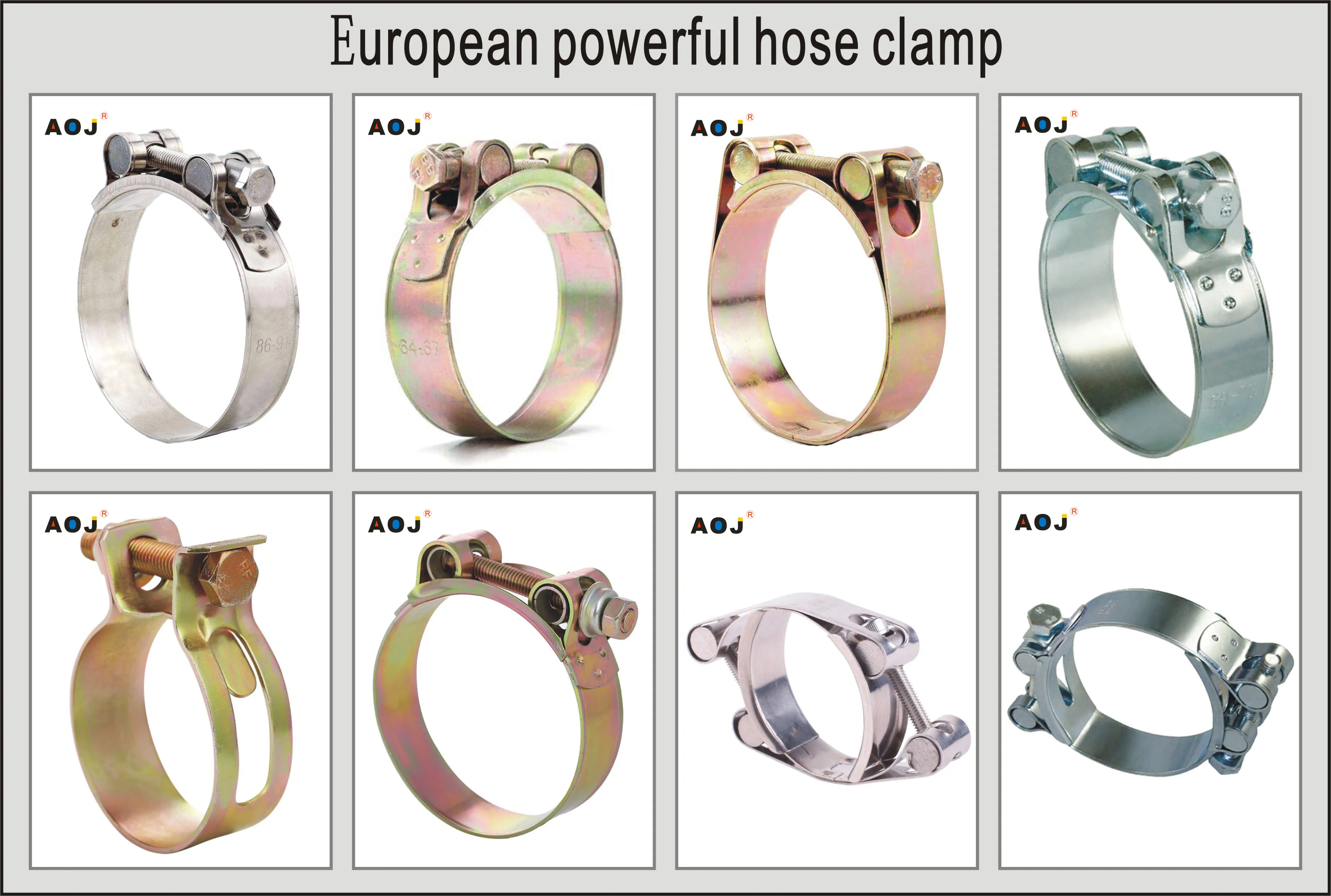

Other Products

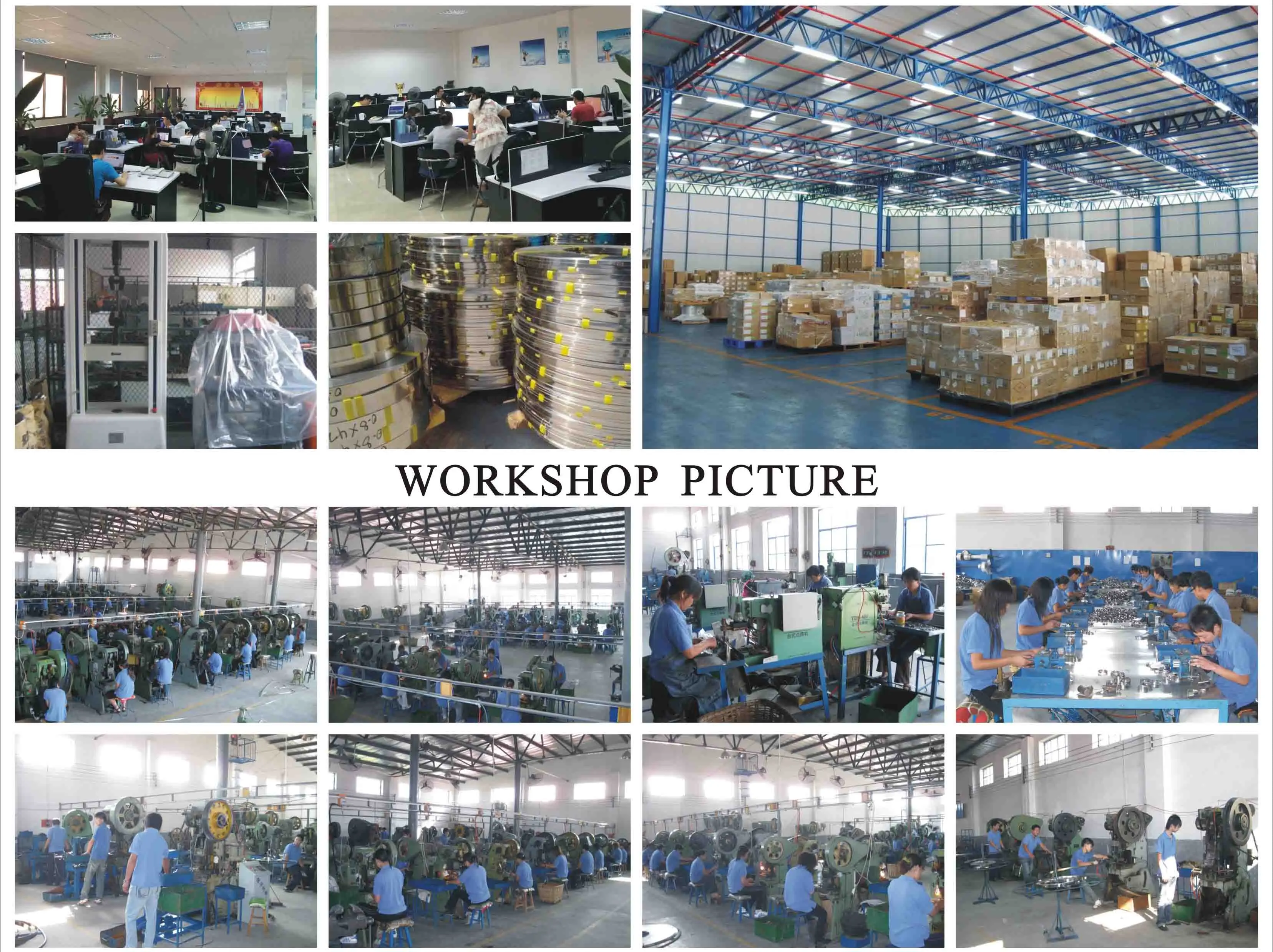

Company Introduction
