Low Voltage Isolated DC to DC Converter 60V 12V for Forklift Truck Car

Supplier: Fuzhou Slider Electronic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Simon Chen
Price: $49.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Fuzhou Port or the other port as your needs;	Brand Name:	SLIDER;
Output Type:	dual output;	Full Name:	Low Voltage Isolated DC to DC Converter 60V 12V for Forklift Truck Car;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Structure Material:	aluminium alloy;
Place of Origin:	Fujian China;	Output Power:	300W@25℃;
Supply Ability:	100000 Piece/Pieces per Month;	Packaging Detail:	Carton box(the wooden packing will be satisfied.);
Application:	DC to DC power supply converter;	Ripple factor:	≤1%;
Model Number:	SPC-300;

Product Description

Product speciality		300W	600W
Electric	Input(DC/V)	36-100VDC
	No-load output (DC/V)	13.8V±0.2V
	Full-load output (DC/V)	≥12V
	Total rated power output(W)	300W@25℃	600W@25℃
	Total current output	25A max	50A max
	Ripple factor	<1%
Working environment temperature range		-20℃ ------ +60℃
IP class		IP66
Insulated performance		Input & output to the shell DC1000V,leaking current 0.05mA,insulated resistance 20MΩ
Double line output		12V auxiliary output control the main output
Storage enviroment temperature		-20℃ ------ +60℃
Full-load efficiency		>88%
Input to output insulation resistance		≥500MΩ(1000Vdc)
Anti-vibration class		QC/T 413-2002
Protecting function		All protected: undervoltage input,overcurrent output,short circiut output,overtemperature

Features:

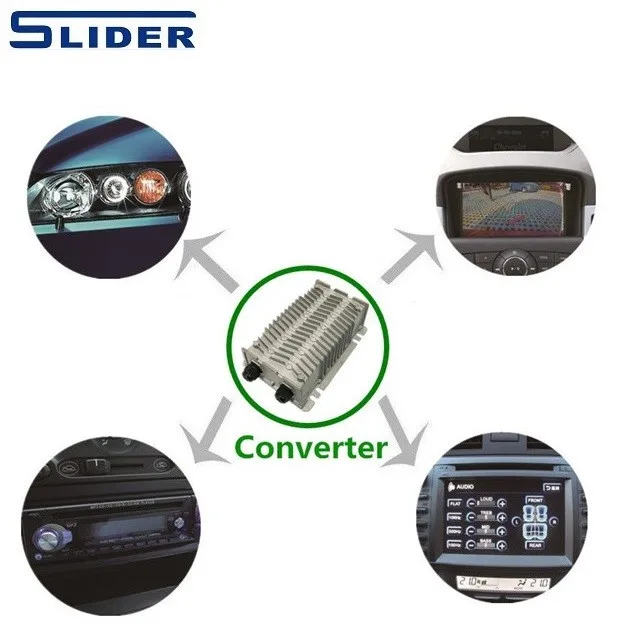

It uses the advanced high-frequency inverter technology & isolates the input and output, which guarantees its safety and reliability with the features of small volume, high efficiency, stable output, convenient installation, complete protection, high reliability and long service life, etc.With sustaining the wide range of voltage variations,it can meet the different voltage levels of the electric vehicle.It is ensured to be competent for the vehicles in any harsh environment. Because of the built-in relay, it avoids arcing when the vehicle is turned on or off with the key.

--High inverter frequency technology,quick reaction,small volume,light weight,energy efficiency

--Sustaining the wide range of voltage variations,powerful converting ability,high control precise

--Output over-current & short-current protection,more reliability in operating safety

--Strong adaptability to low temperature, high temperature, wet, Sour rot, dust and vibration environment, stable and reliable in working.

--Circuit structure with modular design, fast and convenient in installation and maintenance

--Built-in relay, which is sure to avoid arcing in turning on or off the the vehicle with the key.

Detailed Images

Other Products

Our Company

Fuzhou Slider Electronic Technology Co.,Ltd was founded in 2004, professional in electric vehicle drive system and switching power supply in high-tech manufacturing industry.The main supplies are electric vehicle motor,motor controller, forklift controller, DC - DC converter, electric vehicle chargers, and switching power supply,inverter, etc. All products are widely used to various of electric vehicles,such as automobiles,golf cart, forklifts, financial electronic,and more.
As a powerful innovation & developing enterprise,SLIDER can meet all you customized needs,such as using in electric boat.

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Packing & Delivery

Normal package is carton box.It can be chosen with the wooden packing if you need.If to European countries,the wooden box will be fumigated.If container is too high,we will use PE film for packing or pack it according to customers special request.

Packaging Details: 10 pcs a carton
Delivery Detail: 10 to 15 days
Shipping Method: samples will be delivered by express & quantity products will be sent by air or ocean.

FAQ

1)What's your service & warranty?
1. Before installation,it will be detected to ensure it will be matched with your vehicle.
2. The quality will be guaranteed & warranty will be 1 year.

2)Do you supply the other parts of the driver system?
Yes,the whole system can be supplied here & parts will be welcome too.

3)What's the MOQ?
Before quantity,you can get samples to test first. Just one unit is OK.

4)Is it acceptable to print buyer logo on the product?
Yes,OEM is available.Before production,pls send us your logo design.

5)How do you ship the goods and how long does it take to arrive?
Samples will be shipped by DHL, UPS, FedEx or TNT & it usually takes 3-5 workdays to arrive.
Production order will be sent out by ocean or air.

Thank you for your browsing & you can send an inquiry to get the better service from us.
