LED Display Digital RS485 RS232 GSM GPRS Ultrasonic Distance Fuel Tank Level Sensor

Product details
Place of Origin:Shaanxi China;Communication:RS485, Hart, Modbus;
Power Supply:Two wire / DC 24V;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Accuracy:10mm;Alarm Relay Output:AC 250V 5A / DC 30V 5A;
Electricial Connector:G1/2 or M20 x 1.5;Packaging Detail:Each unit has individual box and all boxes are packed in standard packages. We can also do the packing based on the requirement of our customers.;
Brand Name:Kacise;Port:Shanghai or other ports required by customers;
Pressure range:3m 5m 10m 15m 20m;Output signal:(4~20)mA, Hart, Max Load 500ohm;
Sensor Temperature:-50℃~+100℃;Model Number:GXPS610;
Max Sensor Length:30 m;Supply Ability:10000 Piece/Pieces per Week negotiable;
Protection Rating:IP67;
LED Display Digital RS485 RS232 GSM GPRS Ultrasonic Distance Fuel Tank Level Sensor
Product Description

 1. Operation Principle:

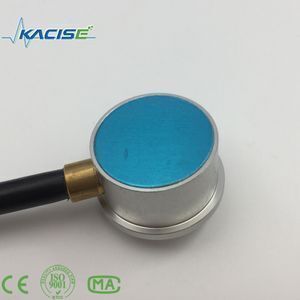

The LED distance digital ultrasonic fuel level sensor adopts sonar ranging principle. The sensor that sticked at the surface of the tank will collect the sonar signals and calculate the exact level of the liquid by professional sonar processing technology, advanced high-speed signal processing technology and the patented algorithm. The value shall be displayed at the site and at the same time transmitted to the control center via 4~20mA analog signals, HART, or RS485. It can also be calibrated locally via HART, RS-485 and infrared.

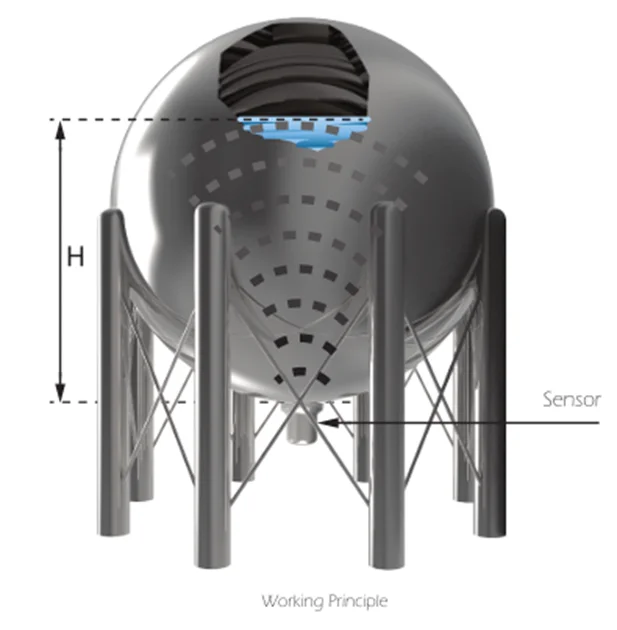

As can see from the above figure, the sensor transmites the sonar signals and then receives the echo signals after reflected from the liquid surface. Then the time taken shall be calculated out via one specific algorithm. And the system shall figure out the liquid height via the forumla below:

H=αV(t-t1)/2

H: height of the liquid

v: velocity of sound in the liquid

t: time between transmitted and received signal

t g : propagation time in the tank wall

  α :liquid compensation factor



2. Technical Features:

  • True non-invasive sensing technology
  • The sensor sticks to the outside of the tank bottom
  • Suitable for most shapes and sizes of cans
  • Output to telemetry system - various options
  • CNEX approved for use in hazardous areas (processor and sensor)
  • Temperature integrated sensor
  • Low cost, reliable & accurate tank gauging
  • Not affected by pressure
  • Easy installation - no tank break-in
  • Simple retroft to existing tanks
  • No down-time during installation
  • No moving parts – no maintenance

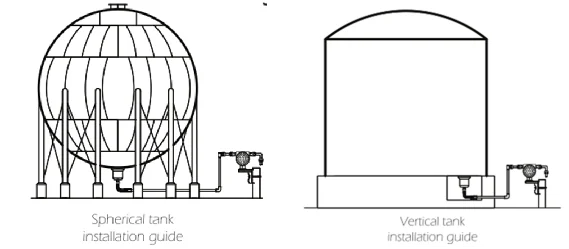

3. Installation Guide:



4. Technical Specifications:

  Specs

Value

Pressure range

3m  5m   10m  15m  20m

Output

(4~20)mA, Hart, Max Load 500ohm

Display Resolution

1 mm

Accuracy

10mm

Power

Two wire / DC 24V

Communication

RS485, Hart, Modbus

Alarm Relay Output

AC 250V 5A / DC 30V 5A

Compensation temperature

-20°C~ 70°C

Sensor Temperature

-50℃~+100℃

Safety certificate

  ExdIICT6



Protection Rating

  IP67

Display

128 x 64 LCD

Electricial Connector

G1/2 or M20 x 1.5

Max Sensor Length

30 m

Weight

2 KG

Dead Zone

5% of range(Max)

24V

DC 24V Power input &4~20 mA Signal output

MEA

Measure Sensor

485

RS485 and Modbus Communication

Relay

Alarm Relay Output

Product Flow
