Gsm/Gprs/Gps Tracker For Push Bike Bicycle Real Time Hidden Tracking Device Tk305

Supplier: Shenzhen Newsunda Electronic Co., Limited
Region: Guangdong, China
Contact: Ms Eve Xie
Price: $34.20 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Tracking system:	Web Server Platform;	Use:	AUTOMOTIVE;
Feature:	GPS+Anti-theft+real Time Tracking;	Place of Origin:	Guangdong China;
Network:	GSM/GPRS Band 850/900/1800/1900Mhz(Quad-band);	Dim.:	94mm x 60mm x 38mm;
Battery Chargerable:	3.7V 6000mAh Polymer battery;	Single gross weight:	0.6 KG;
Type:	TK305;	GPS sensitivity:	-159dBm;
Standby:	30 days;	Warranty:	1 year;
GPS accuracy:	5m;	GPS chip:	SIRF3;
Package Preview:	https://sc01.alicdn.com/kf/HLB1TTAFajvuK1Rjy0Faq6x2aVXa1.jpg_640x640.jpg;	Package Type:	retail package with all accessories;
Function:	Real-time Tracking;	Brand Name:	coban;
Model Number:	Tk305;	Single package size:	9X9X9 cm;
Selling Units:	Single item;

Long battery life GSM/GPRS/GPS tracker Coban built-in antenna car gps tracker tk104 gps 104

Product Description

Model: GPS tracker TK-305

It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .

1. Summary

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

2. Features

-Small easy to install + get street name

-SMS/APP/GPRS web platform live tracking

3. Main Function discription

1. Real-time track bicycles

2. Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)

3. Scheduled wake-up:

Send SMS command"schedule+password+space+7d"to GPS unit, tracker will wake up each 7days and report location (m: minute, h: hour, d: day) the maximum interval at most is 3 digital

Cancel scheduled wake-up: After wake up, send sms"nonschedule+password", this function can be canceled.

4. Auto track continuously:track by time and distance interval.

5. Location based service(LBS) + GPS double real time tracking solution

6. Sleep by shock sensor mode, sleep by time mode, multiple power-saving mode

7. get Absolute street address by SMS

8. Arm/disarm

9.Shock alarm

10.Geo-fence

11.Movement alarm,overspeed alarm,low battery alarm

4.Applying directions:

Used widely for bicycle and other moving objects tracking.

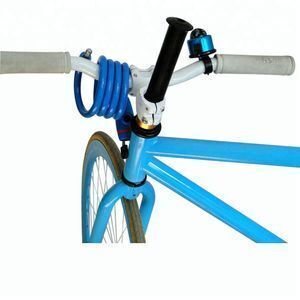

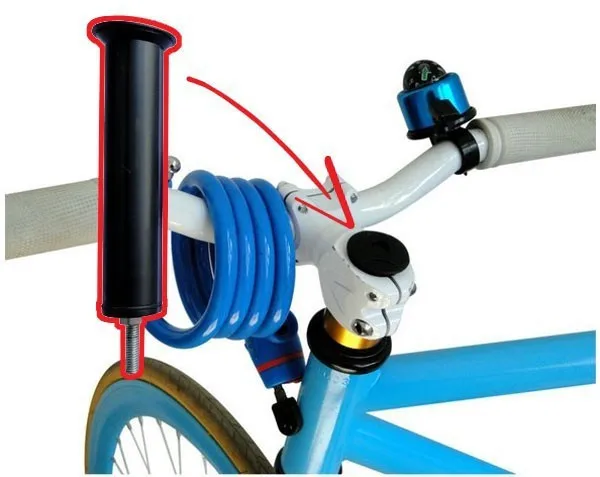

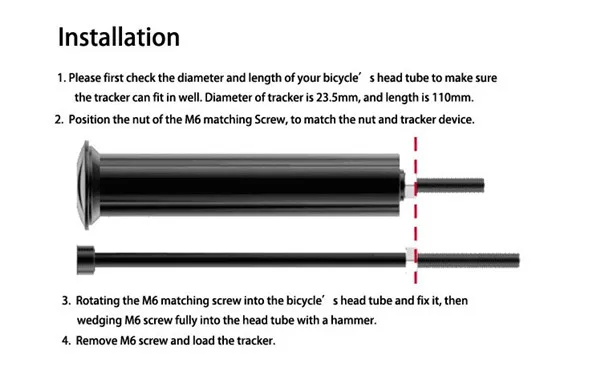

5. Picture of GPS305 bike bicycle gps tracker :

6. How to tracking ?

The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)

Five types Tracking way:

A>: SMS + Map software;

B>: PDA Cell Phone;

C>: Real time tracking, and track via your computer;

D>: simple & useful real time tracking via our website www.baanool.net

E >:IOS and Android APP

Display Position On Google Maps:

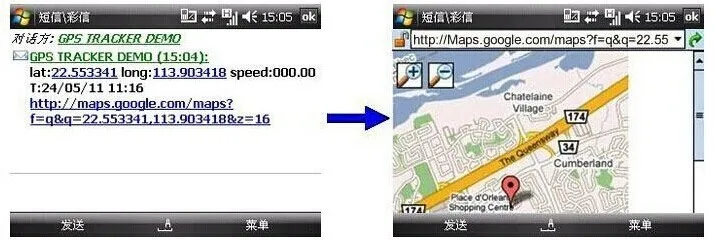

1. View map on the cell phone screen:

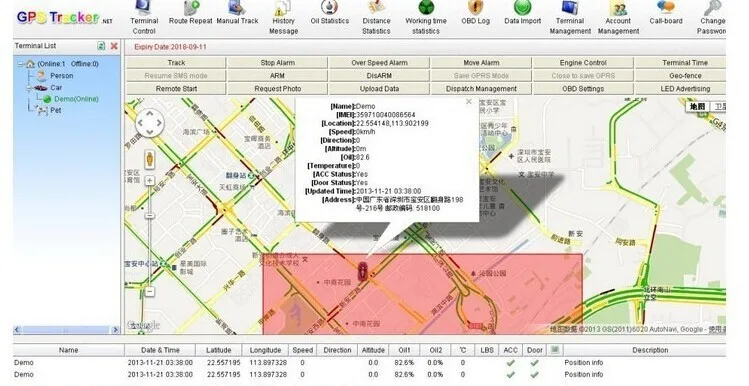

GPS Tracking online:

www.gpstrackerxy.com

trail ID :demo

passward :8888

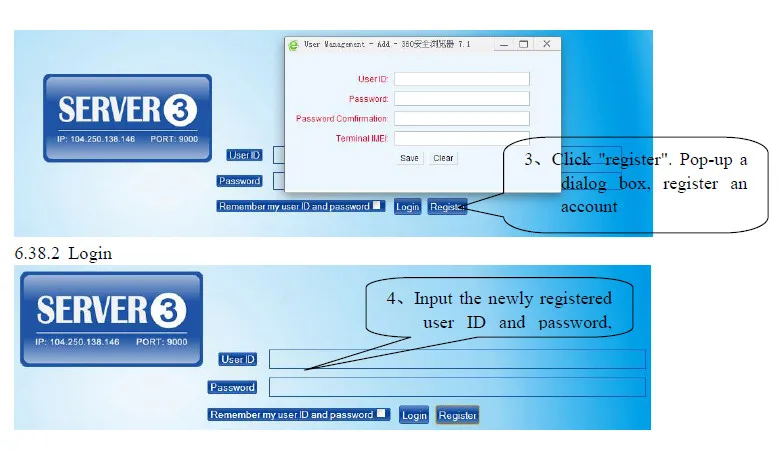

6.38.1 register an account

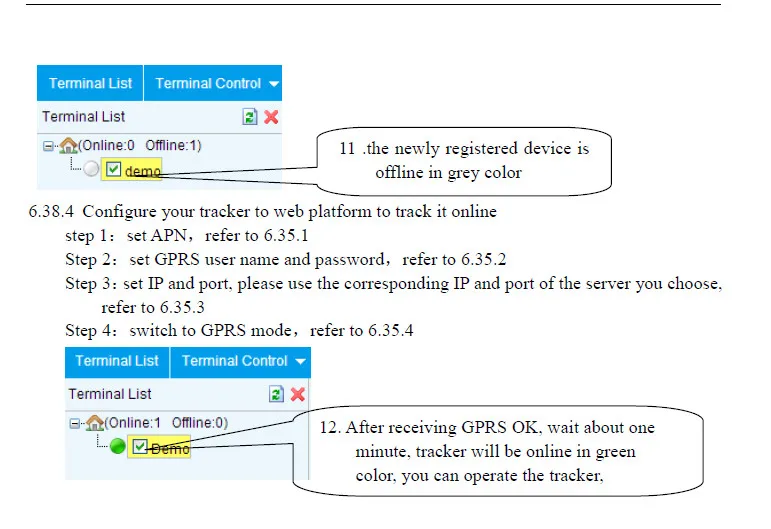

6.38.5 If the tracker is always offline (grey color), make sure the SIM card subscribe the GPRS service,

and have money to surf the Internet, you can use phone to test the sim card can surf the Internet or not

please check the APN, user name, password, IP, port settings are correct, refer to

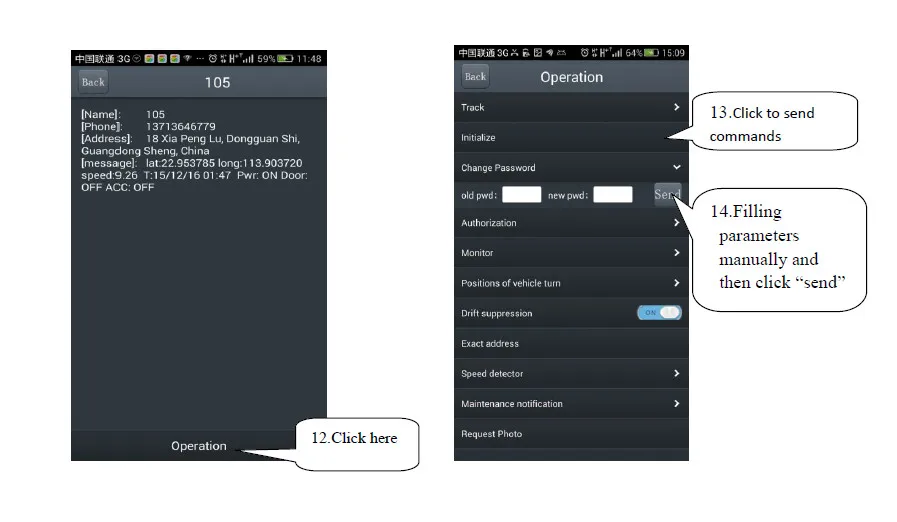

6.38.6 IOS,Android mobile APP

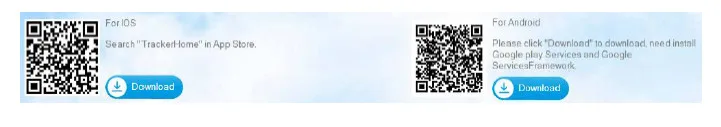

6.38.6.1 Download and install the mobile APP software

6.38.6.2 Login in and use the mobile APP under GPRS version

Remarks: APP on Android phone can track the address and show alarm by SMS;IOS APP can only send commands due to the confined policy

You can see tracker list and tap its name to see its location on the map and it has control panel

You can track/cancel track, change Terminal time zone, Arm/disarm, set speeding/moving alarm,stop engine/resume engine and resume to SMS mode.

Multiple usermonument system: You can authorize different user with different control privileges.You can see data transmitting status.History check and report.You can rent or buy this software to set up your own server

The online tracking system supports 15 languages

(English,Spanish,Portuguese,Arabic,Thai,Italian,German,Chinese,Persian,Herbew,Polish,Turkish, French,Russian, Czech )

Package include
