Type: | Stainless Steel Hose Clip; | Name: | Hose Clip; |
Delivery Detail: | within 45 days; | Brand Name: | Topclamp; |
Warranty: | 3 Years; | Standard or Nonstandard: | Standarrd; |
Application: | Pipe Fastner; | Place of Origin: | Shandong China; |
Band width: | 12.5MM; | OE NO.: | 73269090; |
Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Band thickness: | 0.6MM; |
Car Make: | Universal Car; | Usage: | Auto Pipe; |
Port: | Qingdao/Xingang; | Material: | Stainless Steel; |
Supply Ability: | 3000000 Piece/Pieces per Month Perforated Band Stainless Steel Hose Clip; | CERTIFICATES: | ISO9001:2008; |
Size: | 11-20mm to all; | Model Number: | 40-63mm; |
Packaging Detail: | plastics bag, carton, pallet; |

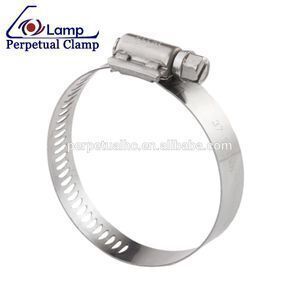

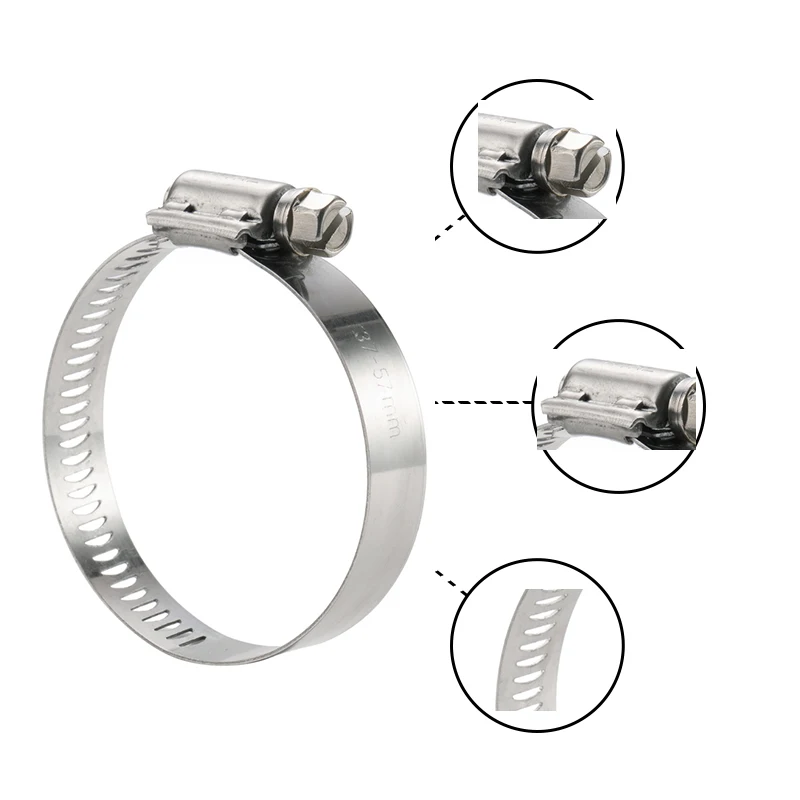

Perforated Band Stainless Steel Hose Clip:

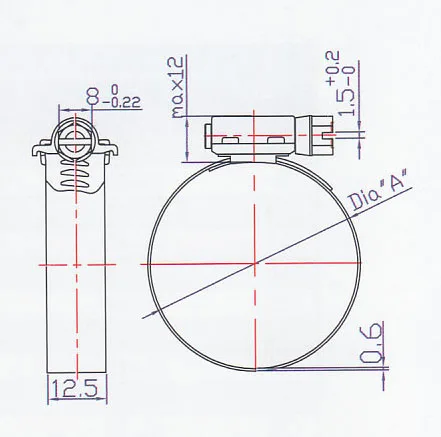

1) Band Width: 12.5mm(1/2")
2) Sizes: 11-20mm to all
3) Band Thickness: 0.6mm
4) Materials: 201/301/304/316 stainless steel
5) Best service: Stabilized Quality, Quick Feedback, On Time Delivery
Size | Range | Packing | ||||
Inch | MM | Pcs/box | Pcs/ctn | N.W. | G.W. | CUFT |
1-3/8 | 23-26 | 100pcs | 1000pcs | 21.0kgs | 22.6kgs | 1.47 |
1-1/2 | 21-38 | 100pcs | 1000pcs | 21.8kgs | 23.4kgs | 1.47 |
1-5/8 | 19-42 | 100pcs | 1000pcs | 22.0kgs | 24.0kgs | 1.94 |
1-3/4 | 19-44 | 100pcs | 1000pcs | 22.3kgs | 24.3kgs | 1.94 |
1-7/8 | 20-47 | 100pcs | 1000pcs | 22.8kgs | 25.1kgs | 2.36 |
2 | 32-51 | 100pcs | 1000pcs | 24.0kgs | 26.3kgs | 2.36 |
2-1/4 | 38-57 | 100pcs | 1000pcs | 24.3kgs | 27.1kgs | 2.50 |
2-5/16 | 38-59 | 100pcs | 1000pcs | 24.4kgs | 27.3kgs | 2.50 |
2-1/2 | 40-64 | 100pcs | 1000pcs | 24.8kgs | 27.6kgs | 3.42 |
2-3/4 | 46-70 | 100pcs | 1000pcs | 26.0kgs | 28.8kgs | 3.42 |
2-7/8 | 51-73 | 100pcs | 1000pcs | 26.5kgs | 29.3kgs | 3.60 |
3 | 57-76 | 50pcs | 500pcs | 13.5kgs | 15.8kgs | 2.36 |
3-1/4 | 67-83 | 50pcs | 500pcs | 14.1kgs | 16.4kgs | 2.36 |
3-1/2 | 65-89 | 50pcs | 500pcs | 14.6kgs | 16.9kgs | 2.50 |
3-3\4 | 72-95 | 50pcs | 500pcs | 15.1kgs | 17.4kgs | 2.50 |
4 | 78-101 | 50pcs | 500pcs | 16.0kgs | 18.8kgs | 3.42 |
4-1\4 | 84-108 | 50pcs | 500pcs | 16.1kgs | 19.2kgs | 3.42 |
4-5\16 | 92-110 | 50pcs | 500pcs | 17.0kgs | 19.8kgs | 3.42 |
4-1\2 | 91-114 | 50pcs | 500pcs | 17.0kgs | 19.8kgs | 3.42 |
4-3\4 | 105-121 | 50pcs | 500pcs | 17.1kgs | 19.9kgs | 3.42 |
5 | 105-127 | 50pcs | 500pcs | 18.0kgs | 20.8kgs | 3.60 |
5-1\2 | 118-140 | 50pcs | 500pcs | 19.5kgs | 21.8kgs | 3.60 |
6 | 130-152 | 50pcs | 500pcs | 21.0kgs | 22.8kgs | 3.98 |
6-1\2 | 141-165 | 50pcs | 500pcs | 21.5kgs | 23.8kgs | 3.98 |
7 | 156-178 | 50pcs | 500pcs | 22.0kgs | 24.8kgs | 3.98 |
8 | 165-203 | 50pcs | 500pcs | 24.0kgs | 26.8kgs | 3.98 |
Material | Band | Housing | Screw |
W1 | Galvanized steel | Galvanized steel | Galvanized steel |
W2 | Stainless steel | Galvanized steel | Galvanized steel |
W4 | Stainless steel | Stainless steel | Stainless steel |
1. Question: What does your company doing?
Answers: Many factories main doing assembly by purchasing parts, we manufacture all the parts by ourselves except standard screw. The quality of our products can be guaranteed.
2. Question: Can you put our company's logo on the band of the hose clamps?
Answers:Yes. we can put your logo if you can provide us with copyright and letter of authority. OEM order is welcome.
3. Question: Can you provide sample?
Answers: Yes, we can provide samples which cost is under USD 30.00 and weight less than 0.5 kgs.
