Brand Name: | AH-LINK; | Package Preview: | https://sc01.alicdn.com/kf/HTB1V5MFOXYqK1RjSZLeq6zXppXaf.jpg_640x640.jpg; |
Frequency Range: | 174-250MHz,UHF:470-862MHz; | Package Type: | 1. opp bag 2. color box(OEM design logo and packing) 3. carton box (56*36*36 cm); |
LNA Gain: | 35dBi; | Frequency range: | 174-250MHz,UHF:470-862MHz; |
Connector: | F-Male/IEC-male; | VSWR: | ≤2.0; |
Size: | 12.99*11.81*0.02 INCH; | Impedance: | 75 Ω; |
Single package size: | 36X36X56 cm; | Place of Origin: | Guangdong China; |
Coax Cable: | 1.5C-2V; | Operation Voltage: | 5V; |
Type: | Indoor; | Single gross weight: | 9 KG; |
Selling Units: | Single item; | Power supply connector: | USB; |
Current Consumption: | 20mA; | Model Number: | AH-DVB-T-330-H; |

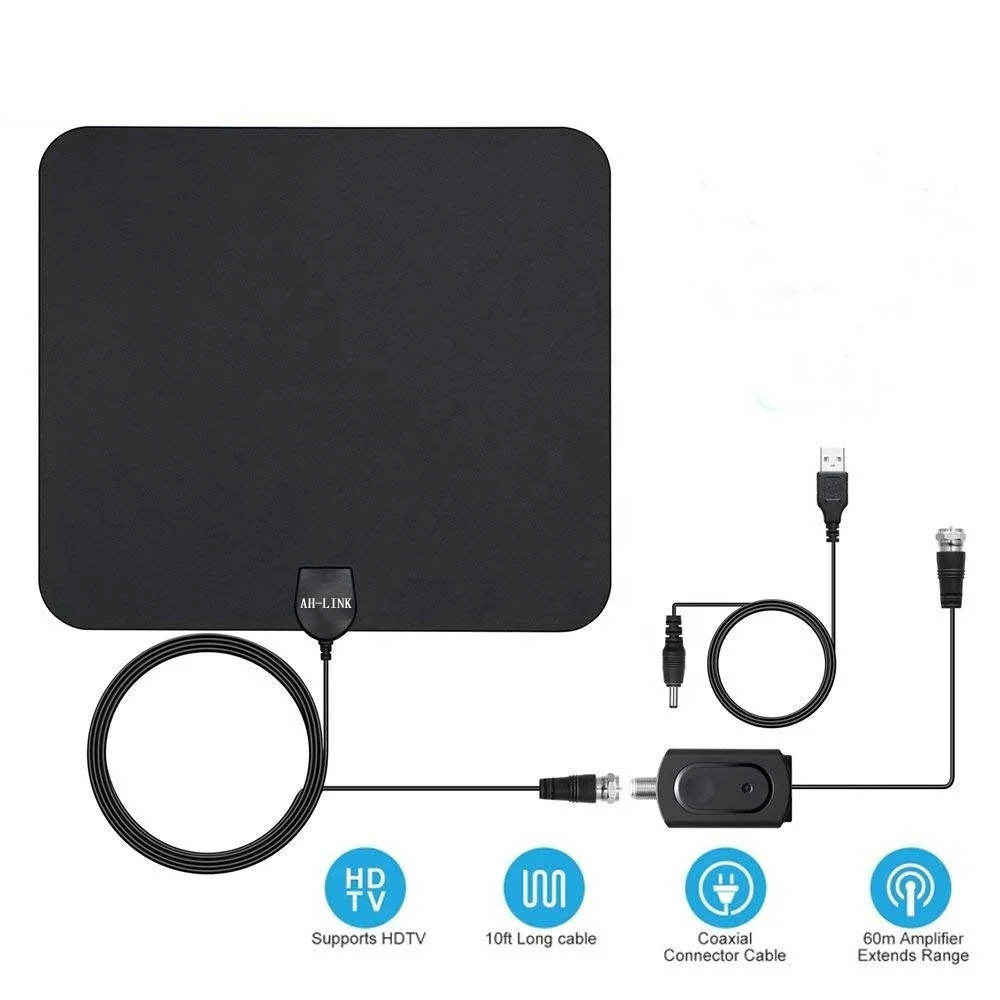

2019 high gain 50/75miles uhf/vhf digital indoor hdtv tv antenna |
1. Product Description of TV antenna
1). Name: HDTV antenna
2). Main Specification:
1. Free for Life!
Never Pay Your Cable or Satellite for Television Again!
This amplified antenna can pull in all of free HD programs, including local news, weather, sitcoms, kids and sports programs absolutely FREE by access from broadcast tower. Just connect the antenna to your television and let it do all the work.
2. Best Crystal Clear Filter Technology!
This antenna picks up signals within a 50-miles range, the crystal clear filter tech filters out cellular and FM signals resulting in low noise, a clearer picture and access to more free broadcast TV signals with enhanced gain, range and frequency performance.

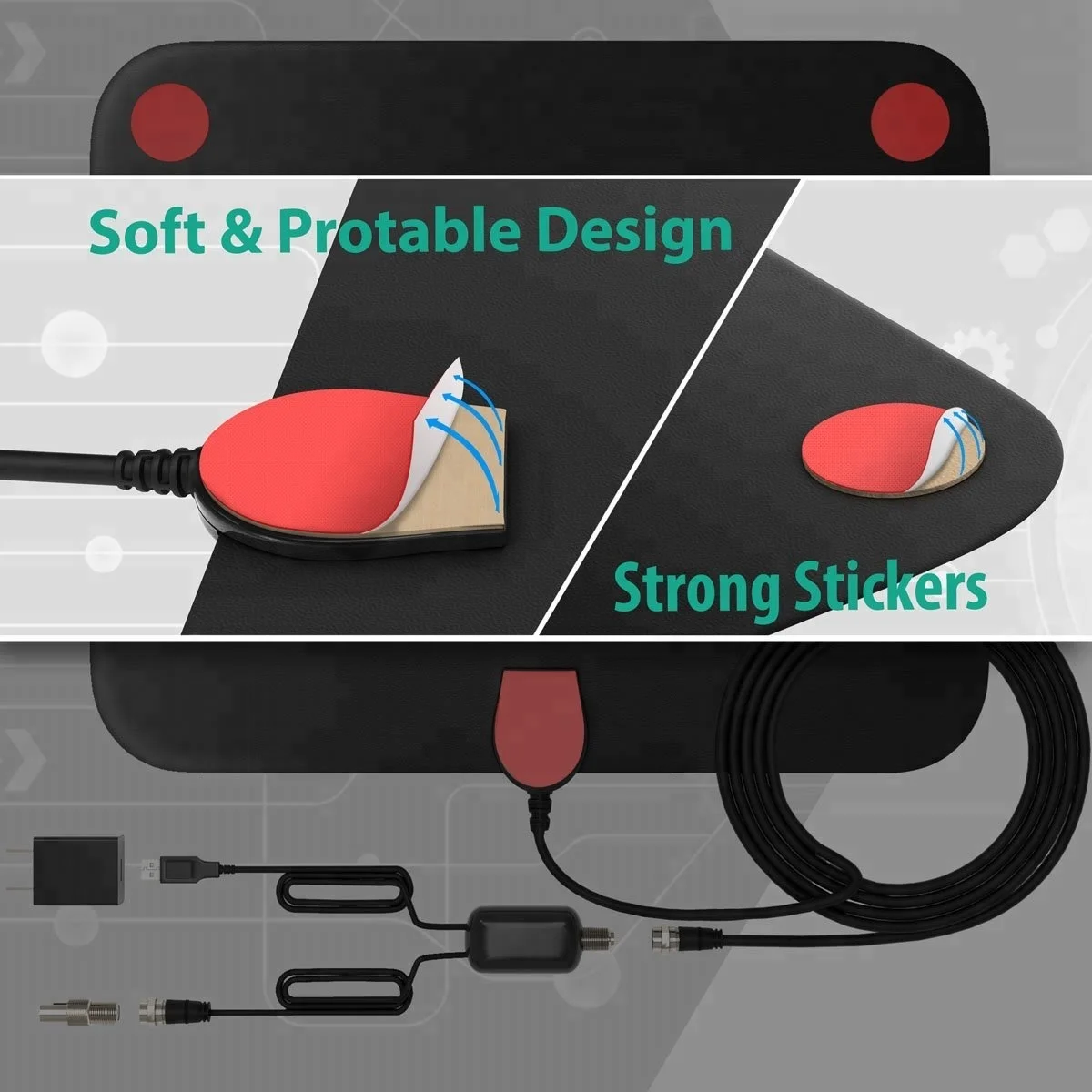

3. Ultra Thin and Light Weight Design!
It allows to be placed near the best possible signal reception area, you can hide it behind the TV, lay flat on table, stick it high on window. The long cable is convenient if your televisions is far away from windows!
4. Upgrade Version for Beter Reception!
Pictek antenna adopt optimized butterfly optimized butterfly-shaped picture, it can receive better reception than any other picture.
3). Parament:
Electrical Specifications | |
Frequency Range | 174-240MHz/470-860MHz |
VSWR | ≤2.0 |
Input Impedance | 50/75 Ω |
Gain | 25 |
DBI |
|
Working voltage | 12V |
Mechanical Specifications | |
Antenna Color | Black/Other |
Input connector | F |
male(Customizable) |
|
Cable length | 3M(Customizable) |
Working Temperature | -40℃~+85℃ |
Working Humidity | 20~80% |
Packing Information | |
Size | 300*330*0.5MM |
Package size | 360*370*30mm |
QTY/Carton | 20pcs |
Carton size | 650*360*360mm |
G.W. | 7.9KG |
20''Container | 7000pcs |
40'' Container | 14500pcs |
40''HQ Container | 17000pcs |
4).Warranty: Provide one year warranty (man-made damage without insurance,
the vulnerability of non-insurance).
2.Product Pictures of TV antenna
1. Our factory:

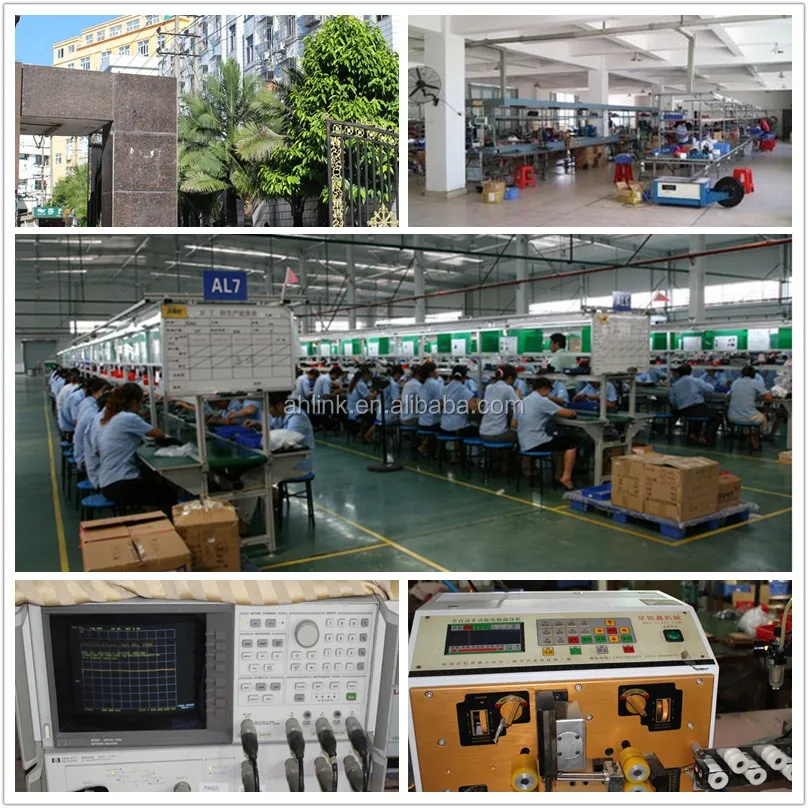

2. production line:
3. Certifications:
Any inquiry & question will be replied within 24 hours.
Marketing Services:
1). Provide packing design for free. and accept OEM LOGO printing,packing design etc.
2). Develop new products available, we have own molding factory.
3). Business relationship & information with us will be confidential to any third party.
After Sales Services:
1). 12 months warranty, man-made destruction invalid.
2). Provide post-paid warranty after sale service with lifetime professional technical consultation.
3). Varied models for shortterm storage available, provide charged affairs for express service and shipping service.
Guarantee:
Below programmes to deal which follow warranty when there are defectives.
1. Less than 1%: Next shipment we will repay it or replace new units.
Urgent needed we will give new units immediately.
2. Over 1%: We insure that arrange mass production to replace new units with next shipment together.
