Textile machine air jet loom weaving denim cloth

Supplier: Qingdao Flourish Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms. Lynn Lian
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Speed:	800rpm-1200rpm;	Delivery Detail:	45 days after order;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	300 Set/Sets per Month;
Place of Origin:	Shandong China;	Let off:	Electronic;
Application:	Weaving denim cloth;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Beating up:	4 link or 6 link;	Take up:	Electronic;
Reed width:	150cm-360cm;	Product name:	Textile machine air jet loom weaving denim cloth;
Dimension(LWH):	550cm200cm250cm;	Condition:	New;
Model Number:	JA-92;	Production Capacity:	300sets / Month;
Packaging Detail:	Textile machine air jet loom weaving denim cloth Bulk in packing;	Weight:	2.5-3.5 tons;
Certification:	ISO9001 CE;	Insertion:	Main nozzle and sub-nozzle;
Power(W):	2.7KW-6.5KW;	Type:	Air Jet Loom;
Shedding:	Cam/Dobby;	Warranty:	One Year;
Weft selector:	1 color/ 2 color/ 4 color / 6 color;	Port:	Qingdao port;
Brand Name:	Picanie;

Product Description

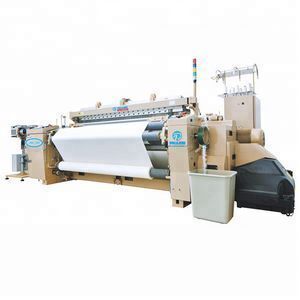

Textile machine air jet loom weaving denim cloth

JA-92 AIR JET LOOM

JA-92 air jet loom is a model of high speed air jet looms with the design concept of high speed, lower consumption and wide weaving range.

This model looms are designed through completely new three-dimension technology, computer analysis & assembly,and utilized the virtual technology in designing of the insertion, shedding and beating. It has many adventages like below:

1. High speed--New weft insertion, new frame structure and high speed CPU, ensure the running speed Max. 1200rpm.

2. Low energy consumption---New weft insertion and main nozzle energy saving optimal design realize less air consumption.

3. Low vibration---Using 3D design and computer analysis to optimize the frame structure, including the cross rail connections, and to realize lightening design and optimum balance of the beating motion. These improvements ensure lower vibration with high-speed operation.

4. Flexibility and wide applicability---A full range of standard equipment and a variety of options can weave fabrics that were previously mostly woven by rapier looms, including wide home furnishings fabric, stretch fabric, fabric of different yarn types and counts, airbags, seersucker and fabric with tuck-in selvages.

5. Easy operation and new electronics---Relatively lower machine, upper temple are both good for the operater; a new internet-ready color function panel with enhanced communication capability and a new faster CPU.

Textile machine air jet loom weaving denim cloth

Item		JA-92 Specification
Reed width	Reed width	150cm, 170cm, 190cm, 210cm, 230cm, 250cm, 280cm, 340cm, 360cm
	Working width	Reed width minus 0-60cm/80cm
Weavable range		Spun: Ne100-Ne2.5 ; Filament: 56dtex-1350dtex
Weft selector		1 color, 2 color mixing; 4 color or 6 color
Beating		4 link lever (narrow machine), 6 link lever (wide machine)
Insertion		Main nozzles and sub-nozzles
Shedding		Crank: 4 shafts heald frame
		Cam: 8 shafts heald frame
		Electronic dobby, max 20 shafts
		Electronic jacquard
Let off		Electronic let off
Take up		Electronic take up

Detailed Images

Textile machine air jet loom weaving denim cloth

The power side of the machine

We match Staubli dobby for the air jet towel loom, it can work in high speed in long time.

The wall of the machine

The machine's wall is casting material, we choose nodular graphite, as its density is thicker and stronger, it can ensure the machine running well for a long time.
