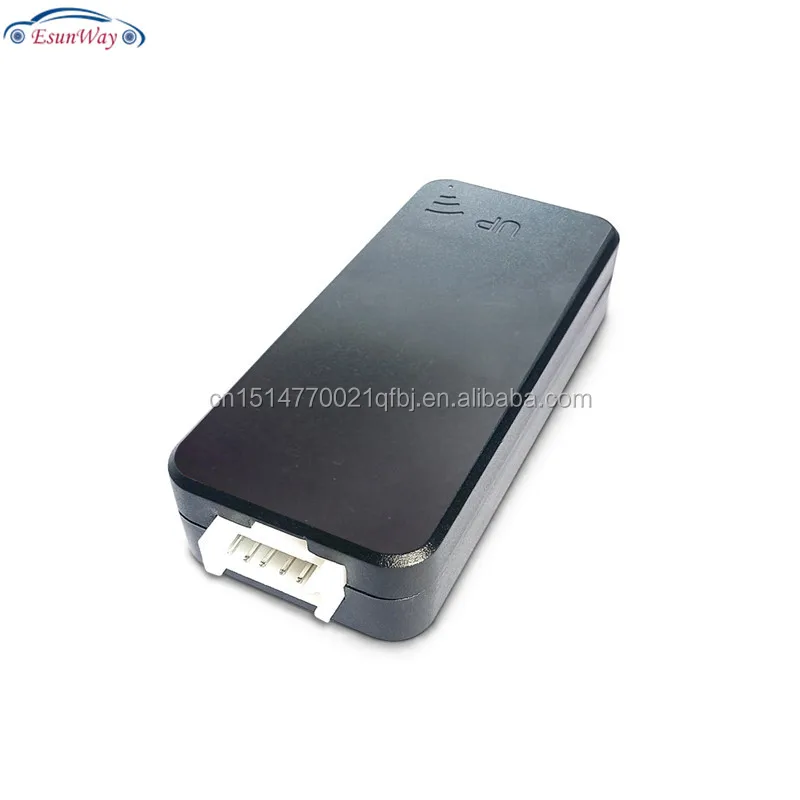

2G/3G/4G/NB-IOT Free Installation Magntic GPS Tracker Built In long battery GSM GPRS Vehicle Locator Android IOS APP
-
Supplier: Esunway (shenzhen) Electronic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Athena Shen -
Price: $10.00 /piece -
Min. Order: 1 piece
Product details
| Packaging Detail: | Carton Box or Plastic Bag; | Payment Terms: | T/T,Western Union,MoneyGram,Paypal; |
| WCDMA frequency band: | B1; | Port: | ShenZhen, GuangZhou, Hongkong; |
| Type: | GPS Tracker; | GPS Module: | MTK 6261MA; |
| LTE frequency band: | B1/B3/B38/B39/B40/B41; | Supply Ability: | 1000 Piece/Pieces per Day; |
| GSM Frequency: | 850/900/1800/1900 Quad band; | CDMA frequency band: | BC0; |
Product Category
We can offer one stop customize service on hardware and Software
Product Categories >>> See More
Product Description
| Product positioning | Bus, logistics truck, engineering vehicle, refrigerated truck, tank truck, Rental Car, enterprise government cars etc various applications. | ||
| major function | 1, LTE+WCDMA+GSM System 2, ACC Detection 3, Remote lock car 4, Blind Area Supplement 5, Bend compensation 6, Anti static drift 7, Vibration Alarm/Shift Alarm 8, Cut off Alarm 9, GEO Fence/ Boundary Violation Alarm 10, Multiple inquiry ways 11, External MIC 12, SOS Alarm | ||
| main features | Tk008 with LET 4G System, BeiDou GPS dual Mode positioning system, over current high voltage protection, vehicle positioning, mobile positioning, LBS Positioning, Trajectory playback, GEO Fence, Shift Alarm, Power Off Alarm, Remote cut off oil, SOS Alarm, Burglar alarm, temperature detection, fuel detection, Open or close detection, Smart Power saving, blind area supplement, bend compensation, remote wireless upgrade, support JS808; Hongyuan , huaqaing etc various platform communication protocol; 1 channel RS232 Port. | ||
| Standby time | day | ||
| Support communication | SIM Card | ||
| 1. structure division | |||
| structure parts | category | specification | remarks |
| ID design | Exquisite compact, fashion | ||
| Whole machine size | 72mm×36mm×15mm | ||
| Packing size | 87mm×128mm×60mm | ||
| Weight | 36g no packaging, g packaging box | ||
| colour | black | ||
| button | no | ||
| screen | no | ||
| gps antenna | High sensitive ceramics active antenna | ||
| GSM antenna | FPC antenna | ||
| battery | 140mAh | ||
| SIM card slot | 1 pc | ||
| G-sensor | support | ||
| I/O port | no | ||
| 2. Hardware parts | |||
| Hardware parts | GSM chip(CPU) | MTK MT6261MA | |
| GSM frequency band | 850/900/1800/1900MHz | ||
| CDMA frequency band | BC0 | ||
| WCDMA frequency band | B1 | ||
| LTE frequency band | B1/B3/B38/B39/B40/B41 | ||
| GPS chip | UBlox G7020 | ||
| GPRS | class12 | ||
| GPS signal | L1,1575.42MHz C/A | ||
| GPS channel number | 32 channels | ||
| GPS chip receive sensitivity | Tracking sensitivity:-159dBm,capture sensitivity:-148dBm | ||
| WIFI location accuracy | no | ||
| GPS location accuracy | <10m | ||
| LBS location accuracy | 100-1000M | ||
| Minimum standby current | less than 10 mA | ||
| Average stndby current | less than 2.5 mA | ||
| Average working current | around 55mA | ||
| Working temperature | -20~70℃ | ||
| Working humidity | 5% to 90% non-congealable | ||
| Test and certification | can approval by 3C,CE&ROSH | ||
| 3D gravity sensor | Support | ||
| MIC | Support | ||
| Texture of material | |||
| 3. software parts | |||
| software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. | |
| call function | The remote monitoring | ||
| Language support | Simplified Chinese and English | Compatible with support for multi-languages | |
| GSM+GPRS+GPS+wifi | GPS+LBS+WIFI Multi-modal positioning(Optional) | ||
| support AGPS | No support | ||
| call function | SOS call, voice monitor, whitelist for don't disturb | ||
| power management | Ultra-low power consumption of power management,intelligent dormancy | ||
| One key emergency | SOS one key emergency function ,autodialing | ||
| Smart Geo-fence | Outside the range setting can be automatic alarm | ||
| historical route | Can check history of three months | ||
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters | ||
Our Services
- Multi- times test before shipping
- 24 Months Warranty
- Competitive price but high quality
- Exelent after-sale service & 3 years technology service support
- Fast delivery

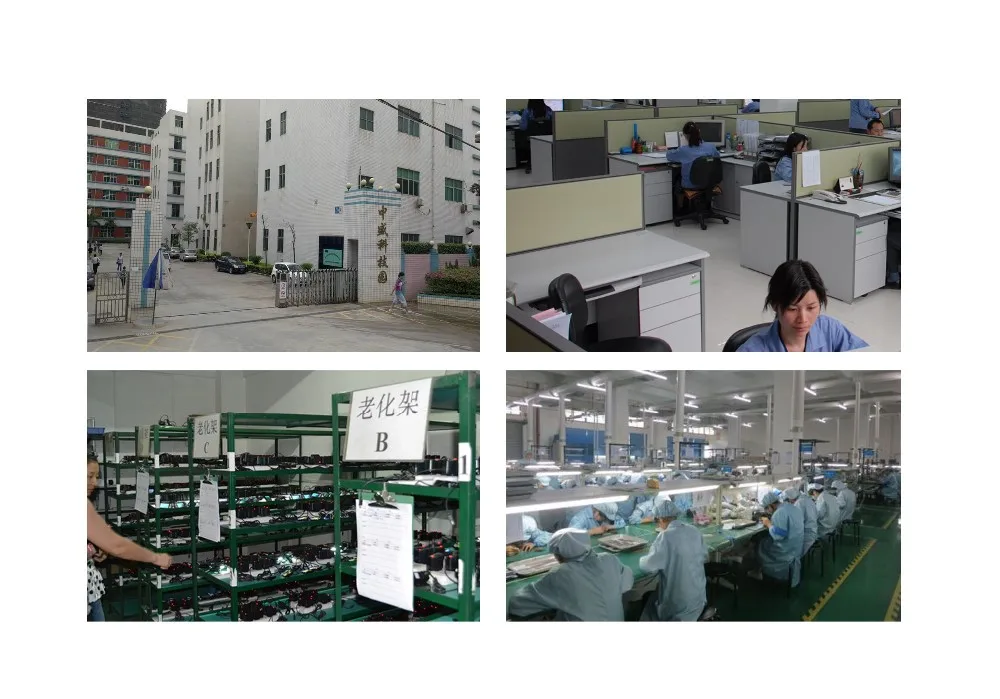

Company Information
Esunway Eletronics Technology Co.;Ltd; is an technical - oritented manufacturer, focus on Car Diagnostic and Consumer Products.
We insists on the operation principle of “advanced technology, quality first , customer –oriented and mutual development”
The products have been exported to all over the world and got good reputations. Your OEM orders are warmly welcome.
