OEM Programmable Automotive SMS Commands Remotely Stop Car GPS Tracker with Temperature Sensor

Vehicle GPS Tracker For Fleet Management

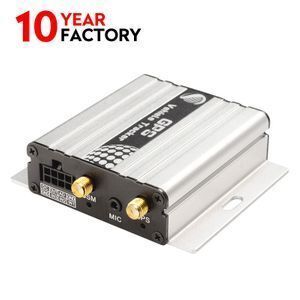

VT600 is a GPS/GPRS based tracking device, specially developed and designed for vehicle real-time tracking and fleet management. VT600 has an inbuilt GPS module to obtain accurate position data. This device utilizes its GSM capability to send position data to a specified mobile phone or server base for tracking and fleet management. With internal memory, VT600 can store GPS coordinates when there is no GPRS connection, or at a specified interval requested by the user. One optional feature of VT600 is that a microphone can be linked and hidden somewhere inside the vehicle for listening to the cabin.

Remote Cut-off (petrol/power)

Compel the vehicle to stop by breaking off the fuel connection

Anti-Jammer (optional)

Resist GPS or GSM jammer to keep working and report to GPS tracking software

1-Wire Interface

1-wire interface for temperature sensor/ ibutton (customized version)

Listen-in

Allows the caller to listen to what is happening around the tracker

4MB Flash Memory

Store GPS coordinates when there is no GPRS connection, or at a specified interval requested

Smart Alarms

Movement alarm, low battery alarm, GPS blind area alarm, power-cut alarm, GPS antenna disconnect alarm and Geo-fencing alarm

Multiple I/O Interfaces

Monitor and control external application via input/outputs

Reporting location in real time through different interfaces

Items

Specifications

Power Supply

10.6V - 36V / 1.5A

Backup Battery

500mAh

Normal power consumption

55mA/h

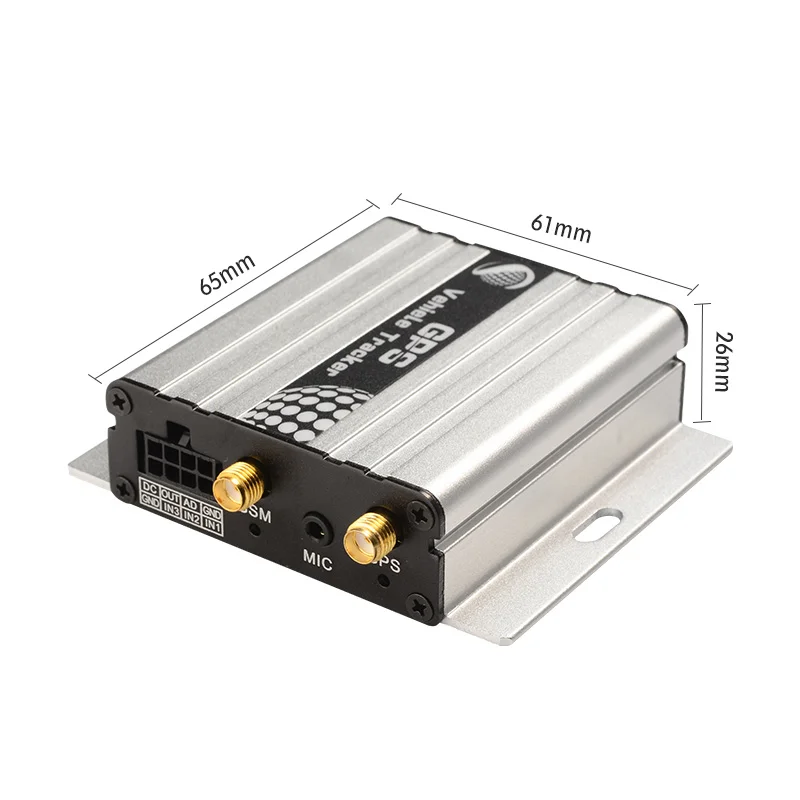

Dimension

65mm x 61mm x 26mm

Weight

90g

Work time

30 hours in power-saving mode and 7.5 hours in normal mode

Operating temperature

-20° to 65° C

Humidity

5% to 95% Non-condensing

GPS Module

latest GPS SIRF-Star IV chipset

GPS Sensitivity

-159Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max

Velocity Limit

515 meters/second (1000 knots) max

LED

2 LED lights to show GPS/GSM status

Flash Memory

4MB

Button

One SOS Button

Interface

3 digital inputs (1 negative, 1 positive triggering and 1 input changeable)

1 analog input

1 output.

 Power Cable

Free GPS Tracking System

Features

Descriptions

Time Zone & Local Language

More than 10 languages and timezone settings

Multiple Account Support

Allow you to set up an account for company user to management many vehicles

Group Management

The user can manage the vehicle by setup difference groups

Reporting and Export

The overview report, Speeding report, Mileage report, Stop Report

Real-Time Tracking

Track the vehicle by real-time

Location History

Replay the location history

SOS Alarm

SOS Alert

Communication Failure Monitoring

Monitor the vehicle when it is not reporting

Over Speed Monitoring

Monitor the vehicle when it is over a speed

Online Vehicle Engine Control

Turn on or turn off the engine

Geo-fence Notification

Set up a zone to monitor the vehicle to enter or exit this zone.

Landmark

Mark the new point in the map by yourself
