Full Model List of MQ Sabvoton Controller For BLDC Motor

Product details
Phase Current:50-450A;DC Current:18-250A;
Voltage:48V-96V;Model Number:Full Size;
Packaging Detail:Stable carton & foam for Export shipping.;Brand Name:MQCON;
Controller Design:Sine Wave BLDC Motor Controller;Place of Origin:Jiangsu China;
Payment Terms:T/T,Western Union,MoneyGram,Paypal;Port:Ningbo Port/Shanghai Port;
Supply Ability:100000 Piece/Pieces per Month;Support:Programmable;

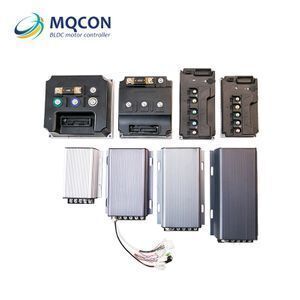

Full Model List of MQ Sabvoton Controller For BLDC Motor



 Serial

ModelMotor Power DC currentPhase CurrentDimenstion (mm)
SMSM4818350w18A50A103 * 65 * 35
 SM4830600w30A90A155 * 80 * 43
MLML7245800w45A130A190 * 110 * 50
 ML72601-1.5kw60A150A220 * 110 * 50
SVMCSVMC72450.8-1kw45A135A164 * 120 * 64
 SVMC72601-1.5kw60A165A215 * 147 * 62
 SVMC96501-1.5kw50A150A215 * 147 * 62
 SVMC72801.5-2kw80A200A249 * 147 * 62
 SVMC721002-3kw100A250A249 * 147 * 62
 SVMC721503-4kw150A350A249 * 147 * 62
 SVMC961002-3kw100A250A249 * 147 * 62
 SVMC722004-5kw200A450A283 * 147 * 62
 SVMC961204-5kw120A300A283 * 147 * 62
SSCSSC72801.5-2kw80A200A186 * 165 * 70
 SSC721002-3kw100A250A186 * 165 * 70
 SSC96801.5-2kw80A200A186 * 165 * 70
MQMQ722505kw250A450A200 * 145 * 65

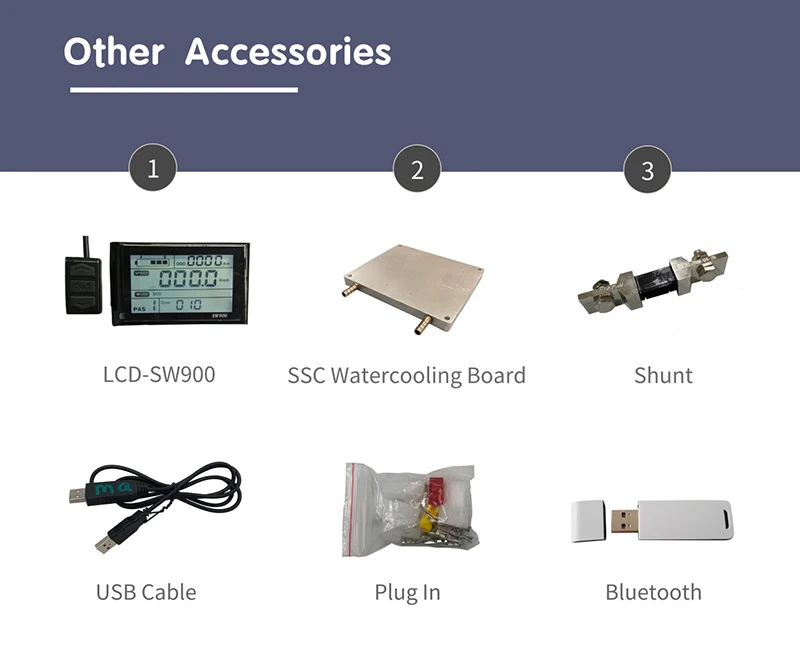

Other Accessories
Bluetooth AdapterUSB CableLCD-SW900 Meter
  Shunt  FuseSSC Water Cooling Board







 Controller Features



MQ(Sabvoton) motor controller is designed for brushless dc motor control, which is applied for high power electric bicycle, electric scooter, mini electric car and so on.

  • FOC sine-wave controller applied to BLDC or PMSM
  • The controller match one motor to get best electric angle no more than 3 minutes for the first time.
  • minimizing the torque pulsation, achieving non-noise, on-vibration run with great Comfort
  • The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.
  • work efficiently, reducing the heat consumption and extending the mileage
  • built-in protection: block protection, over-current protection, over-heat protection, over-voltage protection and so on, guaranteeing the system and driver safety
  • status and fault intelligence management provide the information including the run-mode, fault type and so on, LED also twinkle in different way to indicate the fault type, all these make the diagnosis and repair easily
  • convenient external interface: reversing, cruise, ebs, anti-theft and so on
  • parameters and functions can be configurable by computer or mobile phone
  • CAN bus is optional for meter or BMS application



 Wires Cotrol Drawing

General Functions

  • Basic functions: Hall, electric lock, high brake, throttle

  • Optional functions: temp sensor KTY83-122, 0-5v e-brake, low brake, three speed(switch / button), Hall speedometer, reverse, cruise, anti-theft, CAN, ebs for SVMC models.

  • Accessories: shunt, fuse, USB cable for programmable PC, bluetooth adapter, watercooling sink.







FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory. Welcome wholesalers & manufactures to inquiry.

Q: What is the mini order ?
A: The mini order is 1 pc for the stock Model. The customzied controller depends.

Q: How long is your delivery time ?
A: Generally it is 2 -5 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity and customize requirement.

Q: What is your terms of payment ?
A: Payment 100% in advance. TT , Paypal , Online is available.

Q: How about the warranty ?
A:  1 year, but it has to be with correct operation. Wrong operation and unlock type controller is no warranty.

Q: Do you supply controller to personal ?
 A: Yes, of course. Meanwhile we are looking for dealer on abroad, if any interested, pls. contact with us freely.
