Ignition system: | ALTRONIC; | Rated Voltage: | 220V, 380V, 400V, 415V, 440V; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Cooling method: | water cooled; |
Brand Name: | SHENGHAN; | Delivery Detail: | within20 working days after the deposit; |
Packaging Detail: | wooden case; | Start method: | auto start/key start; |
Speed: | 1500/1800RPM; | Rated Power: | 10kw-1000kw; |
Output Type: | AC Three Phase; | Regulator: | AVR; |
Model Number: | SH10GFC-SH1000GFC; | Port: | QINGDAO; |
Place of Origin: | Shandong China; | Frequency: | 50/60HZ; |
Rated Current: | 18A-1800A; | Function: | AMF/ATS; |
Control system: | DEEPSEEA /SMARTGEN/WOODWARD; | Supply Ability: | 200 Set/Sets per Month; |
Warranty | one year or 1500 running hours |
Certificate | CE and ISO |
Cooling method | Water cooling |
Applicable fuel | Natural gas |
Start method | 24V Electric start |
Control panel | automatic controller |
Ignition system | Bosch |
Alternator | Stamford and other famous brand |
Condition | brand new |
Fuel consumption | 0.3m3/kw.h |

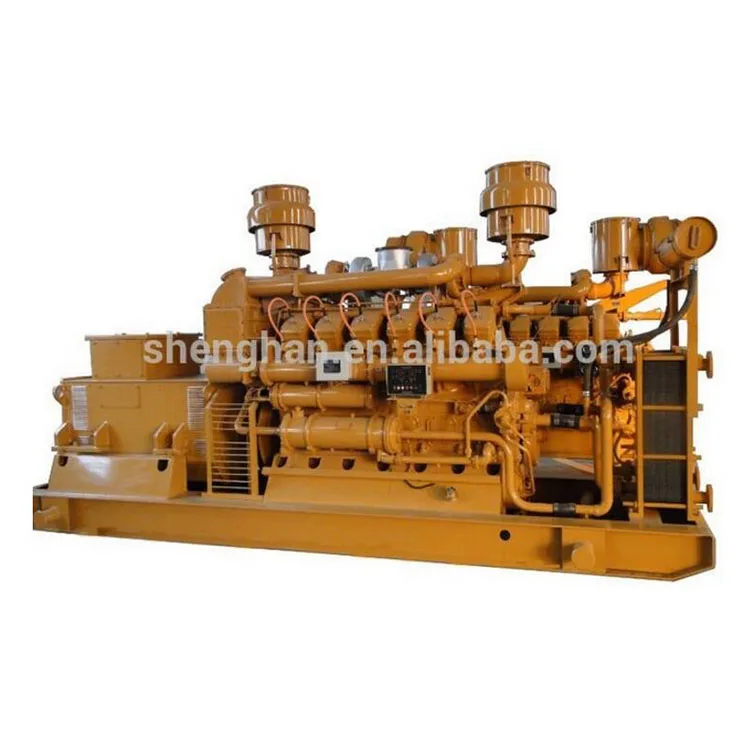

Gas generator | Model | XSA-100GFQ |
Rated Power(kw/kva) | 100/125 | |
Standby Power | 110/137.5 | |
Type | open type,silent type,trailer type | |
Current(A) | 180 | |
Voltage(V) | 220V,240V,400V,415V,480V | |
Frequency(HZ) | 50HZ/60HZ | |
Engine | Engine Brand | XSA |
Model | XSA10D110E200NG | |
Rated Power(KW) | 110 | |
Cylinders | 6 | |
Bore(mm) | 126 | |
Stroke(mm) | 130 | |
Rated Speed(rpm) | 1500/1800 | |
Start Method | Electrical | |
Speed Govering | Electronic | |
Cooling Method | water cooling | |
Consumption | 0.3m³/kw.h | |
Alternator | Brand | XSA |
Rated Power(kw/kva) | 100/125 | |
Rated Frequency(HZ) | 50HZ/60HZ | |
Rated Voltage(V) | 220V,240V,400V,415V,480V | |
Power Factor | 0.8 | |
Connection Type | 3P4W | |
Excitation Method | Brushless | |
Voltage Regulation | AVR | |
Protection | IP23 | |
Class | H |
