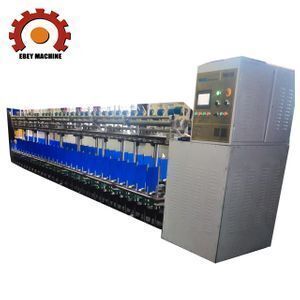

Small Three Twisted Rope Making New raffia yarn twine Twisting Machine

Supplier: Wenzhou Ebey Machine Manufacture Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cindy Mao
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Model Number:	ACS-T2.1 AS5566;
Twist range:	15-620tpm;	Dimension(LWH):	550013202080mm;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	20 Set/Sets per Month Manufacture Twine String twisting machine for yarn;
Automatic:	Yes;	Bobbin winding capacity:	0.9-11kgs;
Power(W):	14.3kw;	Type:	ACS-T2.1;
Place of Origin:	Zhejiang China;	Production Capacity:	20m/min;
Brand Name:	ROBTEAM;	Packaging Detail:	1 set Manufacture Twine String twisting machine for yarn in wooden case;
Spindle pitch:	180-340mm;	Spinning Method:	Ring Spinning;
Weight:	4200kgs;	Ring size:	254mm8.1mm or as per customer's request;
Certification:	CE,ISO;	Condition:	New;
Drive motor power:	11-18.5kw;	Lay direction:	S/Z;
Application:	ROPE ,YARN,FISHING NET ETC;	Spindle speed:	180-2100rpm;
Spindle No.:	12,24,30-42;	Delivery Detail:	1 SET Twine String twisting machine for yarn in 30 days;
Port:	NINGBO PORT;	Type:	Twisting Machine;
Lifting tranverse:	300-350mm;

Small Three Twisted Rope Making New Raffia Yarn Twine Twisting Machine

best price high speed jute twisted rope making machine

Product Description

Performance and Characteristics:

Your satisfaction is our huge motivator!

This machine could process all kinds of strings for chemical filament, textured yarns, glass fiber, fishing net, twine, wool, fabric cord, cotton yarn, carpet, canvas and etc.

Main Technical Parameters:

Type		ACS-T6150	ACS-T7165	ACS-T8200	ACS-T10254
Spindle amount		144	100	48;56-72	24;30-42
spindle pitch		180	200	250mm	340
spec of ring		140×25.4	165×25.4	φ200×25.4mm	φ254×38.1mm
Ring Lift		300	300	300-350	300-350
Spindle speed		2500-4000	2500-4000	2000-3800rpm	180-2100
Direction of lay		S/Z	S/Z	S/Z	S/Z
Capacity of Finished Product Package		900-1100g	2800-3500g	3500-5000g	7000-11000g
Twist Range		55-620	55-620	45-520	15-405
Spindle motor power		15	15kw	18.5kw	11kw
Dia. of roller		φ61 φ80	φ61 φ80	φ61 φ80	φ61 φ80
Roller motor power		1.1kw×2sets	1.1kw×2sets	1.1kw×2sets	1.1kw×2sets
Lifting motor power		1.1kw	1.1kw	1.1kw	1.1kw
overall dimension		11820×1200×2000	12500×1200×2000	10920×1320×2080	5495×1320×2080
Application	yarns	21pcs 3 - 38strands	21pcs 5 - 45strands	21pcs 18 - 170strands	21pcs 18 - 170strands
	fiber	1500D-5000D fiber	1500D-6000D fiber	650D-15000D fiber	650D-15000D fiber
	polyethylene	36fe×3-25 strands PE twisting or strands twisting	36fe×10-40strands PE twisting or strands twisting	36fe×3-25 strands PE twisting or strands twisting	36fe×3-25 strands PE twisting or strands twisting

Details Pictures

New raffia yarn twine Twisting Machine yarn twisting machine Type ACS-T2.1

small three twisted rope twisting machine yarn twisting machine Spindle No. 12,24,30-42

making new twisting machine yarn twisting machine Spindle pitch 180-340mm

New raffia yarn twine Twisting Machine yarn twisting machine Ring size 254mm8.1mm or as per customer's request

small three twisted rope twisting machine yarn twisting machine Lifting tranverse 300-350mm

making new twisting machine yarn twisting machine Spindle speed 180-2100rpm

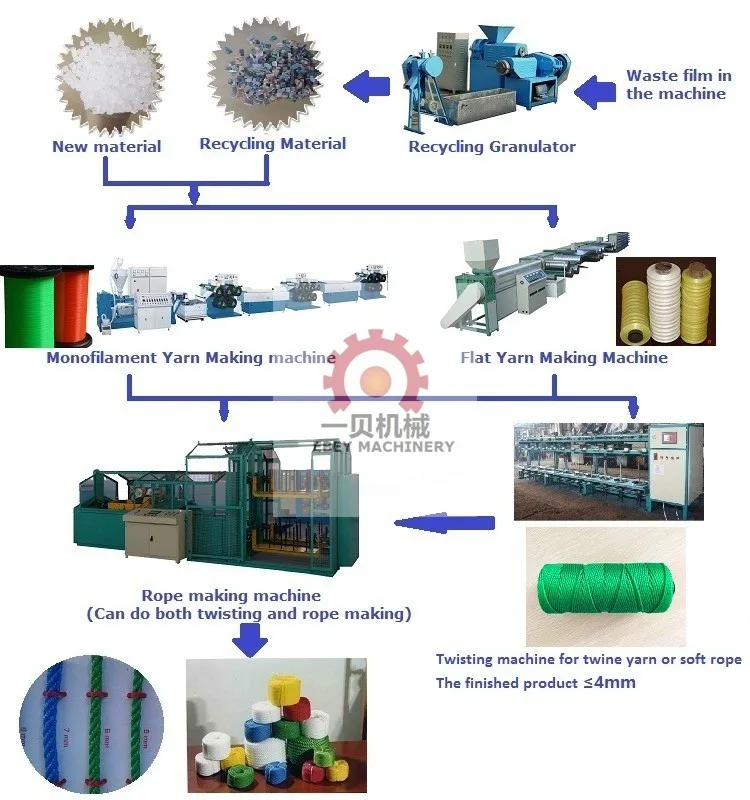

Production Chart

New raffia yarn twine Twisting Machine yarn twisting machine Lay direction S/Z

Certifications

Our Services

Pre-sales services

* Any concerns of our machine by email/phone will be replied ASAP within 24 hours

* Inquiry and consulting support

* Sample testing support

* View our factory

After-sales service

*Traning how to install the machine ,tranning how to use the machine

*Engineers are avaiable to service machinery overseas

*One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .

FAQ

1. Q: Are you a factory or trading company? How many people work in your company?
A: We are a factory .Wenzhou Ebey machine manufacture co.,ltd is a professional maufactuer of rope making machine line to make different kinds of rope ,auto cutting and sewing machine for pp woven sack,printing machine ,reycling machine etc and now we have more than 100 years till this year .

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, Zhejiang Province, China, about 10 minutes from Aojiang train station and 1 hour from Wenzhou airport. It’s very convenient.

3. Q: Why choose us ?
A: Ablity: we are the first company who realize full automatic system on rope production line (contain yarn making machine ,twisting machine and rope making machine etc .) in China.

4. Q: How does your factory do regarding quality control?
A: Quality is priority." We always attach great importance to quality controlling from the beginning to the end. We have our own R&D department for researching new technology and improve machine .Our factory has passed ISO9001:2000 and we have got CE certificate for our machine .

5. What's your machine's after service ?
A: We have very good after sales service: After you purchase our machine we will send our engineer to your factory to install the machine and train your worker.But our machine is easy to operate ,because our machines are full automatic control by PLC and touch screen ,normally don't need our enginner to install and debug the machine ,it can save much time and money.
