Warranty: | 1 Year; | Package Type: | FILM OR PLYWOOD BOX; |
Place of Origin: | Shandong China (Mainland); | Condition: | New; |
After-sales Service Provided: | Engineers available to service machinery overseas; | After-sales Service Provided: | Online support; |
Single package size: | 3700X1700X2000 cm; | Voltage: | 380V/50HZ; |
Delivery Detail: | 0 days after payment; | Selling Units: | Single item; |
Brand Name: | SOPH; | Single gross weight: | 1,600 KG; |

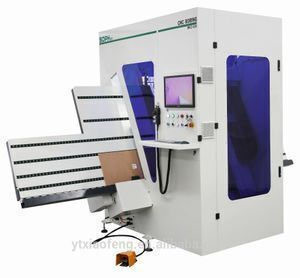

This machine is suitable for furniture companies of all sizes of workpiece automatic precision drilling and slotting, suitable for batch and manufacture custom furniture, especially in custom furniture piece production can give full play to its fast and stable characteristics, in the production process to avoid the artificial operation error caused by rejection, and for the factory greatly reduces labor costs and high technical requirements for employees.
Board length | 180-2450(3050)mm |
Board width | 55-900mm |
Board thickness | 12-50mm |
X-axis move speed | 0-70m/min |
Y-axis move speed | 0-30m/min |
Z-axis move speed | 0-30m/min |
Vertical principal axis amount | 13 |
Horizontal principal axis amount | 8 |
Mechanical arm | 1 |

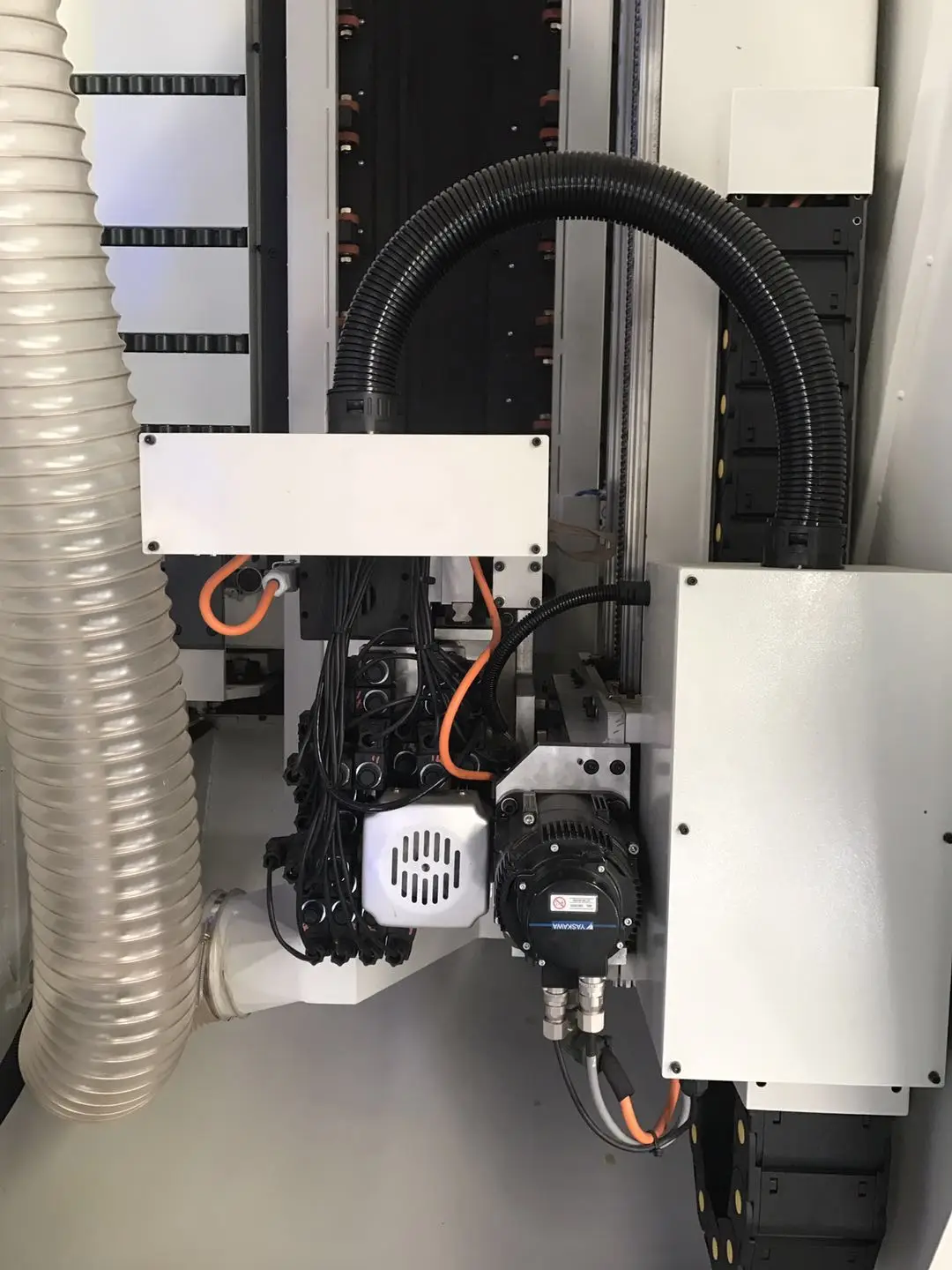

Milling cutting motor power | 4.5kw |
Milling cutting motor speed | 18000rpm |
Board size test or not | Yes |
Bar code scanner | Selective |
Total power | 10.65kw |
Working air pressure | 0.6Mpa |
Dimension | 3700*1700*2060 |

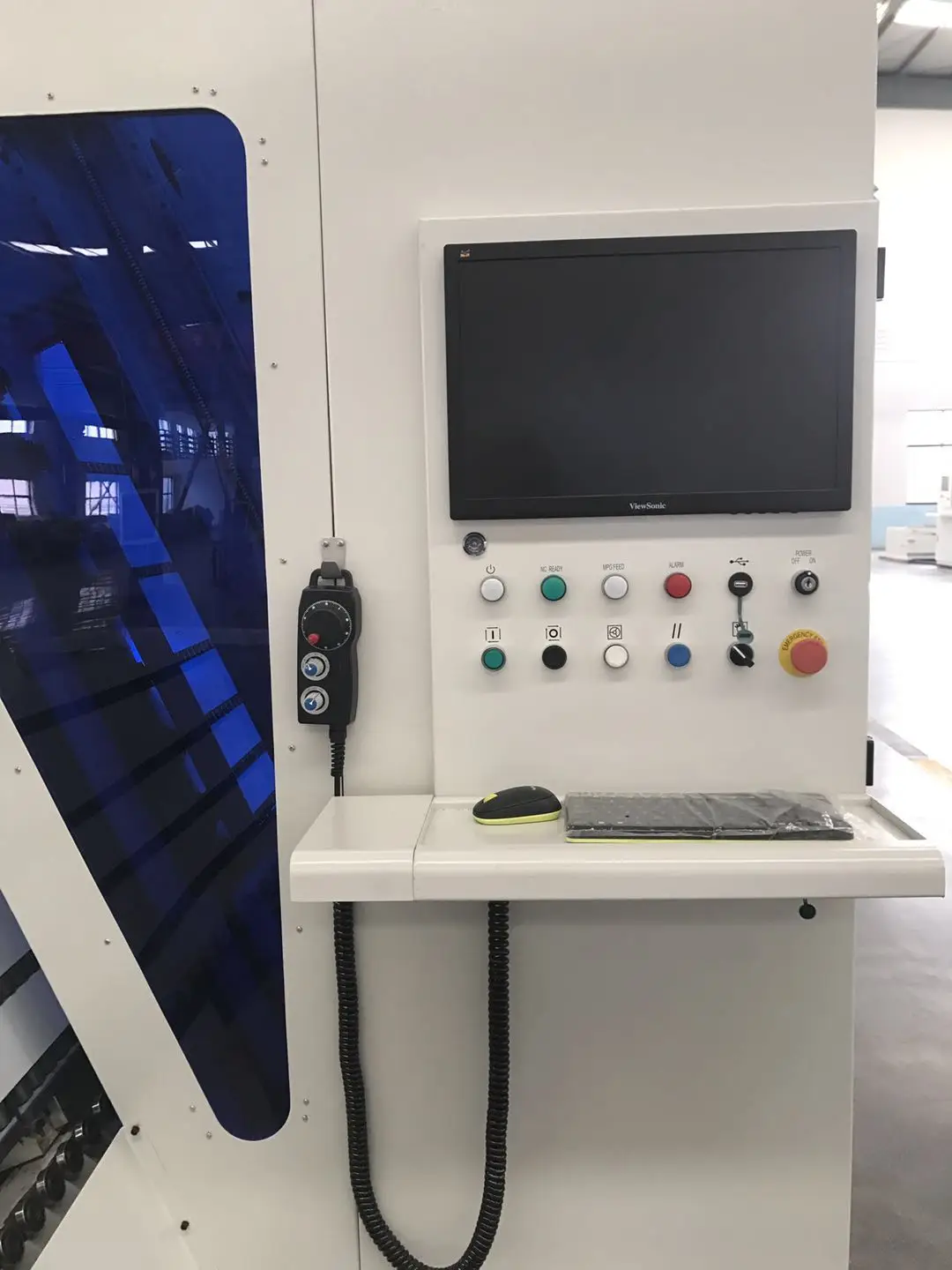

1. The stable performance of the industrial computer as the control center, Windows operating system, using the graphical auxiliary function to guide programming, simple operation.
2. The five surfaces of boring and slotting can be completed at the same time.
3. The plate can be worked on the sixth surface through one time programming.
4. It is equipped with a bar code software, by scanning the bar code can be automatically transferred to the processing procedures, fast and convenient.
5. The processing of high precision, and can improve the consistency of workpiece assembly.
6. To different specifications of the plate has no need to adjust the machine, lower requirements for operators.
7. And equipped with a sheet size detection device, which can avoid the artificial errors occur.
8. The slotting cutter and blade are available to meet the different needs of users.
9. To apply to the batch sheet and custom processing is especially suitable for customized furniture.
