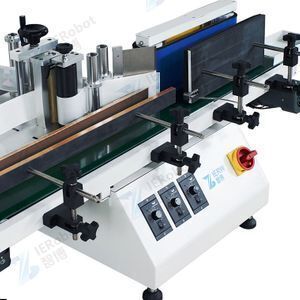

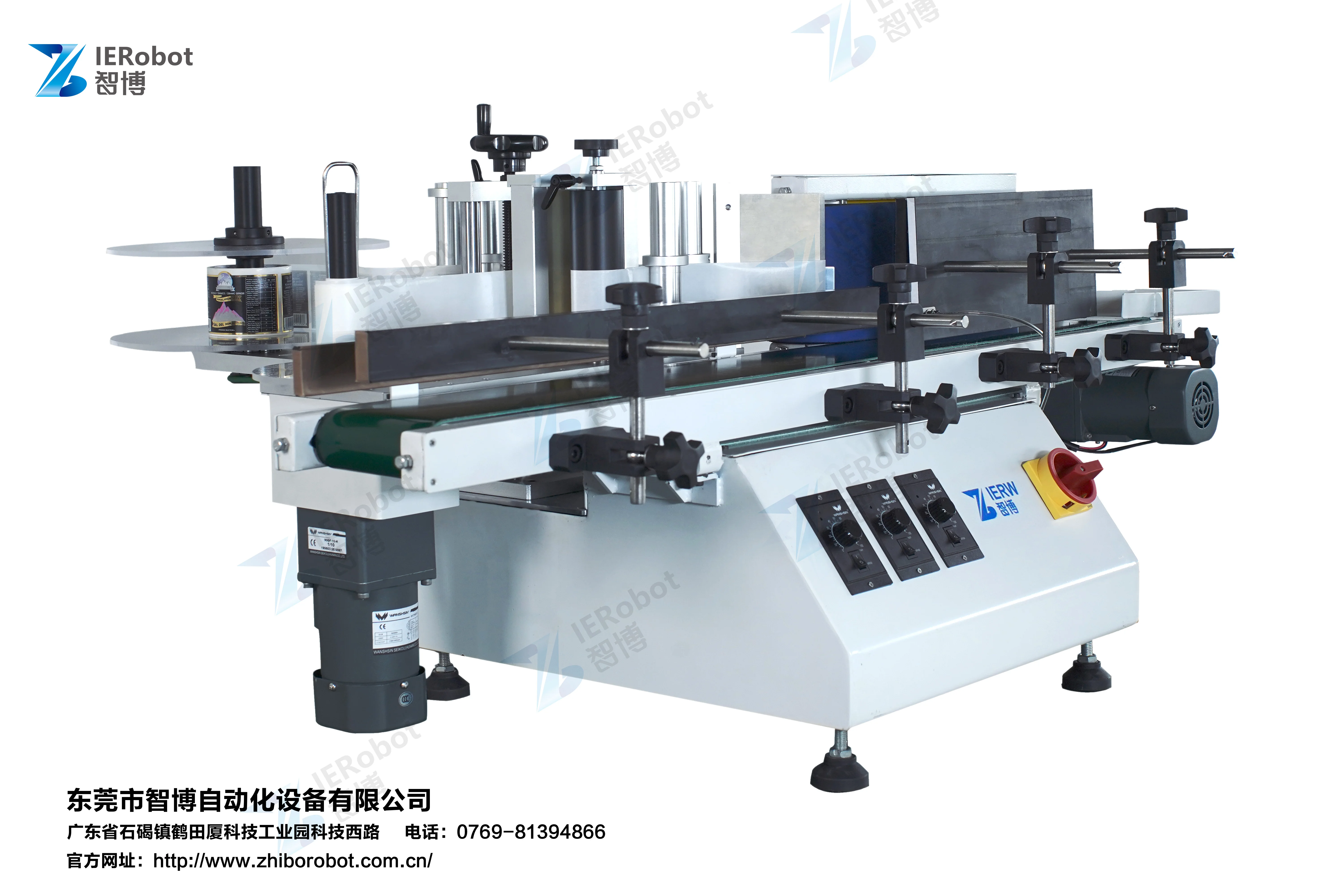

fully automatic Desktop small automatic labeling machine for round bottles sleeve labeling applicator

Product Application

It is suitable for round bottle labeling in beverage, food, pharmaceutical, daily chemical and other industries. It can be used for all-round labeling and semi-circle labeling. Optional automatic turntable bottle unscrambler can be directly connected to the front-end production line, automatically feeding bottles into the labeling machine, increasing efficiency, reducing bottle packaging process and improving production efficiency. Suitable for self-adhesive labels and self-adhesive films.

Main Features

1) Wide application range, can meet the full-circle labeling or semi-circle labeling of round bottles, easy label switching between bottles, easy to adjust

2) Double-side steel-plastic synchronous guiding chain automatically guarantees the neutrality of the bottle. The linked line can reduce the difficulty of docking workers and assembly lines. It can be produced in a single machine or in a production line.

3) Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection, avoiding wasted labels and missing stickers

Machine parts

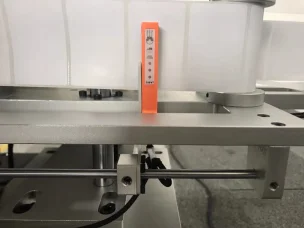

Name: Label sensor

High-precision sensors are used to sensitively sense different types of colors and labels. The position of the sensor can be flexibly adjusted, and it is adaptable to labels of different widths and lengths.

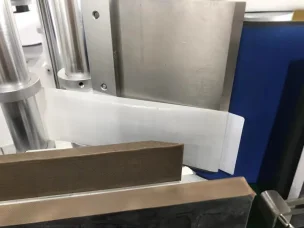

Name: Stripping mechanism

The cross-section design of the mechanism is used to ensure the separation of the label and the bottom paper. The arc is designed at the incision to ensure that the bottom paper is not torn during the collection process.

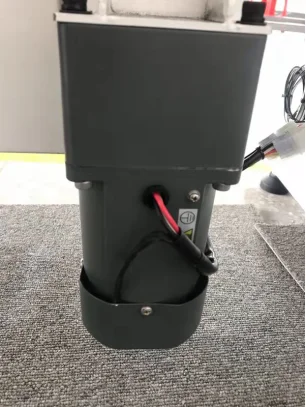

Name: Rail speed control          motor

High-precision speed-regulating motors are used on the conveyor line to adjust the speed according to product specifications to ensure production demand. Each group of speed control motors can adjust the conveying speed of the product and the labeling speed, switch production of products of different sizes, and adjust the flexibility.

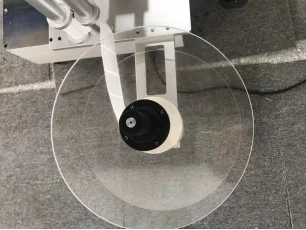

Name: Label roll

The label roll adopts the upper and lower clamping structure design, which makes the applicability of the device stronger. When switching the labels with different sizes, it is not necessary to replace the jig and save time. The pressure plate is fixed by quick lock bolts, which is convenient for disassembly and assembly.
