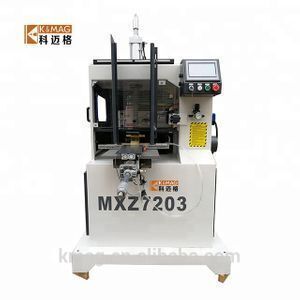

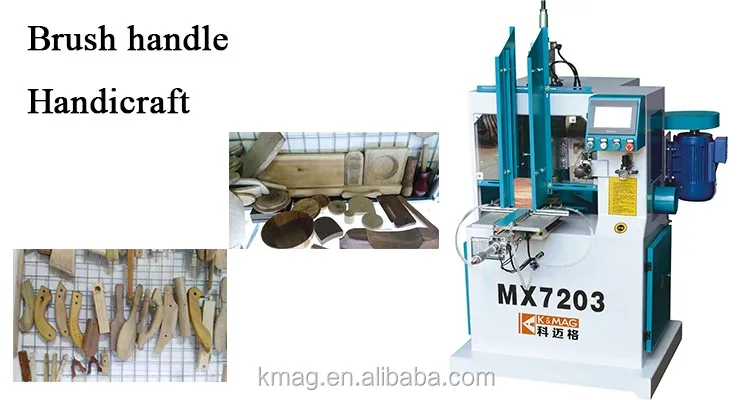

high speed copying spindle moulder machine for wooden craft

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Dimension(L*W*H):1200*1500*1200mm;
Shaft Number:1PC;Weight:850kg;
Warranty:One Year;Application:Woodworking;
woodworking length:50-300mm;Packaging Detail:WOODEN PACKAGE;
Supply Ability:50 Set/Sets per Month;Voltage:380V;
Port:GUANGZHOU/SHENZHEN;Brand Name:KMAG;
woodworking height:5-50mm;After-sales Service Provided:Field maintenance and repair service;
woodworking width:15-100mm;Place of Origin:Guangdong China (Mainland);
Power(W):4kw;Payment Terms:L/C,T/T;
Condition:New;Certification:CE ISO;
Product Description

Product Application

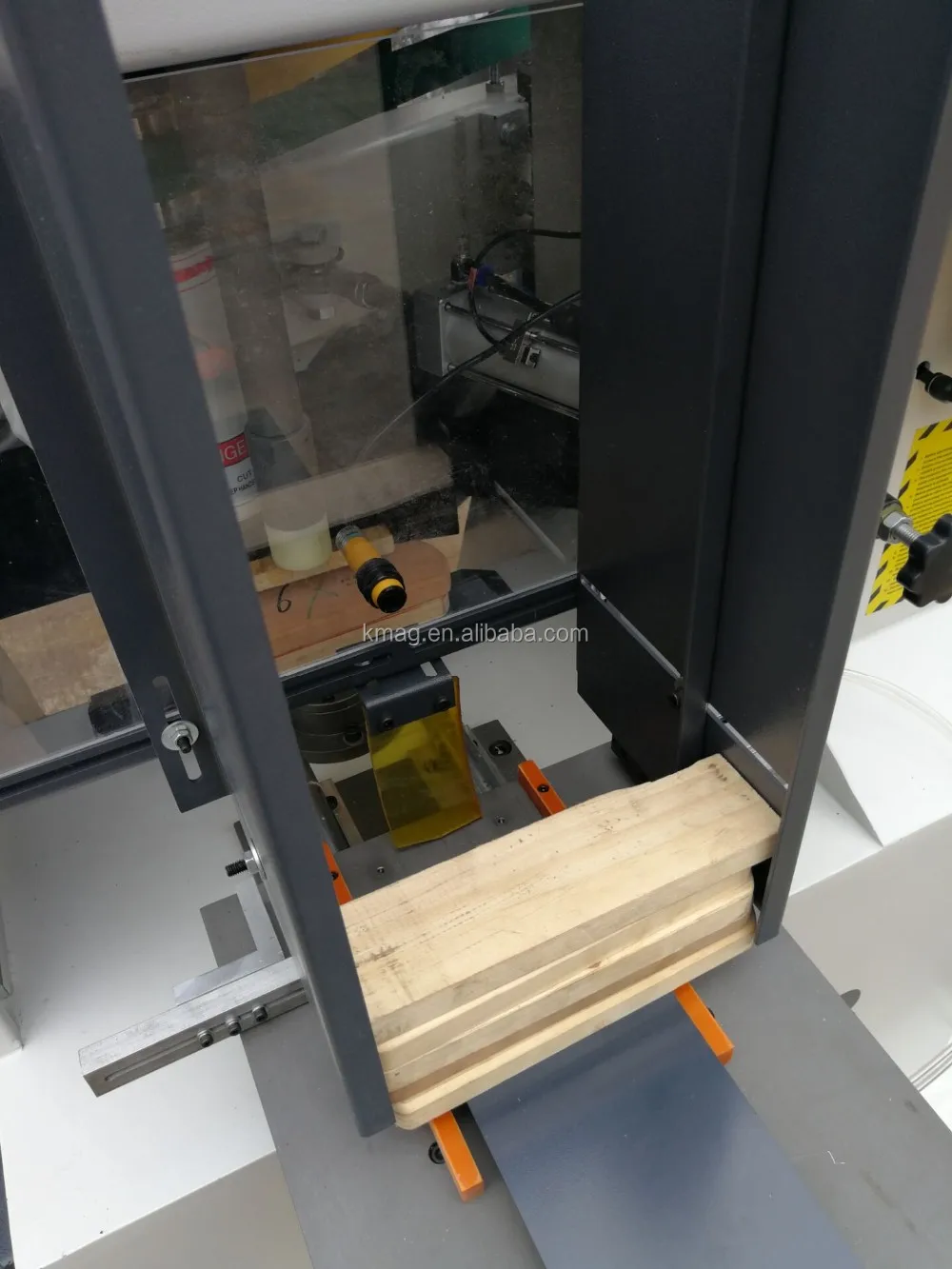

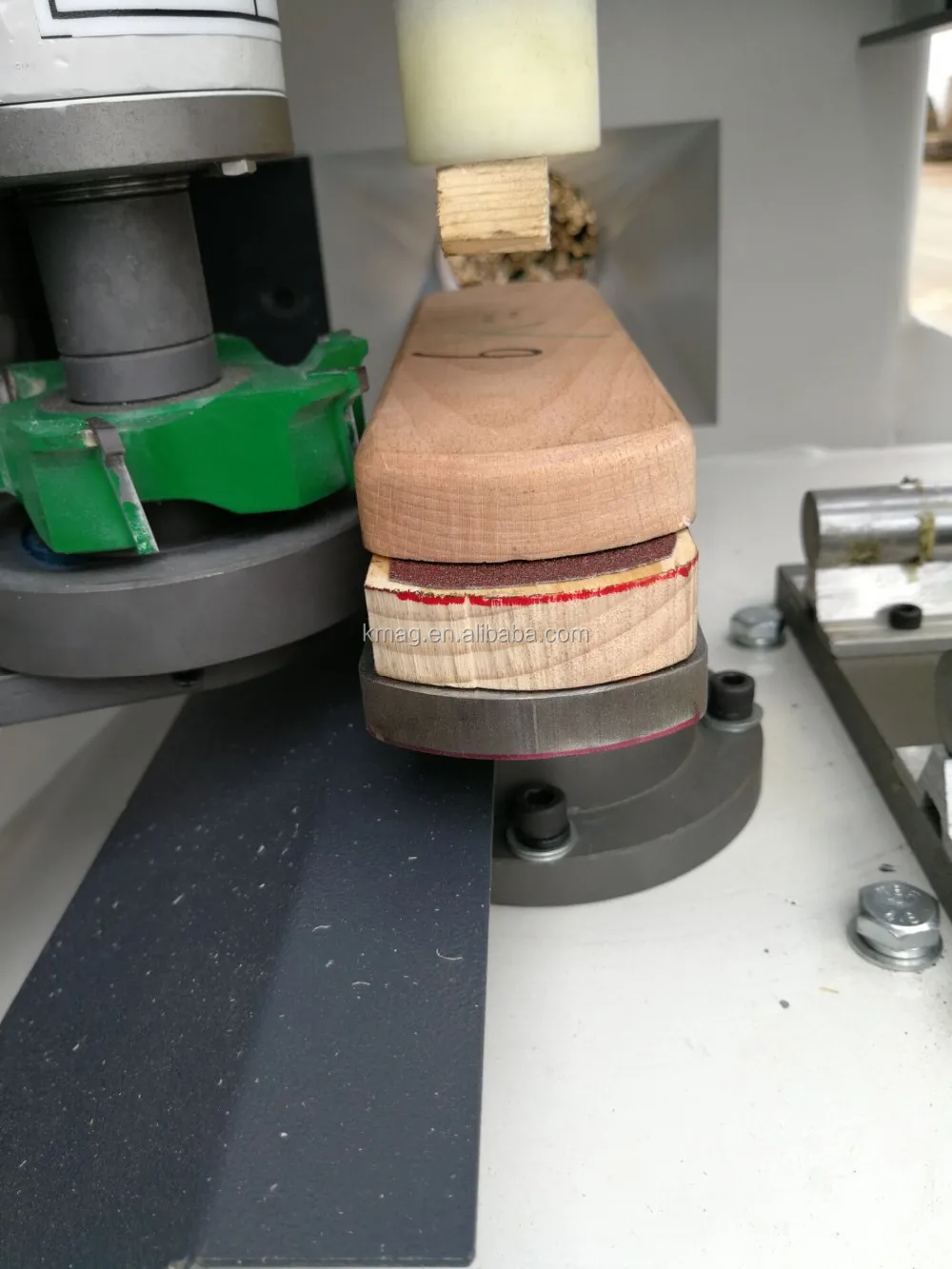

The operator only need to responsible for simple loading, automatic material dischargen, once person may operate more than one machine, reduce labor intensity, safe and efficient.

SPECIFICATION
Working air pressure
0.6-0.8MPA
Motor power of shaper cutter
4kw
Rotatry motor power
0.75kw
Feeding speed (frequency control of rotatry speed)
4-20r/min
Cutter spindle speed
12000r/min
Spindle
Ø25.4mm
Shaping length
50-300mm
Shaping width
15-100mm
Shaping height
5-50mm
Dust outlet diameter
100mm
Max.rectangular cutting
3:1
Overall size
1200*1500*1200mm

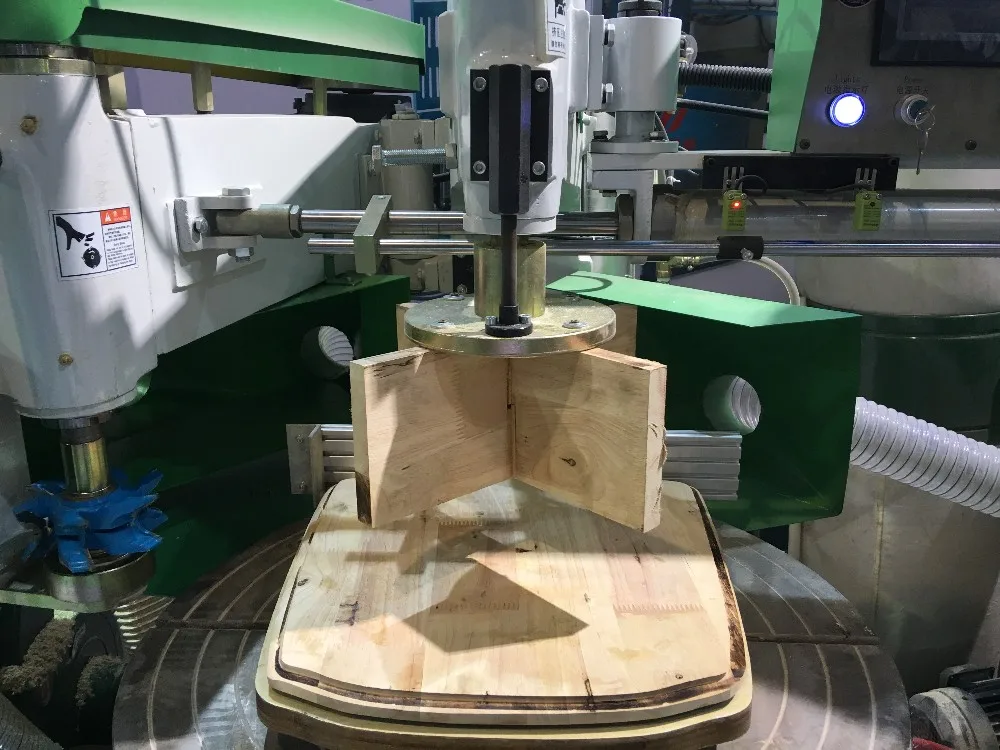

Main Features

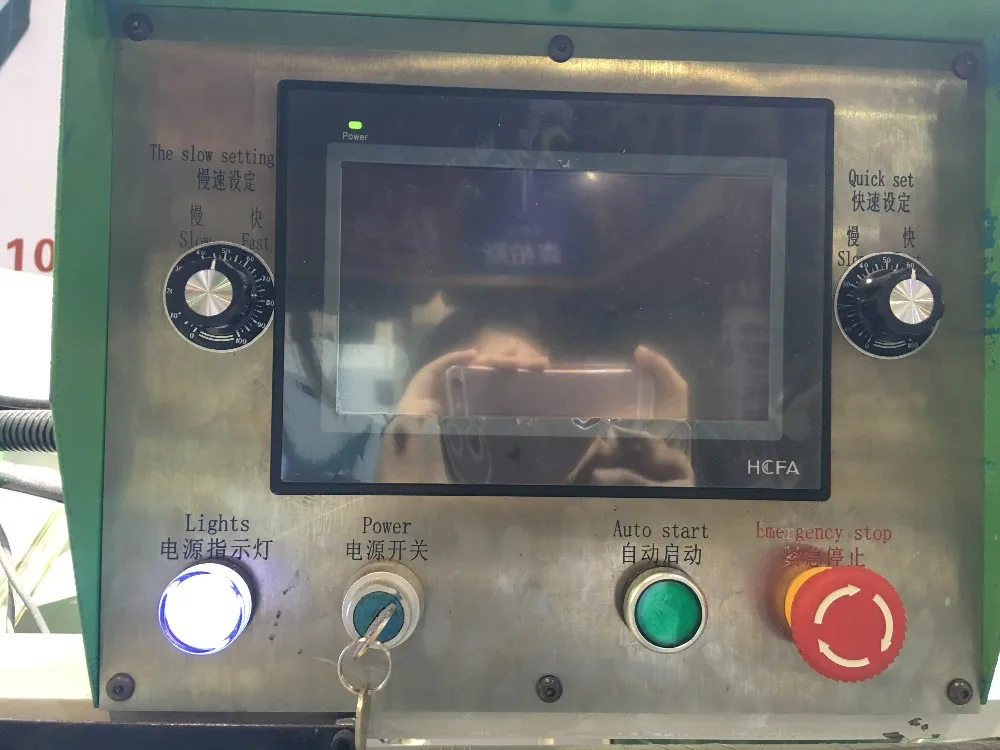

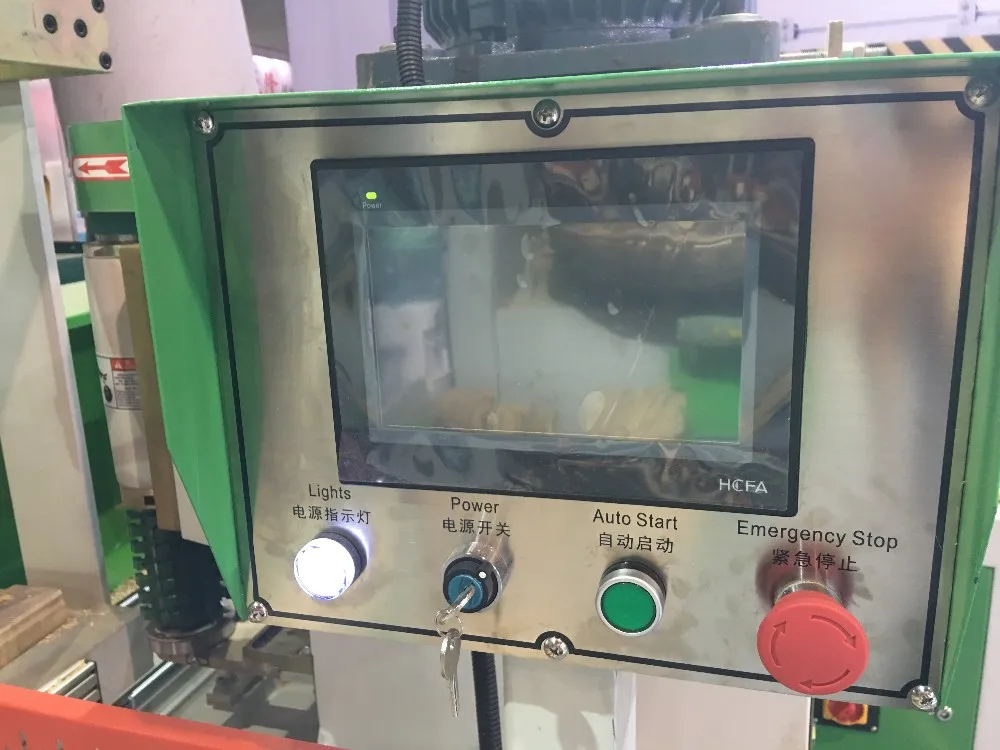

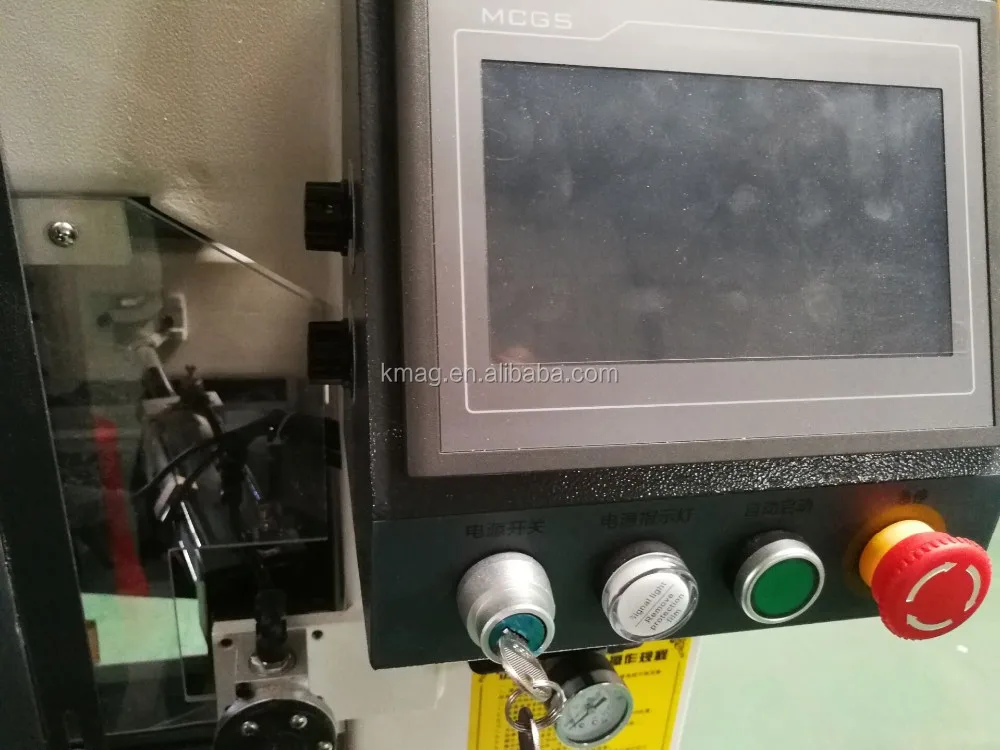

1. Adopt the PLC procedure control,option the automatic or manual operate
2. The circumgyrata speed of the working table can be controlled with the subsection by the induce switch under the working table.

3. The revolving speed of the working table can be controlled by the detector that is fixed under the table and can work on the curlve or the vertical part,it can avoid striking and rebounding.

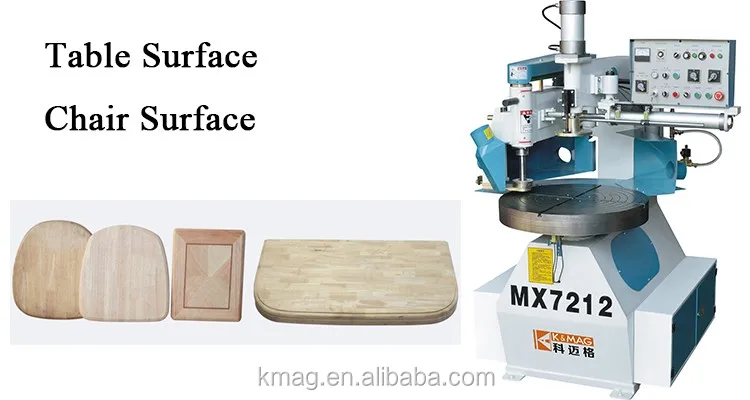

MX7212
MX7215
Range Of Cutting Diameter
Ф110-1200mm
Ф110-1000mm
Max.rectuangular cutting
2:1
2:1
Max.working thickness
130mm
130mm
Table Size
Ф700mm
Ф700mm
Cutter Spindle diameter
Ф30mm
Ф30mm
Guiding Roller Diameter
Ф100mm
Ф100mm
Cutter spinde speed
9000r/min
9000r/min
Table speed
1.5-6r/min
1.5-6r/min
Spindle power
5.5kw
5.5kw*2
Table driving power
1.5kw
1.5kw
Working air pressure
0.6-0.8MPa
0.6-0.8Mpa
Dust outlet diameter
Ф100mm*4PCS
Ф100mm*8PCS
Overall size
1560*1400*2120mm
1630*1400*2400mm
Weight
930kg
1130kg

Feature:

1. Safety: Avoid operator's hands close to the highly rotation cutter and minimize working accident during opertaion.

2. Efficiency: Operator simply load automatic material discharge, improve productivity and efficiency, reduce labor intensity.

3. Envirnmental protection: United dust-collecting device provide nearly dust-free working environment and solve dust-collecting diffculty in normal shaper production.

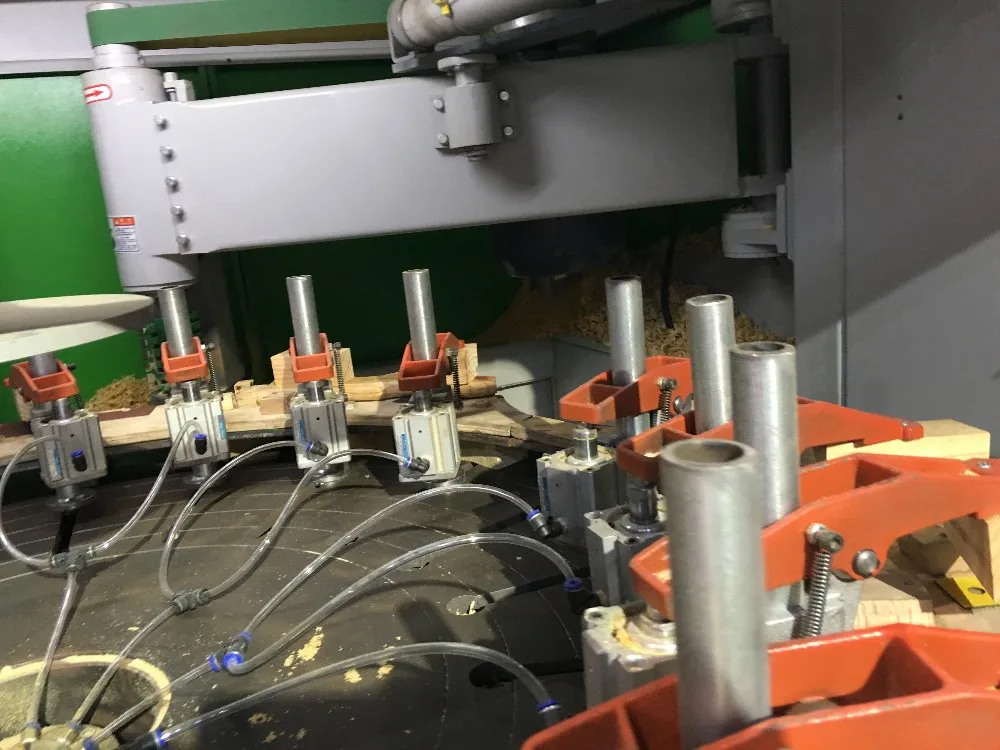

MX7525

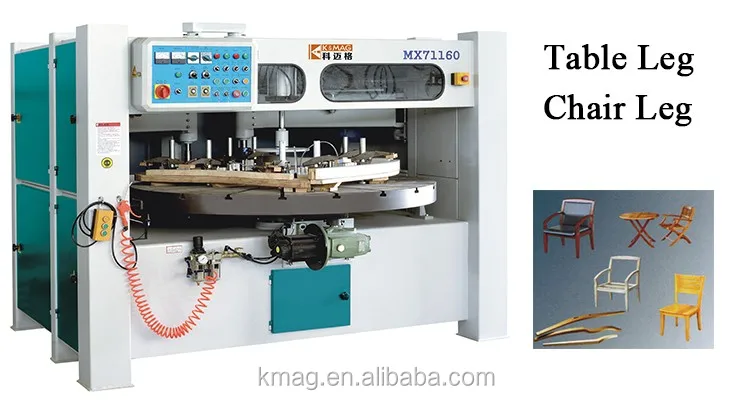

MX71160
Range Of Cutting Diameter
Ф610-2500mm
Ф500-1800mm
Max.working thickness
130mm
130mm
Table size
Ф1830mm
Ф1630mm
Cutter spindle diameter
Ф25.4/30/35mm
Ф35mm
Guiding roller diameter
Ф100mm
Ф100mm
Cutter spindle speed
9000r/min
8500r/min
Table speed
0.5-3r/min
0.5-3r/min
Spindle power
7.5kw*2
7.5kw*2
Table driving power
2.2kw
2.2kw
Working air pressure
0.6-0.8Mpa
0.6-0.8Mpa
Dust outlet diameter
Ф100*3pcs
Ф100*2  Ф120*2
Overall size
3060*2600*1730mm
2610*2170*1925mm
Weight
3850kg
3900kg

Feature:

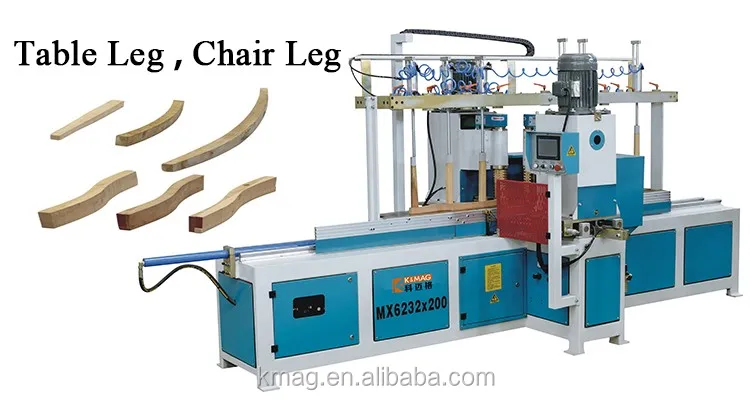

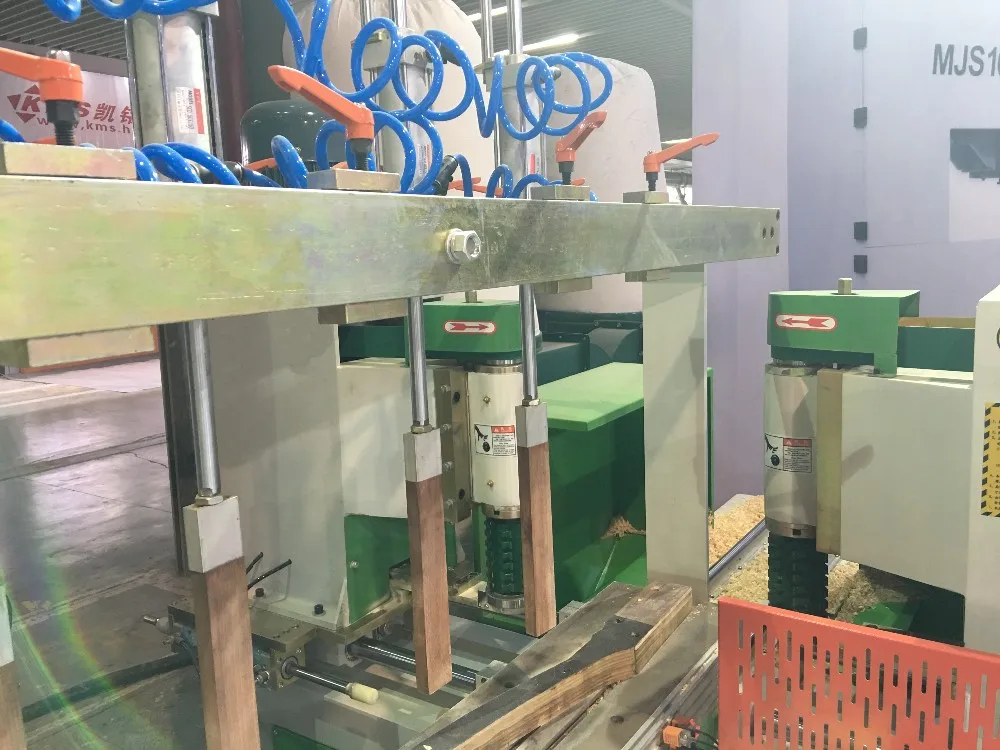

1. It is mainly used to process the long and slender piece,like the chair feet.

2. It adpots the model technics,and it can deal with the two sides of pieces at the same time, which as a result raises the efficiency.

3. The arbor motor is powered by gasous liquid tube and can be adjusted freely, thus it is suitable for different cutting speed.

4. The guideway is endurable and works in a precise strailine.

SPECIFICATION
Max.working length
2000mm
Max.working width
360mm
Max.working thickness
150mm
Cutter spindle diameter
Ф35mm
Diameter spindle diameter
Ф100mm
Cutter of backup wheel
9000r/min
Spindle power
505kw*2pcs
Hydraulic motor power
1.5kw
Table size
2000*30mm
Working air pressure
0.6-0.8Mpa
Hydraulic system pressure
8Mpa
Dust ooutlet diameter
Ф100mm*2pcs
Overall size
4000*2200*2100mm
Weight
2500kg
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Four Side Moulder

91.8% Response Rate

Vacuum Tube Lifter

91.8% Response Rate

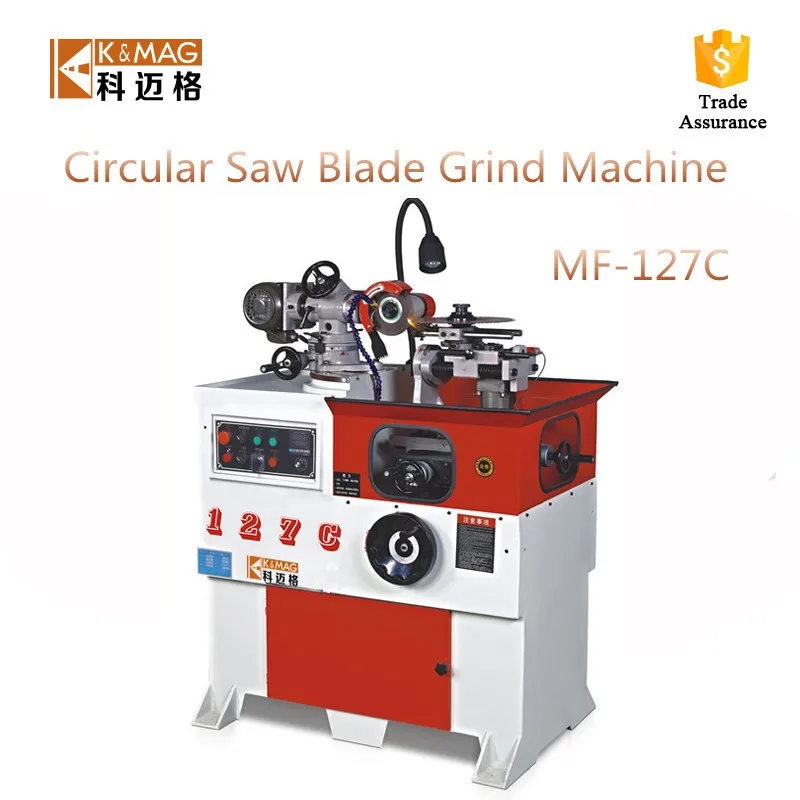

Saw Blade Sharpening Machine
