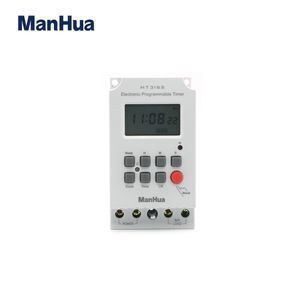

ManHua MT316s summer cooling time control 30A timer 230VAC digital programmable time switch

Product details
Max. Voltage:250VAC;Packaging Detail:standard package;
Power Consumpiton:<1W;Dimension(mm):98*55*40mm;
Powe reserve:≥3 year;Port:ningbo/shanghai;
Timing Range:1 Sec - 168 Hours;Place of Origin:Zhejiang China;
Product name:Timer Switch;Internal Battery:1.2V 40Ma(Rechargeable Battery)/1.2V 40Ma;
Timing Error:≤0.2sec/24h 25℃;Brand Name:Manhua;
Timing Times:28 ON/OFF per day;Operational Voltage:220-240VAC, 50~60Hz;
Custom-made Voltage:12V,24V,36V,48V,110V;Max. Current:30A;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;Supply Ability:10000 Piece/Pieces per Month;
Model Number:MT316s;
Product Description

MT316S is the new product, the advantages as follows:

1)With seconds control function

2)can be batch set the switch on/off time in the factory if customers need

3)battery storage time available for 4 years

4)28 on/off

5) With lock function

Manhua Best Selling Products 220VAC Digital Automatic Time Switch MT316s Timer switch with CE

♦Features

1- It widely applies to the time control of the equipments,streetlight,warehouse,

farming, heating and TV.

2- The battery inside, of the industrial clall chips, is precisely control,highly against disturb.

♦Characteristics

Power Voltage220VAC/50-60Hz+/-15%,other voltage could be made
Inside Battery1.2VDC/40MAH (It could work 3-4 years without battery, Rechargeable)
Electricity ConsumptionAppr.1.5VA
Output Control30A,250VAC(resistance onload)
Time error1 second per day
Time on/offmax 28 times recycle per day
Environment Temperatureminus 25 degree until 60 degree
Environment Humidity45-85% RH
Mechanical Lifetime3,000,000 times
WeightAppr.125g
Dimension98*55*44mm
Installation with screw M3,3pcs

♦Opertion ways

1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time

2- Set on/off time

StepButtonThe program set
1Press(manuel)buttonThe screen show"auto-on-auto-off-suto"
2Press(set)buttonStart to set the on.(show 1 on)
3Press(week)buttonSet the week
4Press(hour)buttonSet "hour"
5Press(min)buttonSet "min"
6Press(sec)buttonSet "sec"
7Press(set)buttonStart to set the off
8Repeat step2-6Set more on/off time
9Press(clock)buttonAfter setting,return to the local time



♦Wiring and Installations

1- diagram 1:direct control

2- diagram 2:control the switch output, the special made product

3- diagram 3: control contactor, wire voltage 220VAC/50HZ

4- diagram 4: control contactor, wire voltage 380VAC/50HZ





♦Attention

1- It should tighten the screw, to against the contact heating when the big current.

2- Control input wires is 220VAC 50/60HZ,it could not work with the voltage of 380VAC.

3- The voltage 12V,24V,AC110V,380V, could be made.

4- The control is on red light when the electricty is on.Red light and green light is on the same time when the load has the eletricity output.

5- The time set, it could not be mixed to set.It should follow the time sequence.
