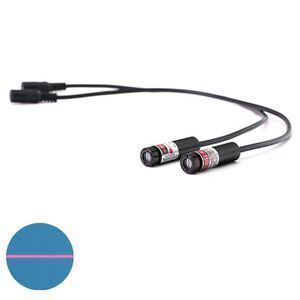

Industry level Adjustable Red 650nm 5mw line laser module for machining positioning

Supplier: Changshu Desheng Optics Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Mr Heedom Chen
Price: $3.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	Adjustable Red line 650nm 5mw laser module for machining positioning;	Supply Ability:	2500000 Piece/Pieces per Year Red line 650nm 5mw laser module for machining positioning;
OPTICAL PART:	LINE WAVE LENS;	Output power:	0.1~5MW (CUSTOMIZED);
Packaging Detail:	Packaging Details: ESD Plastic bag, outside with carton package;	OUTER DIMENSION:	12MM x 45MM;
Payment Terms:	T/T,Western Union;	Material:	Aluminum + Black anodizing;
Wavelength:	650nm (red);	Brand Name:	DESHENG;
Applicable Industries:	industry;	Fan angle:	5°-130°;
POWER SUPPLY:	3~5 V ,12~24 V;	Place of Origin:	Jiangsu China;
WORKING CURRENT:	<25 MA ;<5 MA;	WIRE:	15CM RED AND BLACK LINE /40CM DC LINE / BALCK LINE;
Port:	Shanghai;

Industry level adjustable Red line 650nm 5mw laser module for machining positioning

PRODUCT INFORMATION

LASER MODULE
BRAND	DESHENG	MODEL	DSL6505LH1245
WAVE LENGTH	650 NM (RED)	OUTPUT POWER	0.1~5MW (CUSTOMIZED)
POWER SUPPLY	3~5 V 12~24 V	WORKING CURRENT	<25 MA <5 MA

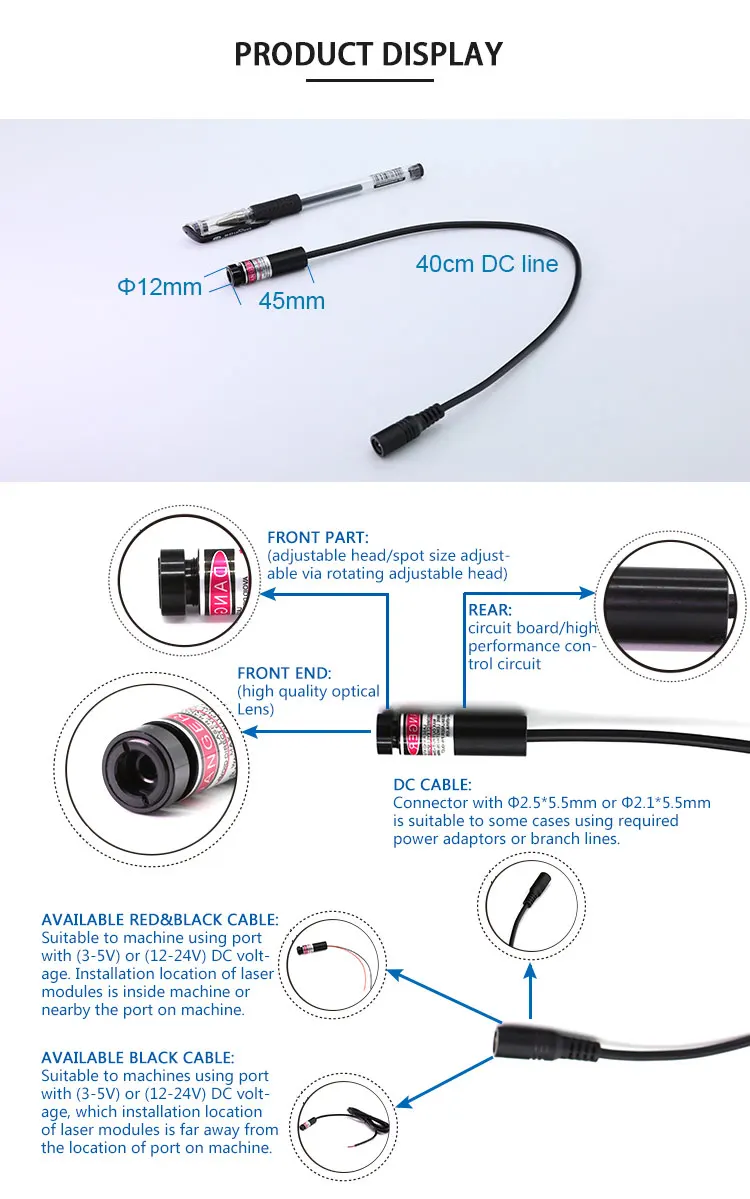

OUTER DIMENSION	Ø12MM x 45MM	WIRE	15CM RED AND BLACK LINE /40CM DC LINE / BALCK LINE
BEAM MODE	LINE	DIVERGENT ANGLE	5~130°
OPTICAL PART	LINE WAVE LENS	LIGHT WEIGHT	ADJUSTABLE
WORKING TEMPERATURE	-10~50℃	STORAGE TEMPERATURE	-40~80℃
OPERATING LIFE	SEIKO LEVE > 10000 HOURS	SAFEGARDE GRADE	1~3R / I~IIIa
MATERIAL COMPOSITION	BLACK AVIATION ALUMINUM BODY + LASER DIODE + HIGH QUALITY LENS + PCB + WIRE

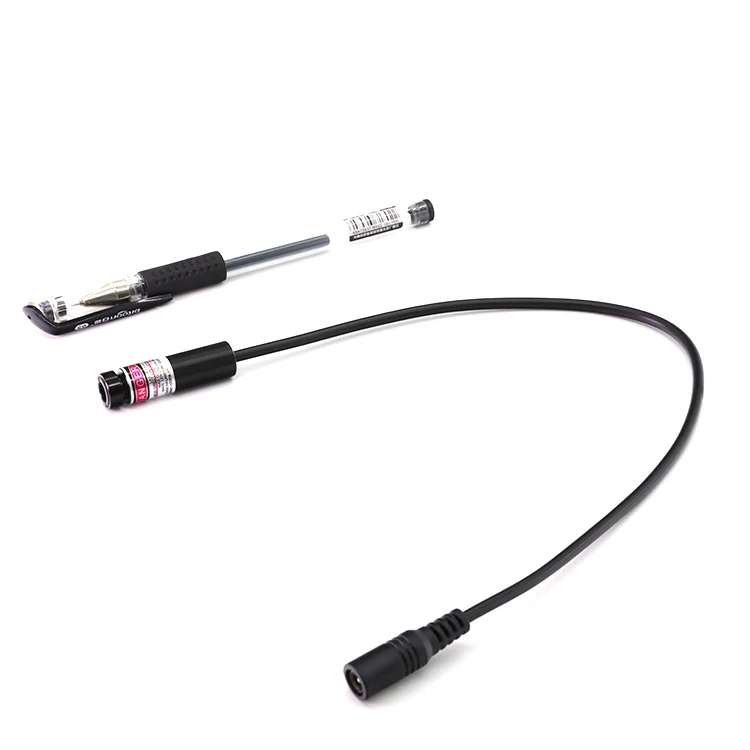

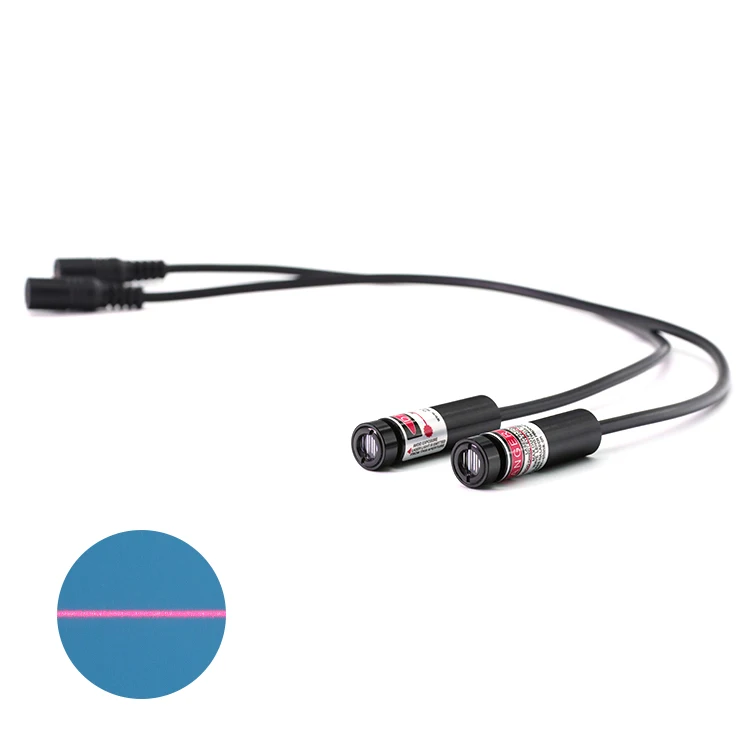

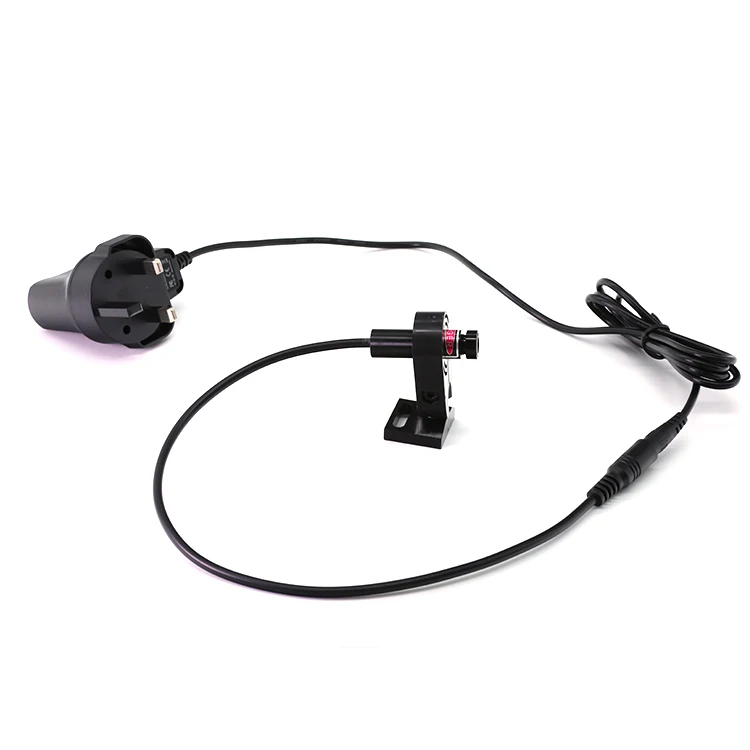

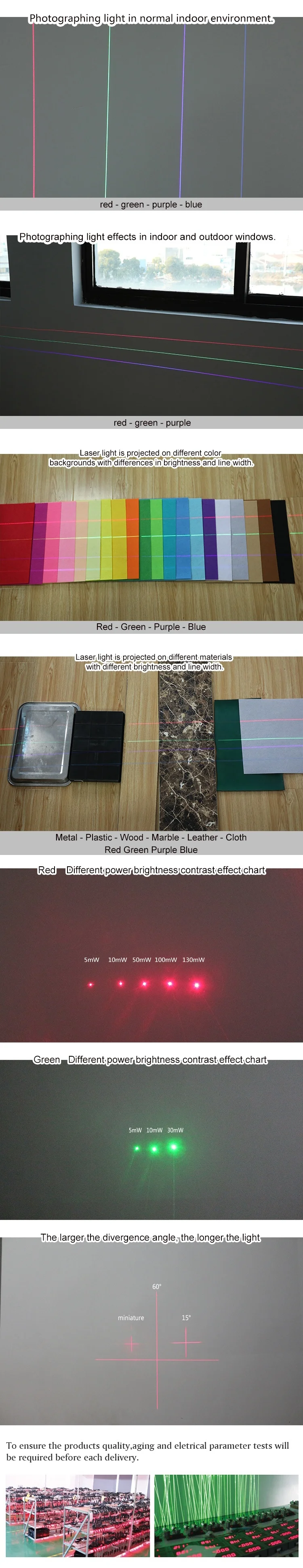

Product Show

Details:

650nm red parallel line laser module integrates all parts of import 650nm red laser diode with glass window, qualified glass cylindrical lens, metal heat sink and constant current electric driving circuit into the most compact aluminum housing tube. Available with compact laser tube diameter of 12mm, 16mm and 38mm, this 650nm red laser module always enables easy and convenient operation in all industrial parallel line alignment and configuration work fields. Customize 650nm parallel line laser is also acceptable.

Key features:

·Direct parallel line emission from 650nm red laser diode, enables the most stable and reliable parallel laser source for continuous operation.
· Adjustable focus designed red parallel line laser enables idea adjustment of parallel line laser pattern, increasing parallel line alignment accuracy and precision.
· Compact size design, available with 12mm*75mm, 16mm*75mm, 38mm*160mm
· Wide selection of output power range: 5mW-1000mW
·Rapid red parallel line laser source targeting onto work surface, both low time and laser power consumption.

Application:

Economy 650nm red parallel line laser module get wide applications in long distance tunnel through positioning, bridge cranes, paper mills, roller and web handing system, steel mills, aligning tracks and guide rails, material handing rail cart systems, alignment sprocket and drive system, and many other special occasions.
Red parallel line laser is also a monochromatic light source, available with high degree of parallelism for industrial version and other industrial automation perspective, teaching experiments etc.

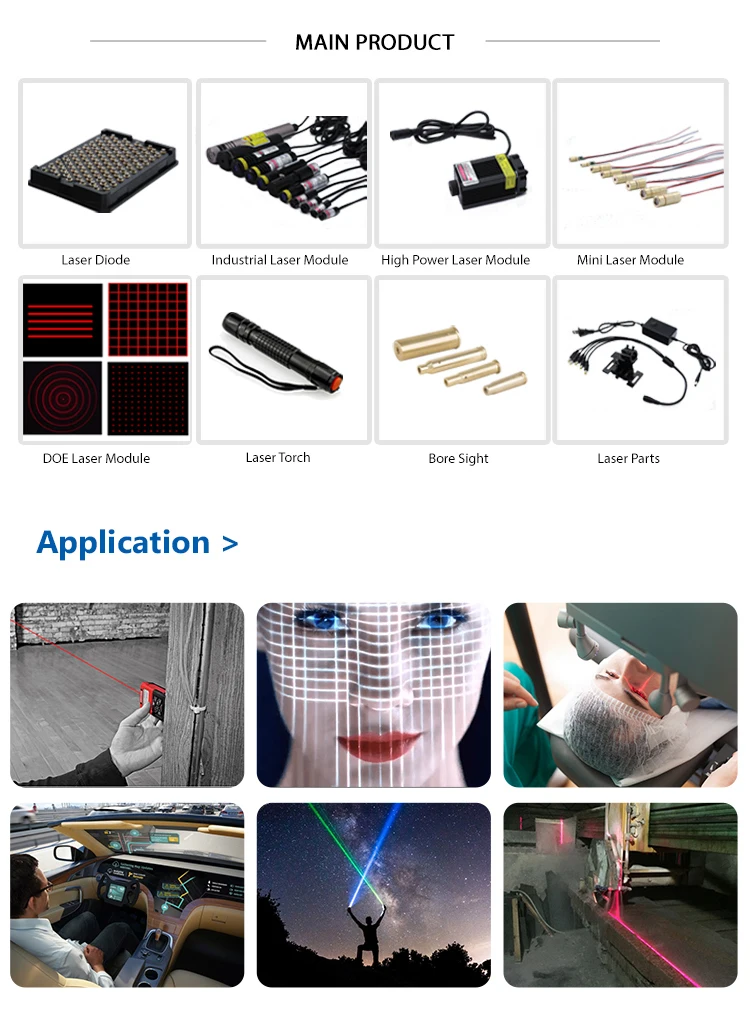

MAIN PRODUCT

SERVICES

PACKING&SHIPPING

FAQ

1.What's the way of shipping?

Lasers can be shipped via DHL , TNT , UPS, FedEx and EMS. The shipping cost will be based on the total weight and volumes. We can make the cost collected if you have courier account.

2. How to pay?

Assurance payment on Alibaba.

3.What's your MOQ?

The MOQ can be 1 piece but not applicable to customized products.

4.What's the delivery time?

Normally 3 – 7 days for standard products but not applicable for customized products.

5.Can I customize the products based on my need?

Yes. We can design and produce lasers based on your special requirements.

6.Do you have any certifications for lasers?

Yes. All our lasers are certified with CE, RoHs and FDA.

7.How long is the warranty peroid?

12 months.
