Hardness: | More than 2000HV; | Testing Samples: | Free of charges; |
Mode Number: | Partial Profile 60 Degree Carbide Indexable Inserts; | Price: | Competitive; |
Supply Ability: | 30000 Piece/Pieces per Month; | Packaging Detail: | 10 pieces in a plastic box, carton box outside; |
Brand Name: | Diamond; | Port: | Shanghai, shenzhen, chengdu; |
Material: | Carbide; | Color: | Golden, black; |
Usage: | Thread turning; | OEM and ODM: | Acceptable; |
Payment Terms: | L/C,D/A,T/T,Western Union,MoneyGram; | Place of Origin: | Sichuan China; |
Carbide Indexable Inserts

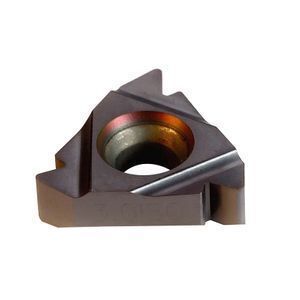

Partial Profile 60 Degree carbide indexable threading inserts :
Application:
carbide indexable threading Insert with TiN coating is suitable for steel, copper and other alloy aluminium processing application, and the other one with TiALN coating is suitable for stainless steel processing application.
Engineering Drawing and Selection Table for Partial Profile 60 Degree External Carbide Inserts:
D | Pitch | Designation | Dimension | |||||
mm | TPI | Right Hand | Left Hand | L | X | Y | ||
External | 1/4" | 0.5~1.5 | 48~16 | 11ER A60 | 11EL A60 | 11 | 0.8 | 0.9 |
3/8" | 0.5~1.5 | 48~16 | 16ER A60 | 16EL A60 | 16 | 0.8 | 0.9 | |
0.5~3.0 | 48~8 | 16ER AG60 | 16EL AG60 | 1.2 | 1.7 | |||
1.75~3.0 | 14~8 | 16ER G60 | 16ELG60 | 1.2 | 1.7 | |||
1/2" | 3.5~5.0 | 7~5 | 22ER N60 | 22EL N60 | 22 | 1.7 | 2.5 | |
5/8" | 5.5~6.0 | 4.5~4 | 27ER Q60 | 27EL Q60 | 27 | 2.1 | 3.1 |
D | Pitch | Designation | Dimension | |||||
mm | TPI | Right Hand | Left Hand | L | X | Y | ||
Internal | 3/8" | 0.5~1.5 | 48~16 | 16IR A60 | 16IL A60 | 16 | 0.8 | 0.9 |
0.5~3.0 | 48~8 | 16IR AG60 | 16IL AG60 | 1.2 | 1.7 | |||
1.75~3.0 | 14~8 | 16IR G60 | 16ILG60 | 1.2 | 1.7 | |||
1/2" | 3.5~5.0 | 7~5 | 22IR N60 | 22IL N60 | 22 | 1.7 | 2.5 | |
5/8" | 5.5~6.0 | 4.5~4 | 27IR Q60 | 27IL Q60 | 27 | 1.8 | 2.7 |
Engineering Features for Carbide Inserts and Enlarged View:
Application of the Carbide Inserts:
Factory Overview and Main Quality Control Equipments:
Meeting Customers in Exhibitions:
Customer Visiting Our Factory:
OEM and ODM Service Will be welcome.
In case of any assistance, pls feel free to contact us.
