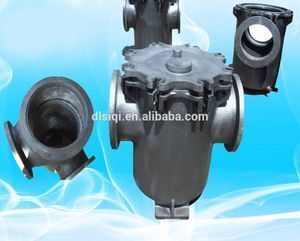

Product Name: | 5k 350A WATER FILTERS; | Size: | 5k 350A; |
Part: | Water strainer; | Application: | Marine; |
Type: | S,LA,LB type; | Single package size: | 1000X1000X1100 cm; |
Packing: | Standard Package; | Color: | Required; |
Certificate: | ISO9001:2008; | Usage: | sea water; |
Single gross weight: | 500 KG; | Material: | Grey iron or Ductile iron; |
Place of Origin: | Liaoning China; | Name: | Can water strainers; |
Selling Units: | Single item; | Brand Name: | OEM; |
Package Type: | Plastic coat Wooden case; |

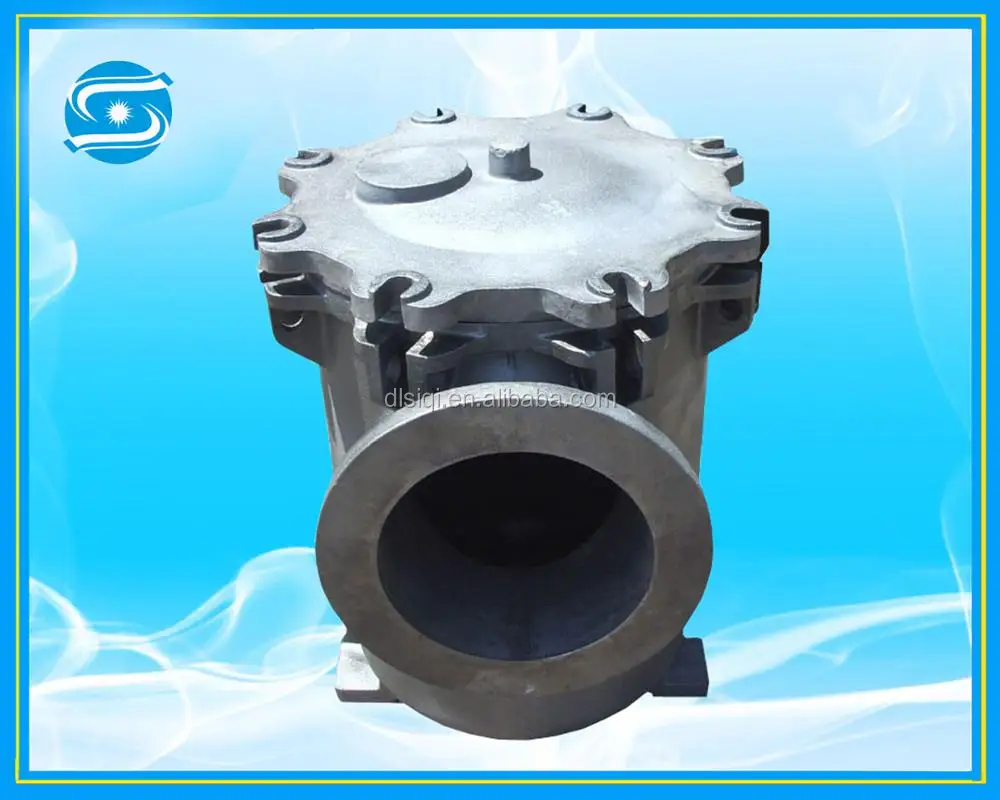

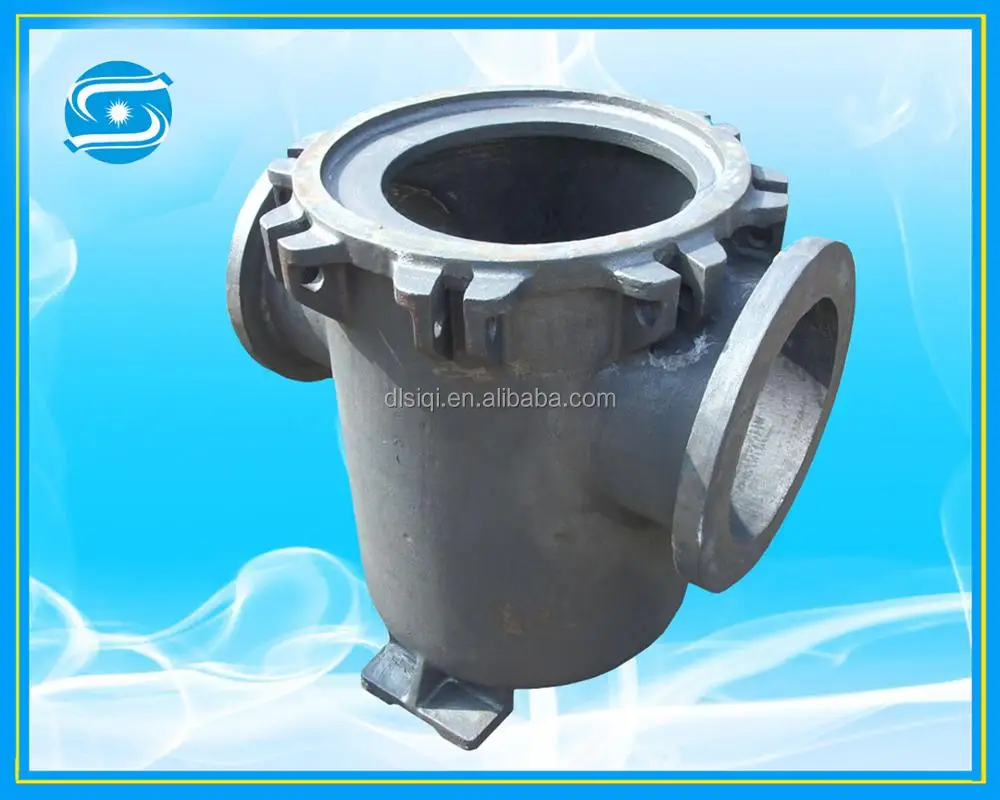

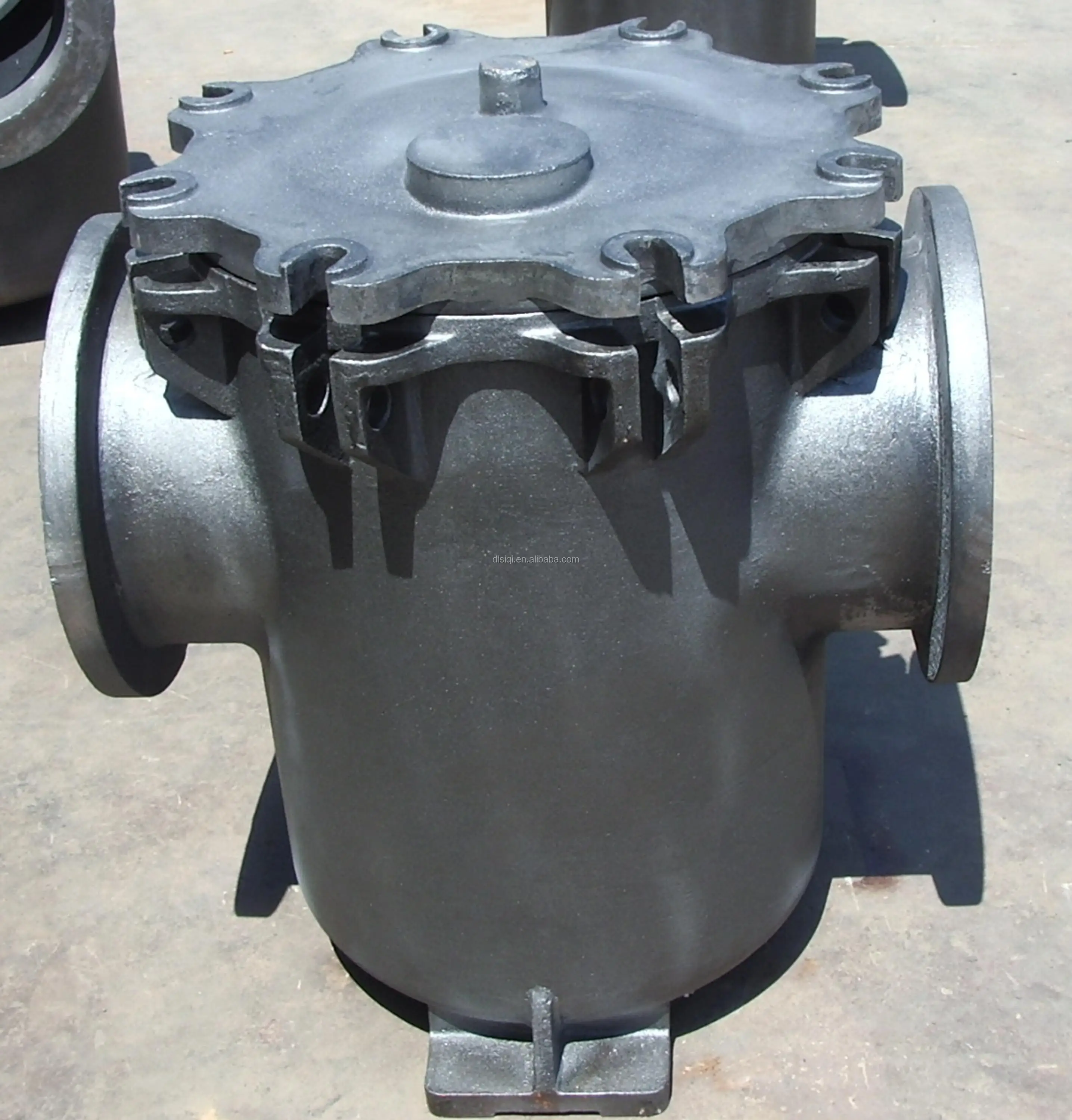

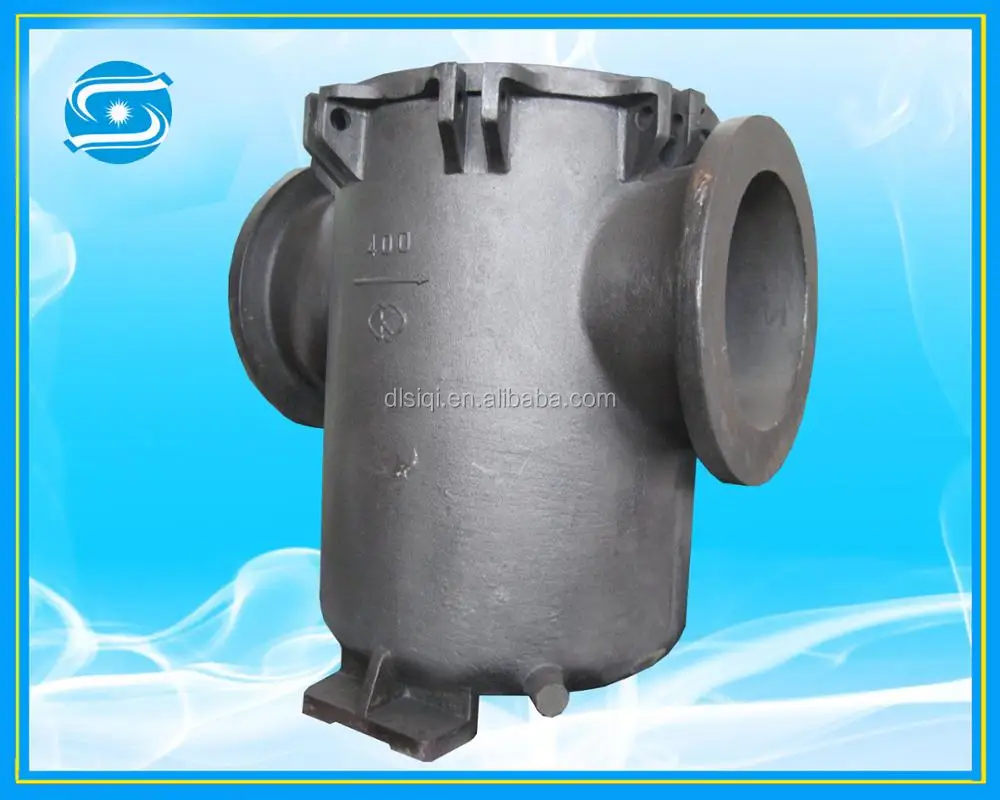

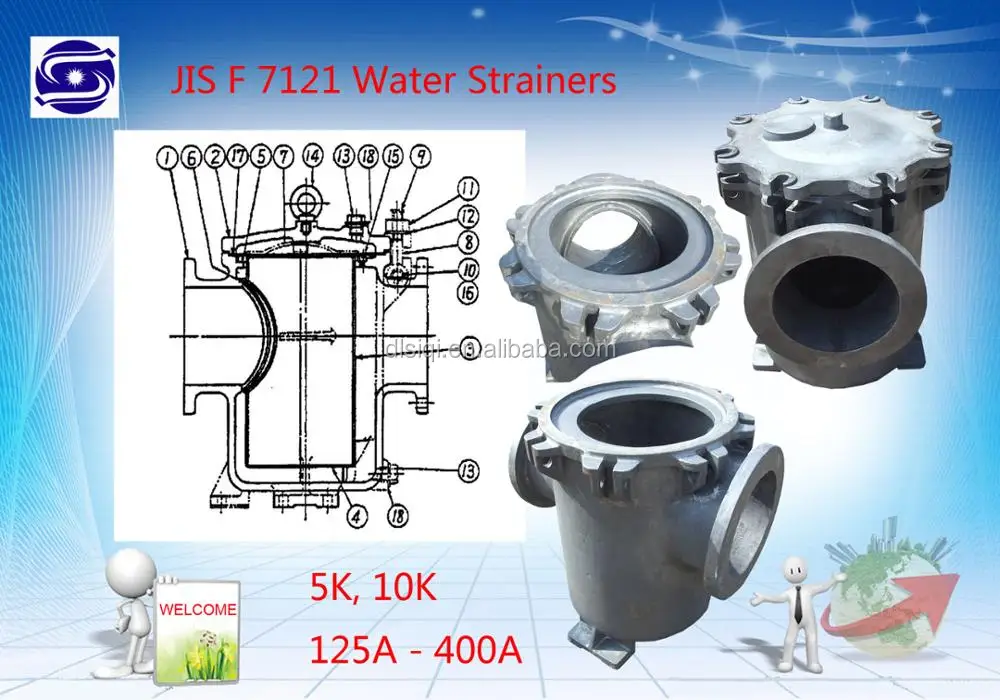

JIS F 7172 Water strainers
1. Product Details :
NO | Description | Material | NO | Description | Material |
1 | BODY | JIS G 5501 FC200 | 10 | BITT | JIS H 3250 C3604 BD |
2 | COVER | 11 | HEX NUT | JIS H 3250 C3771 BD | |
3 | FILTER | JIS G 3101 SS400 OR JIS G 4304 SUS304-HP | 12 | SPACER | JIS G 3101 SS400 |
4 | BOTTOM PLATE | 13 | PLUG | JIS H 3250 C 3771 BD | |
5 | LIP | 14 | RINGS | JIS G 4051 S20C | |
6 | MOUTH PLATE | 15 | STOP SCREW | JIS G 4303 SUS420 J1 | |
7 | HANDLE | JIS G 4801 SUP3 OR JIS G 4304 SUS304-HP | 16 | SPLIT PIN | JIS H 3260 C 2600W |
8 | BOLTS | JIS H 3250 C3771 BD | 17 | GASKET | JIS F 7102 |
9 | HEADBLOCK | 18 |

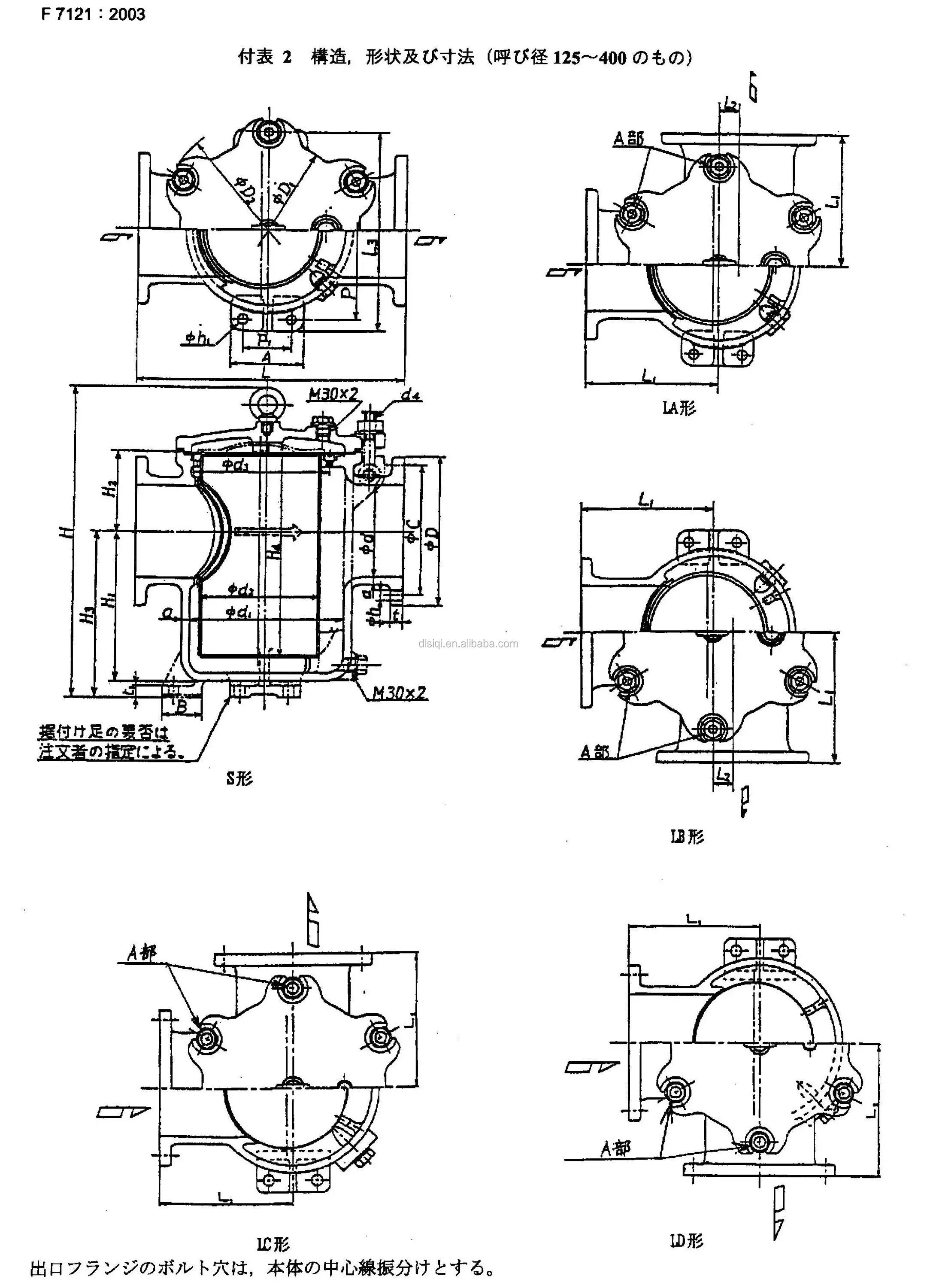

UNIT: mm
DN | d | L | L1 | FLANGE | H | BODY | ||||||||||
D | SCREW HOLES | SCREW | t | a | D1 | d1 | H1 | H2 | H3 | |||||||
C | PCS | h | ||||||||||||||
125 | 125 | 400 | 200 | 235 | 200 | 8 | 19 | M16 | 20 | 485 | 12 | 260 | 215 | 207 | 125 | 235 |
150 | 150 | 460 | 230 | 265 | 230 | 8 | 19 | M16 | 22 | 575 | 13 | 310 | 260 | 258 | 145 | 290 |
200 | 200 | 550 | 275 | 320 | 280 | 8 | 23 | M20 | 24 | 665 | 15 | 375 | 320 | 320 | 170 | 350 |
250 | 250 | 680 | 340 | 385 | 345 | 12 | 23 | M20 | 26 | 825 | 17 | 480 | 420 | 412 | 210 | 450 |
300 | 300 | 760 | 380 | 430 | 390 | 12 | 23 | M20 | 28 | 920 | 18 | 545 | 480 | 473 | 235 | 515 |
350 | 335 | 820 | 410 | 480 | 435 | 12 | 25 | M22 | 30 | 1030 | 19 | 605 | 535 | 529 | 265 | 575 |
400 | 380 | 880 | 440 | 540 | 495 | 16 | 25 | M22 | 30 | 1135 | 20 | 665 | 595 | 595 | 300 | 645 |
UNIT:mm
DN | D2 | FILTER | SCREW | BASE FEET | REFERENCE | |||||||||||||
d2 | d3 | H4 | pcs | d4 | A | B | L3 | P | P1 | t1 | h1 | FILTER THRU AREA(cm2) | WEIGHT (kg) | |||||
HOLE DIA.4mm | HOLE DIA.8mm | NO FILTER | FILTER | |||||||||||||||
6mm | 7mm | 11 mm | ||||||||||||||||
125 | 323 | 165 | 195 | 295 | 6 | M20 | 120 | 65 | 300 | 260 | 80 | 18 | 19 | 480 | 350 | 570 | 62.2 | 3.37 |
150 | 384 | 200 | 235 | 360 | 6 | M22 | 130 | 70 | 350 | 310 | 90 | 20 | 19 | 720 | 530 | 860 | 88.6 | 4.31 |
200 | 460 | 250 | 285 | 440 | 6 | M24 | 150 | 85 | 430 | 380 | 100 | 22 | 23 | 1130 | 830 | 1350 | 141 | 6.98 |
250 | 565 | 330 | 370 | 565 | 8 | M24 | 200 | 100 | 540 | 480 | 140 | 24 | 25 | 1910 | 1420 | 2300 | 246 | 12.8 |
300 | 650 | 380 | 420 | 645 | 8 | M30 | 220 | 100 | 600 | 540 | 160 | 24 | 25 | 2540 | 1880 | 3050 | 321 | 15.6 |
350 | 710 | 420 | 465 | 780 | 8 | M30 | 240 | 105 | 650 | 590 | 180 | 26 | 25 | 3170 | 2360 | 3820 | 428 | 20.3 |
400 | 770 | 470 | 515 | 830 | 8 | M30 | 260 | 110 | 710 | 650 | 200 | 26 | 25 | 4080 | 3020 | 4880 | 518 | 25.1 |
