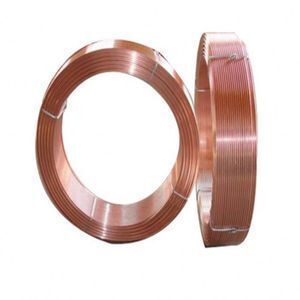

Copper Coated 3.2mm Mig Welding Wire

Supplier: Wuxi Bono International Co., Ltd.
Region: Jiangsu, China
Contact: Ms windy jiang
Price: $2.30 /kilogram
Min. Order: 1 kilogram

Click here to contact

Product details

Single package size:	50X50X50 cm;	Polarity:	DC;
Model Number:	scrap copper wire;	Diameter:	0.8/0.9/1.0/1.2/1.4/1.6mm;
Elongation:	20%;	Application:	Welding Galvanized Sheet, Lap Welding;
Welding poisition:	All positions;	Package Type:	Packing Size: 275mm* 275mm* 105mm 300mm300mm105mm Outer Packing:1spool/ctn Every spool product is strongly packed by carton box with antirust paper inside. Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft;
Package Preview:	https://sc01.alicdn.com/kf/HTB1LDhkdRCw3KVjSZFlq6AJkFXax.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1BaxndGWs3KVjSZFxq6yWUXXaa.jpg_640x640.jpg;	Application:	Welding Galvanized Sheet, Lap Welding;
Brand Name:	BONO;	Single gross weight:	1 KG;
Place of Origin:	Jiangsu China;	Tensile strength:	480Mpa;
Weight:	0.45kg, 0.5kg, 0.9kg, 1kg, 5kg;	Melting Point:	International Standard;
Model number:	e71t-1c 1.2mm 15kgs/spool;	Weight:	0.45kg, 0.5kg, 0.9kg, 1kg, 5kg;
Shielding:	Gas Gasless;	Spool Dia:	D100/D200/D270;
Flux Content:	International Standard;	Selling Units:	Single item;

Product Description

Certificate	CE ISO9001, ABS,LR,CCS,DB ,TUV.etc
Packing Details	Packing Size: 275mm* 275mm* 105mm 300mm300mm105mm Outer Packing:1spool/ctn Every spool product is strongly packed by carton box with antirust paper inside. Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft
MOQ	1 Pallet for Flux cored welding wire E71T-1
Warranty	1 year for FLUX CORED WIRE
Payment	T/T,L/C,D/P, Western Union for FLUX CORED WIRE

Features

E71T-1: use of CO2welding titanium type flux cored wire. Cladding of high efficiency, all position welding techology performance, but also vertical downward welding. Applicable to ship. pressure vessels. machinery and equipment, steel structures such as bridges for low carbon steel and 409 MPa steel welding.

Application

Welding wire used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding wire.

Conform with:

AWS:E71T-1 GB/T E501T-1

Package

Specificaton

Wire Tray

Weight

Φ1.0~1.6mm

D100mm D200mm

D270mm D300mm

K300mm

1kg 5kg 20kg 250kg

Wire Chemical Composition(%)
C	Si	Fe	Mn	Mg	P	S	Ai
≤0.10	≤0.75	-	≤1.75	-	≤0.03	≤0.03	-

Matters needing attention:

1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package.

2.Welding shall be removed before welding surface oil, rust,water and other impurities.

3.The CO2 gas protection, CO2gas purity 99.98%.

4.CO2 welding protective gas flow rate should be controlled at 20~25L/min welding wire.

5.Wire extension length should be controlled in the range of 15~25mm for welding wire.

6.Preheatig before welding to weld 150°C~300°C, 700°C~740°C tempering treatment only after.

Packaging & Shipping

Packing Size: 275mm* 275mm* 105mm 300mm*300mm*105mm

Outer Packing:1spool/ctn

Every spool product is strongly packed by carton box with antirust paper inside.

Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft

Our Services

24 hours online service
One year warranty
Sample can be suuplied in 3 days
OEM and ODM are available
Trial order are availabe
