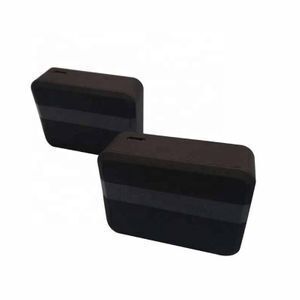

Retail store infrared people counter for entrance door wifi people counting system

Rechargeable batteryWifi version ,the distance can be 1-40M., you can check the number of the people directly on the display screen,and in and out is separate,and if it have a computer within 35m, the data will be sent automatically to the computer by wifi.
The advantage is Stable performance ,accurate, reliable, easy to install, low maintenance, and very affordable.Can use APP to check the data,can upload data to computer.

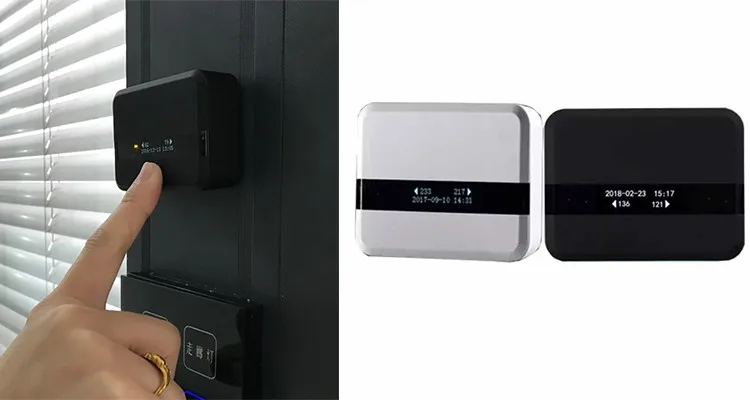

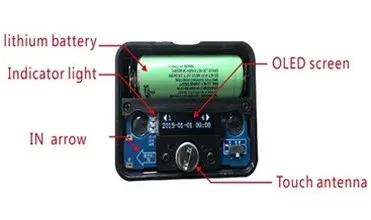

This is touch antenna, when we are conducting touch operation, the yellow indicator light will light up. We can inquiry various information the counting terminal through touching operation, such as current power, product ID, working parameters and working period. Such information is automatically downloaded by this counting terminal from cloud or set up by phone.

Lighting up of yellow indicator also acts as power alarm, when battery voltage is too low, the indicator will be flickering and remind you to charge or replace the batteries, there is a USB interface which can be used to supply power or charge the device if you do not want to use battery, in this case, the yellow indicator keep lighting.

There is a blue indicator for WIFI network transmission indication.

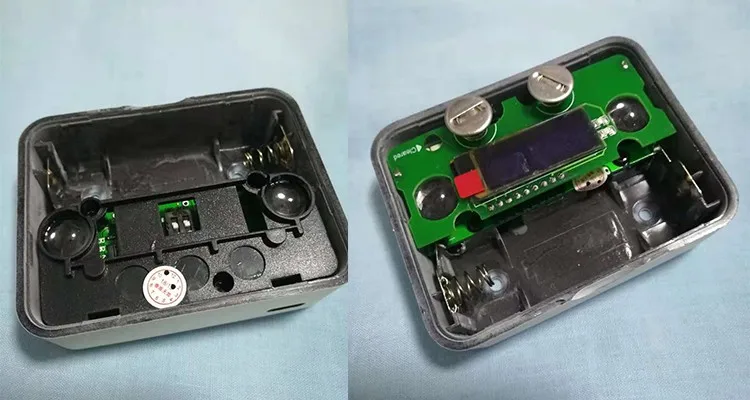

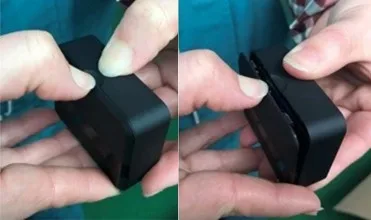

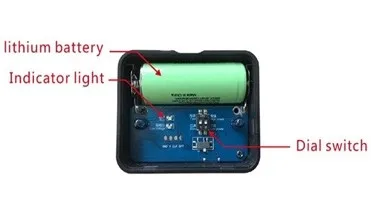

Now I will introduce the infrared transmitter, unpack the cover and load the battery, the blue indicator flickers three times which means the device started normally.

There is a dial switch on infrared transmitter, No.1 switch is used to control the frequency of transmitter which needs to be corresponding with the moving speed set by terminal. If it is set to be high speed, then the No.1 switch should be dialed to high-speed position. If the No.2 switch is dialed to enhance position, the infrared signal can transmit a further distance. After changed the position of dial switch, the device needs to be reloaded batteries and restarted.

When the battery power is low, please use matched charger to charge the battery, it may costs about 6 hours, after charging completed, the green indicator will light up.

Firstly, we should ensure the installation position having a good WIFI coverage, if the WIFI signal is too weak, the terminal will be more power consumption when connecting to network, or even it may be unable to connect network. The simplest way is checking the intensity of WIFI network signal at installation position by our cellphone.

Install the terminal, it is important to note that there is an arrow inside the terminal, the direction of the arrow must be compliance with pedestrian's actual entering direction, thus we only can install the terminal at the right side of this door. The terminal should be parallel installed, as we can see there is no surface for directly fixing in this side, we can only use supporting brackets in order to ensure alignment of terminal and infrared transmitter.

1. Are you a trade company or manufacturer?

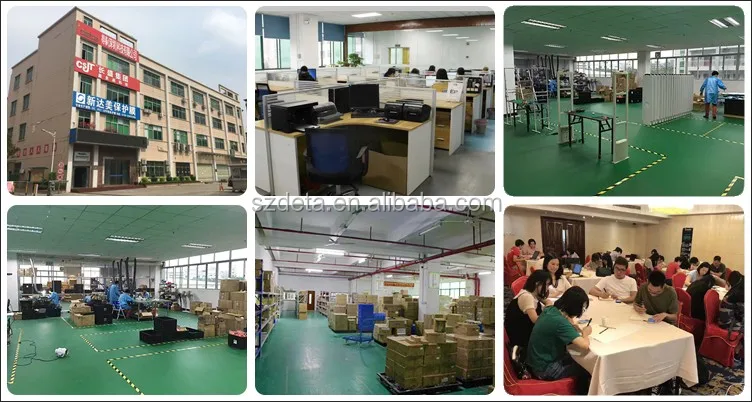

We are an manufacturer specialized in eas System for more than 12years, located in shenzhen city, welcome to visit us.

2. What is your MOQ?

Any quantity is acceptable for your order. And the price is negotiable for large quantity.

3. What is your delivery date?

The delivery date is about 5-15 days after receipt of payment.

4. What is your payment terms?

30% deposit in advanced and 70% balance before shipment.

5. Can you send free samples?

Yes, free samples are available, you just need to pay the express fee. You can provide you a/c like DHL, or you can call your courier to pick up from our office.

6. How does your factory do regarding quality control?

Quality is priority. We always attach great importance to quality controlling from the very beginning to the very ending. Our factory has gained FCC, CE authentication.
