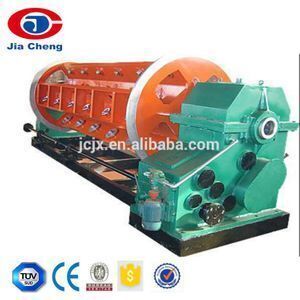

Rigid Strander Machine For Shaped Wire Driven By Individual Motor wire and cable making equipment

Product details
Supply Ability:100 Set/Sets per Year High Quality Rigid Strander;Cage rotate speed:98-178r/min;
Weight:105000kg;Traction speed:16-62r/min;
Stranding pitch:40-1400mm;Take-up reel:PND1600-PND3150;
Usage:Stranding;Power:250000w;
Pay-off reel in cage:PND630;Stranding maximum sectional area:800mm (copper wire);
Packaging Detail:1.standard export packing 2.as your requirement 3.wire and cable making equipment;Place of Origin:Jiangsu China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Brand Name:Jiacheng wire and cable making equipment;
Model Number:JCJX-KJ630 wire and cable making equipment;Traction wheel dia.:2500mm*2;
Port:Shanghai;Stranding single wire Dia.:1.5-4.5mm(copper wire);





  High Quality Rigid Strander





Main Usage

 The machine is suitable for stranding long length and section aluminum, bare copper, aluminum alloy, aluminum cable steel reinforcing wires to produce the following power cables: sector shaped conductors, round compacted,single core prespiralled.wire and cable making equipment

Machine's advantage

 (1) Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more. The equipment has high rigidity, high-powered, high speed.

 (2)It is driven by 36-stage gear-box.The two wheels of the double wheel capstan are overhung position supported on shafts.One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.The maximum pulling force reaches 15T.Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

Technical Parameter



                               Machine type

JCJX-KJ630

Stranding single wire Dia.(mm)

Copper

1.5~4.5

Al alloy

1.8~5.0

Aluminum

1,8~5.0

Max. cage rotate speed (rpm)

6B

192

12B

173

18B

124

24B

117

30B

90

Pay-off reel in cage

PND 630

Central pay-off reel

PND630-PND2000

Take-up reel

PND1600-PND3150

Control type

PLC+touch screen

Key part brand

 Japan NSK bearing

 Switzerland belt

 France Schneider electric

 Shenzhen Inovance inverter

Our Services

    Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes

1)   Correct operating mode

2)   Correct maintenance way

3)   Remove simple problem of our product

   Since the shipment date, our company freely assuring period of after-sale maintenance service is:

1)   1year for mechanical part

2)   6 month for electrical part

Company Information

  (1) We already have a history of more than 20 years.



  (2) Attending a lot of exhibition at home and abroad.

    (3) Getting a lot of honor and certificate.

Market



    India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh,Turkey, Russia, Italy, Poland, Ukrain, England and so on.
